Turbosmart Comp-Gate40 Wastegate 40 mm 14 psi Black TS-0505-1010

SKU: TS-0505-1010

$359.99

Turbosmart Comp-Gate40 Wastegate 40 mm 14 psi Black TS-0505-1010

Control boost with a compact external mechanical wastegate design
Turbosmart Comp-Gate40 Wastegate 40 mm 14 psi Black TS-0505-1010

Package more easily with a smaller and lighter wastegate body
Turbosmart Comp-Gate40 Wastegate 40 mm 14 psi Black TS-0505-1010

Change springs faster using Turbosmart locking collar hardware
Turbosmart Comp-Gate40 Wastegate 40 mm 14 psi Black TS-0505-1010

Support reliability with a silicon Nomex diaphragm design
Turbosmart Comp-Gate40 Wastegate 40 mm 14 psi Black TS-0505-1010

Install with supplied V-band flanges, clamps, fittings, and collar tool

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Low in stock

California Proposition 65 Warning

Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Emissions & Compliance

CARB Compliance Not Confirmed
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Turbosmart Comp-Gate40 Wastegate 40 mm 14 psi Black TS-0505-1010

$359.99

$359.99

40 mm

Diameter

14 psi

Spring

Mechanical

Control

Product Description

The Turbosmart Comp-Gate40 is a black external mechanical wastegate built for controlled boost management in turbocharged performance systems. This version uses a 40 mm valve size and a 14 psi spring pressure rating.

The compact wastegate design combines a solid one-piece coated stainless steel valve with a silicon Nomex diaphragm for performance and reliability. Its smaller and lighter housing improves packaging compared with the previous model.

A unique locking collar helps reduce overall size and speeds up spring changes. V-band inlet and outlet hardware, twin 1/16 NPT reference ports, included fittings, and a limited 1 year warranty round out the setup.

Specifications

Brand
Turbosmart
Part Number
TS-0505-1010
Type
External Wastegate
Series
Comp-Gate40
Control
Mechanical
Diameter
40 mm
Spring Pressure
14 psi
Adjustable
Yes
Valve
One-Piece Coated Stainless Steel
Diaphragm
Silicon Nomex
Reference Ports
Twin 1/16 NPT
Clamp Style
V-Band
Base Material
Cast Stainless Steel
Warranty
Limited 1 yr
Compliance
CARB Compliance Not Confirmed

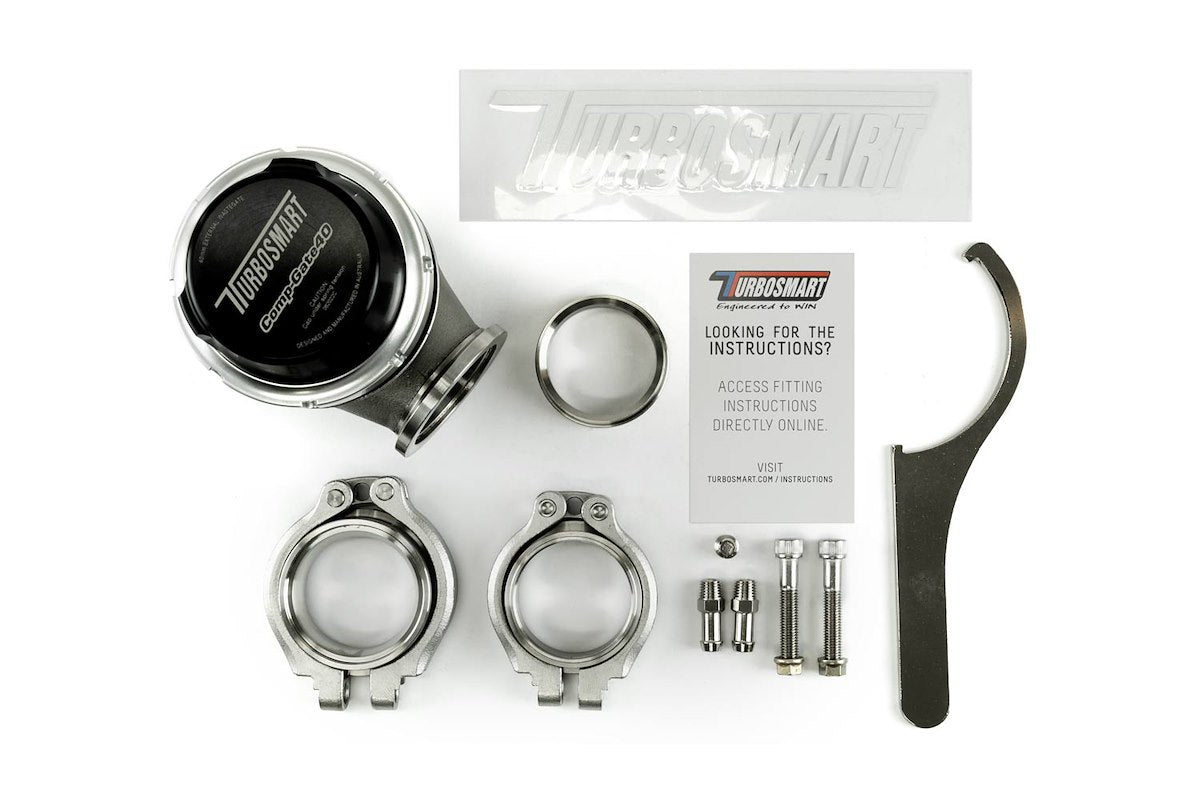

What's in the Box

Turbosmart Comp-Gate40 wastegate
Inlet flange
Outlet flange
V-band clamps
Valve seat
Vacuum fittings
Collar tool

Installation & Documents

Install using the supplied V-band inlet and outlet hardware, fittings, valve seat, and collar tool. Match the spring pressure to the intended boost-control setup before installation. Review the application and supplied document before installation. California buyers should review the Prop 65 warning before purchase.

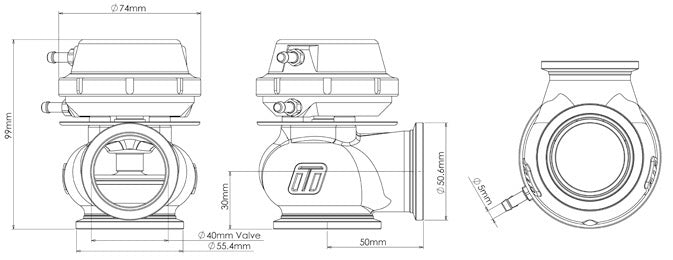

Spring Chart
