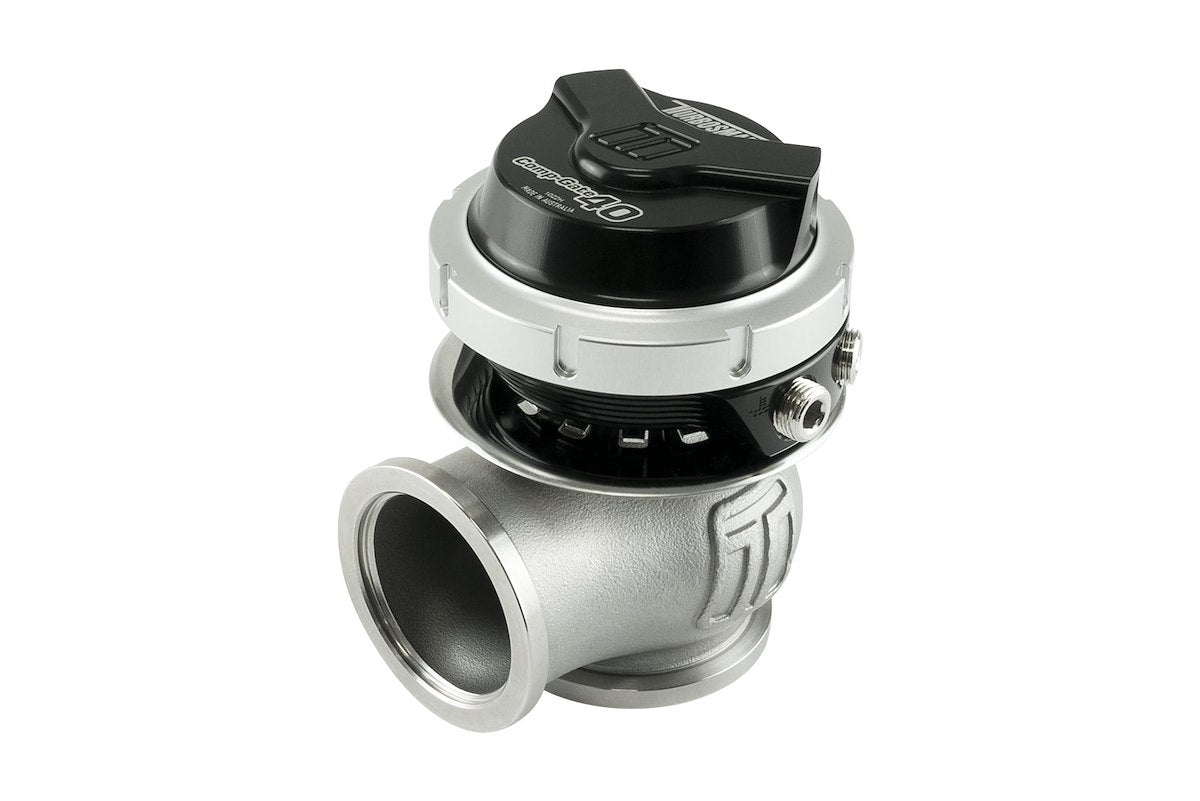

Turbosmart Turbocharger Wastegate TS-0552-1002 product image 1
Turbosmart Turbocharger Wastegate TS-0552-1002 product image 2
Turbosmart Turbocharger Wastegate TS-0552-1002 product image 3

Turbosmart Gen-V Comp-Gate40 Wastegate 40 mm 7 psi Black TS-0552-1002

SKU: TS-0552-1002

$394.19

Turbosmart Gen-V Comp-Gate40 Wastegate 40 mm 7 psi Black TS-0552-1002

Manage turbo boost with an external mechanical wastegate design
Turbosmart Gen-V Comp-Gate40 Wastegate 40 mm 7 psi Black TS-0552-1002

Support thermal control with high-temp stainless body construction
Turbosmart Gen-V Comp-Gate40 Wastegate 40 mm 7 psi Black TS-0552-1002

Simplify setup with strap-type V-band clamp hardware
Turbosmart Gen-V Comp-Gate40 Wastegate 40 mm 7 psi Black TS-0552-1002

Adjust actuator position for cleaner engine bay routing
Turbosmart Gen-V Comp-Gate40 Wastegate 40 mm 7 psi Black TS-0552-1002

Preserve service flexibility with modular actuator interchangeability

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock

California Proposition 65 Warning

Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Emissions & Compliance

CARB Compliant
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Turbosmart Gen-V Comp-Gate40 Wastegate 40 mm 7 psi Black TS-0552-1002

$394.19

$394.19

40 mm

Diameter

7 psi

Spring

Mechanical

Control

Product Description

The Turbosmart Gen-V Comp-Gate40 is a black external mechanical wastegate built for controlled boost management in turbocharged performance systems. This version uses a 40 mm valve size and a 7 psi spring pressure rating.

The Gen-V design focuses on flow, thermal management, and service flexibility. It uses a modular actuator layout, strap-type V-band clamps, and a unique collar-locking system to support cleaner setup and future actuator interchangeability.

Nitronic 60 valve guide hardware and a high-temp 347 stainless steel body support demanding boost-control environments. The package includes inlet and outlet flanges, V-band clamps, valve seat, vacuum fittings, and a limited 1 year warranty.

Specifications

Brand
Turbosmart
Part Number
TS-0552-1002
Type
External Wastegate
Series
Gen-V Comp-Gate40
Control
Mechanical
Diameter
40 mm
Spring Pressure
7 psi
Adjustable
Yes
Base Material
Cast Stainless Steel
Valve Guide
Nitronic 60
Body Material
High-Temp 347 Stainless Steel
Clamp Style
Strap-Type V-Band
Warranty
Limited 1 yr
Compliance
CARB Compliant

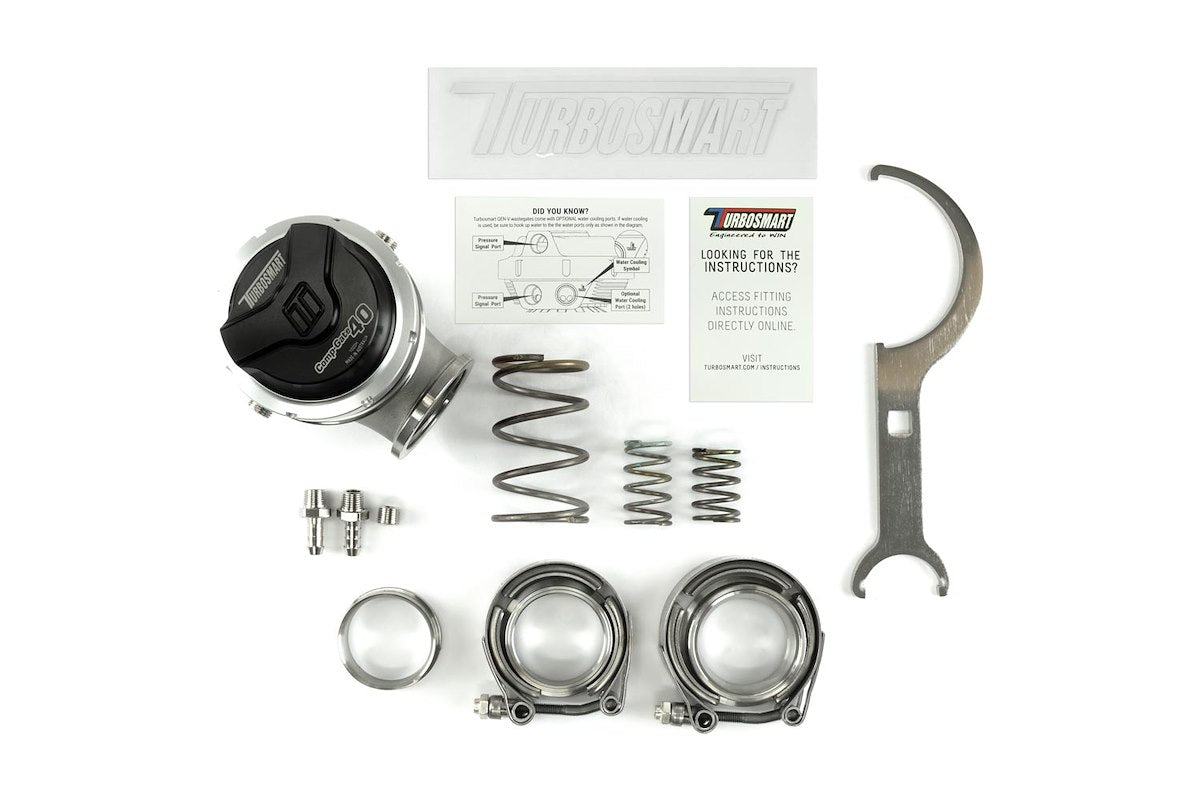

What's in the Box

Turbosmart Gen-V Comp-Gate40 wastegate
Inlet flange
Outlet flange
V-band clamps
Valve seat
Vacuum fittings

Installation & Documents

Install using the supplied inlet and outlet flanges, V-band clamps, valve seat, and vacuum fittings. Route reference hoses to suit the actuator position and vehicle packaging. Review the application and supplied document before installation. California buyers should review the Prop 65 warning before purchase.

Spring Chart
