MSD Engine Variable Valve Timing (VVT) Adjuster 6462

SKU: 6462

$799.95

MSD Engine Variable Valve Timing (VVT) Adjuster 6462

CARB EO Approved
MSD Engine Variable Valve Timing (VVT) Adjuster 6462

Limited 1 Year Warranty
MSD Engine Variable Valve Timing (VVT) Adjuster 6462

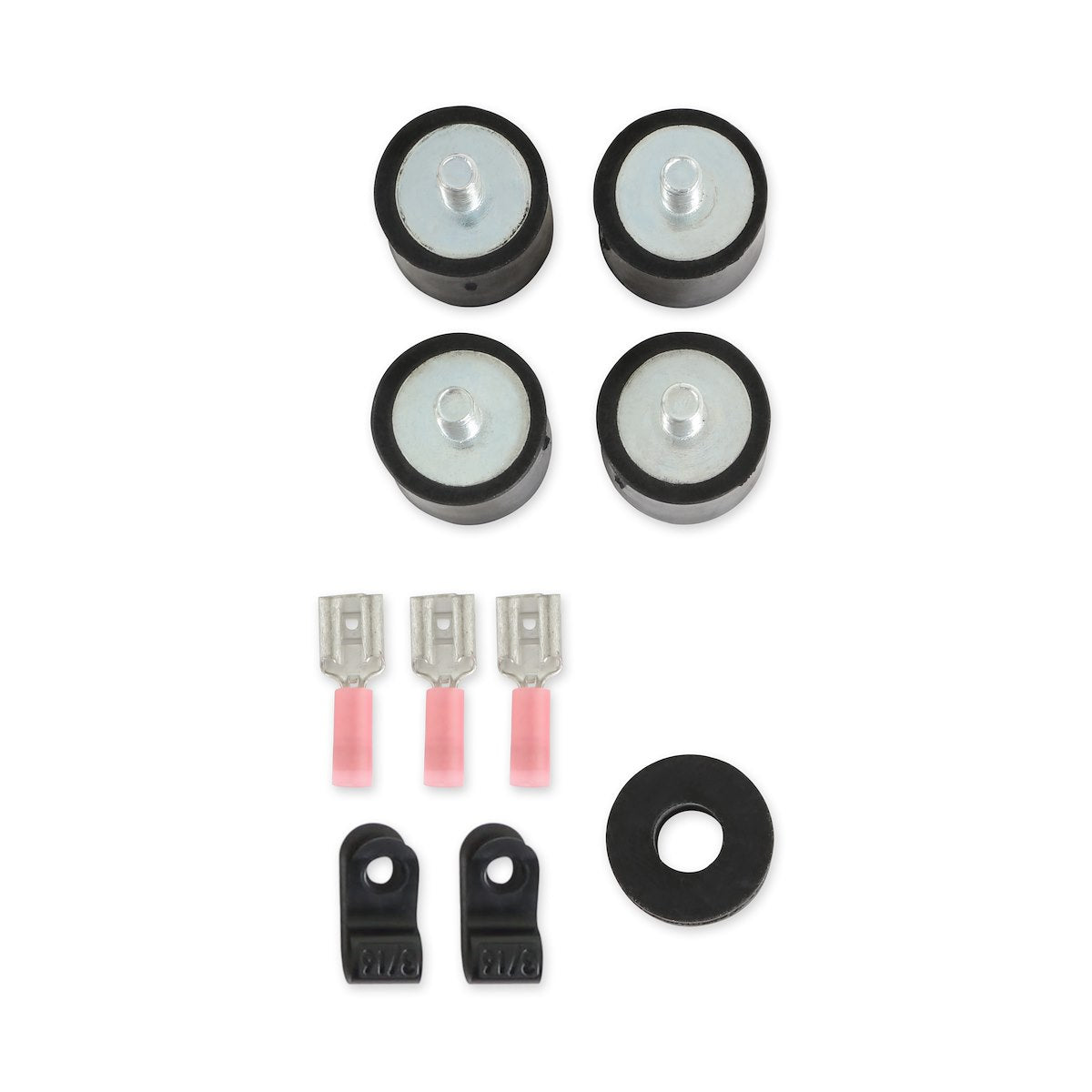

Supplied With Rubber Shock Mounts
MSD Engine Variable Valve Timing (VVT) Adjuster 6462

Works On 12 To 18 Volt Electrical System
MSD Engine Variable Valve Timing (VVT) Adjuster 6462

Multiple Spark, Capacitive Discharge Ignition Control

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock 21

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
MSD Engine Variable Valve Timing (VVT) Adjuster 6462

$799.95

$799.95

105 To 115 Millijoules

Spark Output (Millijoules)

One Stage

Timing Retard

520 To 540 Volt

CD Voltage Output To Coil (V)

Product Description

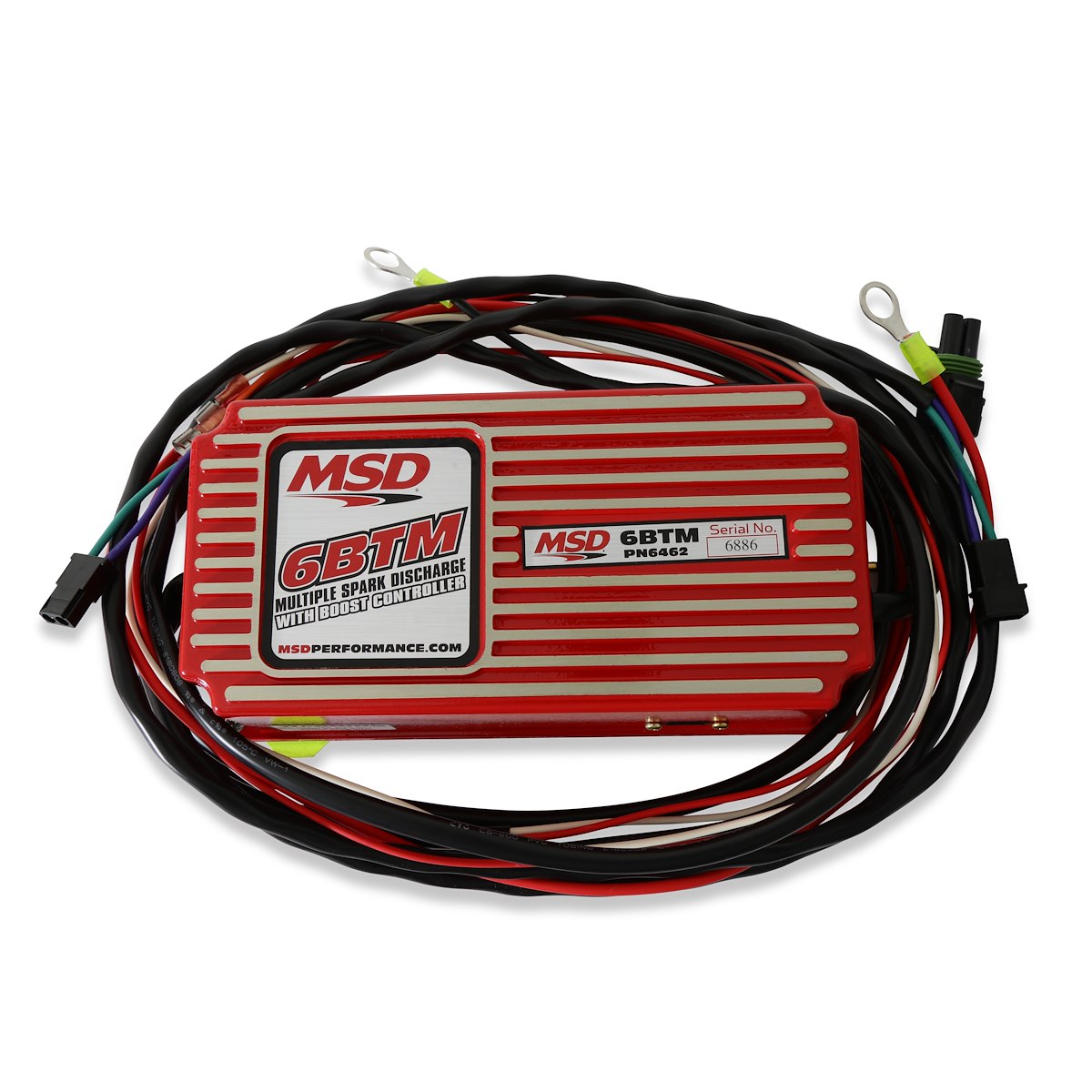

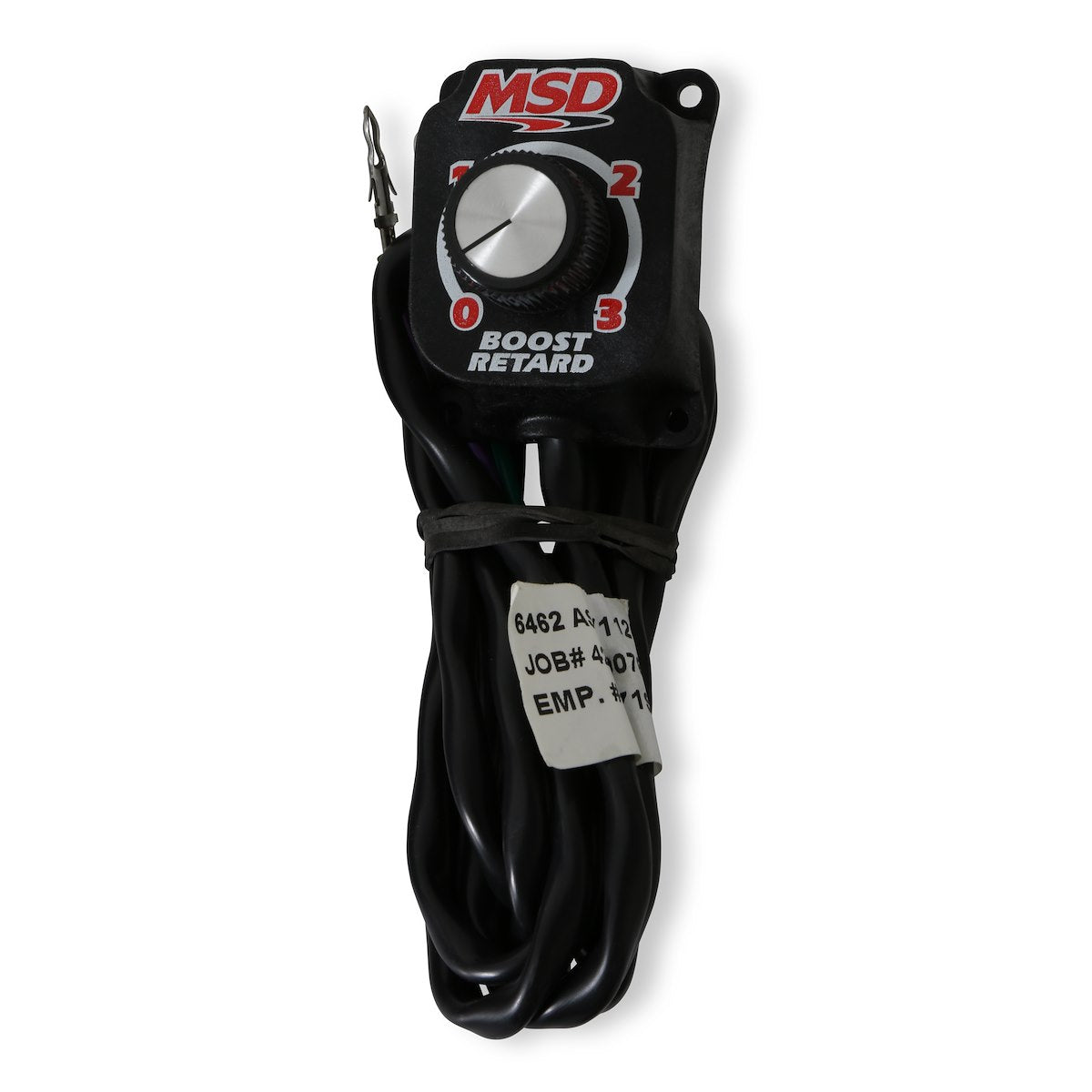

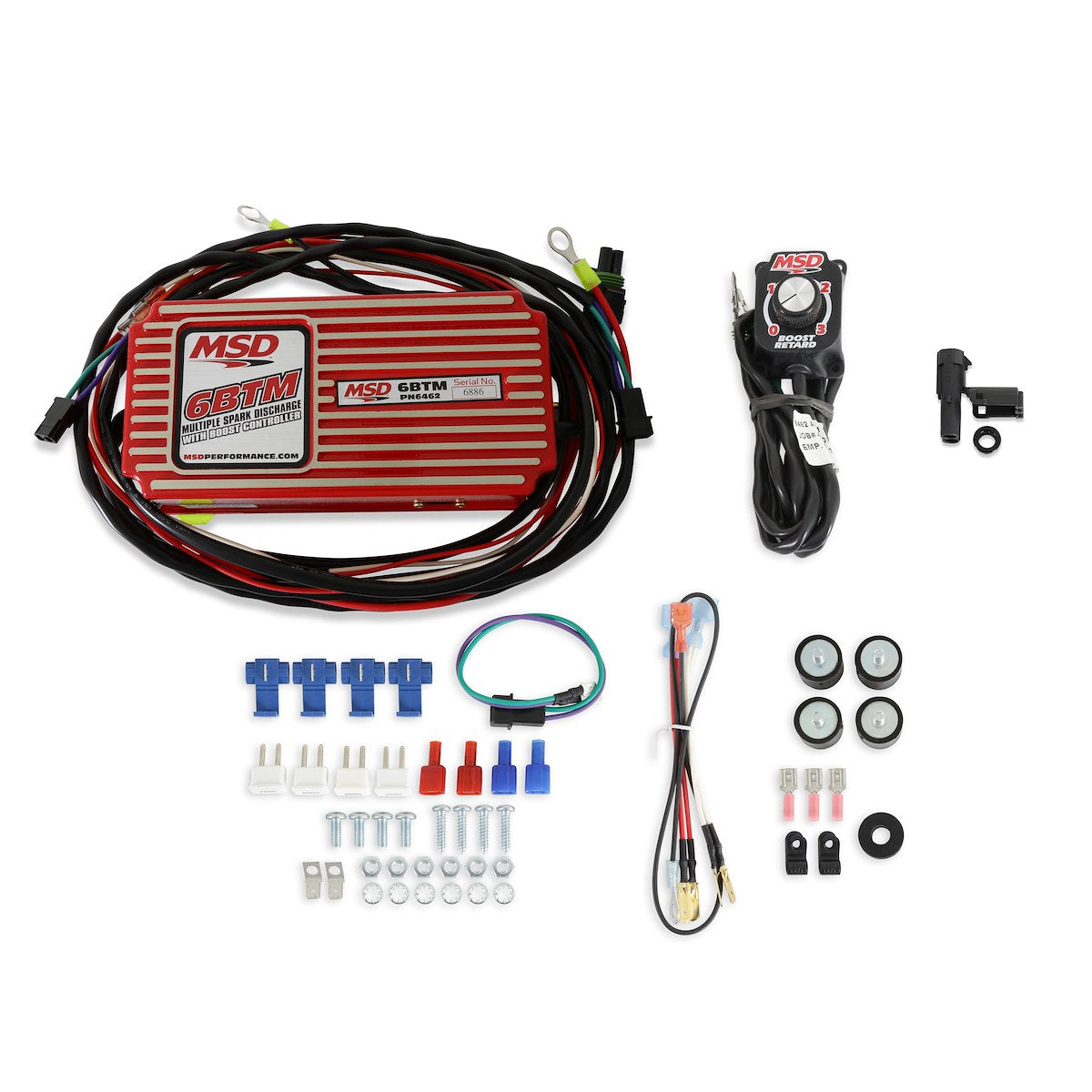

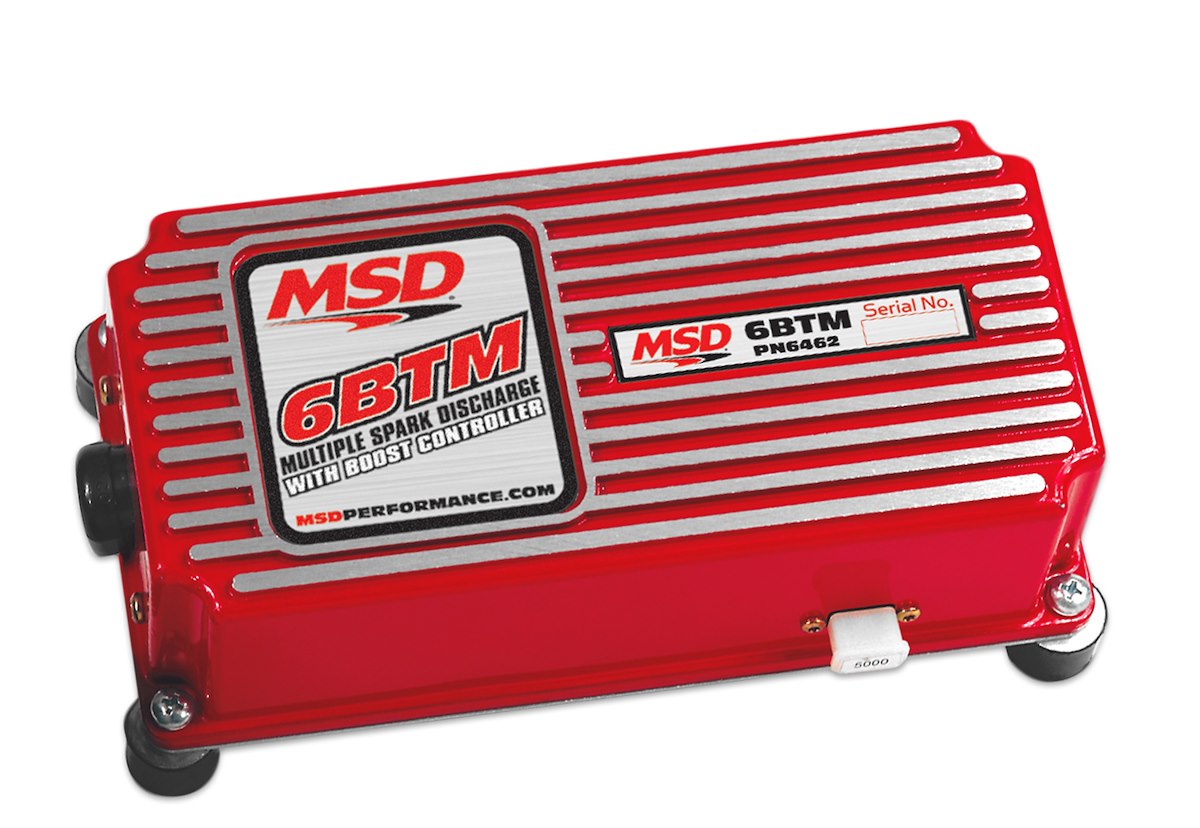

The 6 BTM is ideal for engines with a turbo or supercharger. Not only will the engine benefit from MSD's full power CD sparks, but there is also an adjustable boost/timing retard circuit to prevent detonation. When your turbo or blower forces the air/fuel mixture into the engine, the cylinder pressure inside the combustion chamber increases. The result is a great increase in power but this can also lead to detonation that can result in severe engine damage. The 6 BTM lets you dial away detonation by retarding the timing in relation to the boost pressure. A dash mounted control knob lets you adjust the amount of timing retard. It can be adjusted from 0 Degrees per Pound of boost to 3 Degrees per Pound (up to 15 Degrees).The 6 BTM also shares the soft touch rev control of the 6AL ignition for over-rev protection. The BTM is supplied with rubber shock mounts and RPM modules for 3000, 6000, 7000 and 8000 RPM.

More Features
  • Accepts Breaker Points, Amplifier And Magnetic Pickup Trigger Inputs

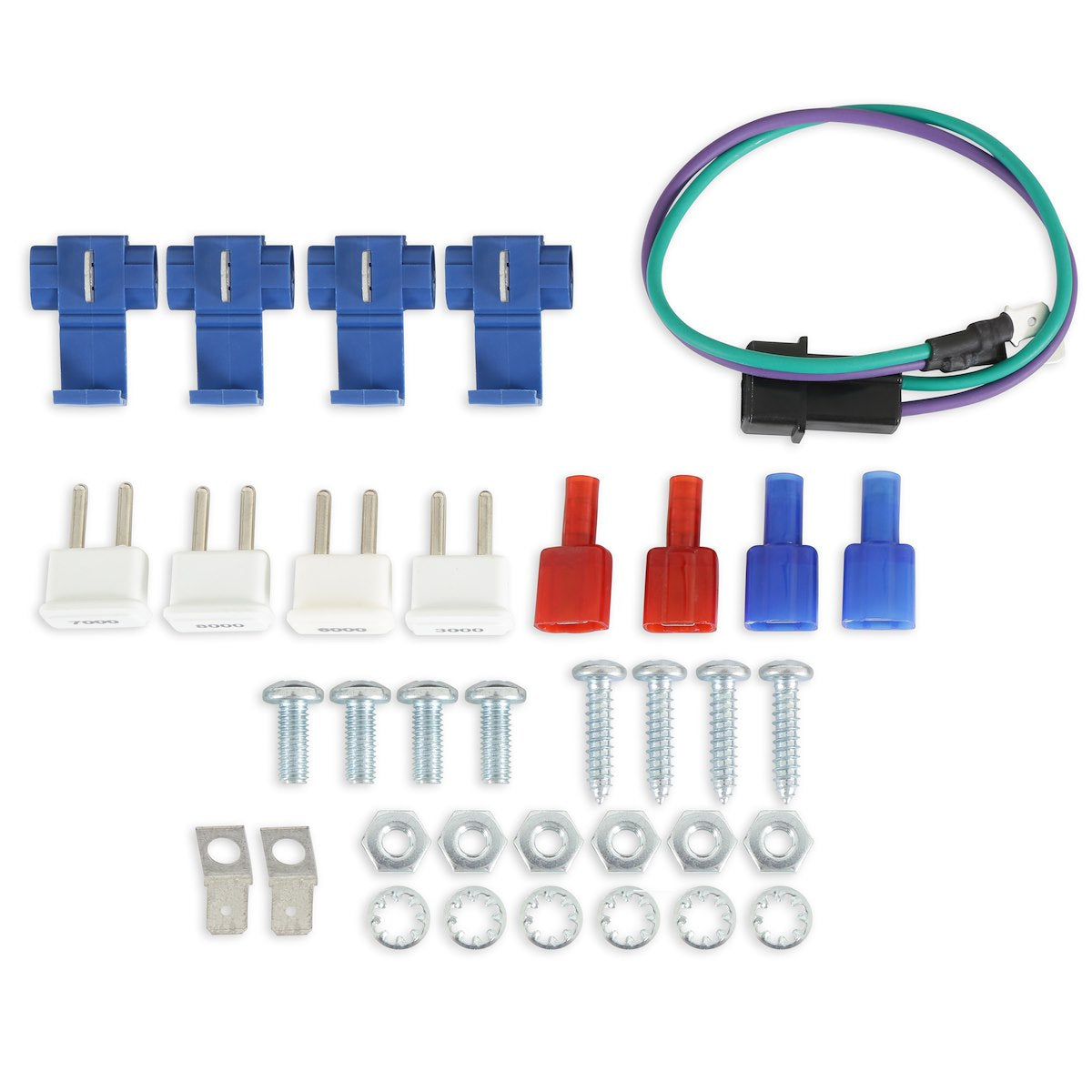

  • Built-In Soft Touch Rev Control Is Adjustable With RPM Modules
  • Programmable For 4, 6, Or 8 Cylinders By Cutting Red/Blue Wire Loops

Specifications

Spark Output (Millijoules)
105 To 115 Millijoules
REV Limiter
Yes
Timing Retard
One Stage
CD Voltage Output To Coil (V)
520 To 540 Volt
Output
Capacitive Discharge
Color
Red
Current Draw
1 Amp Per 1000 RPM
Circuitry
Analog
Maximum Operating Voltage
18 Volt
Minimum Operating Voltage
12 Volt
Data Acquisition
No
Includes Coil
No
