Centerforce Transmission Clutch and Flywheel Kit 413614844

SKU: 413614844

$2,074.99

Centerforce Transmission Clutch and Flywheel Kit 413614844

Limited 1 Year Warranty
Centerforce Transmission Clutch and Flywheel Kit 413614844

Holds Up To 1300 Feet Per Pound Of Torque
Centerforce Transmission Clutch and Flywheel Kit 413614844

Sprung Hub Disc With Organic And Carbon Composite Material
Centerforce Transmission Clutch and Flywheel Kit 413614844

168 Tooth R.Gear, 8 Bolt Crank, And 0 Ounce Counter Balance
Centerforce Transmission Clutch and Flywheel Kit 413614844

10.4 Inch Patented Multi-Disc Clutch Offers Smooth Engagement, Light Pedal, And High-End Holding Capacity

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Low in stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Centerforce Transmission Clutch and Flywheel Kit 413614844

$2,074.99

$2,074.99

1-1/8 Inch X 26 Spline

Input Shaft Size

Diaphragm

Pressure Plate Design

10.4 Inch

Disc Diameter

Product Description

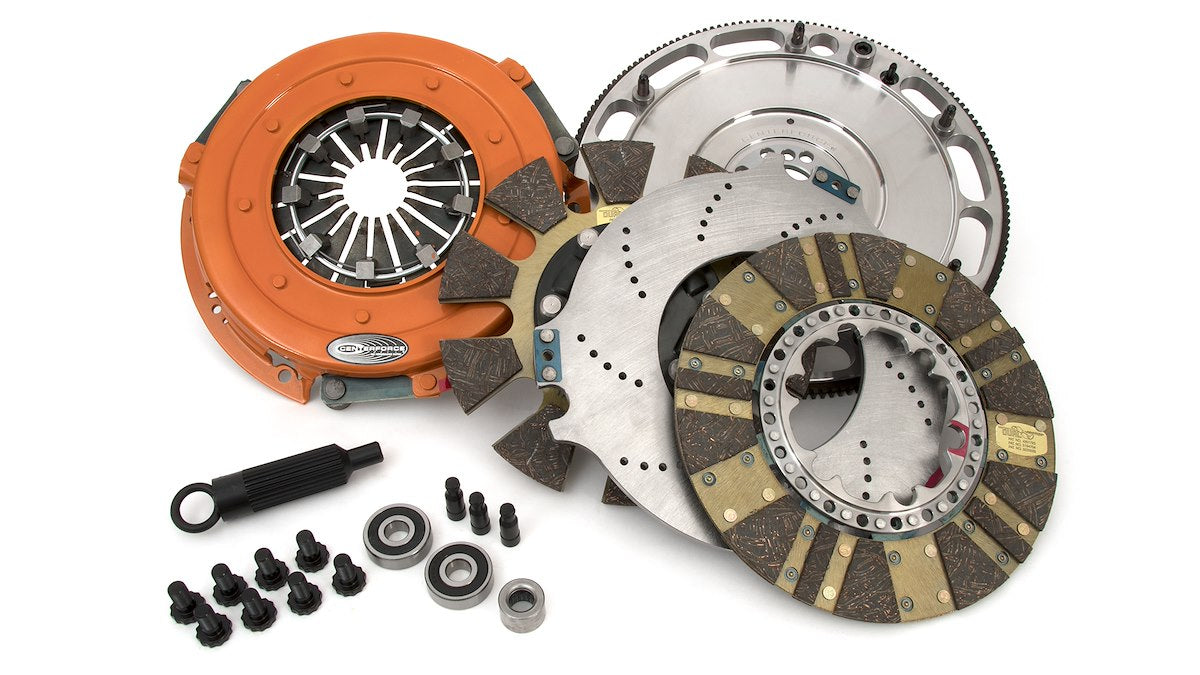

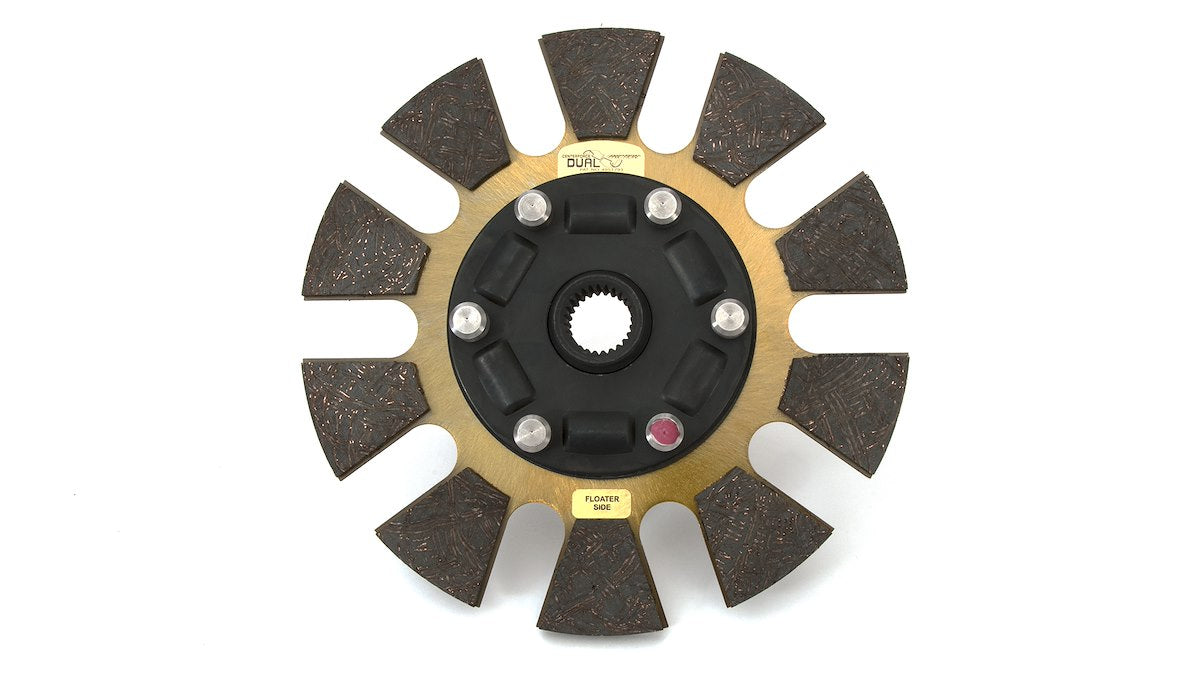

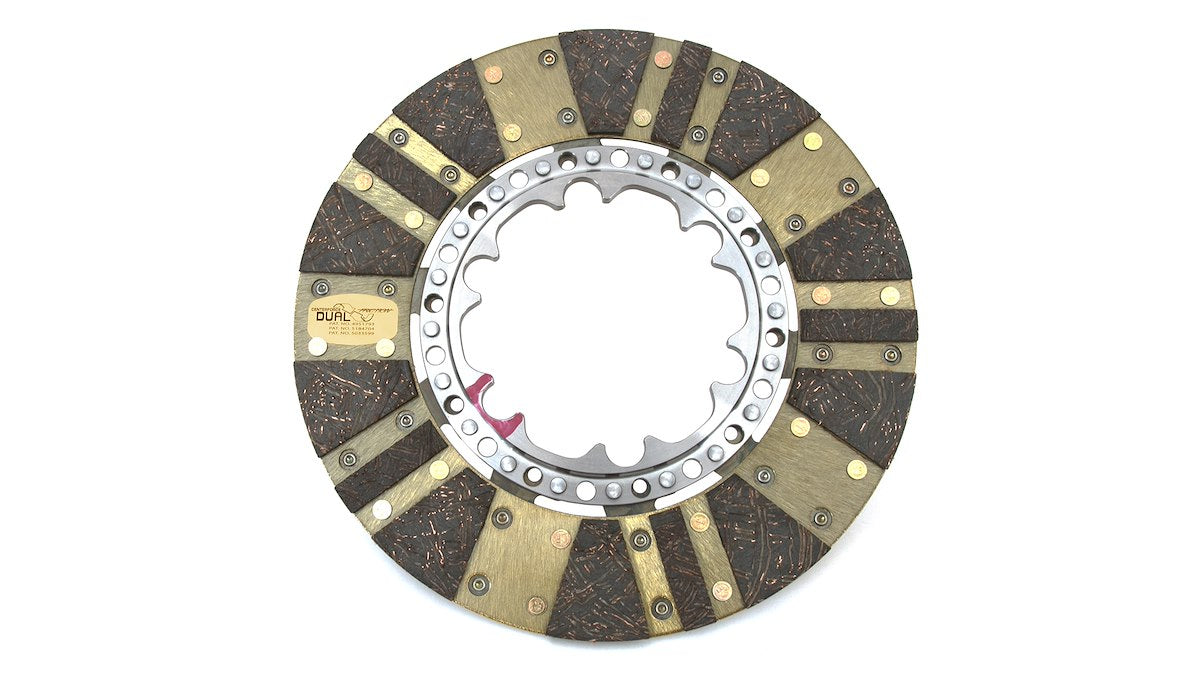

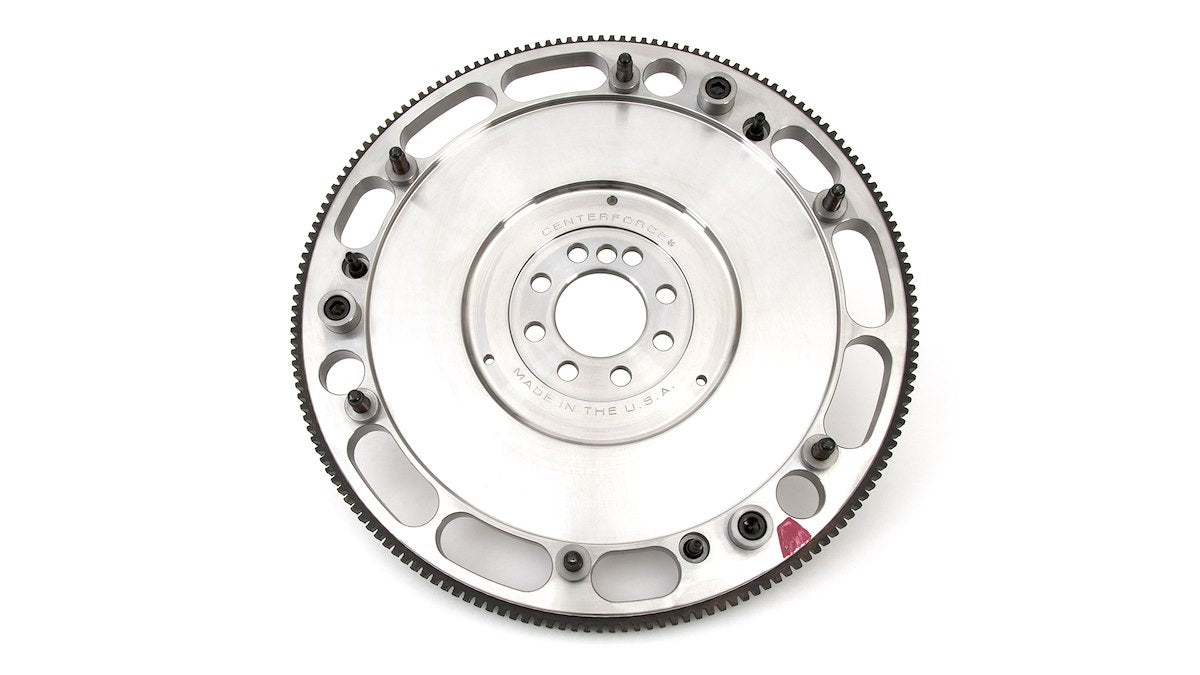

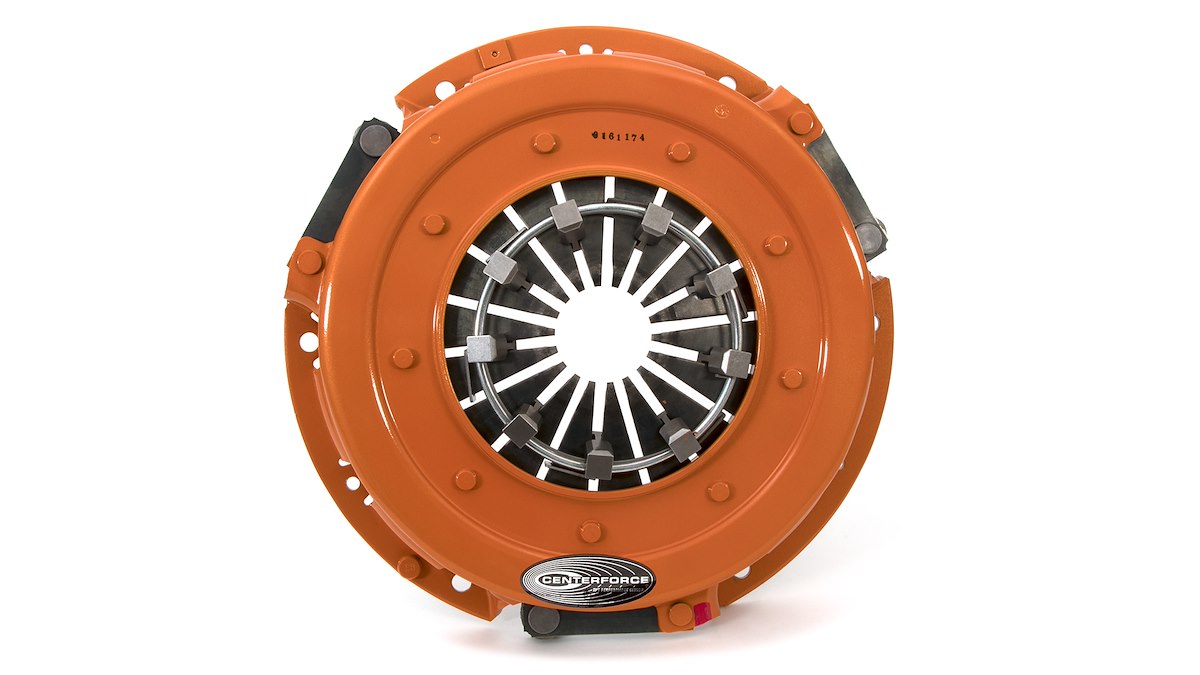

The Centerforce® DYAD DS 10.4 Inch twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 Feet per Pound of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the provided ARP fasteners.

Specifications

Input Shaft Size
1-1/8 Inch X 26 Spline
Pressure Plate Design
Diaphragm
Disc Diameter
10.4 Inch
Number Of Friction Discs
2 Disc
Flywheel Tooth Count
168
Disc Friction Material
Organic/ Carbon composite
Disc Friction Face Design
Full Face
Disc Hub Design
Solid/ Sprung
Torque Holding Capacity
1300 Feet/ Pound
Flywheel Material
Billet Steel
Includes Throwout Bearing
No
Includes Pilot Bearing
Yes
Includes Alignment Tool
Yes
