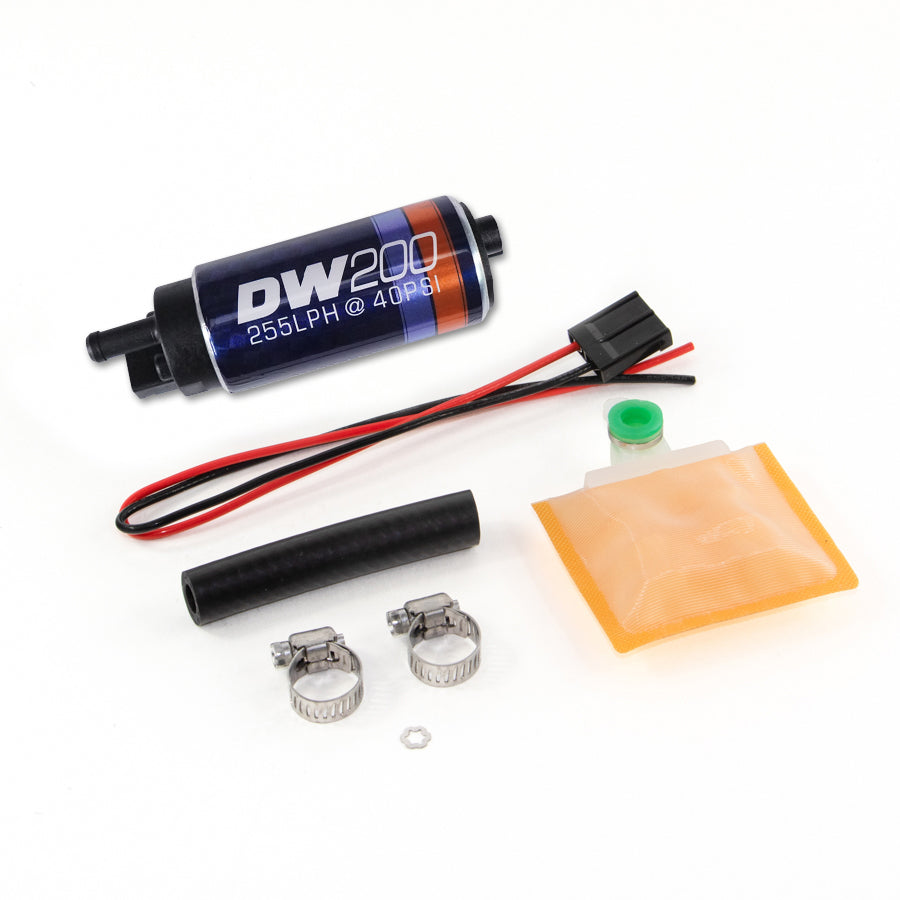

DeatschWerks Fuel Pumps 9-201-1000 product image 1
DeatschWerks Fuel Pumps 9-201-1000 product image 2

DeatschWerks Fuel Pumps 9-201-1000

SKU: 9-201-1000

$109.00

DeatschWerks Fuel Pumps 9-201-1000

Limited 3 Year Warranty
DeatschWerks Fuel Pumps 9-201-1000

Impeller Design: Single Scroll Composite Turbine
DeatschWerks Fuel Pumps 9-201-1000

DW200 Features A Quiet And Reliable Turbine Impeller
DeatschWerks Fuel Pumps 9-201-1000

External Materials Constructed From Electroplated Steel
DeatschWerks Fuel Pumps 9-201-1000

For High Performance Applications Which Can Be Fitted With A Standard Fitment Pump

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock 94

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
DeatschWerks Fuel Pumps 9-201-1000

$109.00

$109.00

In-Tank

Mounting Style

Ethanol Based Fuels

Fuel Type

13.5 Volt

Voltage Rating

Product Description

The DW200 flows 255 Liter Per Hour at 40 Pounds Per Square Inch and is a popular choice for many high performance applications which can be fitted with a standard fitment pump. The DW200 features a quiet and reliable turbine impeller which is compatible with pulse width modulated pump drivers. The pump also features an encapsulated armature for compatibility with ethanol based fuels.

Specifications

Mounting Style
In-Tank
Fuel Type
Ethanol Based Fuels
Voltage Rating
13.5 Volt
Free Flow Rate
67.3 Gallon Per Hour
Maximum Pressure (PSI)
100 Pounds Per Square Inch
Inlet Size
-5 AN (5/16 Inch)/ -7 AN (7/16 Inch)
Inlet Attachment
Hose Clamp
Outlet Size
-5 AN (5/16 Inch)
Outlet Attachment
Hose Clamp
Inlet Quantity
2
Outlet Quantity
1
With Sending Unit
No
With Mounting Hanger
No
Estimated Install Time (Hours)
2
