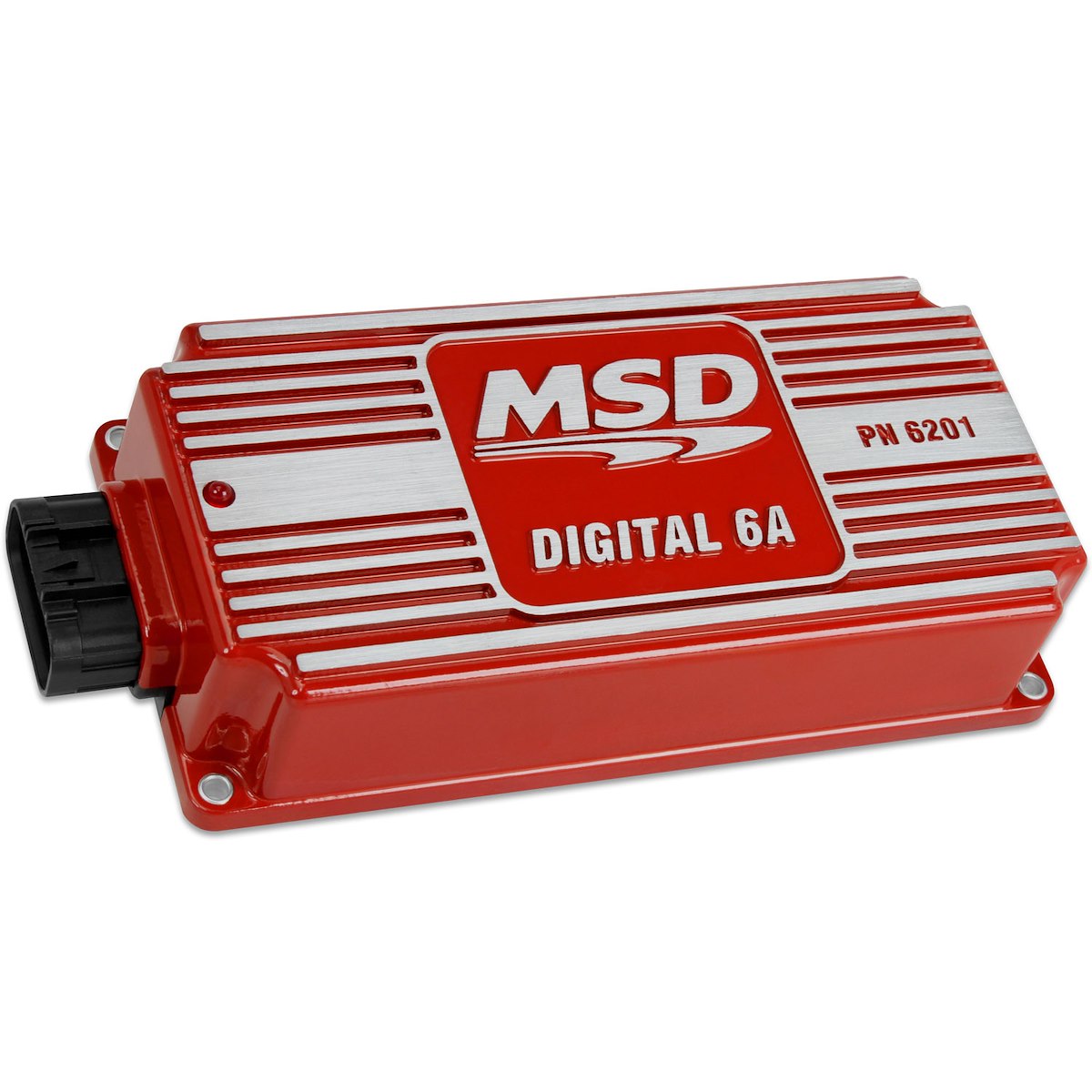

MSD Ignition Control Module 6201 product image 1

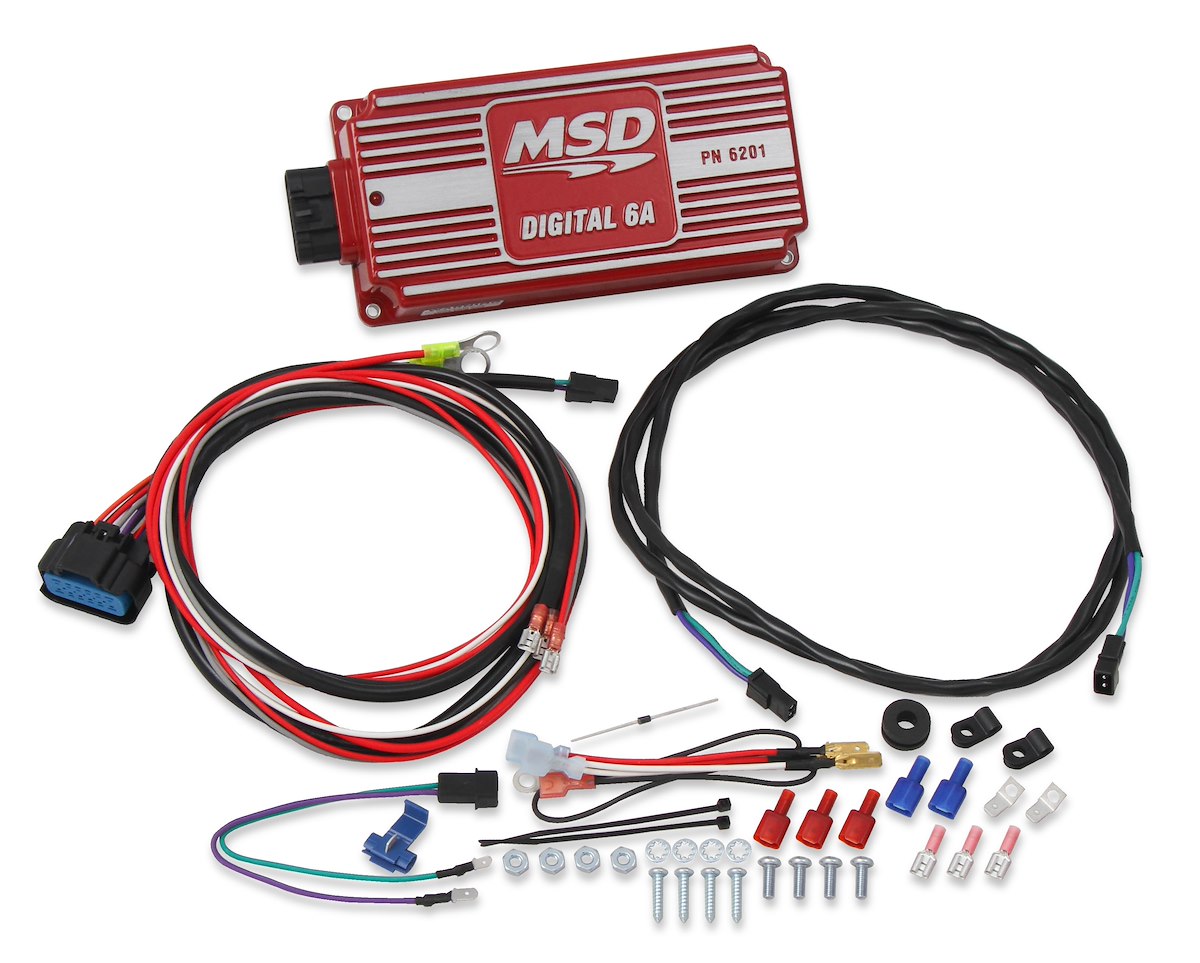

MSD Ignition Control Module 6201 product image 2

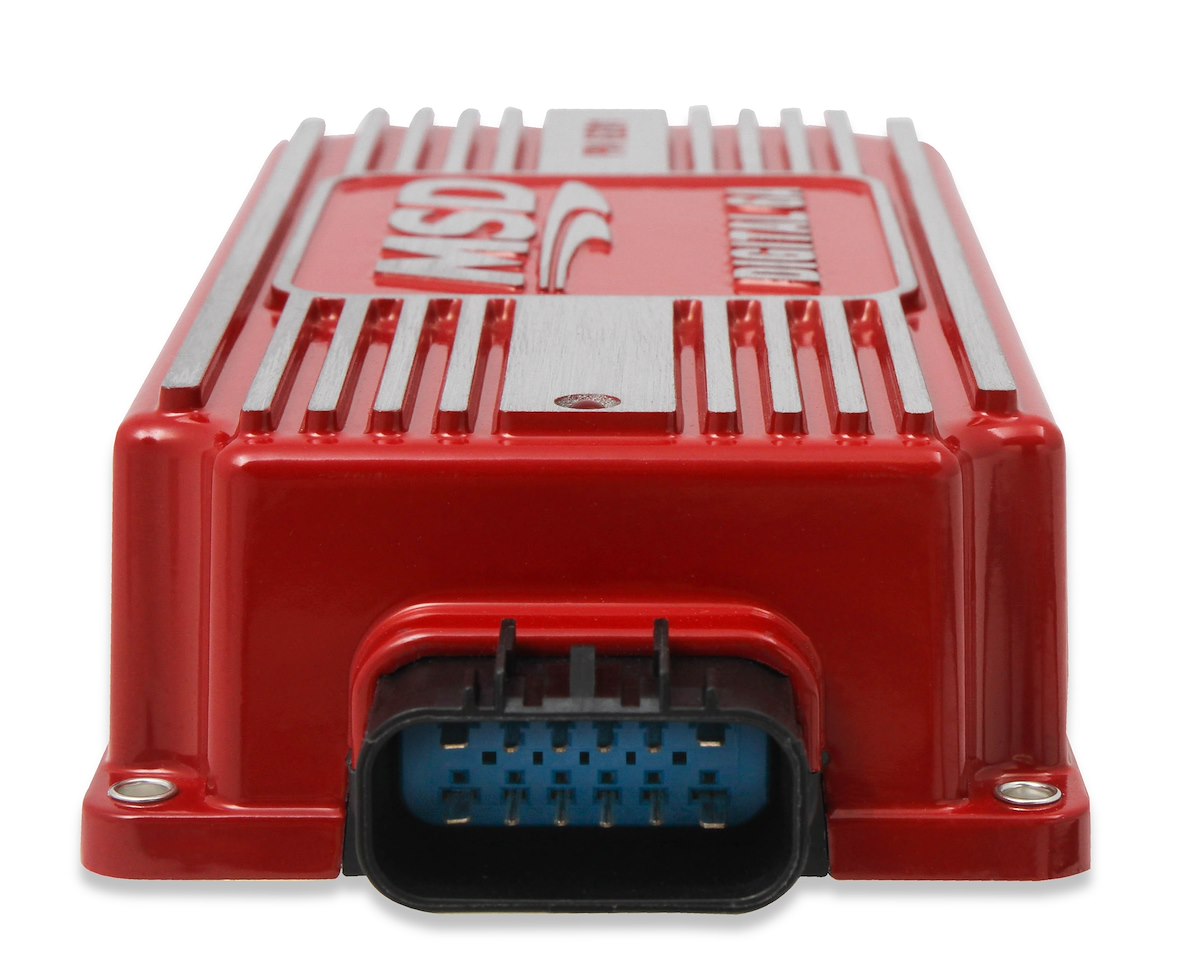

MSD Ignition Control Module 6201 product image 3

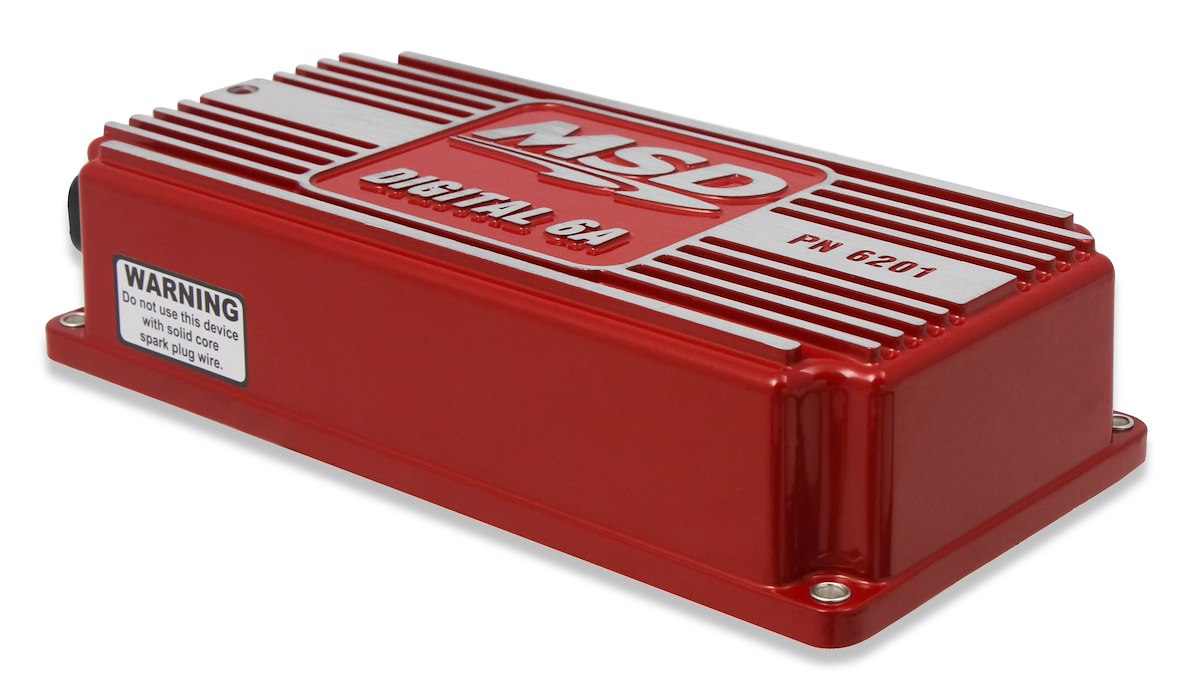

MSD Ignition Control Module 6201 product image 4
MSD Ignition Control Module 6201 product image 5

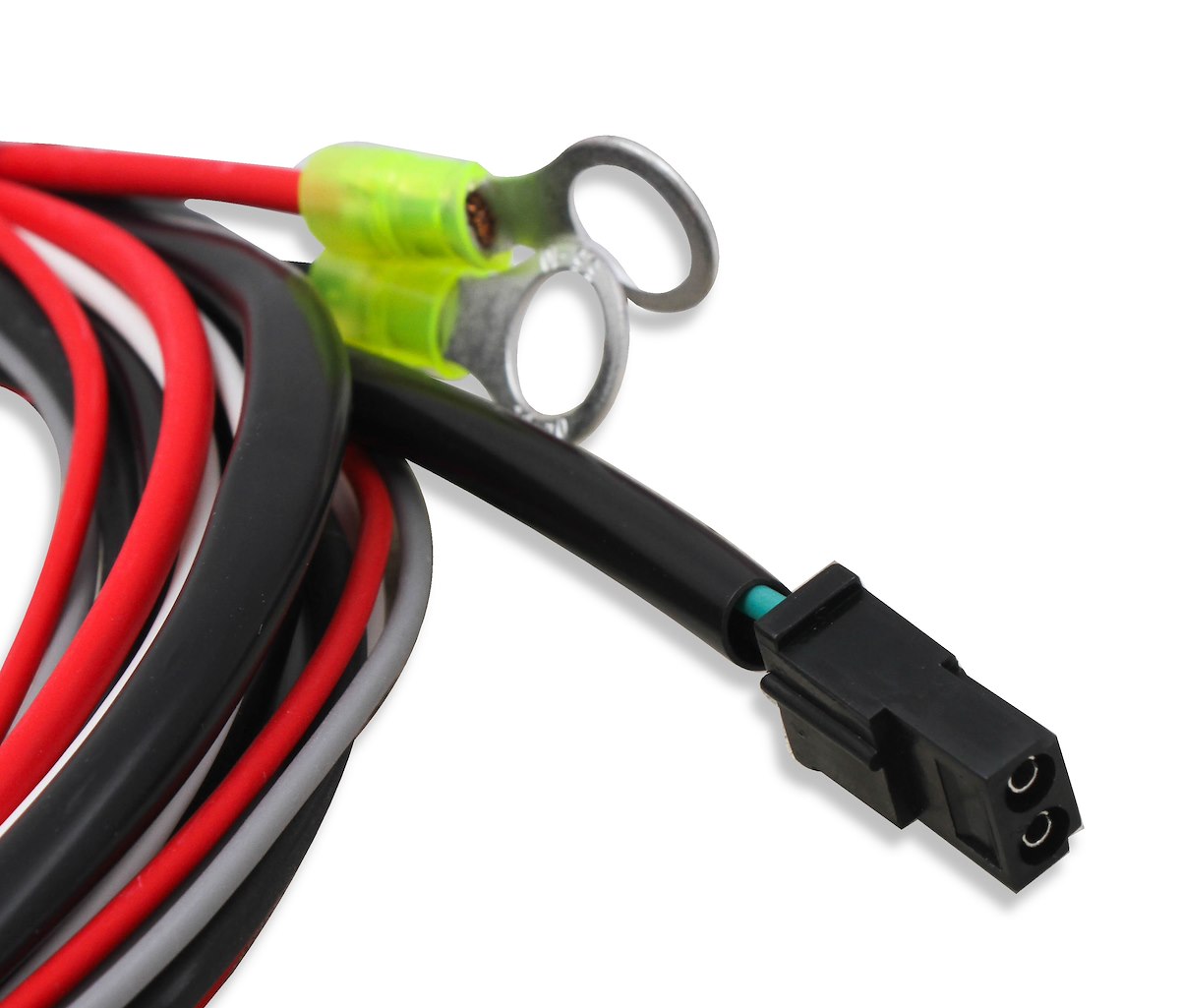

MSD Ignition Control Module 6201 product image 6

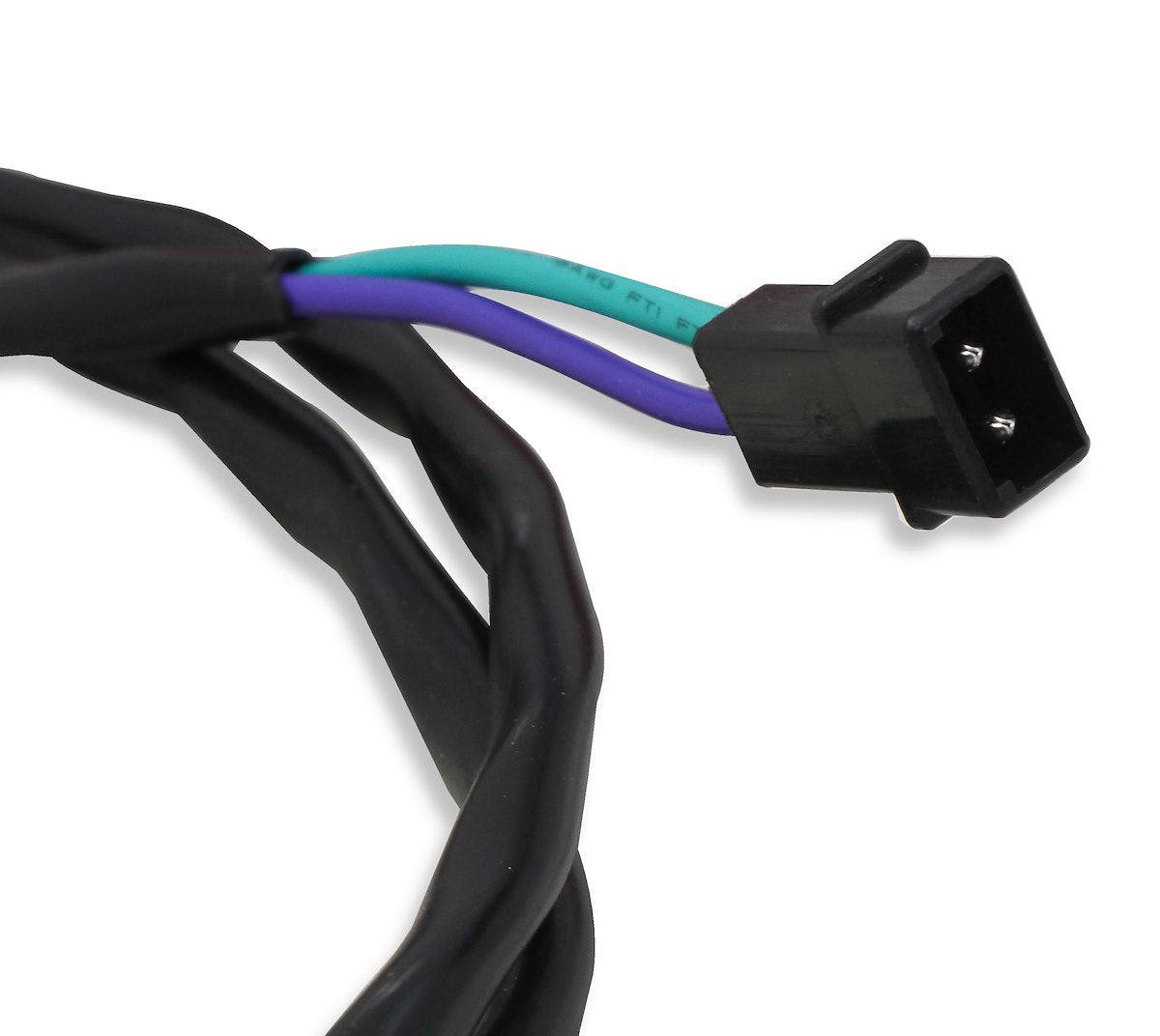

MSD Ignition Control Module 6201 product image 7

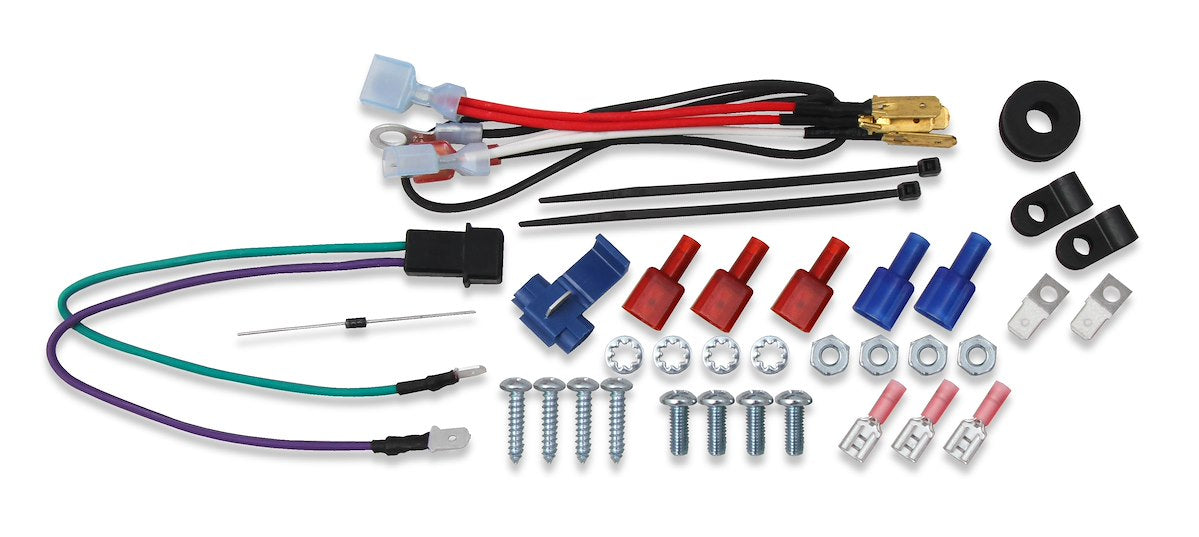

MSD Ignition Control Module 6201 product image 8

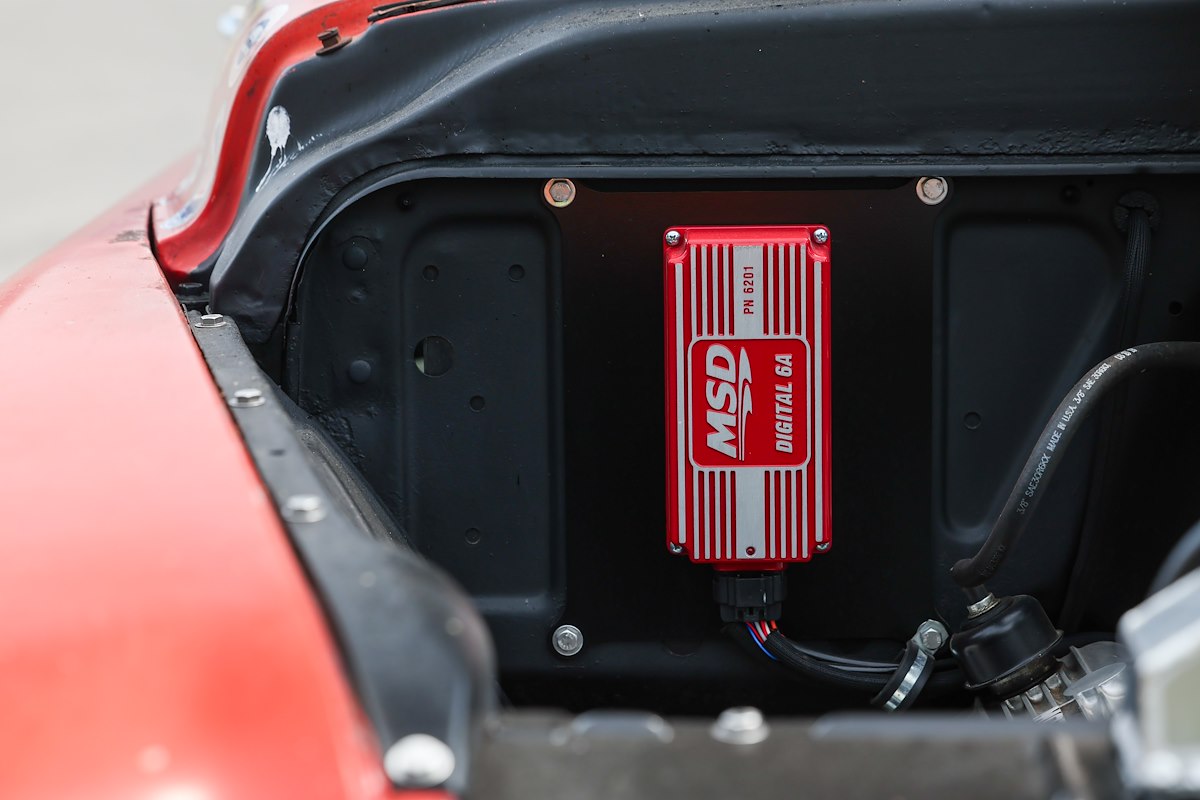

MSD Ignition Control Module 6201 product image 9

MSD Ignition Control Module 6201

SKU: 6201

$259.95

MSD Ignition Control Module 6201

Tach Output Wire
MSD Ignition Control Module 6201

Limited 1 Year Warranty
MSD Ignition Control Module 6201

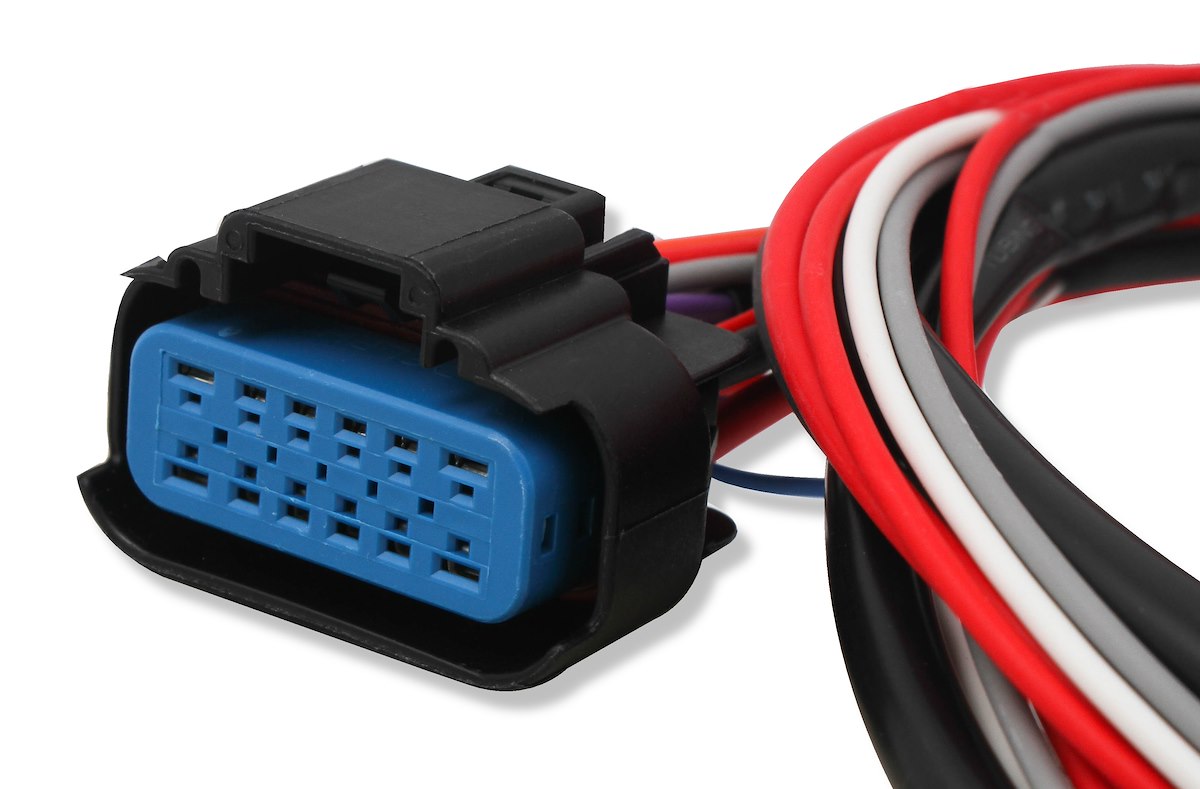

Sealed, Locking Connector
MSD Ignition Control Module 6201

Built-In LED For System Checks
MSD Ignition Control Module 6201

Easy Starts And Quick Throttle Response

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock 112

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
MSD Ignition Control Module 6201

$259.95

$259.95

135 To 145 Millijoules

Spark Output (Millijoules)

Without Timing Retard

Timing Retard

520 To 540 Volt

CD Voltage Output To Coil (V)

Product Description

That’s right an all new Digital 6AL Ignition Control. We started with a clean slate and drew up plans for an all new housing. The wiring is all routed out one end of the unit through a sealed and locking connector. The rev limiter was moved right on top of the housing for easy access to the two rotary dials to set the limit in 100 RPM increments. Inside the Digital 6AL you’ll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current. In fact, the new Digital 6AL and 6A deliver over 530 Volts to the coil with up to 135 Milli Joules of spark energy for every firing. Increased output combined with MSD’s proven multiple spark series is a win-win situation.

More Features
  • Full, Capacitive Discharge Ignition Power Throughout The RPM Range

Specifications

Spark Output (Millijoules)
135 To 145 Millijoules
REV Limiter
No
Timing Retard
Without Timing Retard
CD Voltage Output To Coil (V)
520 To 540 Volt
Output
Capacitive Discharge
Color
Red
Current Draw
0.7 Amp Per 1000 RPM
Circuitry
Digital
Maximum Operating Voltage
15 Volt
Minimum Operating Voltage
12 Volt
Data Acquisition
No
Includes Coil
No
