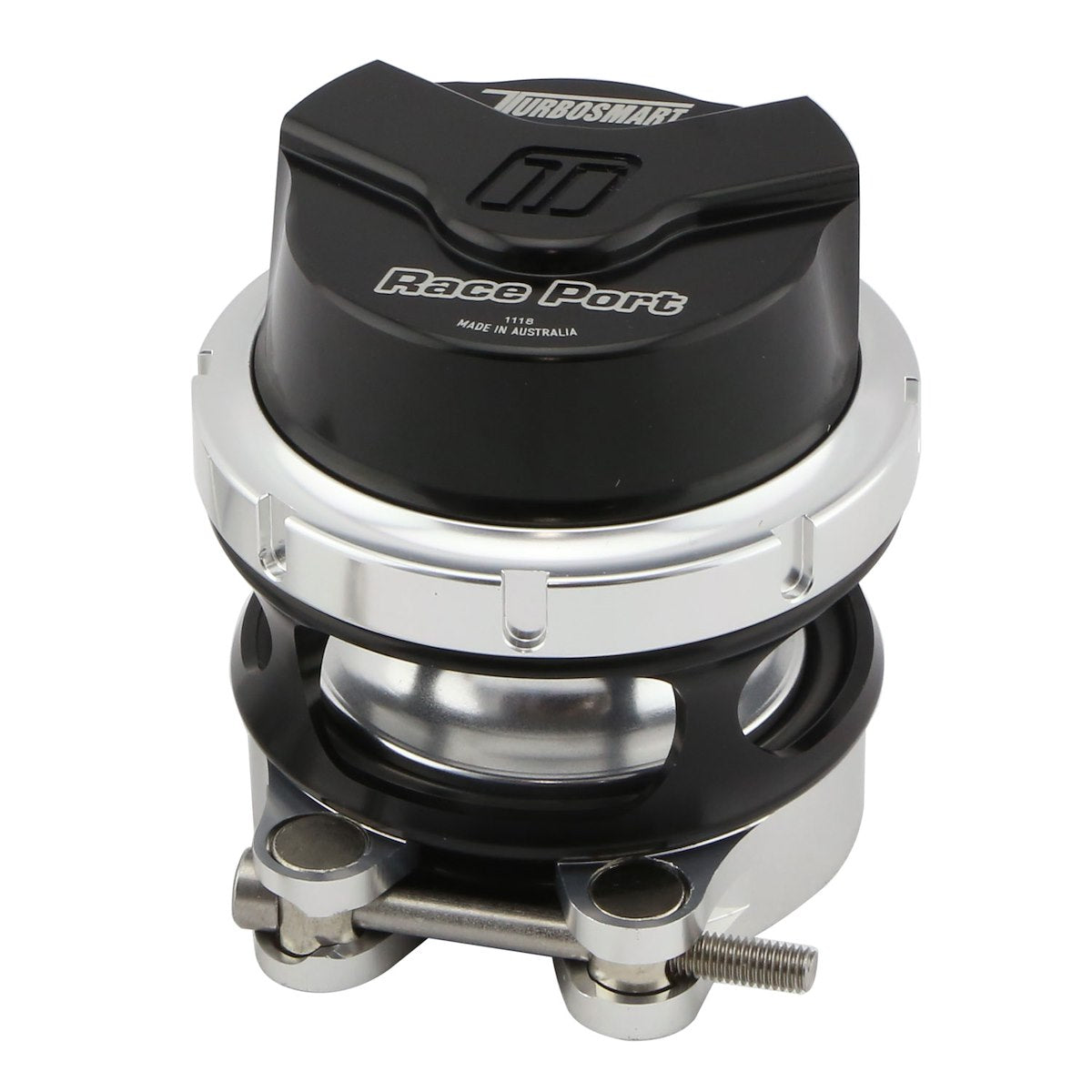

Turbosmart Turbocharger Blow Off Valve TS-0204-1142 product image 1

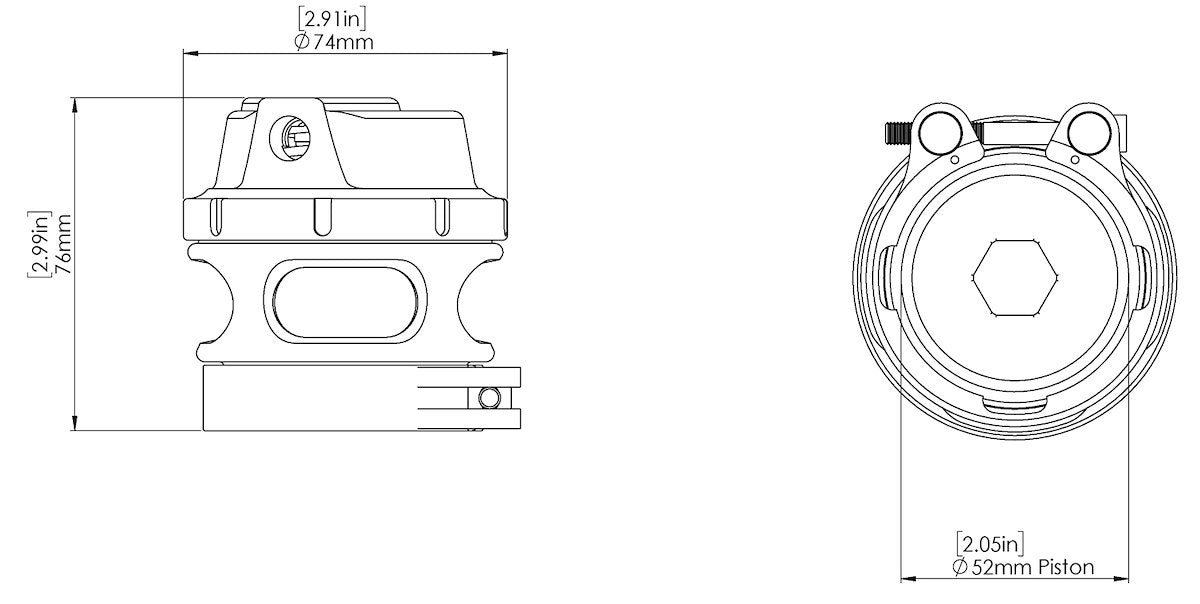

Turbosmart Turbocharger Blow Off Valve TS-0204-1142 product image 2

Turbosmart Gen-V Race Port BOV Black Female No-Weld Flange TS-0204-1142

SKU: TS-0204-1142

$309.59

Turbosmart Gen-V Race Port BOV Black Female No-Weld Flange TS-0204-1142

Move serious airflow through a 2.0 in Race Port inlet
Turbosmart Gen-V Race Port BOV Black Female No-Weld Flange TS-0204-1142

Support boosted race setups with over 330 CFM flow capacity
Turbosmart Gen-V Race Port BOV Black Female No-Weld Flange TS-0204-1142

Position reference lines cleanly using twin NPT pressure ports
Turbosmart Gen-V Race Port BOV Black Female No-Weld Flange TS-0204-1142

Service the valve faster with a quick-release V-band collar
Turbosmart Gen-V Race Port BOV Black Female No-Weld Flange TS-0204-1142

Hold sealing control with a positive valve seat design

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Low in stock

California Proposition 65 Warning

Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Emissions & Compliance

CARB Compliant
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Turbosmart Gen-V Race Port BOV Black Female No-Weld Flange TS-0204-1142

$309.59

$309.59

330+ CFM

Flow

2.0 in

Inlet

V-Band

Install

Product Description

The Turbosmart Gen-V Race Port is a black anodized aluminum blow off valve built from billet 6000 Series aluminum. It uses a 2.0 in inlet, a positive sealing valve seat, and a MILSPEC hard-anodized valve guide and stem.

The Race Port layout is built for high-flow boosted setups, with the 2.0 in inlet flowing over 330 CFM. Twin 1/8 in NPT pressure ports give more flexibility when positioning reference lines in a performance engine bay.

A high-temperature silicon Nomex diaphragm supports heat resistance, while the quick-release V-band collar helps with installation and removal. The package includes the valve, vacuum fittings, V-band assembly, blue spring, Turbosmart sticker, and a limited 1 year warranty.

Specifications

Brand
Turbosmart
Part Number
TS-0204-1142
Type
Gen-V Race Port Blow Off Valve
Venting Style
Vent To Atmosphere
Inlet Size
2.0 in
Flow Capacity
Over 330 CFM
Material
6000 Series Aluminum
Finish
Anodized
Color
Black
Pressure Ports
Twin 1/8 in NPT
Diaphragm
High-Temperature Silicon Nomex
Includes Fittings
Yes
Warranty
Limited 1 yr
Compliance
CARB Compliant

What's in the Box

Turbosmart Gen-V Race Port blow off valve
Vacuum fittings
V-band assembly
Blue spring
Turbosmart sticker

Installation & Documents

Install using the supplied V-band assembly and matching connection hardware. Confirm the flange style against the charge pipe or fabricated turbo piping before purchase. Review the application and supplied document before installation. California buyers should review the Prop 65 warning before purchase.

Spring Chart
