CSF 3-Row Copper-Core Radiator Land Cruiser 2709

SKU: 2709

$529.00

CSF 3-Row Copper-Core Radiator Land Cruiser 2709

Upgrade Land Cruiser cooling with a 3-row copper-core radiator
CSF 3-Row Copper-Core Radiator Land Cruiser 2709

Drop in without modifications on supported automatic applications
CSF 3-Row Copper-Core Radiator Land Cruiser 2709

Manage automatic transmission heat with built-in cooler turbulators
CSF 3-Row Copper-Core Radiator Land Cruiser 2709

Handle off-road vibration with reinforced tanks and side channels
CSF 3-Row Copper-Core Radiator Land Cruiser 2709

Buy with confidence from 150 percent pressure leak testing

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Low in stock

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
CSF 3-Row Copper-Core Radiator Land Cruiser 2709

$529.00

$529.00

3 Row Copper

Core

Drop-In Fit

Install

Built-In Trans

Cooler

Product Description

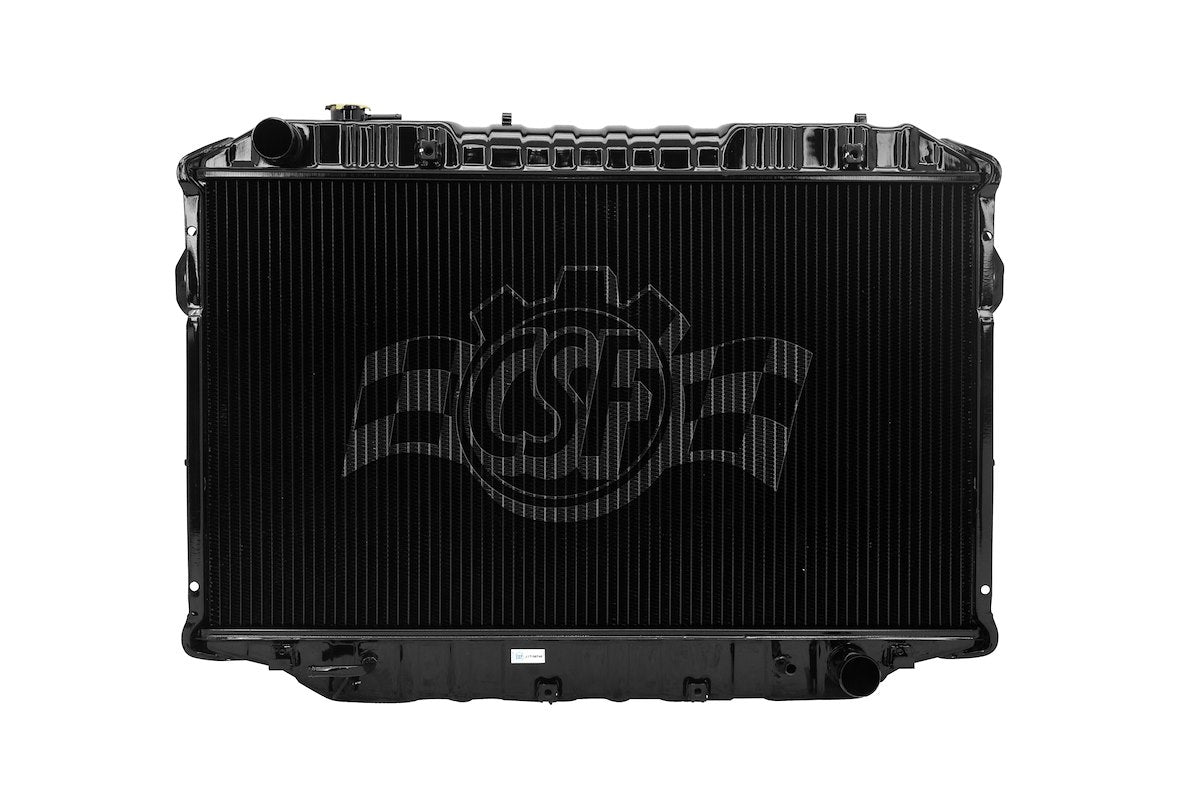

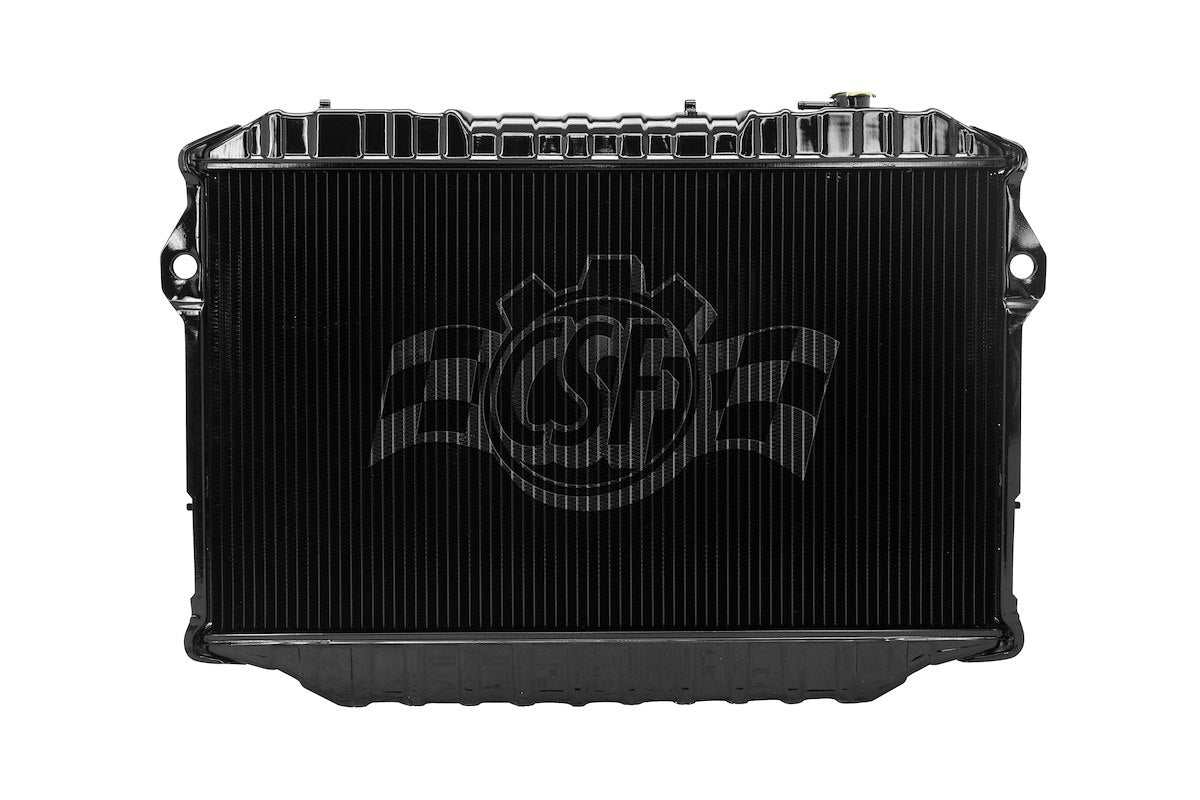

The CSF 2709 Heavy-Duty Radiator is built for 1988-1992 Toyota Land Cruiser 4.0L automatic models that need stronger cooling without custom fabrication. It uses OEM-specified copper-brass construction, a 3-row heavy-duty copper core, ribbed brass tanks, coated steel side channels, reinforced inlet and outlet connections, and a down-flow layout.

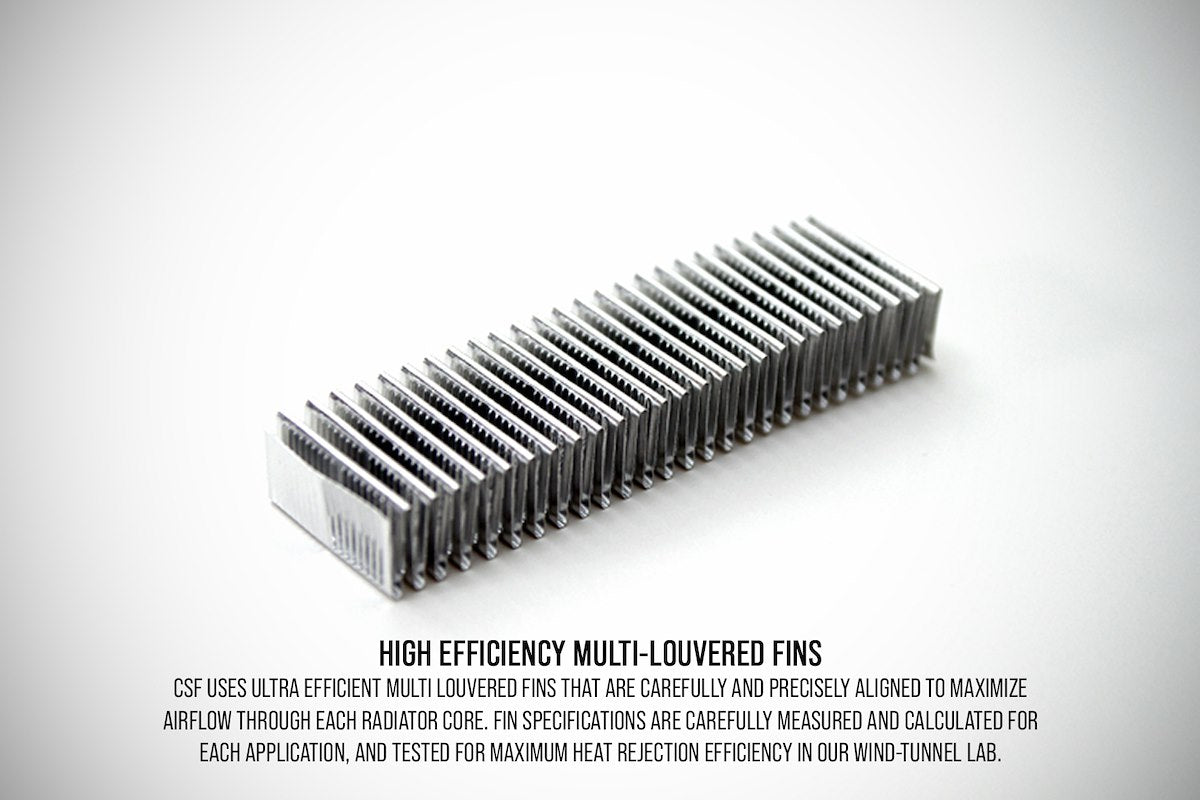

This radiator is designed as a true drop-in fit, giving Land Cruiser owners a cooling upgrade for towing, off-road use, and hard daily driving without modification. A built-in high-performance transmission cooler with special turbulators helps manage automatic transmission heat while the multi-louvered fin design supports efficient heat transfer through the core.

CSF installs, torques, and tests components during assembly, then leak-tests each radiator at 150 percent of operating pressure before it leaves the factory. The radiator includes a cap, uses 1-1/2 in inlet and outlet connections, and is packaged to meet CSF's 10-foot drop-test standard.

Specifications

Brand
CSF
Part Number
2709
Type
Heavy-Duty Radiator
Vehicle Application
1988-1992 Toyota Land Cruiser 4.0L AT
Construction
Copper-Brass
Core Rows
Three
Flow Direction
Down Flow

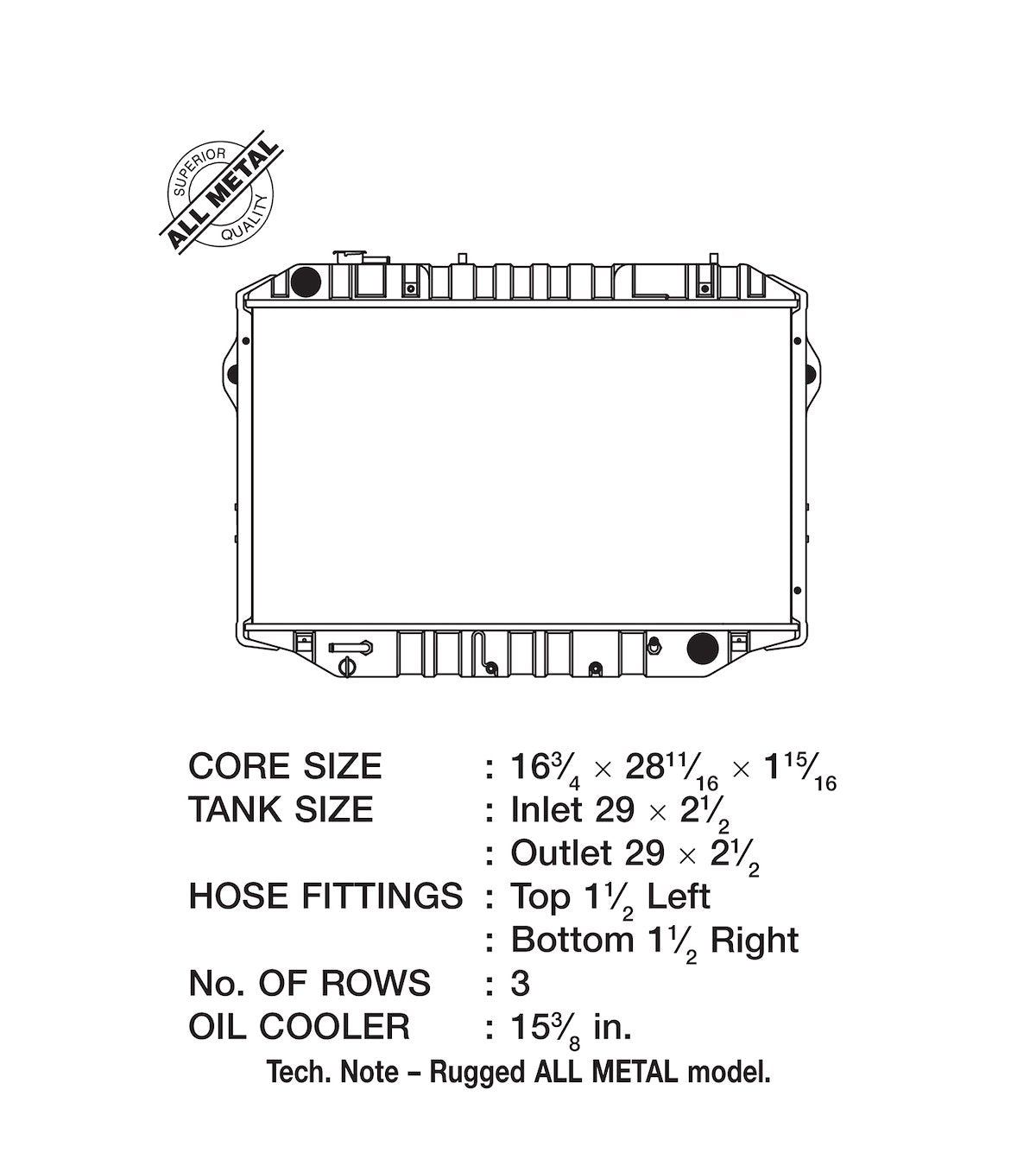

Overall Size
29 in L x 21-3/4 in H
Core Size
28-11/16 in L x 16-3/4 in H x 1-15/16 in D
Inlet
Top Left, 1-1/2 in
Outlet
Bottom Right, 1-1/2 in
Finish
Bare
Color
Silver
Transmission Cooler
Yes
Radiator Cap
Included
Mounting Hardware
Not Included

Fitment / Application

1988-1992 | Toyota | Land Cruiser

What's in the Box

• CSF Heavy-Duty Radiator
• Radiator Cap

Installation & Documents

Designed as a drop-in fit for supported 1988-1992 Toyota Land Cruiser automatic applications. The radiator uses 1-1/2 in inlet and outlet connections and does not include mounting hardware. Confirm vehicle fitment before installation.
