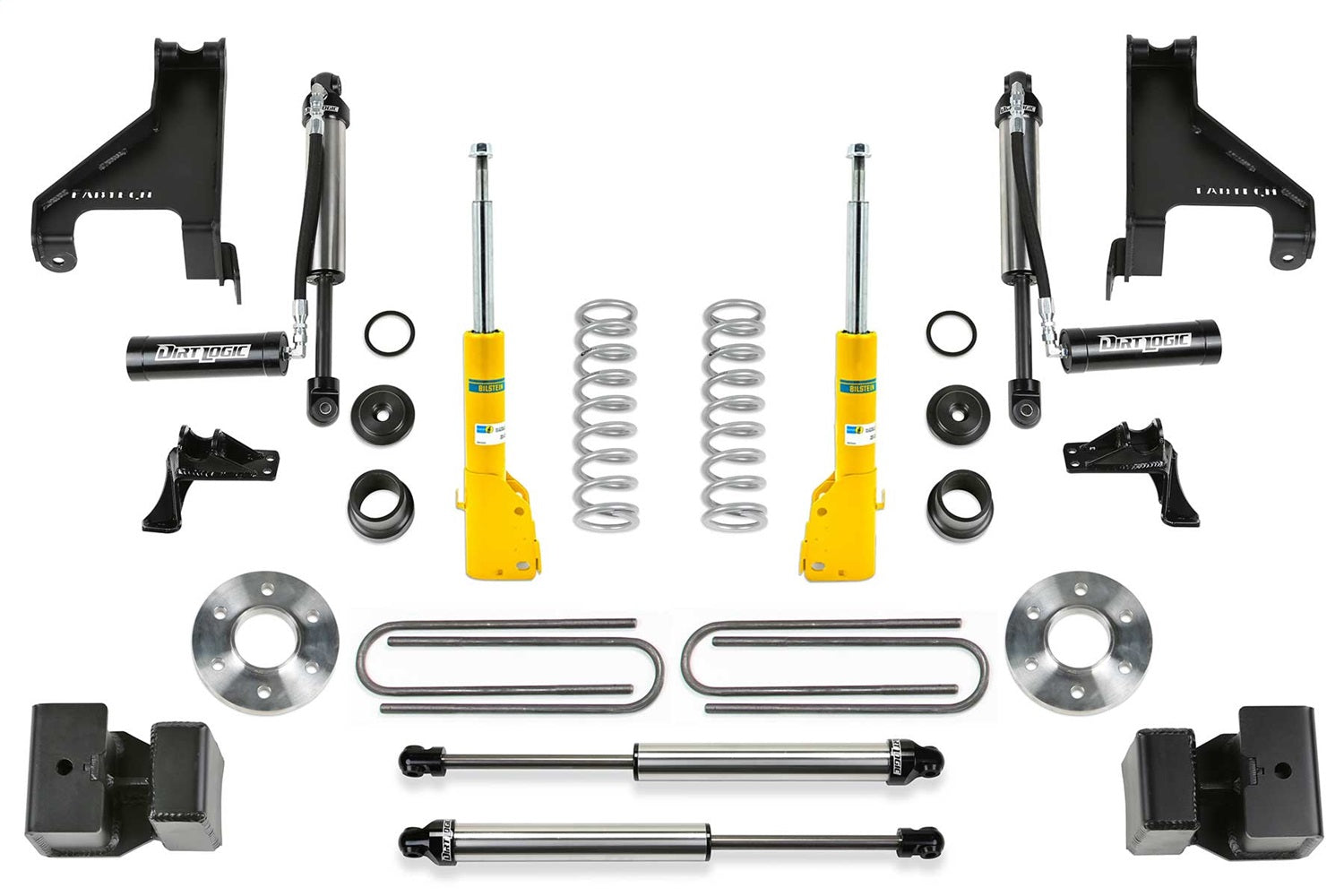

Fabtech Suspension Lift Kit K9011DL product image 1

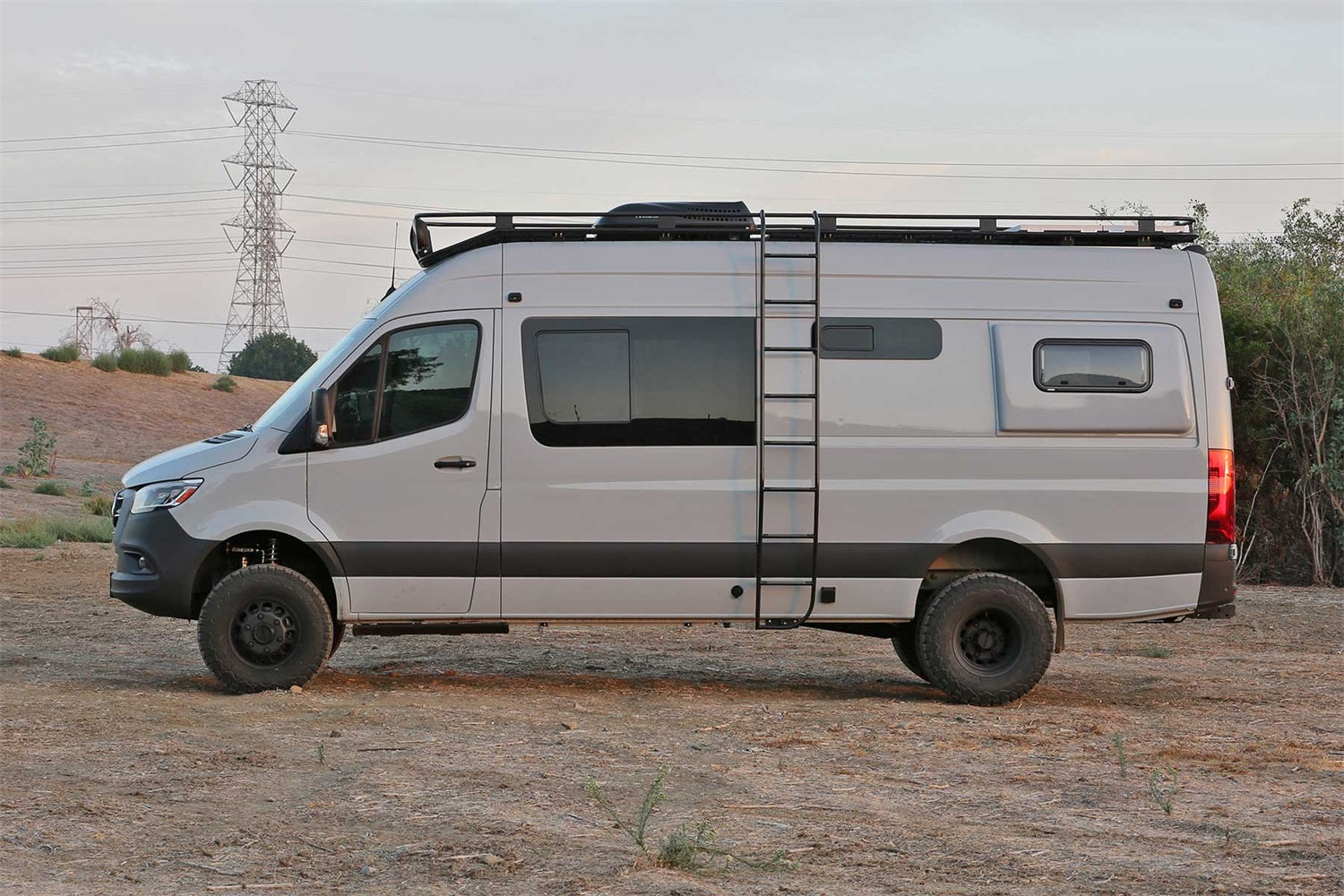

Fabtech Lift Kit K9011DL product image 2

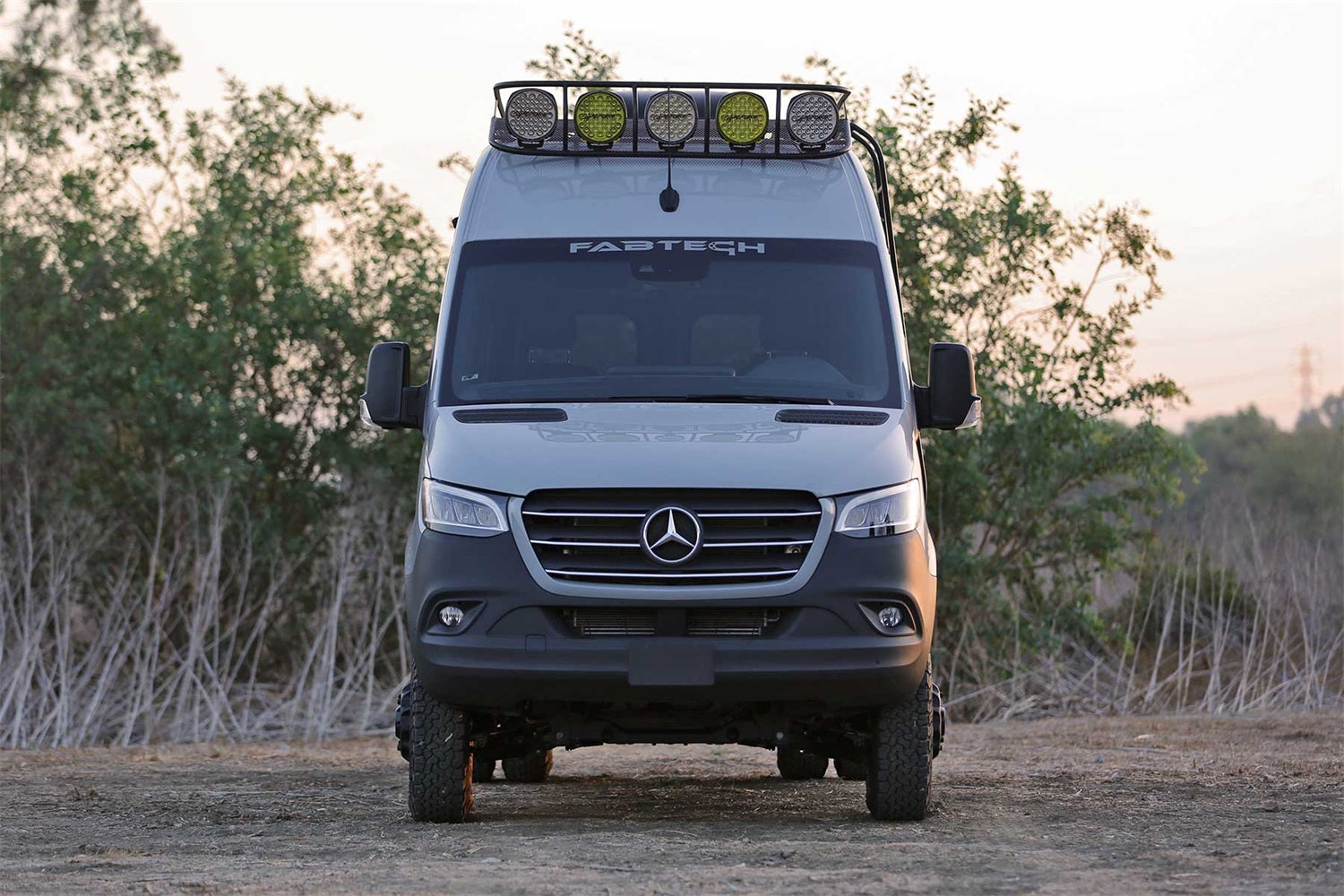

Fabtech Lift Kit K9011DL product image 3

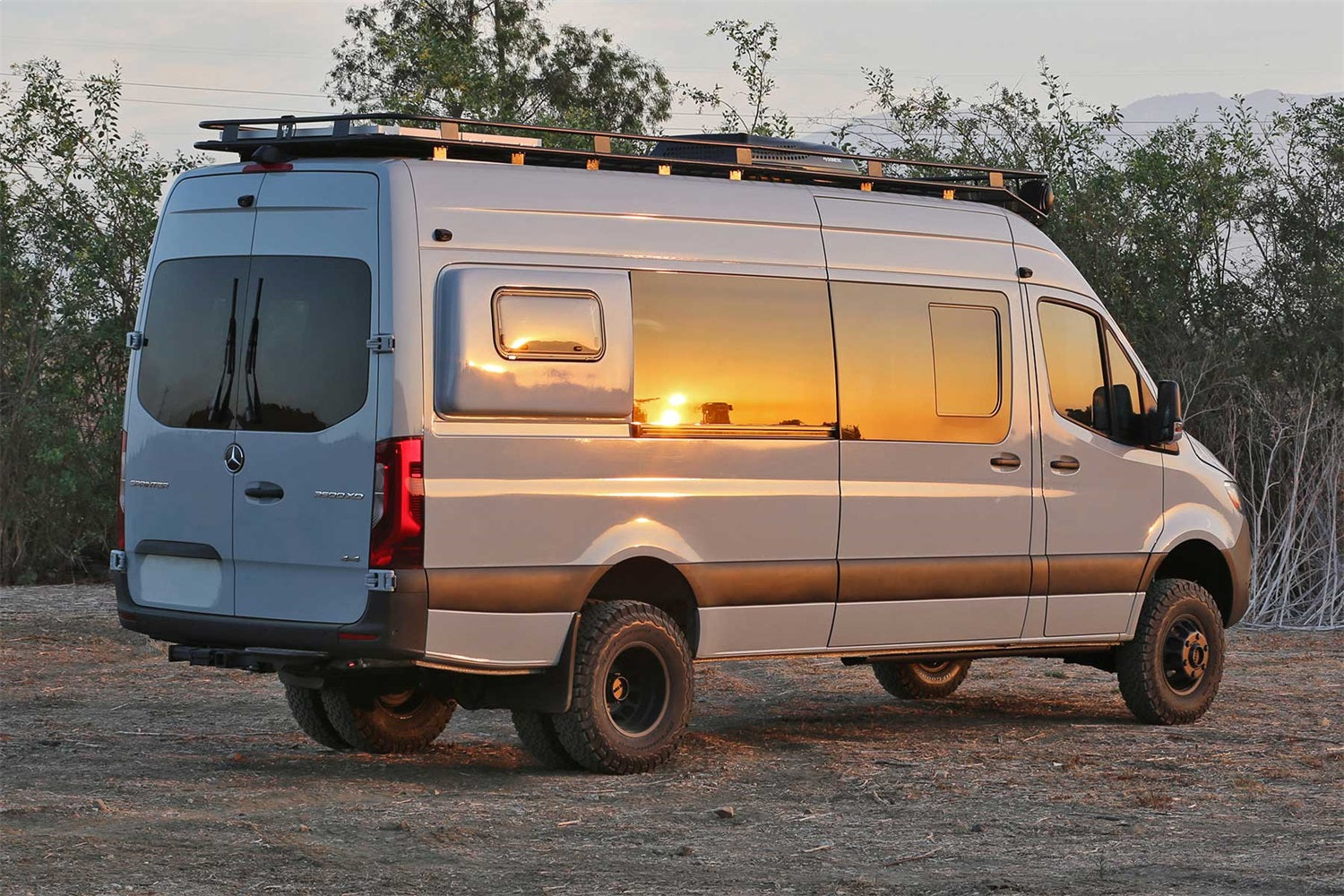

Fabtech Lift Kit K9011DL product image 4

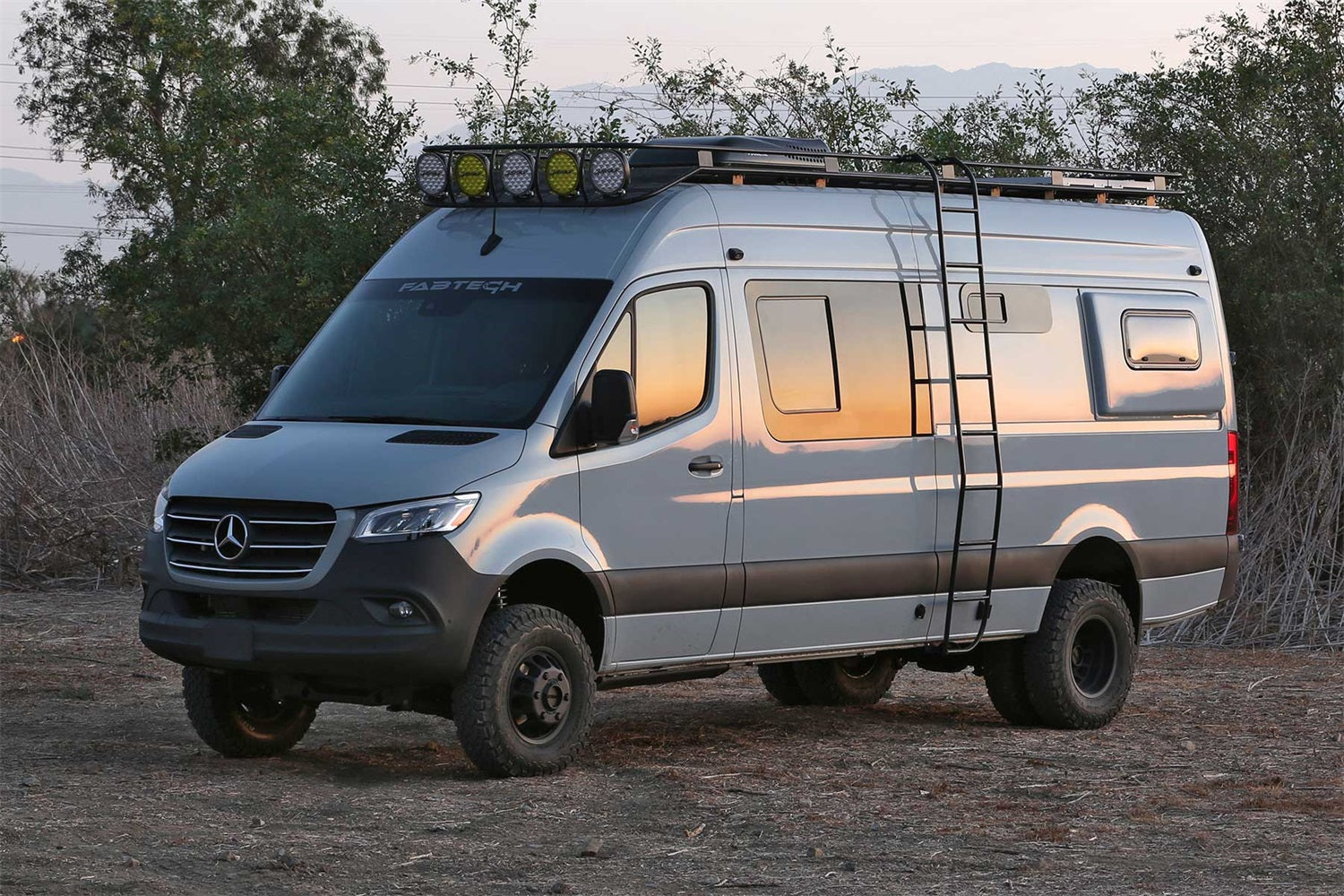

Fabtech Lift Kit K9011DL product image 5

Fabtech

Fabtech Coil Assist Kit K9011DL

SKU: K9011DL
Barcode: 674866113978

$4,313.92

Fabtech Coil Assist Kit K9011DL

1.5 inch lift adds loaded-van clearance
Fabtech Coil Assist Kit K9011DL

Bilstein B6 struts upgrade front damping
Fabtech Coil Assist Kit K9011DL

Dirt Logic reservoirs add control under load
Fabtech Coil Assist Kit K9011DL

Cold-wound coils support long-term ride quality
Fabtech Coil Assist Kit K9011DL

Billet coil seats locate springs correctly

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock

Warranty

Products sold by Modridge may be covered by the original manufacturer’s warranty, when applicable. Warranty terms, coverage, exclusions, and claim requirements vary by brand and product line.

If you believe your item has a manufacturer defect, contact us with your order number, product photos, and a description of the issue. We’ll help review the case and guide you through the next steps based on the manufacturer’s policy.

This warranty does not cover normal wear, improper installation, misuse, modification, racing damage, accident damage, or installation-related issues unless the manufacturer’s policy states otherwise.

Shipping & Returns

Shipping

This item ships from an authorized U.S. distributor. Processing and transit times may vary depending on stock availability and destination. Most orders ship within 1–3 business days.

Returns

Returns are accepted within 30 days of delivery. Items must be uninstalled, unused, and in original packaging. Programmers and calibration devices that have been paired to a vehicle are not eligible for return. See our Returns & Refunds page for full details.

Emissions & Compliance

CARB Eligible
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Fabtech Coil Assist Kit K9011DL

$4,313.92

$4,313.92

1.5 in

Lift

Front

Position

Dirt Logic 2.25

Dampers

Product Description

The Fabtech Coil Assist Kit is built for Sprinter van owners who need better control after adding cargo, interior buildout weight, or overland gear. This version provides a 1.5 inch lift and combines Bilstein B6 struts with Dirt Logic 2.25 reservoir auxiliary shocks and rear Dirt Logic 2.25 shocks.

The kit uses cold-wound coil springs with billet aluminum upper and lower coil seats to properly locate the added spring support. Dirt Logic reservoir shock hardware adds damping capacity for a van that may see heavier loads and rougher travel than stock use.

This is a front-position coil assist setup. Fitment data should be treated carefully because tire, wheel, and van configuration details affect clearance.

Specifications

Brand
Fabtech
Part Number
K9011DL
Product Type
Coil Assist Kit
Lift Provided
1.5 in
Position
Front
Front Struts
Bilstein B6
Auxiliary Shocks
Dirt Logic 2.25 reservoir
Rear Shocks
Dirt Logic 2.25
Warranty
Lifetime
Country of Origin
US
Quantity per Application
1 Each
GTIN
674866113978
Package Length (in)
43.5
Package Width (in)
45.04
Package Height (in)
15
Package Weight (lbs)
146

Fitment / Application

2015 | Mercedes-Benz | Sprinter 3500 | Front | 1.5 in.; Front Bilstein B6 Struts W/Dirt Logic 2.25 Resi Auxiliary Shocks & Rear Dirt Logic 2.25 Shocks
2016 | Mercedes-Benz | Sprinter 3500 | Front | 1.5 in.; Front Bilstein B6 Struts W/Dirt Logic 2.25 Resi Auxiliary Shocks & Rear Dirt Logic 2.25 Shocks
2017 | Mercedes-Benz | Sprinter 3500 | Front | 1.5 in.; Front Bilstein B6 Struts W/Dirt Logic 2.25 Resi Auxiliary Shocks & Rear Dirt Logic 2.25 Shocks
2018 | Mercedes-Benz | Sprinter 3500 | Front | 1.5 in.; Front Bilstein B6 Struts W/Dirt Logic 2.25 Resi Auxiliary Shocks & Rear Dirt Logic 2.25 Shocks
2019 | Mercedes-Benz | Sprinter 3500 | Front | 1.5 in.; Front Bilstein B6 Struts W/Dirt Logic 2.25 Resi Auxiliary Shocks & Rear Dirt Logic 2.25 Shocks
2020 | Mercedes-Benz | Sprinter 3500 | Front | 1.5 in.; Front Bilstein B6 Struts W/Dirt Logic 2.25 Resi Auxiliary Shocks & Rear Dirt Logic 2.25 Shocks
2021 | Mercedes-Benz | Sprinter 3500 | Front | 1.5 in.; Front Bilstein B6 Struts W/Dirt Logic 2.25 Resi Auxiliary Shocks & Rear Dirt Logic 2.25 Shocks

What's in the Box

• Front Bilstein B6 struts × 1 set
• Front Dirt Logic 2.25 reservoir auxiliary shocks × 1 set
• Rear Dirt Logic 2.25 shocks × 1 set
• Cold-wound coil springs × 1 set
• Billet coil seats × 1 set

Installation & Documents

Perform a professional alignment after installation. Confirm suspension clearance and hardware torque through the full range of travel.
