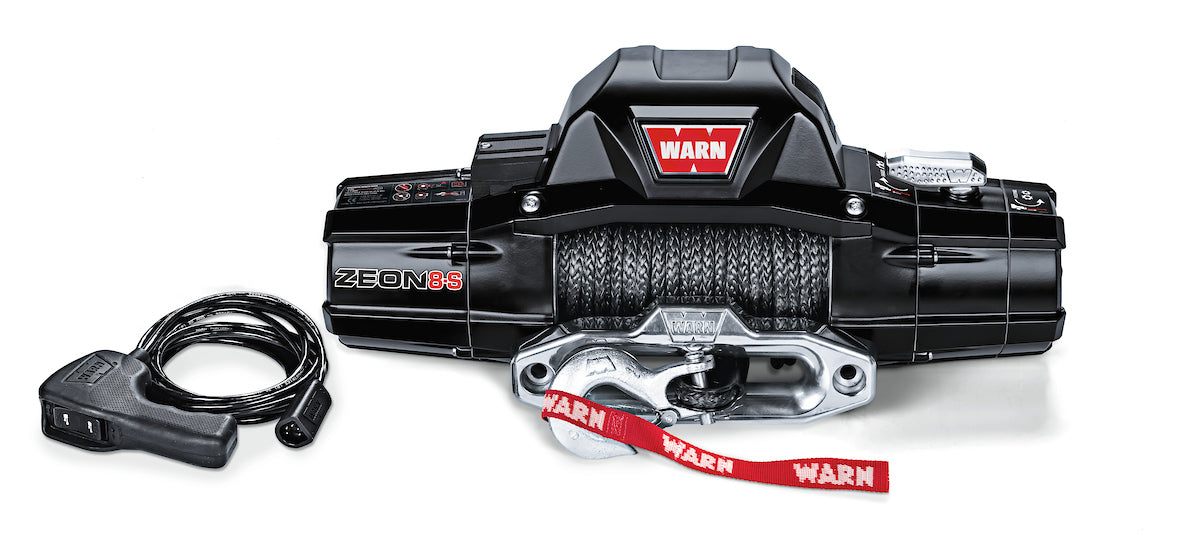

Warn 100 Feet Winch 89305

SKU: 89305

$1,849.99

Warn 100 Feet Winch 89305

Limited Lifetime Warranty
Warn 100 Feet Winch 89305

Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
Warn 100 Feet Winch 89305

Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
Warn 100 Feet Winch 89305

Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out
Warn 100 Feet Winch 89305

Includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope, Which Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead
In stock 7

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Warn 100 Feet Winch 89305

$1,849.99

$1,849.99

100 Feet

Line Length

8000 Pound

Winch Rating

Electric

Operation Type

Product Description

Don't let the good looks fool you. We've packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 Pound pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.

Specifications

Winch Rating
8000 Pound
Recommended Use
Vehicle Recovery
Operation Type
Electric
Mount Type
Fixed Mount
Voltage
12 Volt
Free Spooling
Yes
Line Length (FT)
100 Feet
Line Material
Synthetic
Remote Type
Wired
Universality
Fully Universal

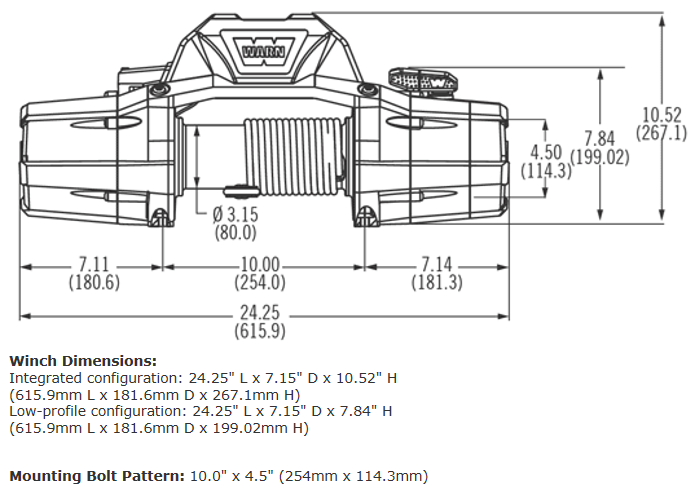

Mounting Pattern Size
10 Inch Length X 4-1/2 Inch Width
Brake Type
Dynamic And Mechanical
Max Amp Draw
413 Amp Draw At 8000 Pound
Gear Reduction Ratio
162
Includes Mounting Hardware
No
Thermal Shutoff
No
Color
Black
Fairlead Type
Hawse
Line Speed At Max Pull
6.2 Feet Per Minute At 8000 Pound
Electrical Control Type
Contactors
Motor Type
Series Wound
Drive Gear Type
Planetary
Line Diameter (IN)
3/8 Inch
Mounting Hole Quantity
4
Drum Material
Aluminum
Estimated Install Time (Hours)
2

Installation & Documents



89401_A6_Zeon 8-S Specifications.pdf
ZEON Install Guide.pdf
62885_A8_Truck Basic Guide to Winching.pdf
87968_A6_Synthetic Rope Installation and Operators Guide.pdf
