Warn Without Rope Winch 90665

SKU: 90665

$1,699.99

Warn Without Rope Winch 90665

Limited Lifetime Warranty
Warn Without Rope Winch 90665

10,000 Pounds (4536 Kilogram) Single-Line Pulling Capacity
Warn Without Rope Winch 90665

Tough Enough To Tackle Anything You Will, With A Look That Is Advanced, Capable And Strong
Warn Without Rope Winch 90665

Updated Planetary Gear Train And Series-Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
Warn Without Rope Winch 90665

Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
Out of stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Warn Without Rope Winch 90665

$1,699.99

$1,699.99

Without Rope

Line Length

10000 Pound

Winch Rating

Electric

Operation Type

Product Description

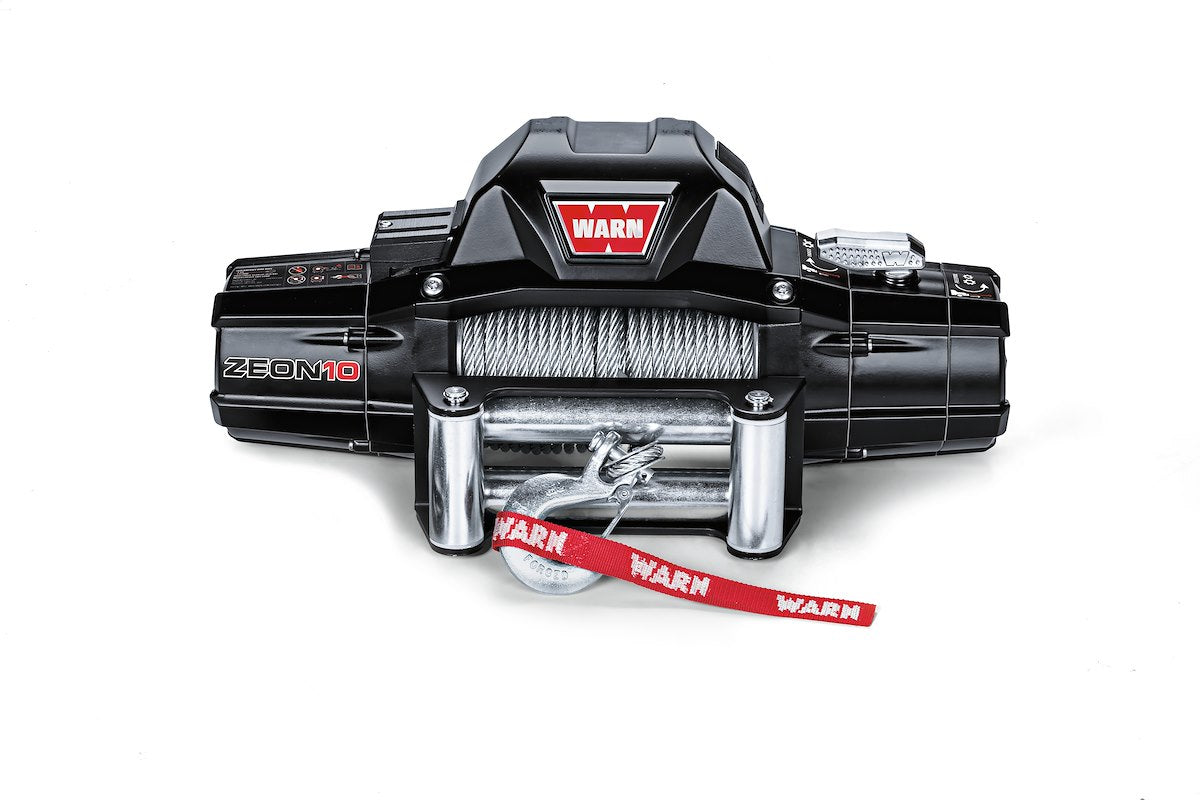

Choose your way to conquer the terrain. The ZEON 10 is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 Pounds single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

More Features

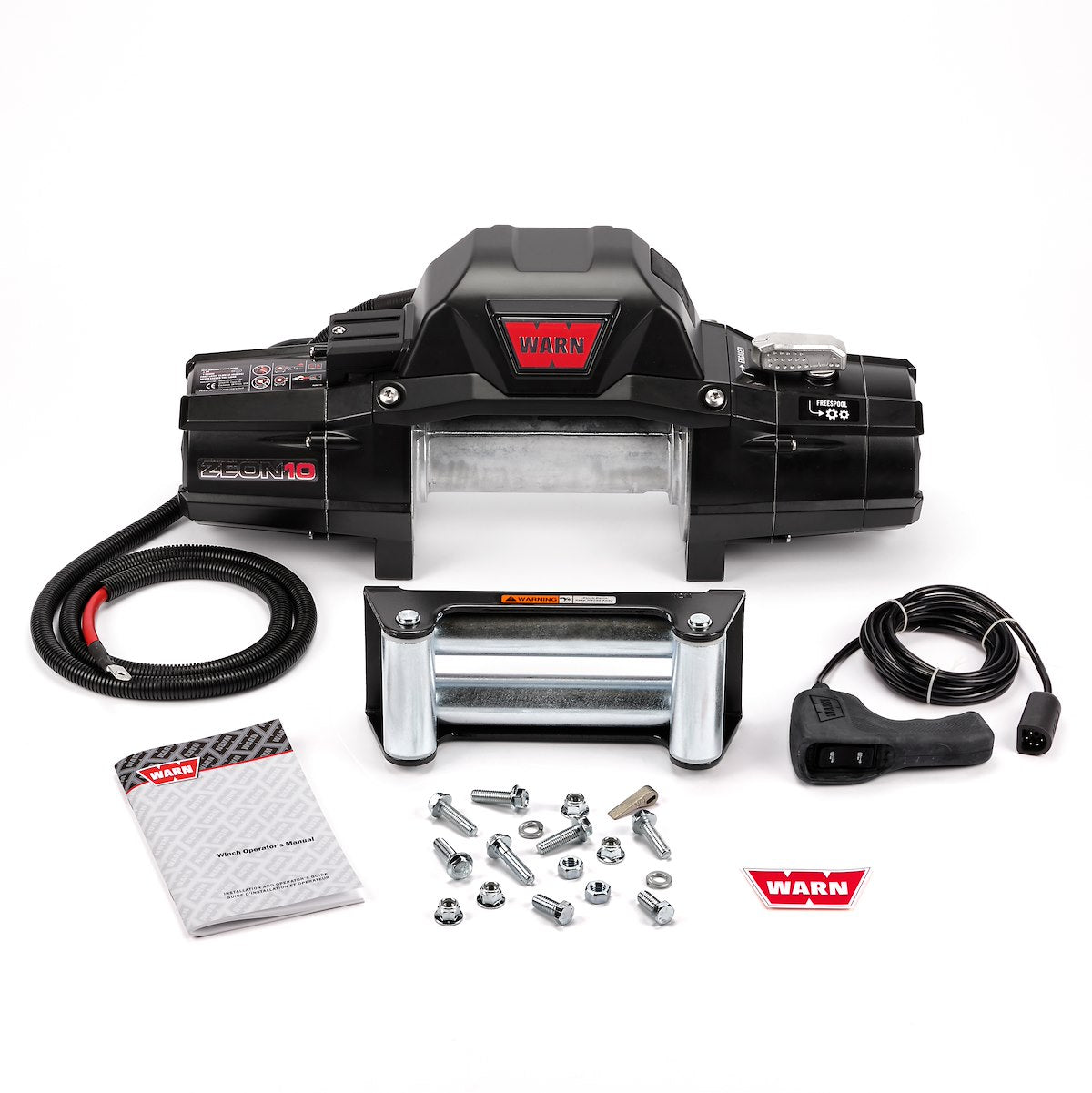

  • Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
  • Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out

Specifications

Winch Rating
10000 Pound
Recommended Use
Vehicle Recovery
Operation Type
Electric
Mount Type
Fixed Mount
Voltage
24 Volt
Free Spooling
Yes
Line Length (FT)
Without Rope
Line Material
Without Rope
Remote Type
Wired
Universality
Fully Universal
Mounting Pattern Size
10 Inch Length X 4-1/2 Inch Width
Brake Type
Automatic Cone
Max Amp Draw
409 Amp Draw At 10000 Pound
Gear Reduction Ratio
261
Includes Mounting Hardware
Yes
Thermal Shutoff
No
Color
Black
Fairlead Type
Roller
Line Speed At Max Pull
4.8 Feet Per Minute At 10000 Pound
Electrical Control Type
Contactors
Motor Type
Series Wound
Drive Gear Type
Planetary
Line Diameter (IN)
Without Rope
Mounting Hole Quantity
4
Drum Material
Aluminum
Estimated Install Time (Hours)
2
