Warn 100 Feet Winch 28500

SKU: 28500

$1,935.99

Warn 100 Feet Winch 28500

Separate Control Pack
Warn 100 Feet Winch 28500

Limited Lifetime Warranty
Warn 100 Feet Winch 28500

Compact Body. Quiet Durable
Warn 100 Feet Winch 28500

Three Stage Planetary Gearing
Warn 100 Feet Winch 28500

Pulling Capacity Up To 9,000 Pounds
In stock 5

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Warn 100 Feet Winch 28500

$1,935.99

$1,935.99

100 Feet

Line Length

9000 Pound

Winch Rating

Electric

Operation Type

Product Description

A long time best seller, the XD9000 is fast and reliable in real trail conditions. The compact body and separate control pack lets it work effectively in very tight spaces. It uses the 4.6 Horsepower series wound motor and three stage planetary gearing offered on most of our Winches, so torque and line speed are outstanding

More Features
  • Competition Grade Power, Speed And Reliability
  • Works Effectively In Very Tight Spaces

Specifications

Winch Rating
9000 Pound
Recommended Use
Vehicle Recovery
Operation Type
Electric
Mount Type
Fixed Mount
Voltage
12 Volt
Free Spooling
Yes
Line Length (FT)
100 Feet
Line Material
Steel
Remote Type
Wired
Universality
Fully Universal

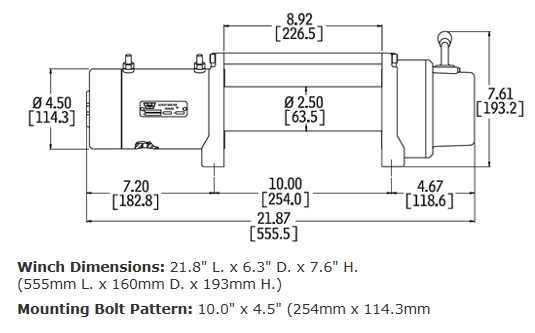

Mounting Pattern Size
10 Inch Length X 4-1/2 Inch Width
Brake Type
Automatic Cone
Max Amp Draw
478 Amp Draw At 9000 Pound
Gear Reduction Ratio
156
Includes Mounting Hardware
No
Thermal Shutoff
No
Color
Gray
Motor Horsepower
4.6 Horsepower
Fairlead Type
Roller
Line Speed At Max Pull
3.9 Feet Per Minute At 9000 Pound
Electrical Control Type
Contactors
Motor Type
Series Wound
Drive Gear Type
Planetary
Line Diameter (IN)
5/16 Inch
Mounting Hole Quantity
4
Estimated Install Time (Hours)
2
