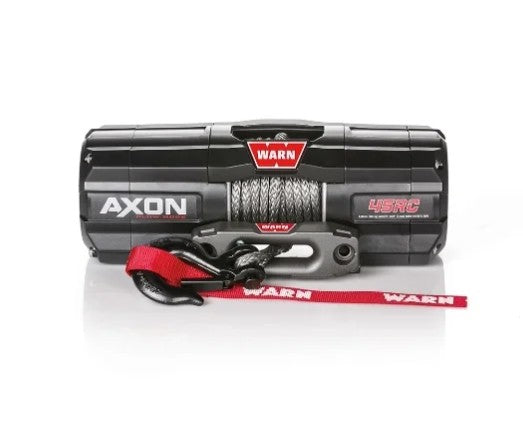

Warn Winch 101240 product image 1

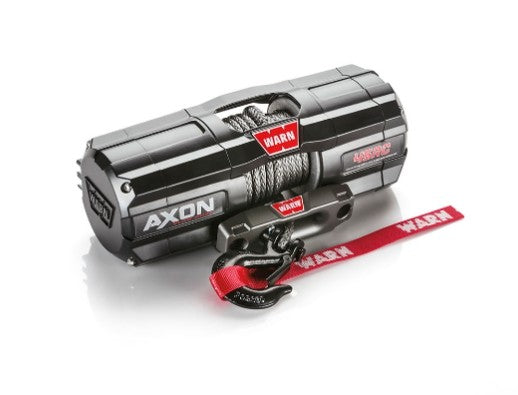

Warn Winch 101240 product image 2

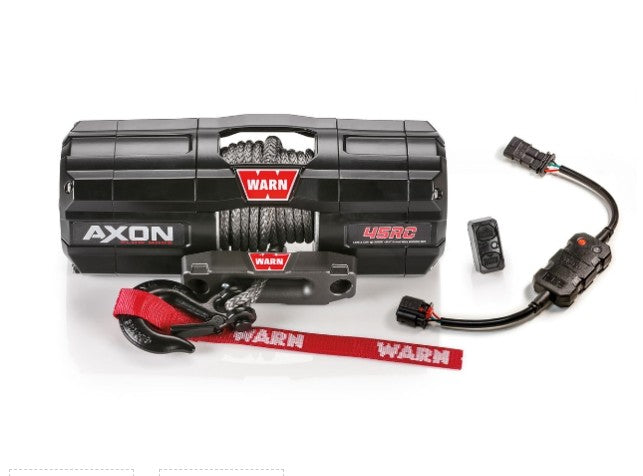

Warn Winch 101240 product image 3

Warn 27 Feet Winch 101240

SKU: 101240

$934.99

Warn 27 Feet Winch 101240

Load-Holding Brake For Great Control
Warn 27 Feet Winch 101240

Designed, Engineered, Tested, And Assembled In The USA
Warn 27 Feet Winch 101240

Limited Lifetime Mechanical Warranty And 3 Year Electrical Warranty
Warn 27 Feet Winch 101240

All-Metal Three-Stage Planetary Gear Train Provides Smooth, Reliable Operation
Warn 27 Feet Winch 101240

Satin Black Powder-Coated Finish And Stainless-Steel Fasteners For Corrosion Resistance
Out of stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Warn 27 Feet Winch 101240

$934.99

$934.99

27 Feet

Line Length

4500 Pound

Winch Rating

Electric

Operation Type

Product Description

The AXON Plow Mode 45RC is a short-drum winch optimized for mounting in the tight areas some UTVs require. It includes 27 Foot of lightweight, easy-to-handle 1/4 Inch Spydura™ synthetic rope, Epic hawse fairlead, and a black hook - ideal for sport side x sides. As the name suggests, it includes Plow Mode, letting customers set upper and lower travel limits to protect a plow blade against possible damage. This winch features improved IP68/IP69K waterproofing with O-rings for maximum muck protection. Plus the Motactor™ means a compact motor/contactor in one unit for a timesaving, hassle-free installation. Designed, engineered, tested, and assembled in the USA.

More Features
  • AXON Plow Mode 45RC Includes 27 Foot Of Lightweight, Easy-To-Handle 1/4 Inch Spydura Synthetic Rope, Epic Hawse Fairlead, And Black Hook
  • Powerful 4500 Pound Pulling Capacity And Compact Size Is Optimized For Mounting In The Tight Space Required By Some Sport UTVs
  • Revolutionary Motactor™ Combines Motor And Contactor For Easy Installation, The Best Performance, And Accurate Digital Control
  • Durable All-Metal Construction And One-Piece Tie Plate (Vs. Tie Bars) For Increased Structural Rigidity
  • IP68/IP69K Waterproofing With O-Rings Keeps Water And The Elements Out—the Best Rating Possible For Maximum Reliability

Specifications

Winch Rating
4500 Pound
Recommended Use
ATV/ UTV
Operation Type
Electric
Mount Type
Fixed Mount
Voltage
12 Volt
Free Spooling
Yes
Line Length (FT)
27 Feet
Line Material
Synthetic
Remote Type
Wireless
Universality
Fully Universal
Mounting Pattern Size
4.9 Inch Length X 3 Inch Width
Brake Type
Automatic Drum
Gear Reduction Ratio
239
Includes Mounting Hardware
No
Color
Black
Fairlead Type
Hawse
Motor Type
Permanent Magnet
Drive Gear Type
Planetary
Line Diameter (IN)
1/4 Inch
Mounting Hole Quantity
4
Estimated Install Time (Hours)
2
Marine
No
