Warn Without Rope Vehicle-Mounted Hoist 70469

SKU: 70469

$2,107.99

Warn Without Rope Vehicle-Mounted Hoist 70469

Limited 1 Year Warranty
Warn Without Rope Vehicle-Mounted Hoist 70469

Permanent Grease Lubrication
Warn Without Rope Vehicle-Mounted Hoist 70469

Proven 3-Stage Planetary Gear Train
Warn Without Rope Vehicle-Mounted Hoist 70469

Automatic Cone Brake That Holds Full Rated Load
Warn Without Rope Vehicle-Mounted Hoist 70469

Powerful Permanent Magnet DC Motor With Robust Sealing
Out of stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Warn Without Rope Vehicle-Mounted Hoist 70469

$2,107.99

$2,107.99

Without Rope

Line Length

2000 Pound

Winch Rating

Electric

Operation Type

Product Description

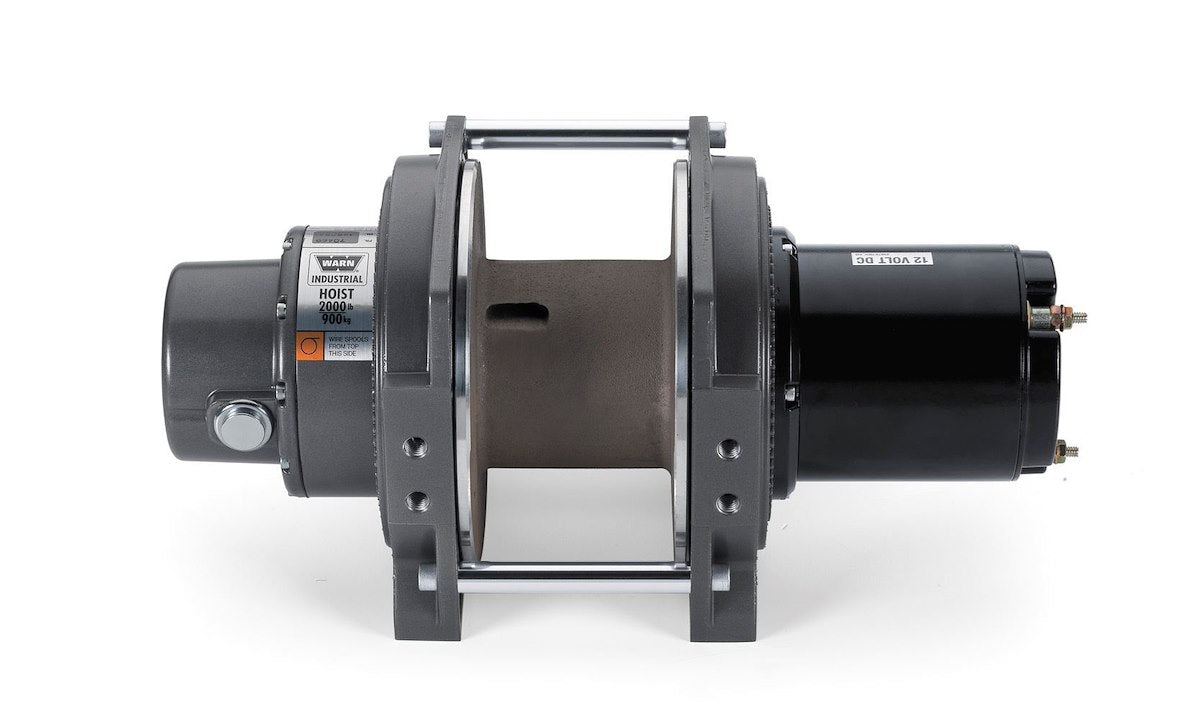

The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.

More Features
  • Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity

Specifications

Winch Rating
2000 Pound
Recommended Use
Industrial
Operation Type
Electric
Mount Type
Fixed Mount
Voltage
12 Volt
Free Spooling
Yes
Line Length (FT)
Without Rope
Line Material
Without Rope
Remote Type
Without Remote
Universality
Fully Universal
Mounting Pattern Size
6 Inch Length X 4-1/2 Inch Width
Brake Type
Automatic Cone
Max Amp Draw
115 Amp Draw At 2000 Pound
Gear Reduction Ratio
261
Includes Mounting Hardware
No
Thermal Shutoff
No
Color
Gray
Fairlead Type
Without Fairlead
Line Speed At Max Pull
11.9 Feet Per Minute At 2000 Pound
Motor Type
Permanent Magnet
Drive Gear Type
Planetary
Line Diameter (IN)
Without Rope
Mounting Hole Quantity
8
Estimated Install Time (Hours)
2

Installation & Documents



Installation Guide
987362-Product Datasheet-70469-DC2000LF-12V.pdf
