Name: Wilwood Brakes Brake Proportioning Valves 260-11179
Brand: Wilwood Brakes
SKU: BHTR_260-11179
Price: 114.28 USD
Availability: InStock

Fitment-based search is in development — powered by Convermax and SEMA Data

Wilwood Brakes Brake Proportioning Valves 260-11179

$114.28

Adjustable Knob Type

Adjustment Style

1500 Pounds Per Square Inch

Maximum Pressure

Inlet Quantity

Product Description

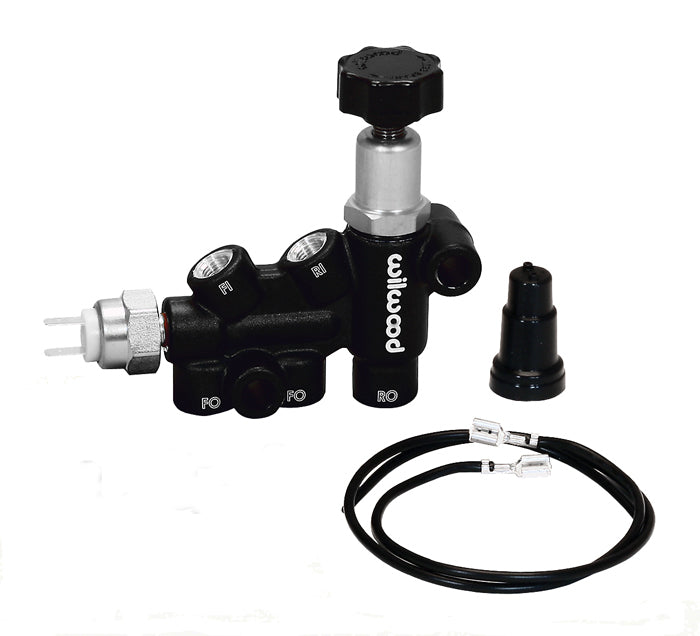

Wilwood's new Combination Proportioning Valve substantially simplifies mounting, plumbing, wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and can be used in conjunction with any tandem outlet or dual mount master cylinder assemblies. The rear circuit has a single inlet and single outlet with the adjustable proportioning valve. The front circuit has a single inlet with two outlets. It can be run as a single outlet with one outlet plugged, or used to split the plumbing on its way to the front calipers.

Specifications

Adjustment Style

Adjustable Knob Type

Maximum Pressure

1500 Pounds Per Square Inch

Inlet Quantity

Inlet Attachment

Female Threads

Inlet Size

3/8 Inch-24

Outlet Quantity

Outlet Attachment

Female Threads

Outlet Size

3/8 Inch-24

Finish

Anodized

Color

Black

Material

Aluminum/ Steel

Installation & Documents

Installation Guide
