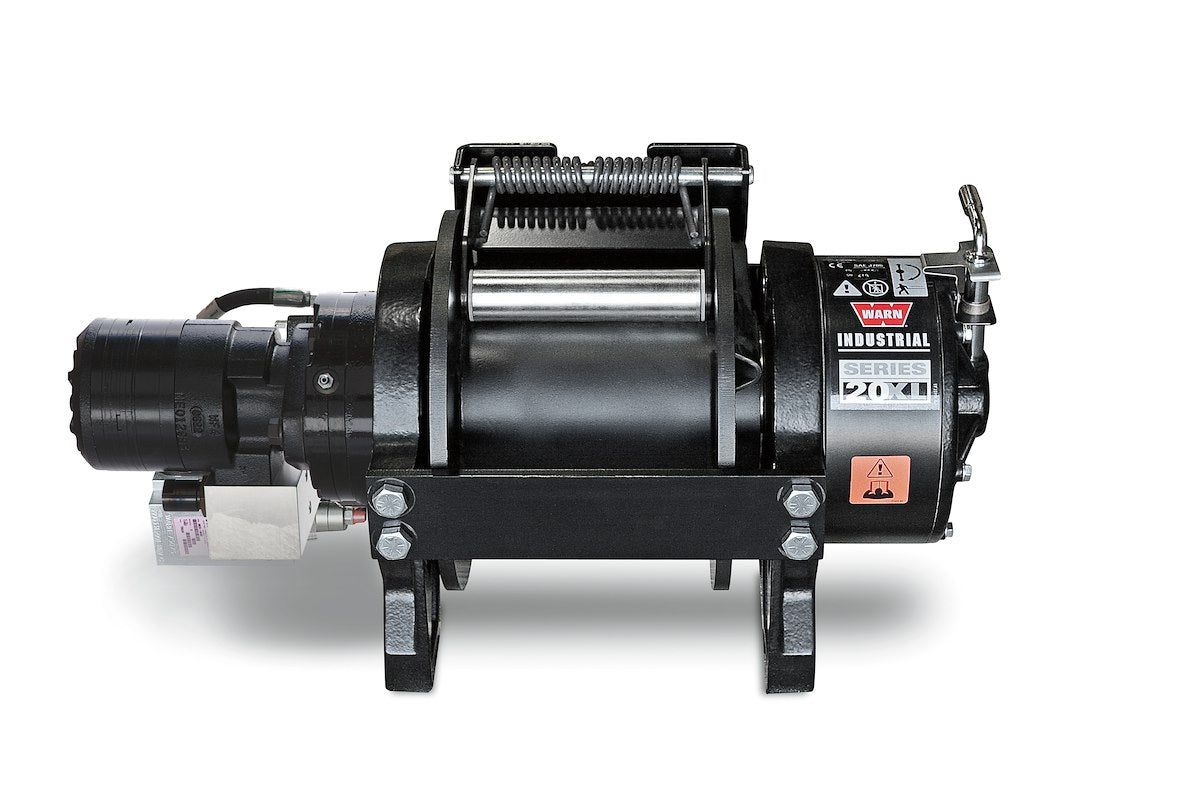

Warn Without Rope Winch 77560

SKU: 77560

$7,300.00

Warn Without Rope Winch 77560

Limited 1 Year Warranty
Warn Without Rope Winch 77560

Meets SAE J706 And CE Specifications
Warn Without Rope Winch 77560

Spring Applied Disc Brake Designed To Hold The Full Rated Load
Warn Without Rope Winch 77560

Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
Warn Without Rope Winch 77560

8.0 Cubic Inch High Performance Motor With 20,000 Pounds Capacity, Great For Trailers, Roll Back Carriers, And Severe Duty Applications
Out of stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Warn Without Rope Winch 77560

$7,300.00

$7,300.00

Without Rope

Line Length

20000 Pound

Winch Rating

Hydraulic

Operation Type

Product Description

For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic Motors allow for extended duty. Hardened steel, two-stage Planetary Gear Trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world-wide quality and safety standards.

Specifications

Winch Rating
20000 Pound
Recommended Use
Industrial
Operation Type
Hydraulic
Mount Type
Fixed Mount
Voltage
Not Applicable
Free Spooling
Yes
Line Length (FT)
Without Rope
Line Material
Without Rope
Remote Type
Without Remote
Universality
Fully Universal
Mounting Pattern Size
18 Inch Length X 7-1/2 Inch Width
Brake Type
Spring Applied Disc
Gear Reduction Ratio
28.5
Includes Mounting Hardware
No
Thermal Shutoff
No
Color
Black
Motor Horsepower
Not Applicable
Fairlead Type
Without Fairlead
Line Speed At Max Pull
28.5 Feet Per Minute At 20000 Pound
Electrical Control Type
Not Applicable
Drive Gear Type
Planetary
Line Diameter (IN)
Without Rope
Mounting Hole Quantity
8
Estimated Install Time (Hours)
2

Installation & Documents



72562_C0_Industrial Winch Operators Manual.pdf
Installation Guide
Installation Guide
912517-Product Datasheet-77560-SRS 20XL.pdf
