Wilwood Brakes 309.62 Millimeter Disc Brake Rotors 160-8136

SKU: 160-8136

$142.85

Wilwood Brakes 309.62 Millimeter Disc Brake Rotors 160-8136

Easy To Install

Wilwood Brakes 309.62 Millimeter Disc Brake Rotors 160-8136

No Supplier Warranty

Wilwood Brakes 309.62 Millimeter Disc Brake Rotors 160-8136

Provides Quicker Deceleration Under Braking And Quicker Acceleration Out Of The Corners

Wilwood Brakes 309.62 Millimeter Disc Brake Rotors 160-8136

Benefits Handling With Improved Spring And Shock Control Over The Unsprung Suspension Mass

Wilwood Brakes 309.62 Millimeter Disc Brake Rotors 160-8136

Provides Effective Lightweight Options For Sprints, Late Models, Modified, And Other Competition Applications That Race In Low To Medium Temperature Ranges

In stock 7

Emissions & Compliance

Emissions Compliance Exempt

  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Wilwood Brakes 309.62 Millimeter Disc Brake Rotors 160-8136

$142.85

$142.85

12.19 Inch

Outer Diameter

309.62 Millimeter

Outer Diameter

Plain Face

Disc Type

Product Description

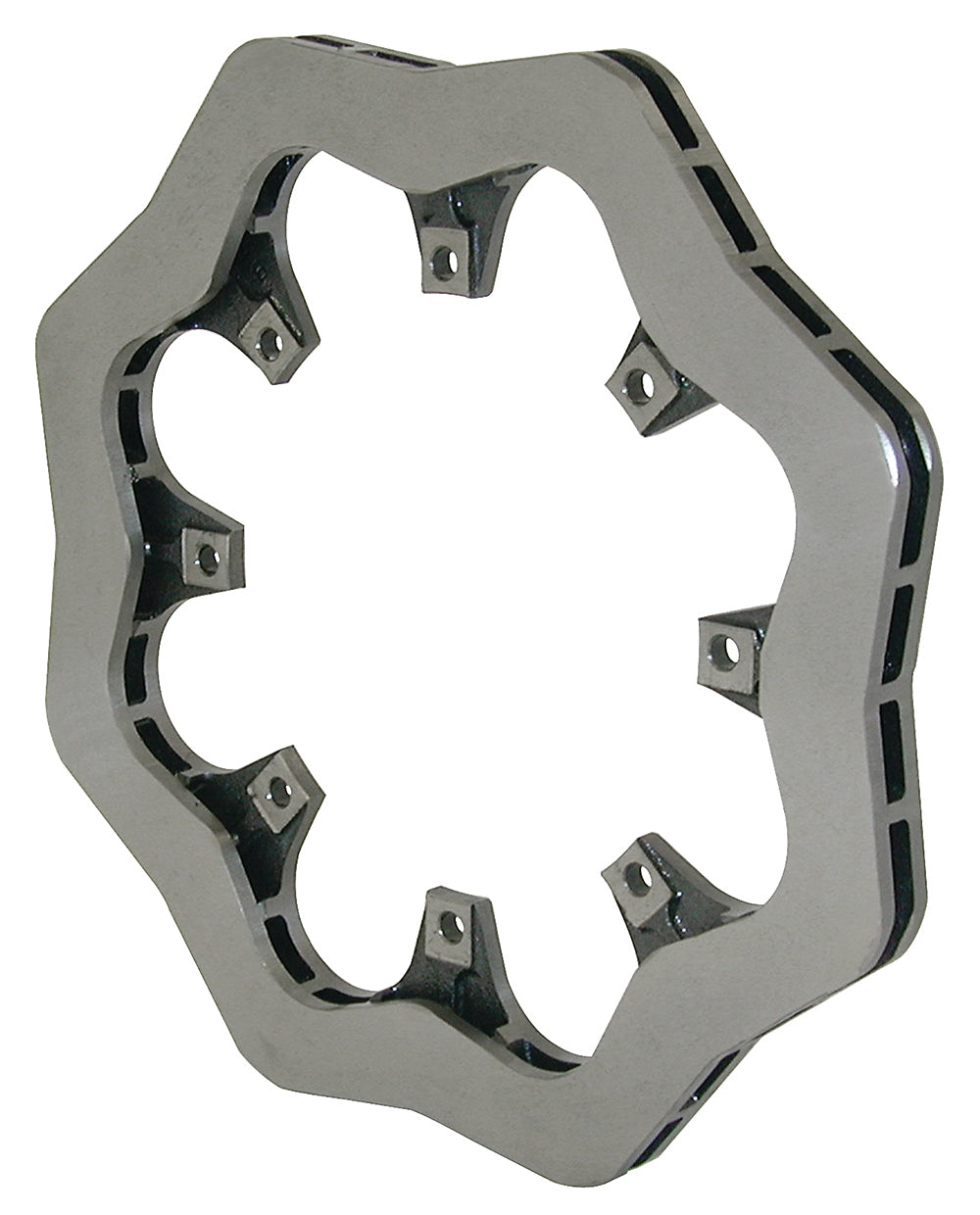

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULS-32 scalloped iron rotors provides effective lightweight options for sprints, late models, modified, and other competition applications that race in low to medium temperature ranges. ULS-32 Series Scalloped Rotors feature a fully machined scallop configuration that provides the highest degree of weight reduction on a vented straight vane iron rotor. Scallop machining will remove as much as three Pound, or nearly 33 Percent of the rotor mass. The vented castings provide increased cooling capacity over machined steel plate rotors, with improved structural durability over drilled rotor designs. Wilwood’s ULS-32 scalloped iron rotors provides effective lightweight options for sprints, late models, modified, and other competition applications that race in low to medium temperature ranges.

Specifications

Disc Type
Plain Face
Quantity
Single
Recommended Use
Light Dirt Racing
Design
2-Piece
Finish
Natural
Material
Iron
Disc To Hat Bolt Circle (IN)
8 X 7 Inch
Disc To Hat Bolt Circle (MM)
8 X 175 Millimeter
Outer Diameter (IN)
12.19 Inch
Outer Diameter (MM)
309.62 Millimeter
Nominal Thickness (IN)
0.81 Inch
Nominal Thickness (MM)
20.57 Millimeter
