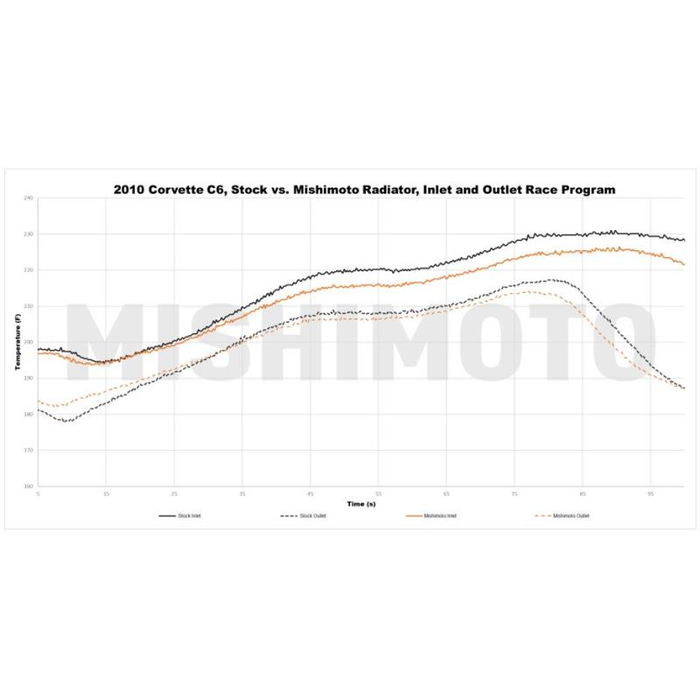

Mishimoto Radiator MMRAD-C6-05 product image 7
Mishimoto Radiator MMRAD-C6-05 product image 8
Mishimoto Radiator MMRAD-C6-05 product image 9
Mishimoto Radiator MMRAD-C6-05 product image 10

Mishimoto

Mishimoto Radiator MMRAD-C6-05

SKU: MMRAD-C6-05

$824.95

Mishimoto Radiator MMRAD-C6-05

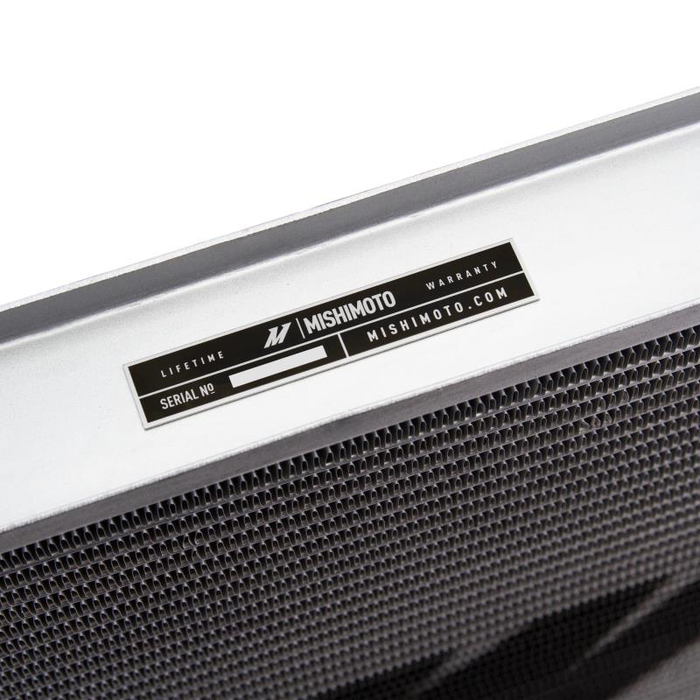

Limited Lifetime Warranty
Mishimoto Radiator MMRAD-C6-05

Specialized AC Condenser Tabs For Easy Installation
Mishimoto Radiator MMRAD-C6-05

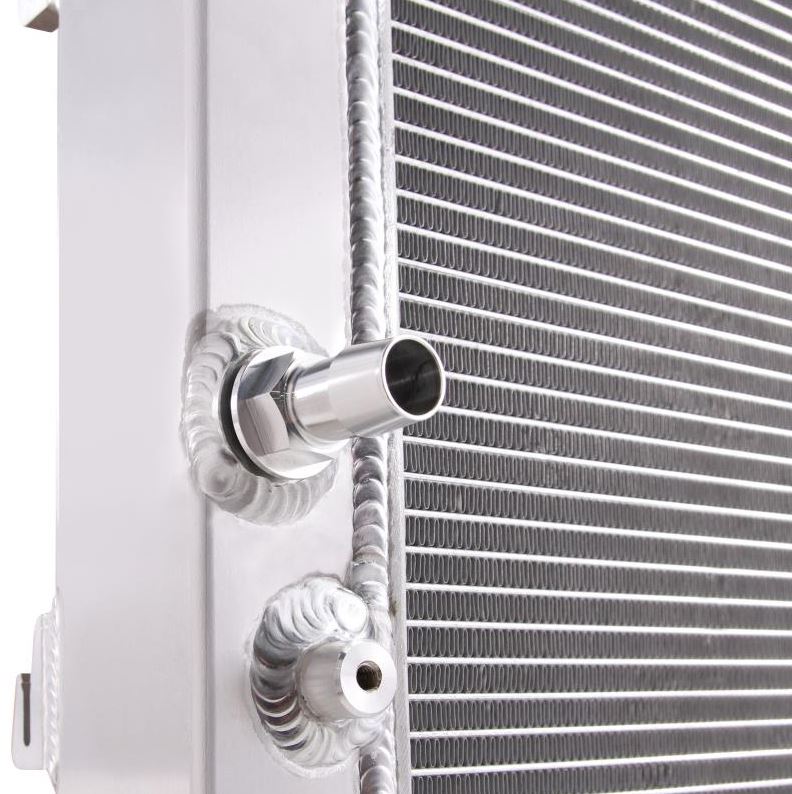

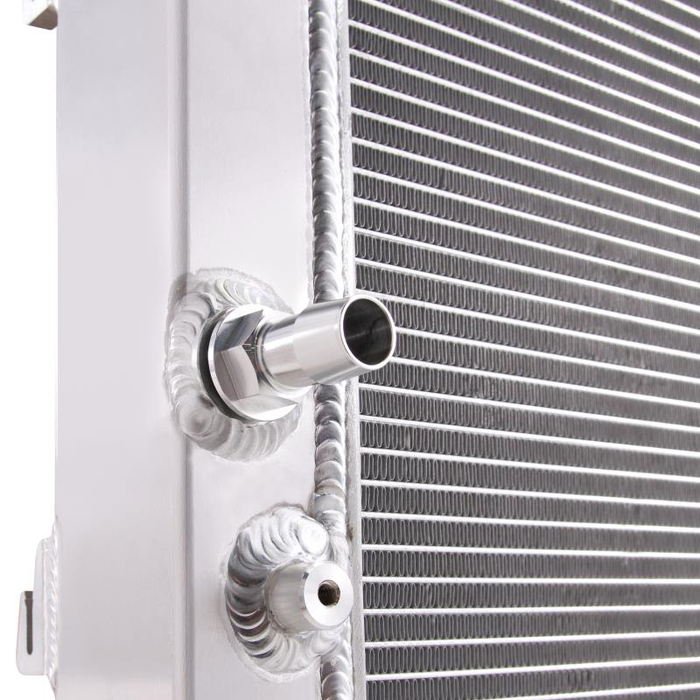

Integrated End Tank Oil And Automatic Transmission Coolers
Mishimoto Radiator MMRAD-C6-05

Full Aluminum Construction With Durable, TIG-Welded End Tanks
Mishimoto Radiator MMRAD-C6-05

Drops Outlet Temperature By 5 Degree Fahrenheit Across Powerband

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Low in stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Mishimoto Radiator MMRAD-C6-05

$824.95

$824.95

Cross Flow

Flow Direction

24 Inch

Overall Length

17 Inch

Overall Height

Product Description

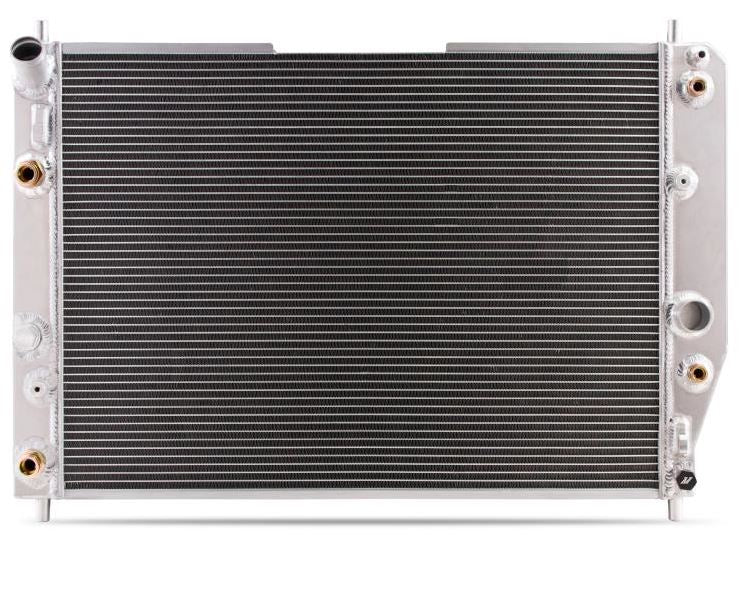

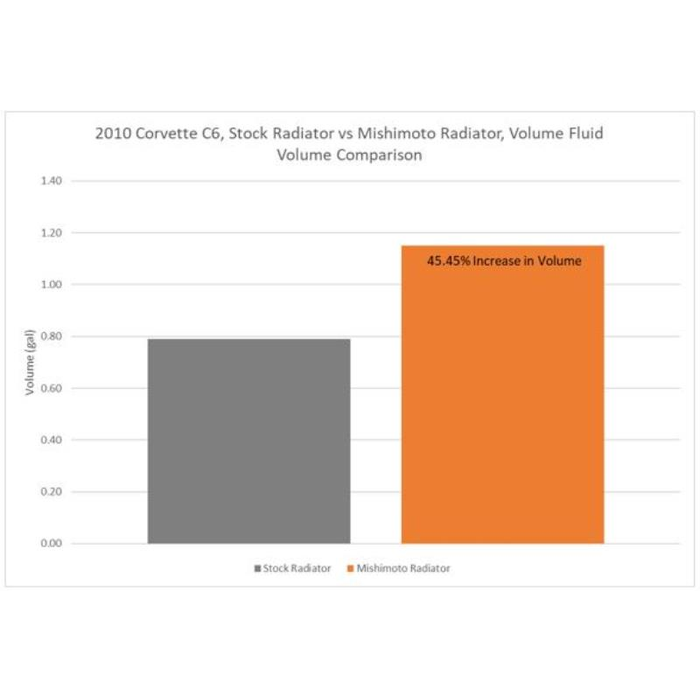

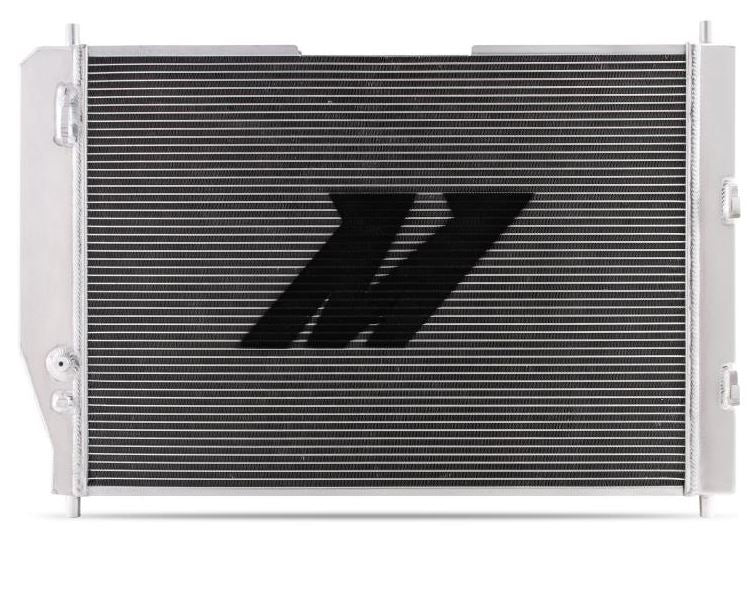

Mishimoto is here to help by way of swapping out that ill-equipped, stock plastic radiator with our all-aluminum performance radiator. We started by ditching the plastic in the end tanks for TIG-welded aluminum, both increasing the size and improving the longevity. Our improvements didn’t stop at the end tanks either. Our engineer redesigned the core with two rows of coolant passages and bumped the thickness to 2 Inches. This new design equates to a 56 Percent increase in fin surface area and a 45 Percent increase in volume, contributing to improved cooling properties.

More Features
  • Two-Row, 2 Inch Thick Brazed Aluminum Core, Providing Ideal Fluid Temperatures On The Street And At The Track

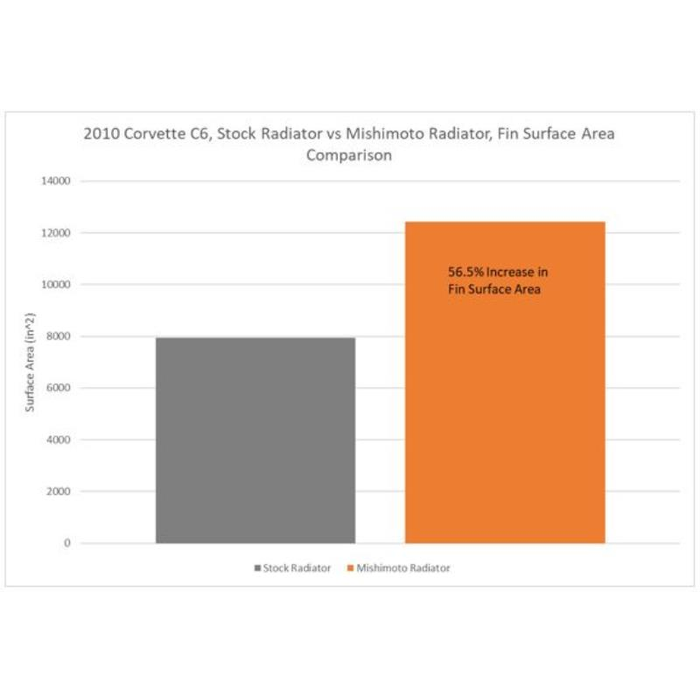

  • 56 Percent Increase In Fin Surface Area For Optimal Cooling Properties
  • Cut Out Incorporated Into Header Plate For Fitment Of Larger Aftermarket Intakes

Specifications

Flow Direction
Cross Flow
Overall Length (IN)
24 Inch
Overall Height (IN)
17 Inch
Overall Depth (IN)
2 Inch
Core Rows
Dual
Core Material
Aluminum
Inlet Hose Location
Upper Driver Side
Outlet Hose Location
Lower Passenger Side
Finish
Powder Coated
Color
Silver
Core Length (IN)
24 Inch
Core Height (IN)
17 Inch
Core Depth (IN)
2 Inch
Tank Material
Aluminum
With Radiator Cap
No
With Transmission Cooler
Yes
With Engine Oil Cooler
Yes
Includes Fittings
No
Includes Mounting Hardware
No

Installation & Documents



Installation Guide
