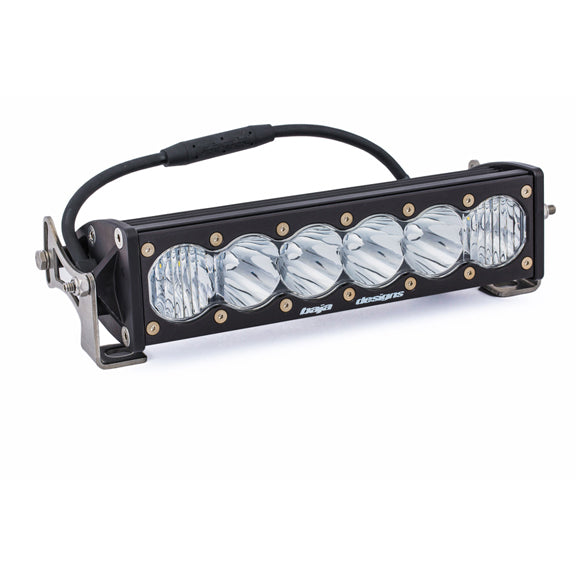

Baja Designs Light Bar 451003 product image 1

Baja Designs

Baja Designs 10 Inch Light Bar 451003

SKU: 451003

$442.95

Baja Designs 10 Inch Light Bar 451003

Limited Lifetime Warranty
Baja Designs 10 Inch Light Bar 451003

UService – Replaceable Lenses And Optics
Baja Designs 10 Inch Light Bar 451003

CopperDrive – Only LED Driven At 100 Percent
Baja Designs 10 Inch Light Bar 451003

ClearView – All The Light, Right Where You Need It
Baja Designs 10 Inch Light Bar 451003

MoistureBlock – Waterproof, Rain Proof, Submersible
In stock 54

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Baja Designs 10 Inch Light Bar 451003

$442.95

$442.95

10 Inch

Length

108 Watt High Mode/ 80 Watt Low Mode

Wattage

LED

Bulb Type

Product Description

At an impressive 39,430 lumens, the brightest just got up to 69 percent brighter than our previous generation. The OnX6 plus LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest-projecting LED Light Bar on the planet. We use Cree LEDs that last up to 50,000 Hour and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power.

More Features
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications

Bulb Type
LED
Style
Straight
Length
10 Inch
Beam Type
Combo Beam Driving And Spot
Number Of Rows
1
Light Color
White
Housing Color
Black
Smart Technology Compatible
Not Smart Technology Compatible
Lumens
12460 Lumens High Mode/ 9230 Lumens Low Mode
Wattage
108 Watt High Mode/ 80 Watt Low Mode
Width
4.29 Inch
Height
2.69 Inch
Voltage Rating
9 To 36 Volt
Ampere Rating At 12 Volts
8.4 Amp High Mode/ 5.7 Amp Low Mode
Bulb Specifications
6 Clear CREE LED Bulbs
Lens Material
Polycarbonate
Housing Material
Aluminum
Mounting Length
12.43 Inch
Mounting Style
Bracket Mount
Includes
With Hi-Low Dongle/ Mounting Hardware
Estimated Install Time (Hours)
1.5

Installation & Documents



Installation Guide
