Wilwood Brakes Master Cylinders 260-10374

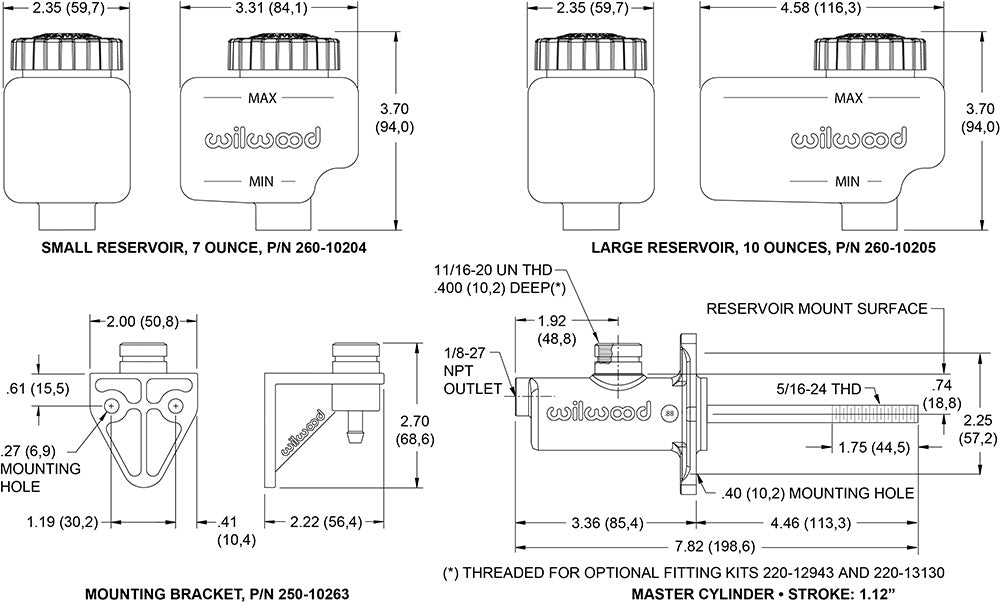

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37 Inch compact body provides 2.16 Inch of additional clearance between the mounting flange and the fluid outlet. A full 1.12 Inch of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8 Inch NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir provided in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

More Features

• Enhanced Fluid Inlet Port Allows Mounting Of The Standard Reservoir Provided In Kit And Also Contain 11/16-20 Internal Threads For Custom Reservoir Arrangements
