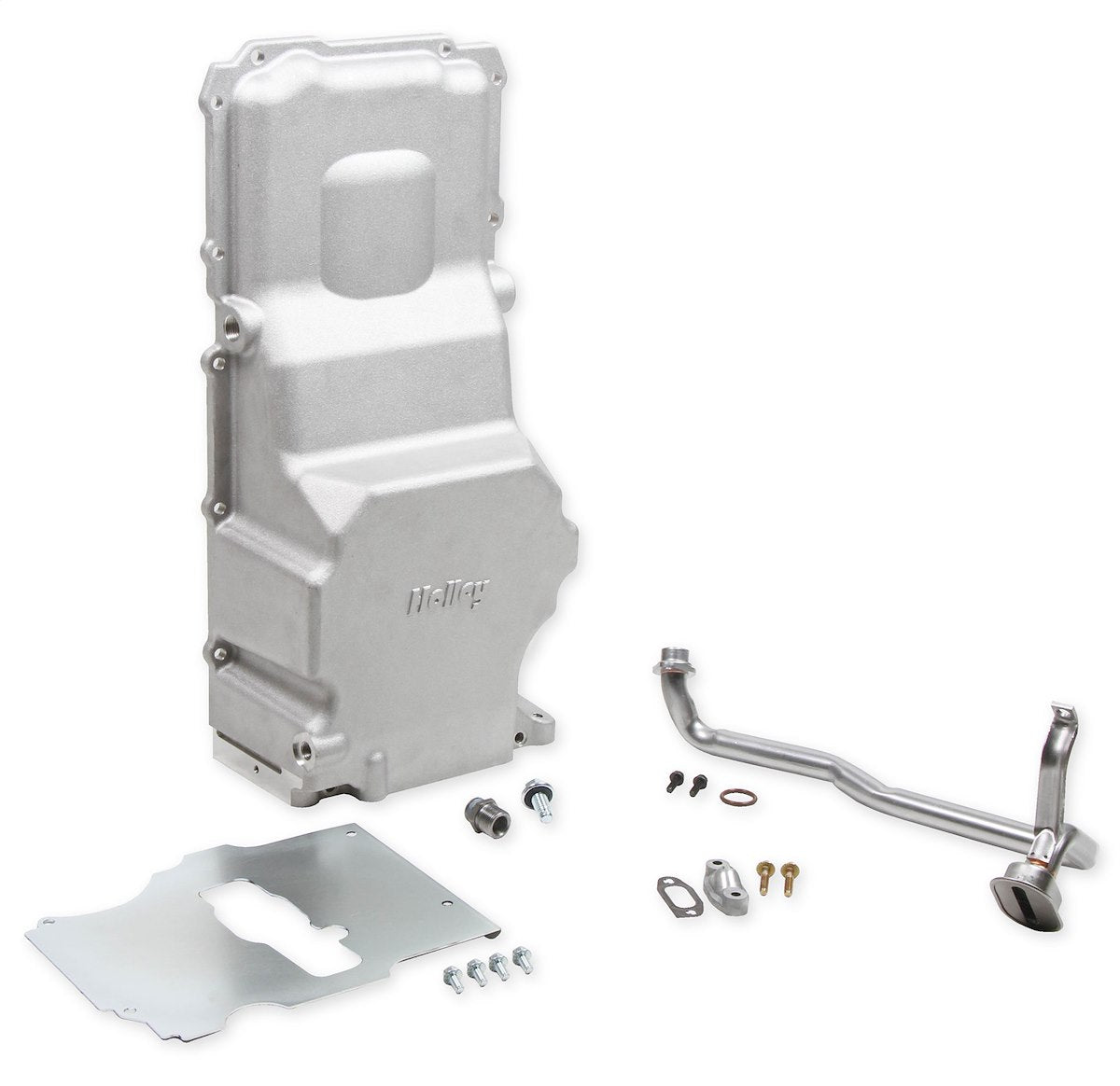

Holley Engine Oil Pan for 1900 Chevrolet LS Small 302-3

SKU: 302-3

$499.95

Holley Engine Oil Pan for 1900 Chevrolet LS Small 302-3

Limited 90 Day Supplier Warranty
Holley Engine Oil Pan for 1900 Chevrolet LS Small 302-3

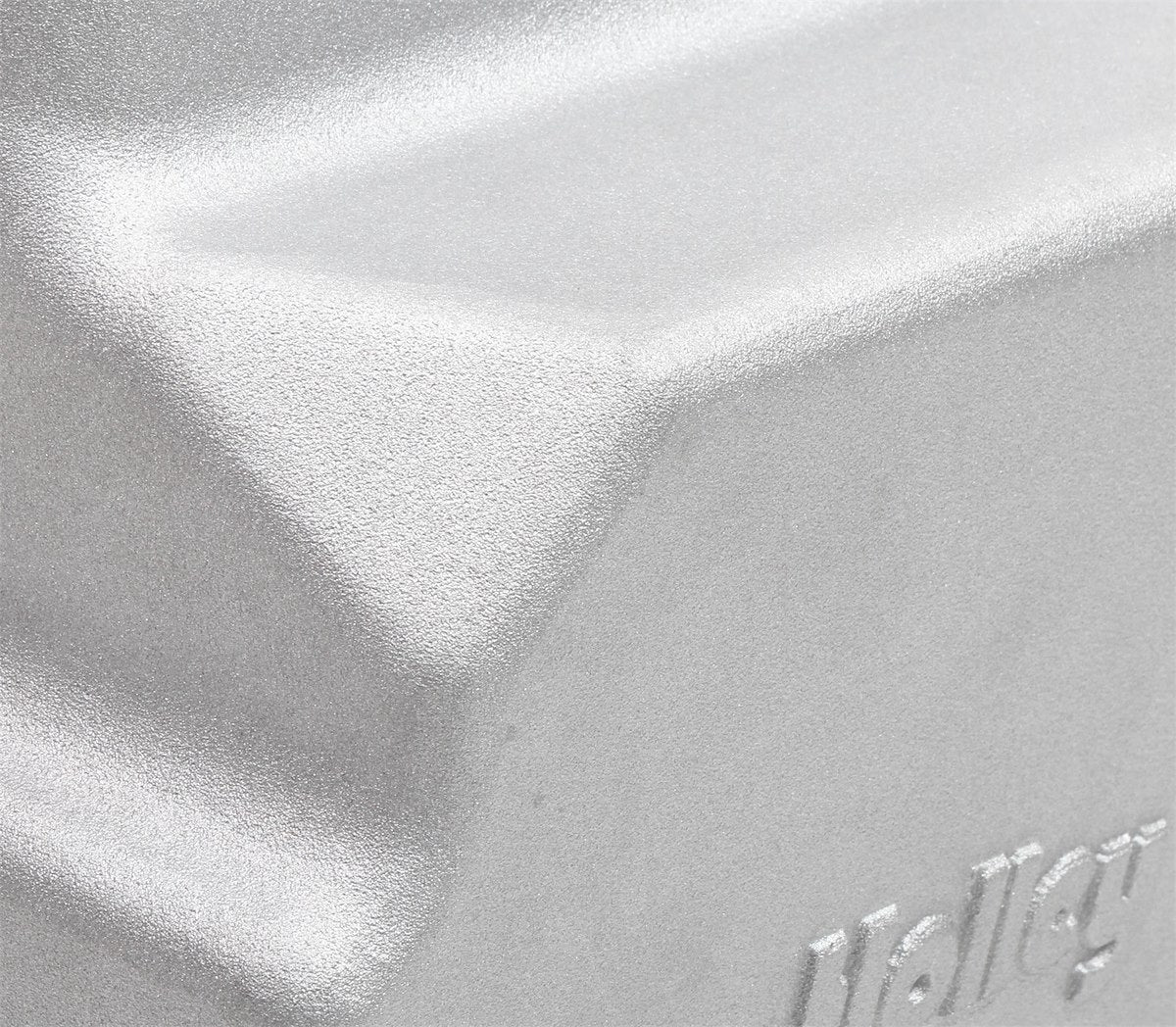

Traditional High Quality Cast Aluminum Appearance With Clean Exterior Styling
Holley Engine Oil Pan for 1900 Chevrolet LS Small 302-3

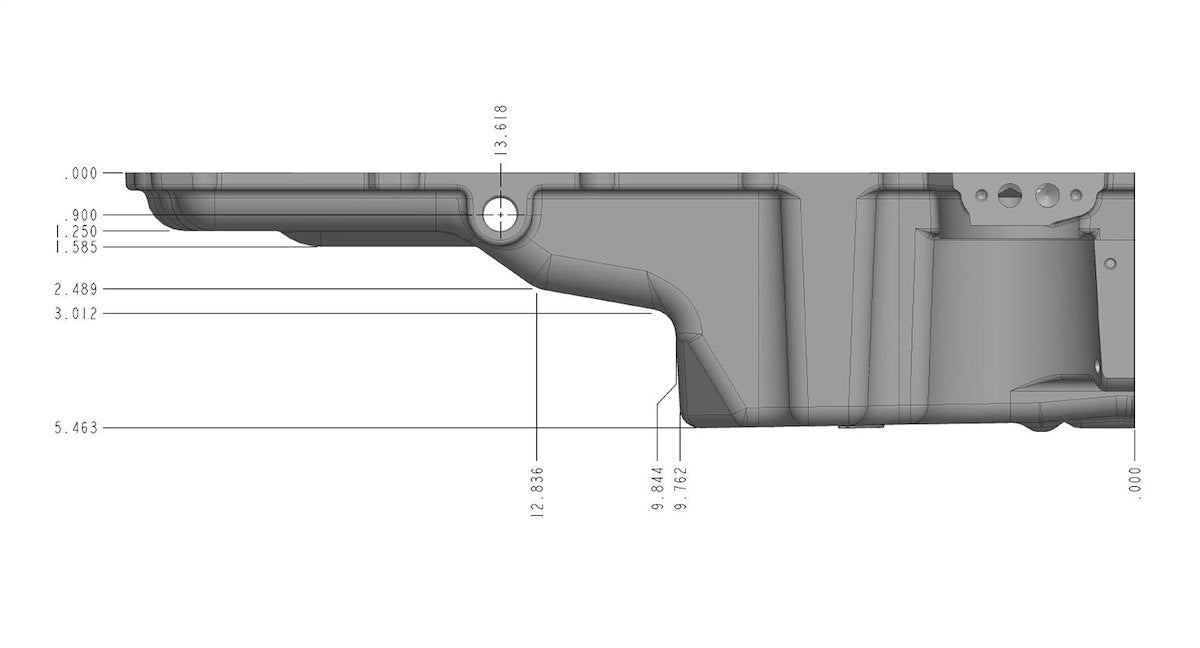

Profile Of The Sump Has Been Revised To Provide Extra Chassis And Steering Rack Clearance
Holley Engine Oil Pan for 1900 Chevrolet LS Small 302-3

Provides Maximum Clearance For Vehicles Where The Steering Linkage Is Behind The Engine Cross Member
Holley Engine Oil Pan for 1900 Chevrolet LS Small 302-3

Designed For LS Engine Retrofit Installations In GM Muscle And Classic Car And Truck Chassis Requiring More Oil Pan To Chassis Clearance Around The Front Half Of The Oil Pan

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Low in stock

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Holley Engine Oil Pan for 1900 Chevrolet LS Small 302-3

$499.95

$499.95

Natural

Finish

Silver

Color

Aluminum

Material

Product Description

Holley engineering has taken their LS retro fit oil pans to the next level. The design has even more sump clearance. Designed to clear the Fox body rack and pinion too. It’s a win-win for more LS conversions.

More Features

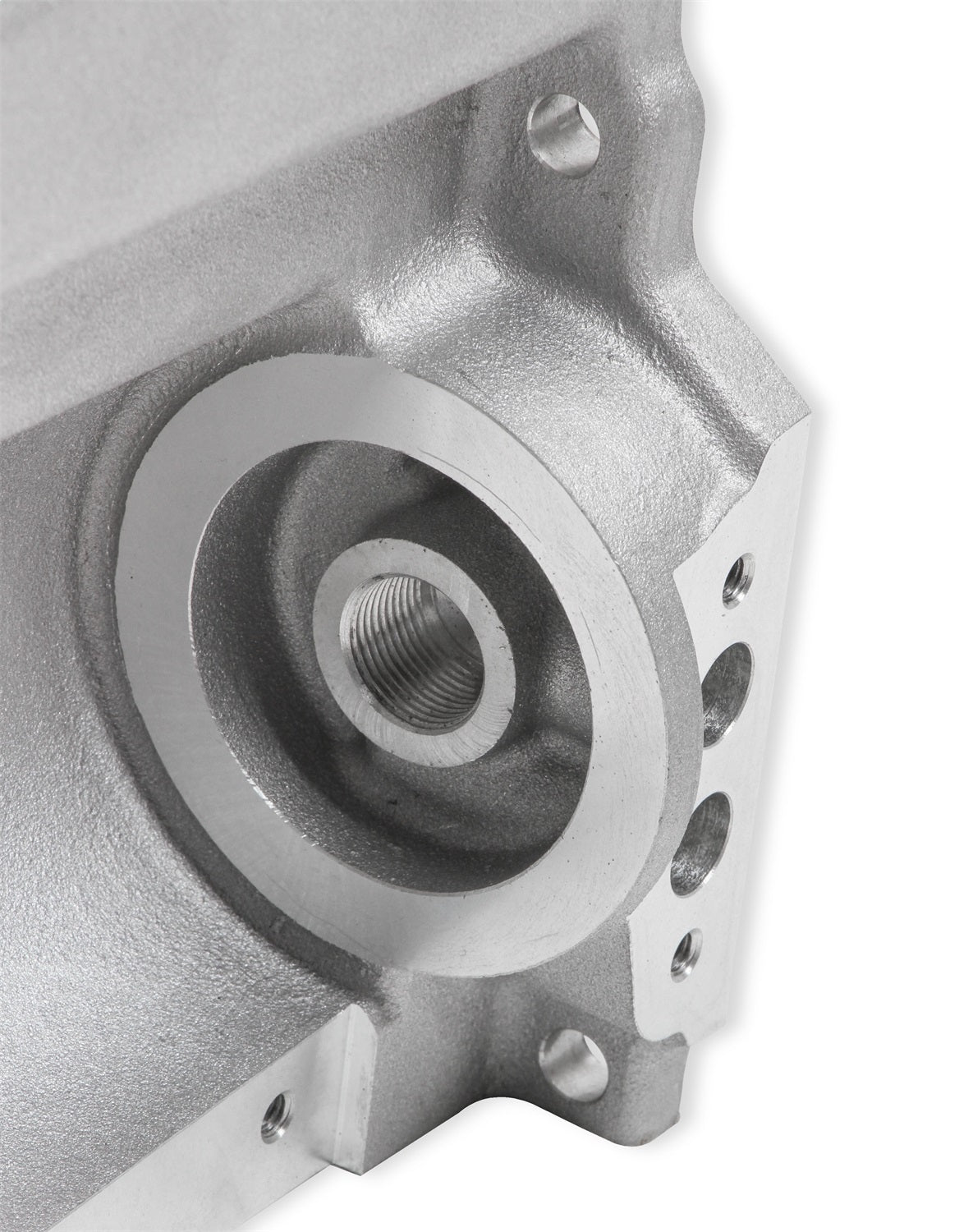

  • Provides OEM Fitment OEM Oil Filter Mounting, OEM Oil Cooler Port Provision, OEM Engine NVH Suppression, OEM Flange Gasket And Sealing, Proper Structural Rigidity And OEM Bell Housing Attachments

Specifications

Recommended Use
Classic Car/ Trucks
Finish
Natural
Color
Silver
Material
Aluminum
Capacity
5.9 Quart
Baffled
Yes
Rear Main Seal Style
No Seal
Stroker Clearance
No
Drain Plug Thread Size
No Drain Plug
Sump Position
Rear
Sump Style
Wet
Dipstick Provision
No
Dipstick Location
No Dipstick
Kicked Out
No
Kicked Out Position
No Kicked Out
Includes Pickup
Yes
Includes Crank Scraper
No
Includes Windage Tray
No

Fitment / Application

1900 Chevrolet LS Small Block Gen 3 1997-2007
1900 Chevrolet LS Small Block Gen 4 2005+
