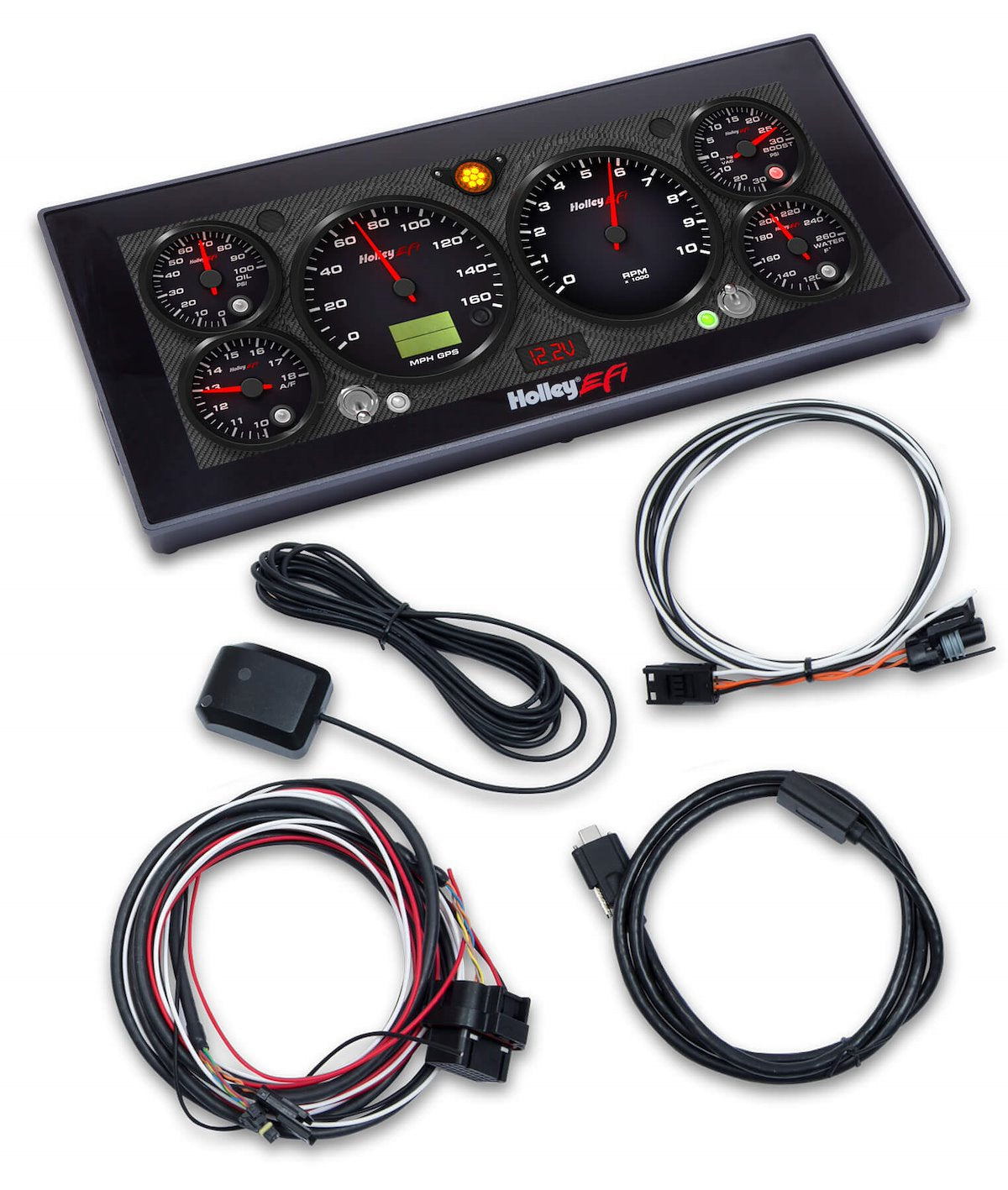

Holley EFI Instrument Cluster 553-111

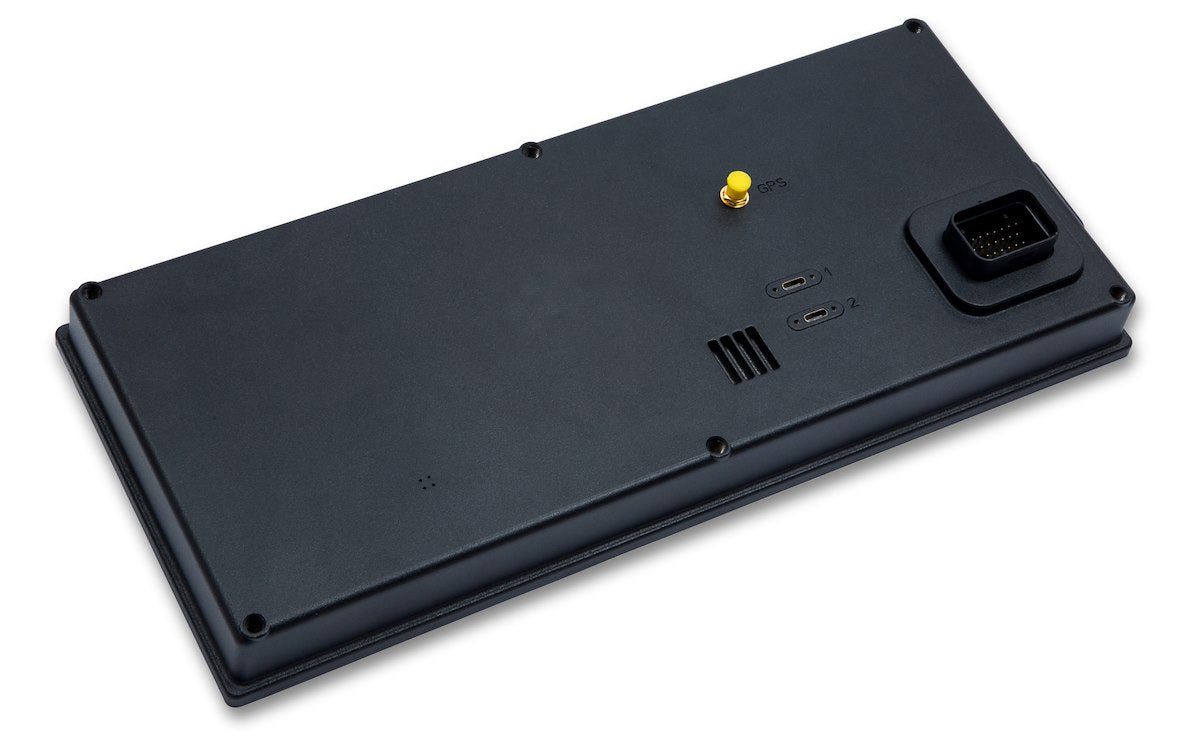

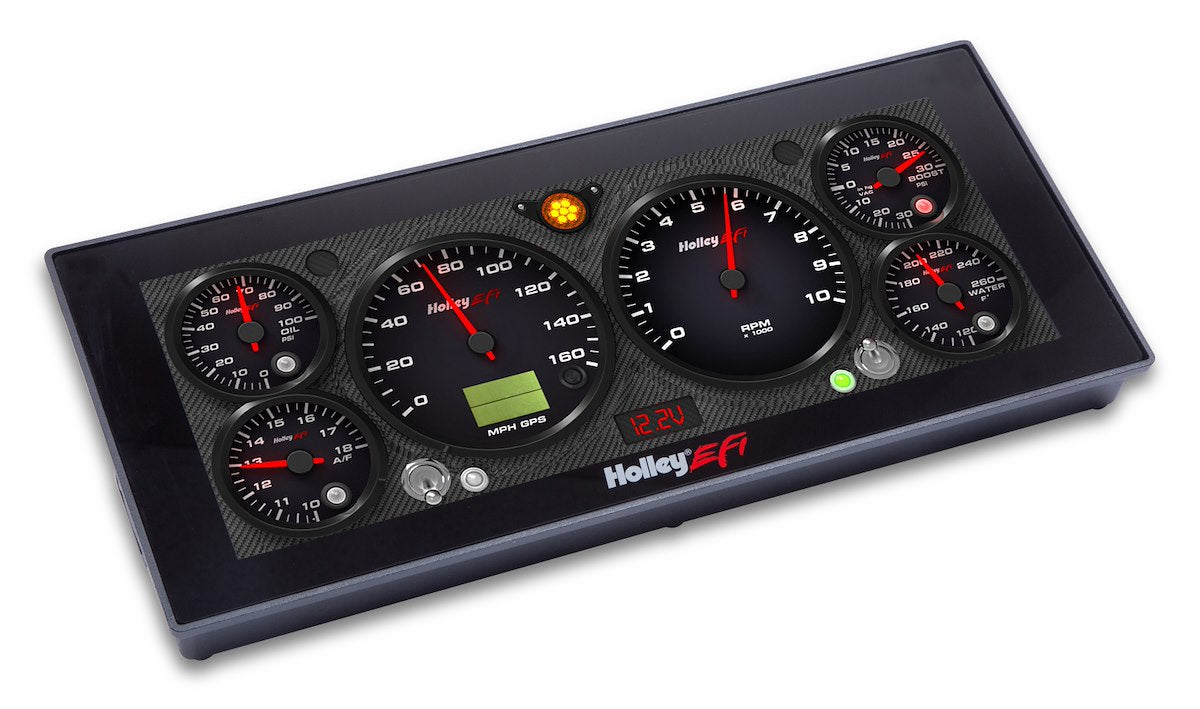

The Holley EFI Pro Dash measures 13.44 Inch wide, 5.81 Inch tall and 1.25 Inch deep. The Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 12.3 Inch 1280 X 480 resolution low glare, high brightness, high contrast, full color capacitive touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weather resistant aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance! The Holley EFI 12.3 Inch Pro Dash also features a plethora of Input and Outputs for expanded functionality of your Holley EFI installation. The 34 pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input.

More Features

• Real-Time ECU Tuning, Allows You To Make Quick Tune Changes, Without Needing To Hook Up A Laptop; On-Screen Datalog Playback Features Allows You To Review Vital Run Information
• Capable Of Monitoring Up To 238 Real-Time Values Such As RPM Or TPS Or Boost; Expandable Storage Via USB
• 16 Default Background Skins Pre-Loaded With Unlimited Options For Importing Custom Layouts; No Stylus Required, Capacitive Touch, Just Like Your Smart Phone
• Quickly Swipe Between Multiple Active Screens (Tune, Warm-Up, Race, Drive, Etc.); User Definable Channel Alarms And Warnings
• Virtual Switch Panel Eliminates The Need For External Toggle Switches; USB Keyboard And Mouse Functionality Makes It Quick And Easy To Setup New Layouts
