Wilwood Brakes Red Brake Systems 140-10510-DR

SKU: 140-10510-DR

$1,440.23

Wilwood Brakes Red Brake Systems 140-10510-DR

No Supplier Warranty
Wilwood Brakes Red Brake Systems 140-10510-DR

Combined With 12.19 Inch Diameter Rotors For This Group Of Traditional Non-ABS Spindles On American Muscle Cars And Vintage Rods
Wilwood Brakes Red Brake Systems 140-10510-DR

Enhanced Brake Capacity And Pad Performance Of The Six Piston Calipers Provide An Intermediate Level Alternative To The Bigger Six Piston Kits
Wilwood Brakes Red Brake Systems 140-10510-DR

A Full Range Of Caliper Finishes And Rotor Designs Enable The Builder To Personalize The Style And Optimize The Brake Performance For Each Individual Application

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Low in stock

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Wilwood Brakes Red Brake Systems 140-10510-DR

$1,440.23

$1,440.23

Red

Disc Brake Caliper Color

BP-10 Metallic

Disc Brake Pad Material

Drilled And Slotted

Disc Brake Rotor Design

Product Description

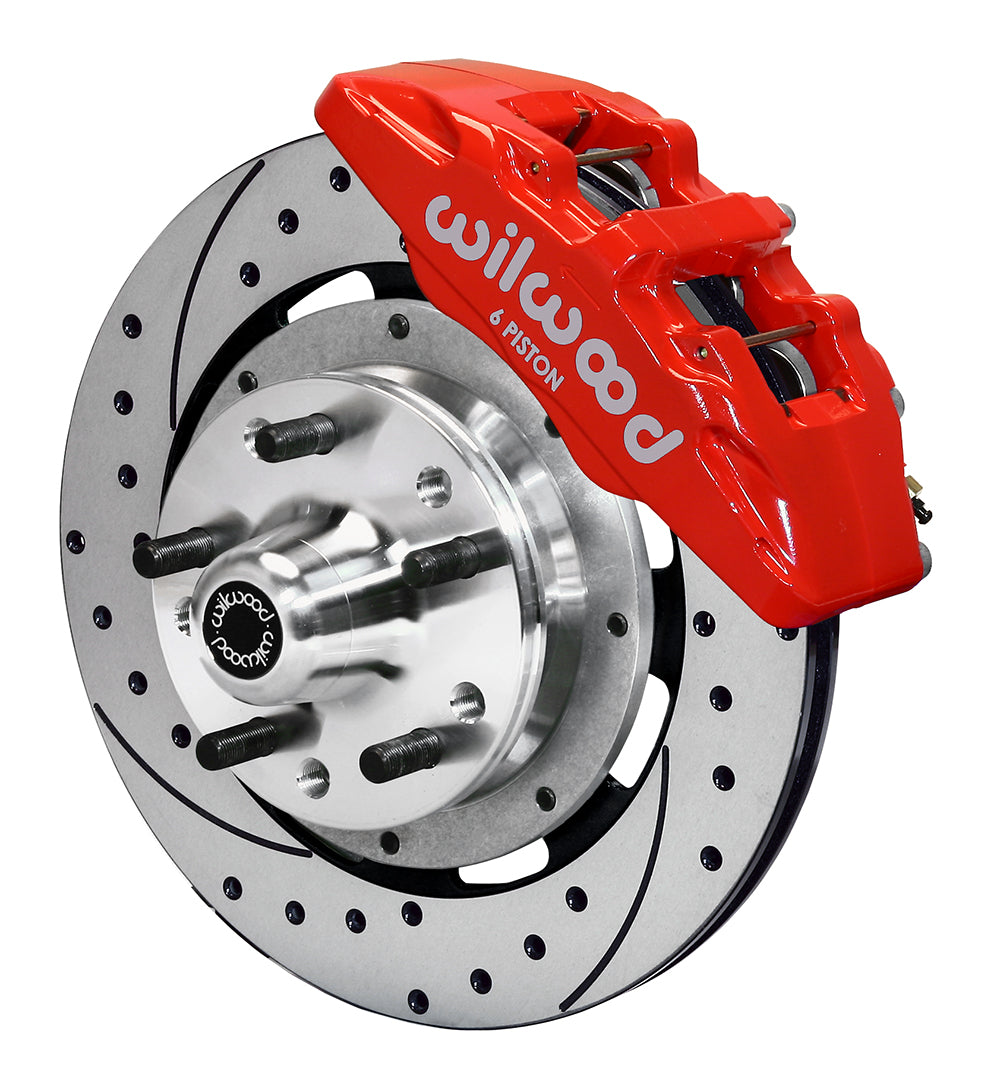

DynaPro 6 forged billet calipers are combined with 12.19 Inch diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

Specifications

Compatibility
Forged Dynapro 6 Big Brake Front Brake Kit
Disc Brake Pad Material
BP-10 Metallic
Disc Brake Rotor Bolt Circle
5 X 4-1/2 Inch
Disc Brake Caliper Color
Red
Disc Brake Caliper Finish
Powder Coated
Disc Brake Rotor Design
Drilled And Slotted
Recommended Use
Racing/ Street
Disc Brake Caliper Material
Aluminum
Disc Brake Caliper Number of Pistons
6
Disc Type
2-Piece
Disc Brake Caliper Condition
New
Disc Brake Rotor Finish
Electro Coated
Disc Brake Rotor Material
Iron
Disc Brake Rotor Outer Diameter (MM)
309.63 Millimeter
Disc Brake Rotor Outer Diameter (IN)
12.19 Inch
Nominal Thickness (MM)
20.57 Millimeter
Nominal Thickness (IN)
0.81 Inch
Includes Bracket
Yes
Includes Hardware
Yes
Includes Shims
Yes
Includes Brake Lines
No
Minimum Wheel Diameter
15 Inch

Fitment / Application

1964-1966 Buick Skylark Front Drum; Rear Drum
1964-1969 Buick Special Front Drum; Rear Drum
1964-1972 Buick Sportwagon
1964-1966 Chevrolet Chevelle
1964-1966 Chevrolet Chevy II
1964-1966 Chevrolet El Camino Front Drum; Rear Drum
1964-1966, 1970-1971 Oldsmobile 442
1964-1966 Oldsmobile Cutlass Front Drum; Rear Drum
1964-1972 Oldsmobile F85 Front Drum; Rear Drum
1964-1972 Oldsmobile Vista Cruiser Front Drum; Rear Drum
1964-1971 Pontiac GTO Front Drum; Rear Drum
1964-1972 Pontiac LeMans Front Drum; Rear Drum
1964-1966 Pontiac Tempest
1965-1967 Buick Gran Sport Front Drum; Rear Drum
1967 Buick Gran Sport Front Disc; Rear Drum
1967-1970 Buick Skylark
1967-1969 Buick Special Front Disc; Rear Drum
1967-1969 Chevrolet Camaro
1967-1972 Chevrolet Chevelle Front Disc; Rear Drum
1967-1972 Chevrolet Chevelle Front Drum; Rear Drum
1967-1968 Chevrolet Chevy II Front Disc; Rear Drum
1967-1968 Chevrolet Chevy II Front Drum; Rear Drum
1967-1972 Chevrolet El Camino
1967-1969 Oldsmobile 442 Front Disc
1967-1972 Oldsmobile Cutlass Front Disc
1967-1972 Oldsmobile Cutlass Front Drum
1967-1972 Oldsmobile Cutlass Supreme
1967-1972 Oldsmobile F85 Front Disc; Rear Drum
1967-1972 Oldsmobile Vista Cruiser Front Disc; Rear Drum
1967-1969 Pontiac Firebird Front Disc; Rear Drum
1967-1969 Pontiac Firebird Front Drum; Rear Drum
1967-1972 Pontiac GTO Front Disc; Rear Drum
1967-1972 Pontiac LeMans Front Disc; Rear Drum
1967-1970 Pontiac Tempest Front Disc; Rear Drum
1967-1970 Pontiac Tempest Front Drum; Rear Drum
1968-1969 Buick GS 350
1968-1969 Buick GS 400
1969-1974 Chevrolet Nova
1969-1972 Pontiac Grand Prix Front Disc; Rear Drum
1969 Pontiac Grand Prix Front Drum; Rear Drum
1970-1972 Buick GS
1970-1972 Buick GS 455
1970-1972 Chevrolet Monte Carlo Front Disc; Rear Drum
1971-1972 Buick Skylark Front Disc; Rear Drum
1971-1972 GMC Sprint Front Disc; Rear Drum
1971-1972 GMC Sprint Front Drum; Rear Drum
1971-1974 Pontiac Ventura Front Disc; Rear Drum
1971-1974 Pontiac Ventura Front Drum; Rear Drum
1973-1974 Buick Apollo Front Disc; Rear Drum
1973-1974 Buick Apollo Front Drum; Rear Drum
1973-1974 Oldsmobile Omega Front Disc; Rear Drum
1973-1974 Oldsmobile Omega Front Drum; Rear Drum

Installation & Documents



Installation Guide
