Wilwood Brakes Black Brake Systems 140-13653
SKU: 140-13653
$814.19
In stock 6
Emissions & Compliance
Wilwood Brakes Black Brake Systems 140-13653
$814.19
$814.19
Black
Disc Brake Caliper Color
Plain Face
Disc Brake Rotor Design
5 X 4-1/2 Inch
Disc Brake Rotor Bolt Circle
Product Description

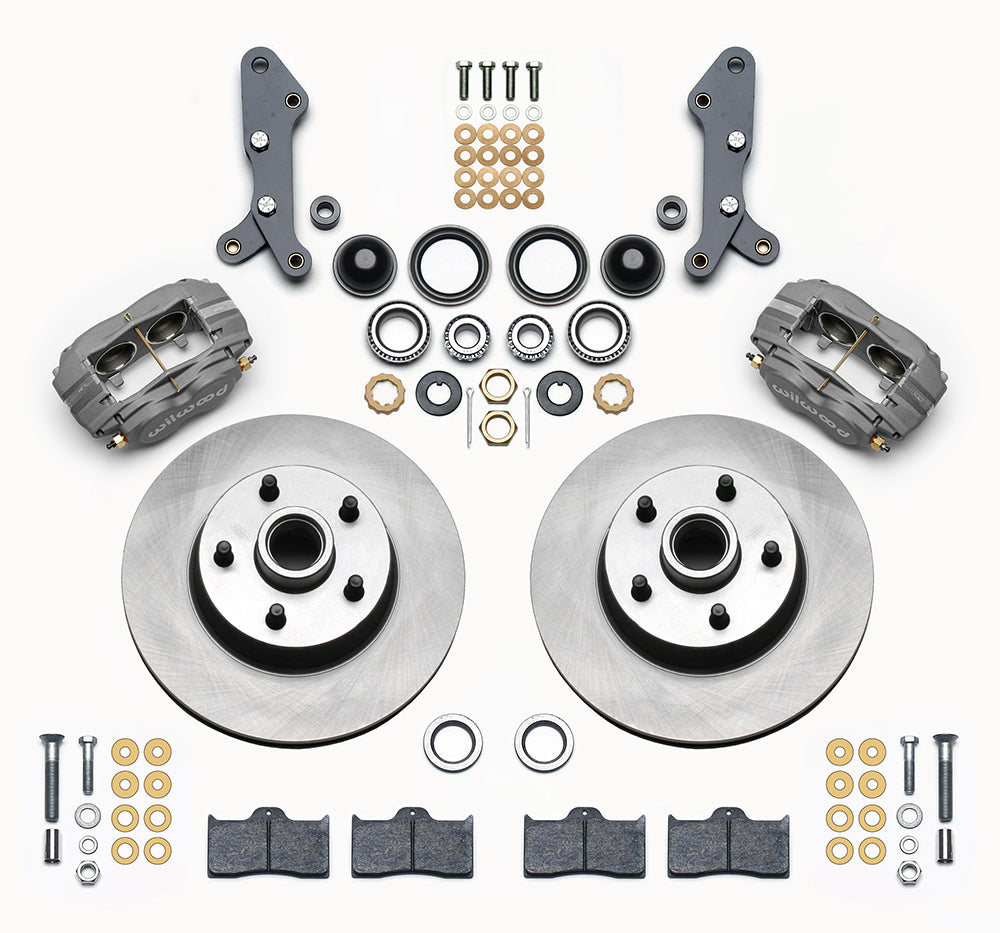

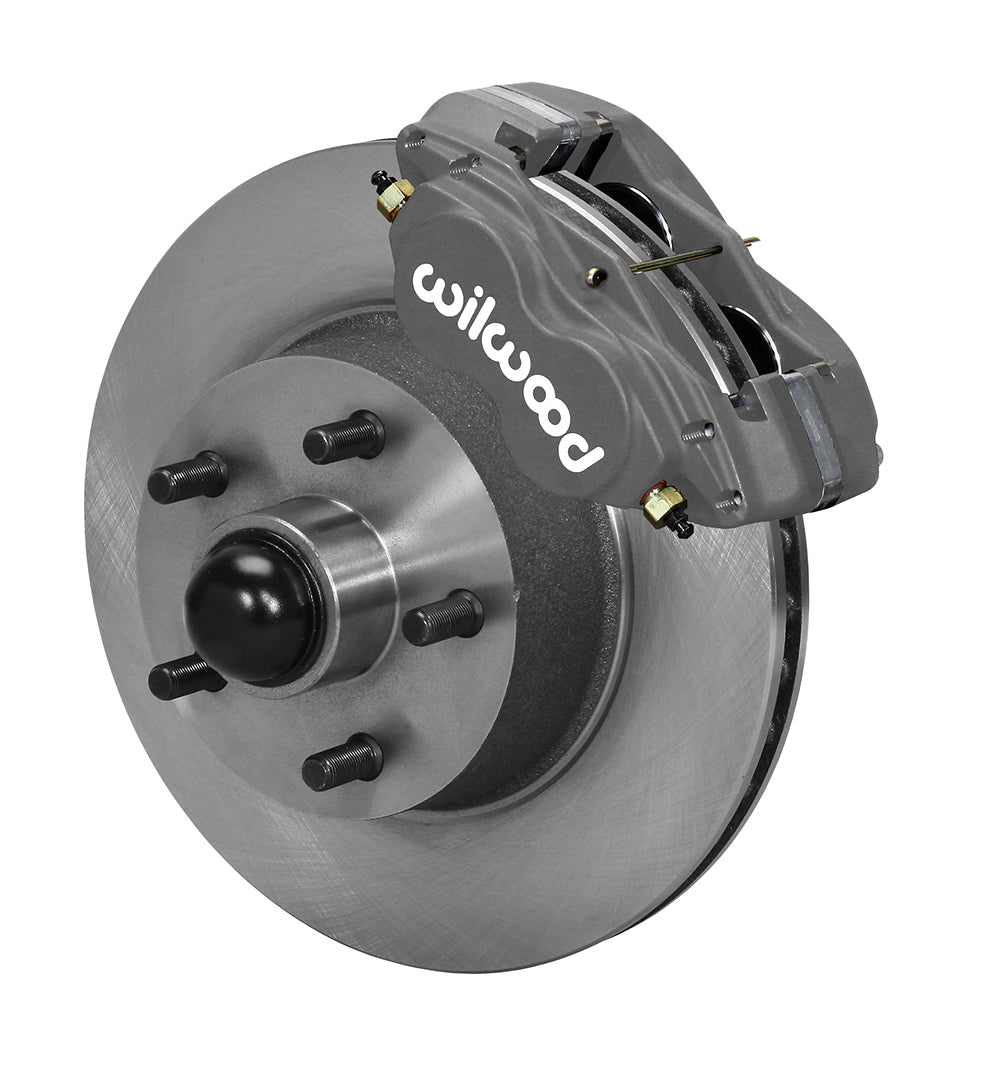

Wilwood's Classic Series front disc brake kits for 1960 to 1968 Ford and Mercury full size offer disc brake upgrade solutions for OEM Drum spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30 Inch diameter x 0.94 Inch thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14 Inch OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware and detailed installation instructions.
More Features
More Features
- Forged Superlite Black Anodized Four Piston Aluminum Calipers With Stainless Steel Pistons
Specifications
Disc Brake Caliper Color
Black
Disc Brake Rotor Design
Plain Face
Disc Brake Rotor Bolt Circle
5 X 4-1/2 Inch
Disc Brake Caliper Finish
Anodized
Disc Brake Caliper Material
Aluminum
Disc Brake Caliper Number of Pistons
4
Disc Brake Rotor Material
Iron
Disc Type
1-Piece
Disc Brake Rotor Outer Diameter (MM)
286.77 Millimeter
Disc Brake Rotor Outer Diameter (IN)
11.29 Inch
Nominal Thickness (MM)
23.88 Millimeter
Nominal Thickness (IN)
0.94 Inch
Includes Bracket
Yes
Includes Hardware
Yes
Includes Shims
Yes
Includes Brake Lines
No
