Derale Transmission Oil Cooler 25011

SKU: 25011

$79.11

Derale Transmission Oil Cooler 25011

Ultra Bright Finish
Derale Transmission Oil Cooler 25011

Limited 1 Year Warranty
Derale Transmission Oil Cooler 25011

Perfect For Cold Weather Climates
Derale Transmission Oil Cooler 25011

Provides Quicker Warm Up Temperatures
Derale Transmission Oil Cooler 25011

Bypasses Cooler At 180 Degree Fahrenheit

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock 16

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Derale Transmission Oil Cooler 25011

$79.11

$79.11

Engine Oil/ Transmission Fluid

Compatibility

180 Degree Fahrenheit

Opening Temperature Rating (F)

NPT Fitting

Fitting Type

Product Description

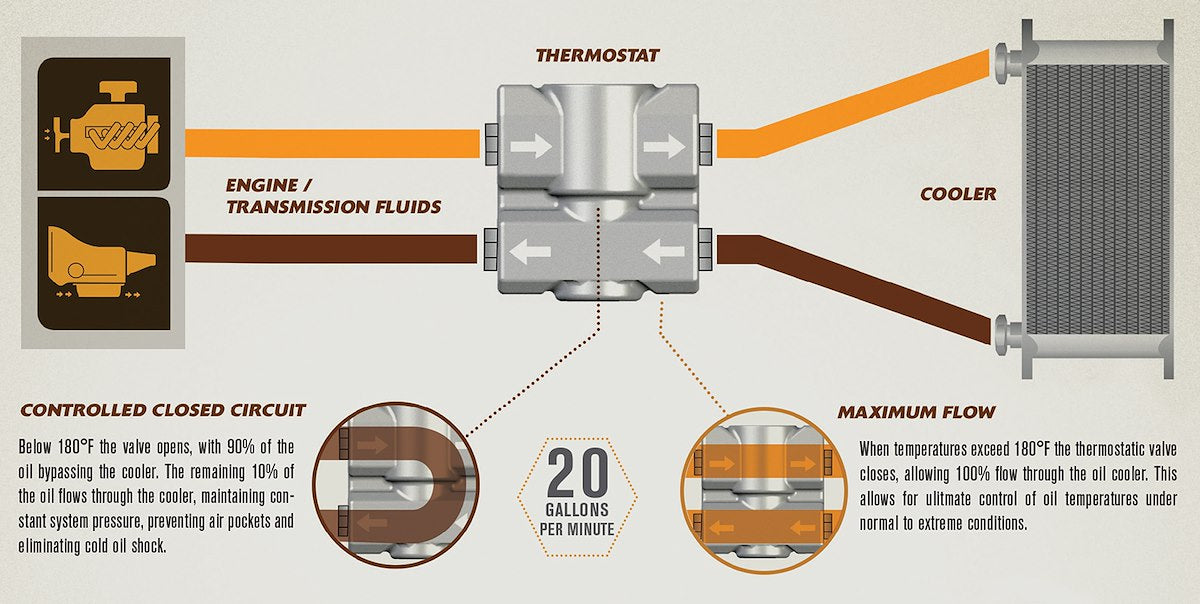

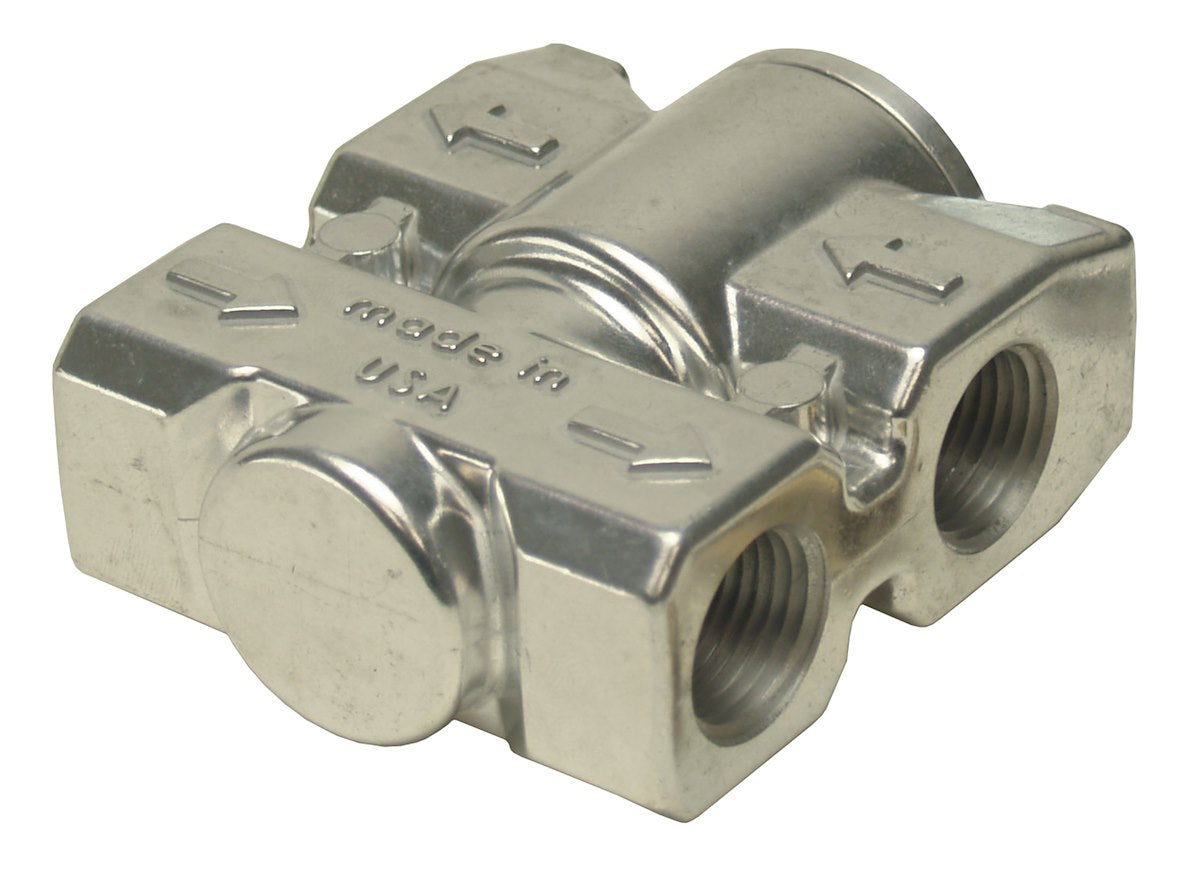

This Billet Style Cast Aluminum Fluid Control Thermostat with 3/8 Inch NPT ports allows the oil to bypass the cooler until it reaches 180 Degree Fahrenheit at which point the internal thermostatic valve will close and force 100 Percent of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180 Degree to change flow direction.

More Features
  • Can Be Rotated 180 Degree To Switch Flow Direction
  • Flows Up To 20 Gallons Per Minute. Rated Up To 200 PSI
  • New Billet Style Design. 3/8 Inch NPT Inlet/Outlet Ports

Specifications

Compatibility
Engine Oil/ Transmission Fluid
Opening Temperature Rating (F)
180 Degree Fahrenheit
Fitting Type
NPT Fitting
Port Inlet Size (IN)
3/8 Inch NPT
Port Outlet Size (IN)
3/8 Inch NPT
Flow Rating
Upto 20 Gallons Per Minute
Pressure Rating
200 Pounds Per Square Inch
Reverse Flow
Yes
Material
Aluminum
Includes Gaskets
No
Includes Fittings
Yes
Includes Mounting Bracket
No
