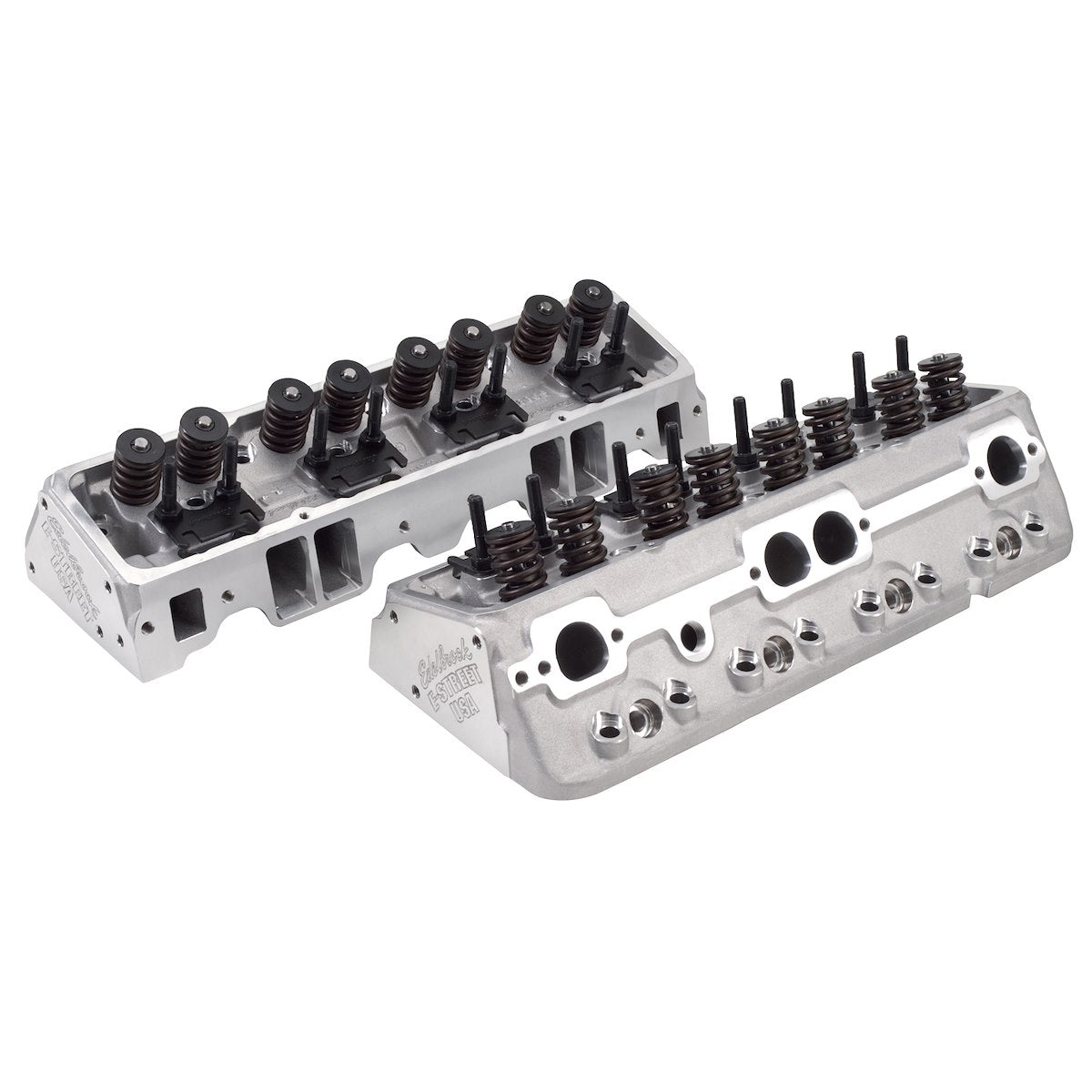

Edelbrock Engine Cylinder Head 5089 product image 1

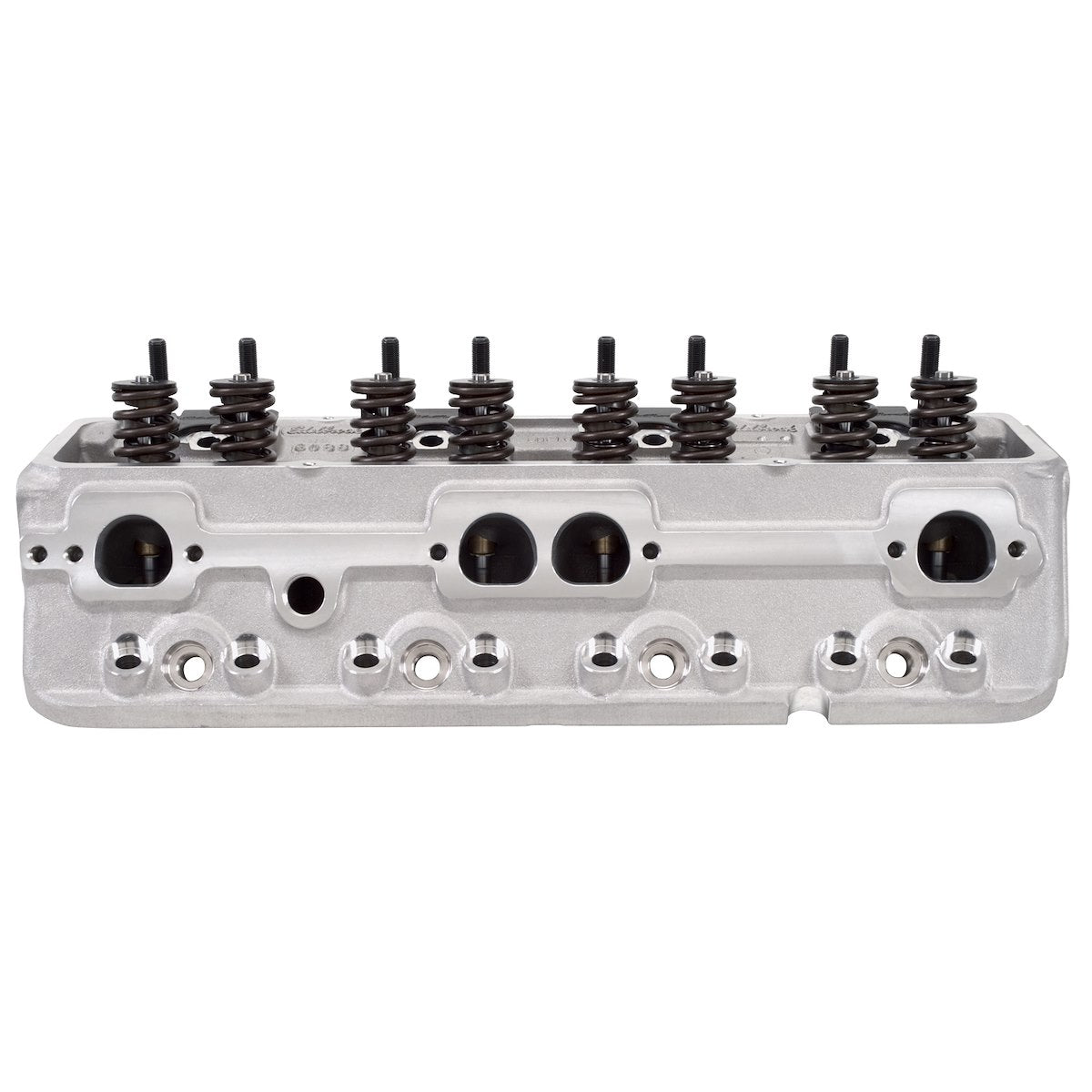

Edelbrock Engine Cylinder Head 5089 product image 2

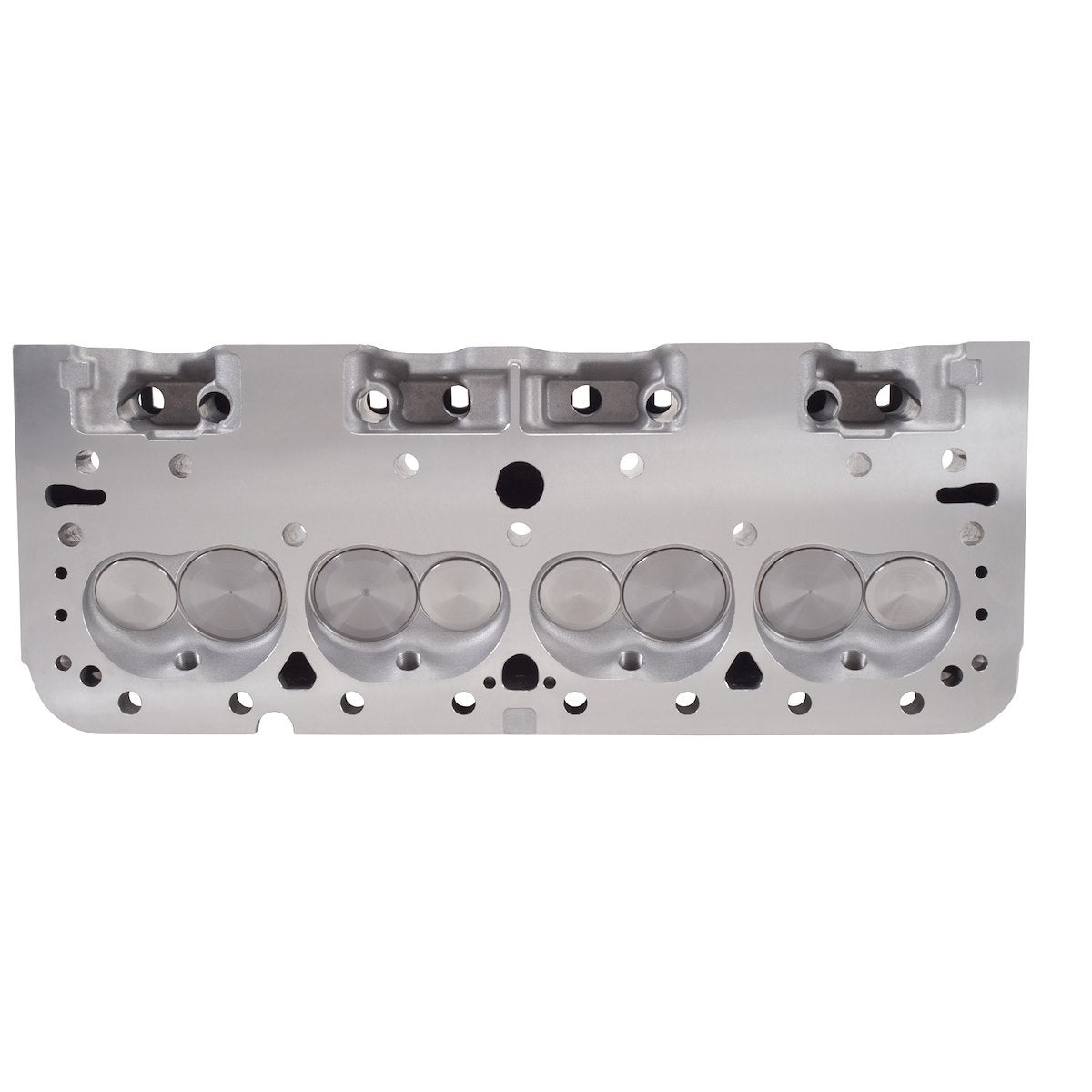

Edelbrock Engine Cylinder Head 5089 product image 3

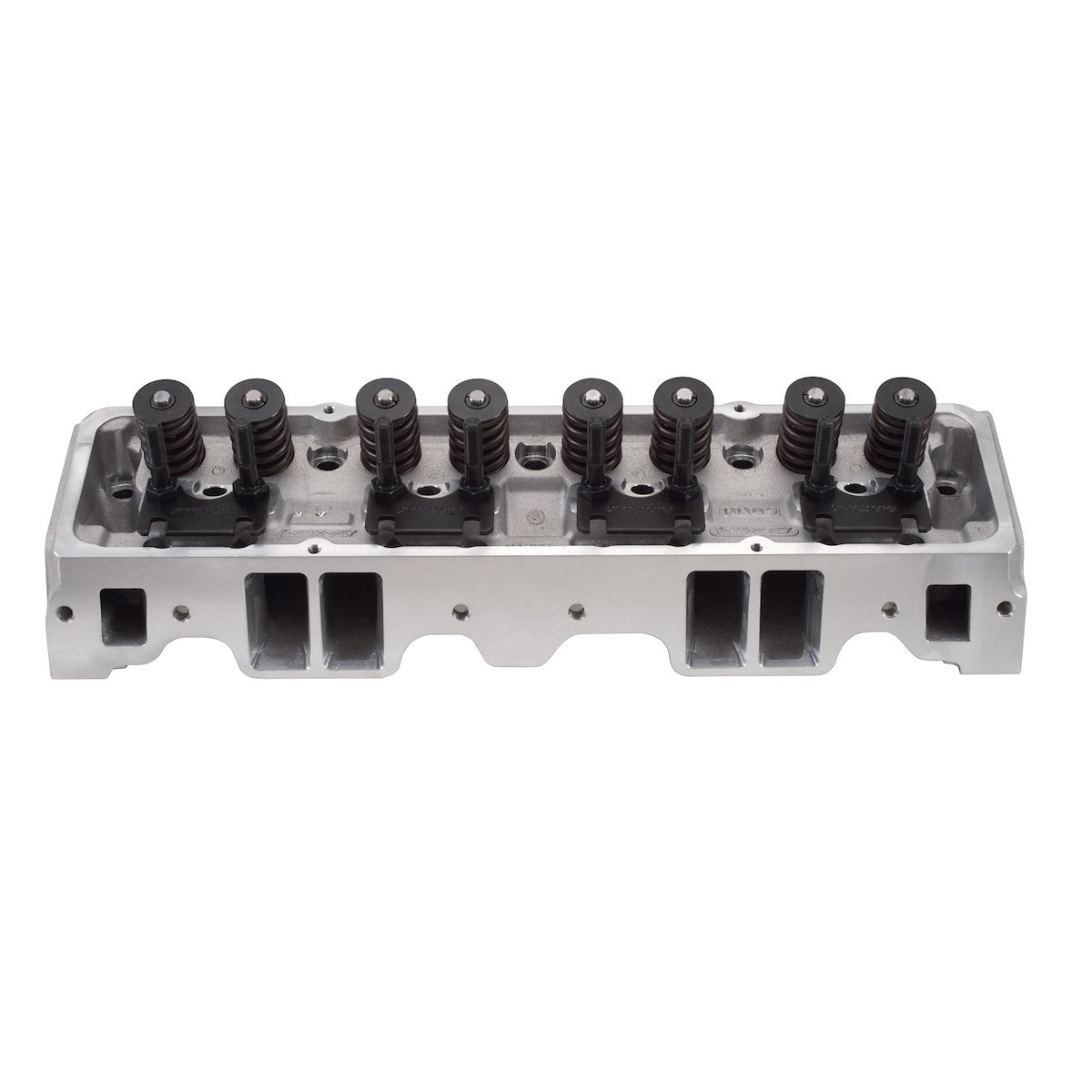

Edelbrock Engine Cylinder Head 5089 product image 4

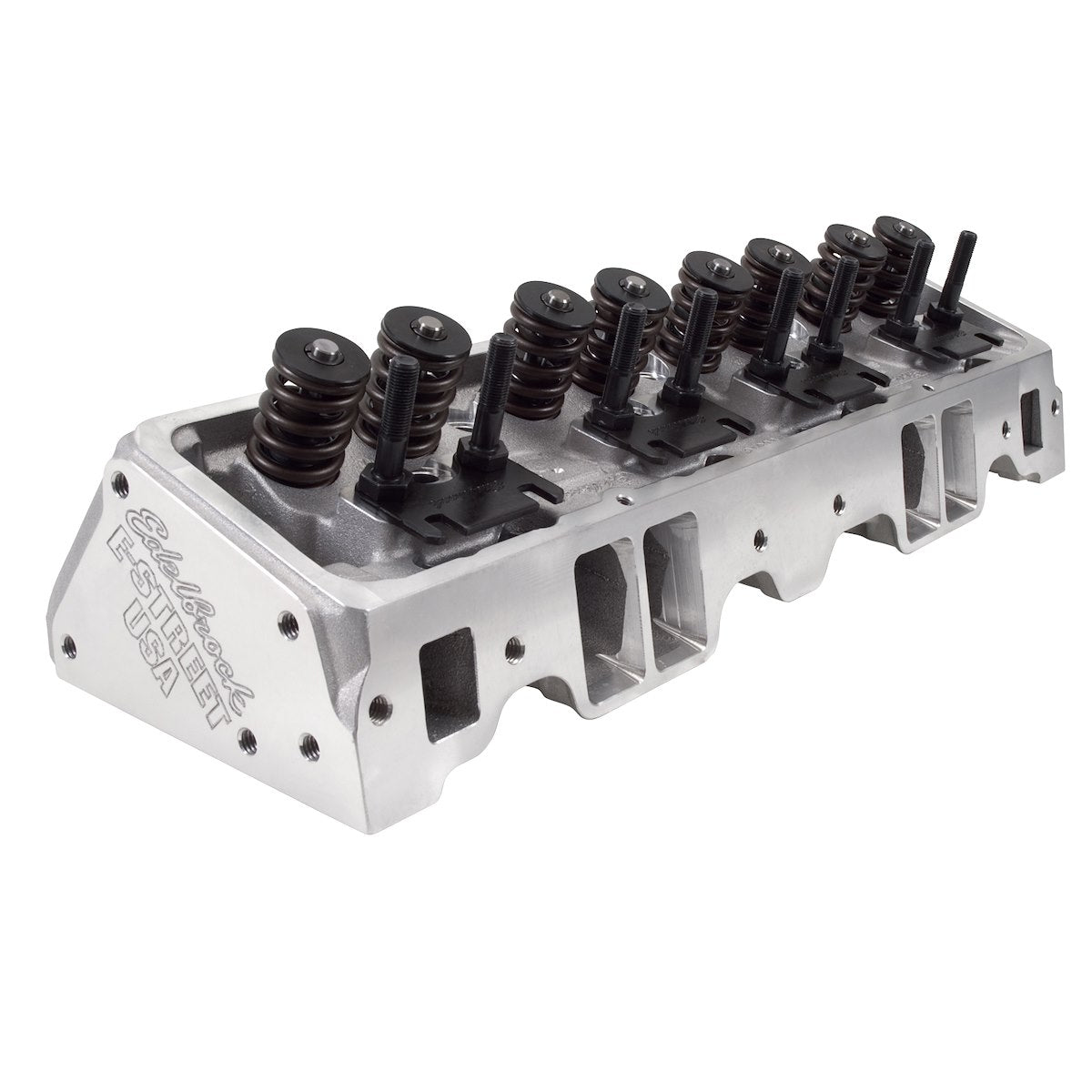

Edelbrock Engine Cylinder Head 5089 product image 5
Edelbrock Engine Cylinder Head 5089 product image 6

Edelbrock

Edelbrock Engine Cylinder Head 5089

SKU: 5089

$1,588.95

Edelbrock Engine Cylinder Head 5089

Limited 1 Year Warranty
Edelbrock Engine Cylinder Head 5089

Hardened Spring Cups Between The Valve Springs And Casting For Wear Protection
Edelbrock Engine Cylinder Head 5089

A356 Aluminum Castings That Are Heat Treated To T6 Spec For Superior Casting Strength And Quality
Edelbrock Engine Cylinder Head 5089

Heli-Coil Threaded Inserts In The Rocker Stud Bosses For Proper Torque Load Without Damaging Threads
Edelbrock Engine Cylinder Head 5089

Their Modern Combustion Chamber Designs Improve The Combustion Process And Larger Than Stock Intake And Exhaust Ports Move More Air Through Your Engine

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock 11

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Edelbrock Engine Cylinder Head 5089

$1,588.95

$1,588.95

Assembled

Style

Satin

Finish

Aluminum

Material

Product Description

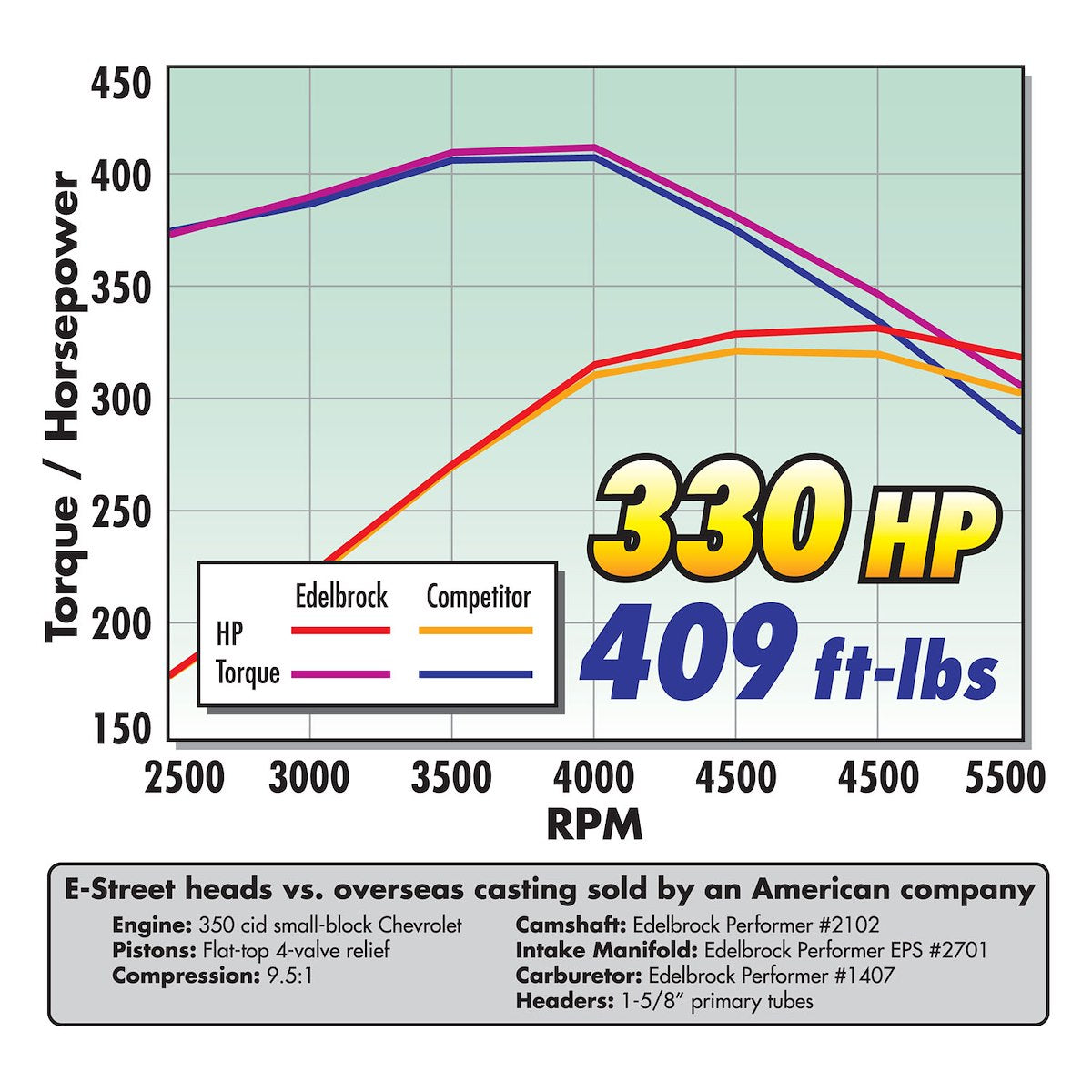

E-street™ cylinder heads are an all new line of Edelbrock heads designed for entry level street performance engines, ideal for operating in the idle to 5500 RPM range. Manufactured in the USA, by Edelbrock, these heads feature A356 aluminum castings that are heat treated to T6 spec for superior casting strength and quality. Their modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine. These features improve an engine's efficiency, resulting in more Horsepower and Torque and improved mileage potential. Dyno tests showed a gain of 16 Horsepower and 11 Foot/Pounds of torque over our overseas competitor

Specifications

Condition
New
Engine Compatibility
Chevy Small Block V8 4.3L-6.6L 262-400 Cubic Inch
Style
Assembled
Finish
Satin
Material
Aluminum
CNC-Machined
Yes
Combustion Chamber Volume (cc)
64 Cubic Centimeter
Intake Runner Volume (CC)
185 Cubic Centimeter
Exhaust Runner Volume (CC)
60 Cubic Centimeter
Port Shape
Rectangular
Intake Port Location
Standard
Exhaust Port Location
Standard
Intake Valve Diameter (IN)
2.02 Inch
Exhaust Valve Diameter (IN)
1.6 Inch
Includes Valves
Yes
Spark Plug Angle
Straight
Rocker Arm Nut Thread Size
3/8 Inch
Includes Rocker Arm Studs
Yes
Valve Lock Type
7 Degree
Valve Stem Seal Type
Umbrella
Valve Guide Material
Manganese Bronze
Number Of Springs Per Valve
1
Valve Seats Machined
Yes
Steam Holes Drilled
No
Machined For O-Ring
No
Includes Guideplates
Yes
Includes Damper Spring
Yes

Installation & Documents



Installation Guide
