Name: Edelbrock Electric Fuel Pump 1791
Brand: Edelbrock
SKU: BDVJ_1791
Price: 295.95 USD
Availability: InStock

Fitment-based search is in development — powered by Convermax and SEMA Data

Edelbrock Electric Fuel Pump 1791

$295.95

In-Line

Mounting Style

Alcohol/ Gasoline

Fuel Type

12 Volt

Voltage Rating

Product Description

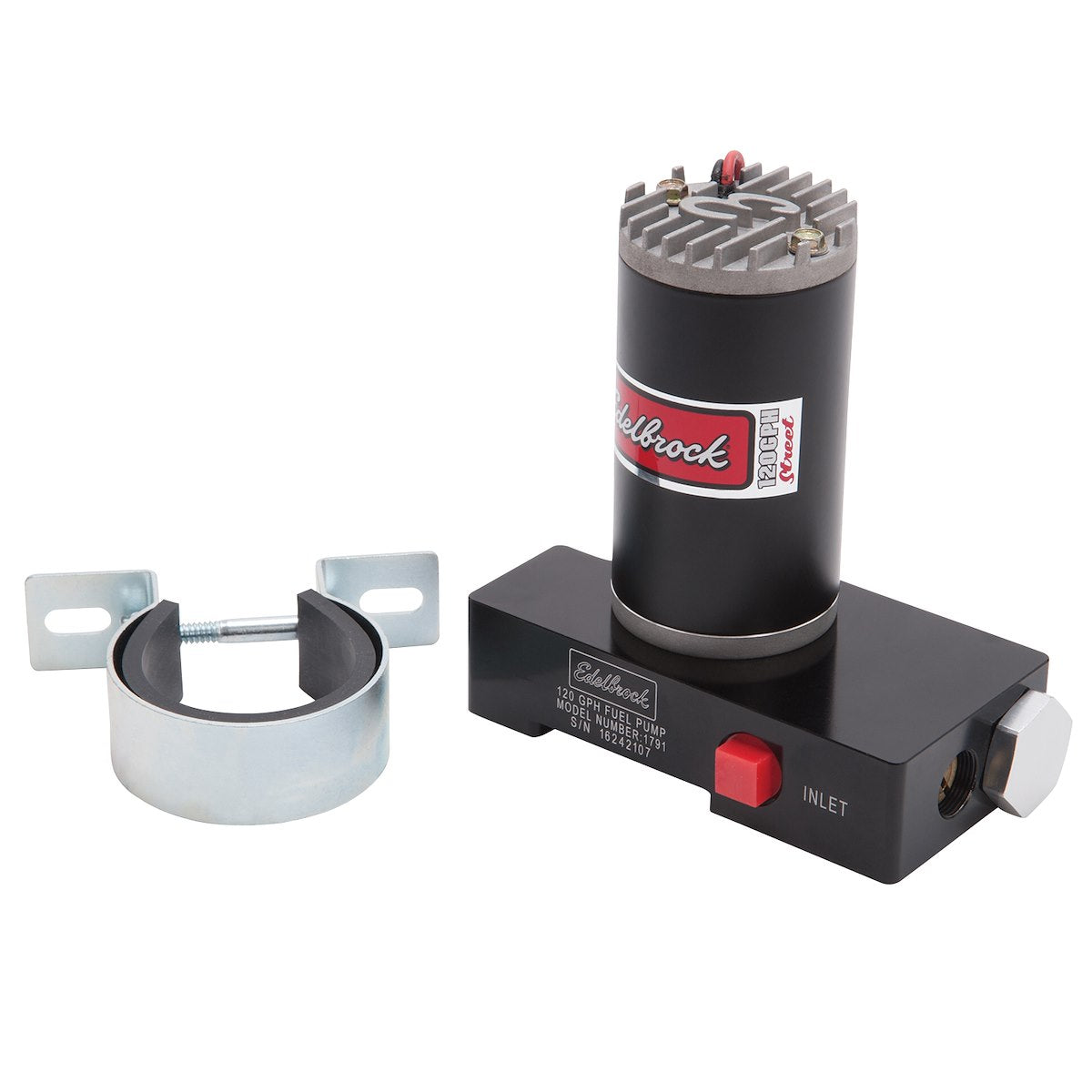

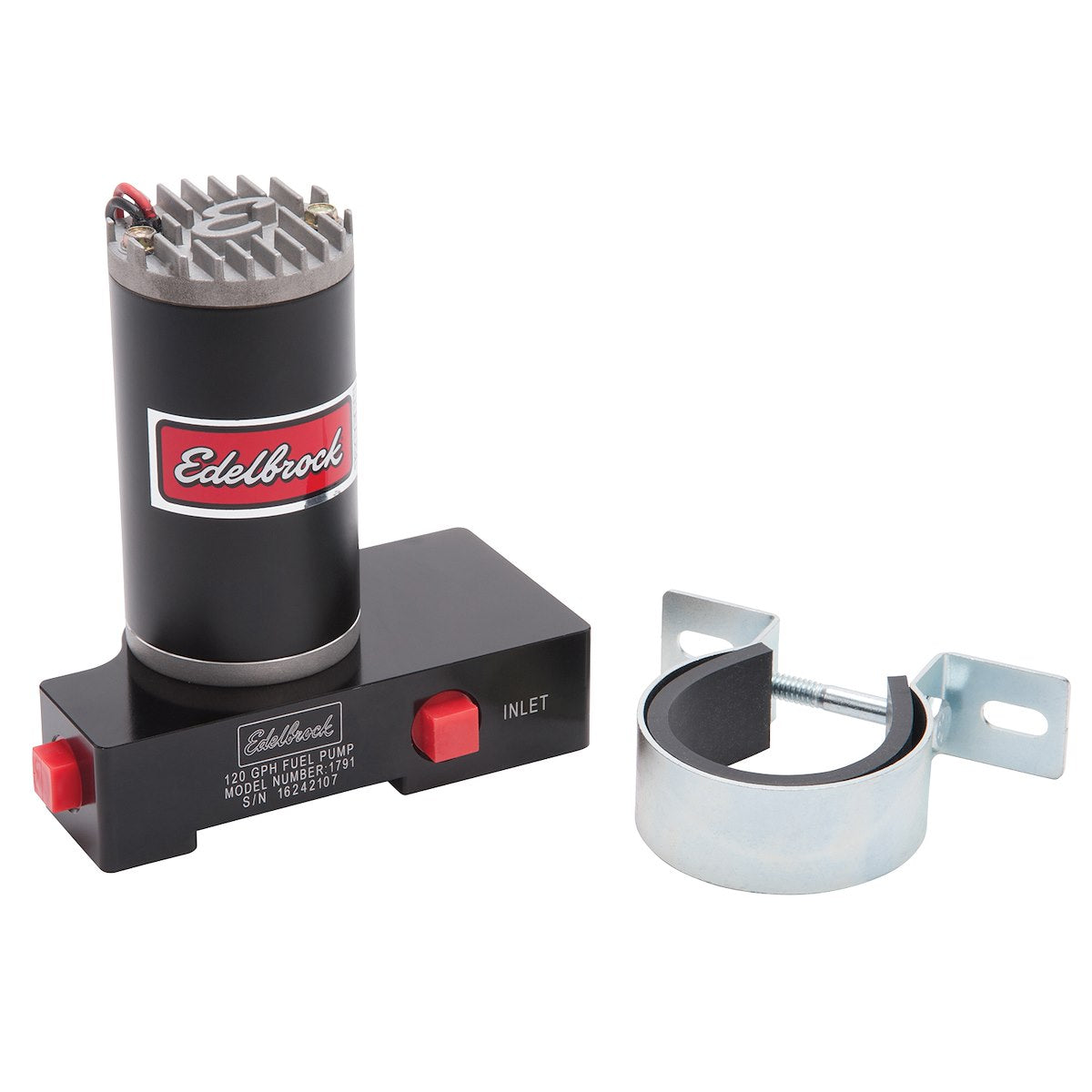

Manufactured by Essex industries, one of the most renowned fuel system manufacturers, these State-Of-The-Art electric fuel pumps offer maximum performance in a compact package. With anodized aluminum housings and high quality internals, they are both strong and durable. Each pump is factory tested and includes mounting brackets. The carbon fiber vanes and composite rotors give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 Decibel quieter than competitors pumps at the same pressure, with a replaceable screen type inlet filter and the free flow rate of 120 Gallon Per Hour is sufficient to supply 600 Horsepower. This pump is factory preset to 12 PSI and requires an external regulator

Specifications

Mounting Style

In-Line

Fuel Type

Alcohol/ Gasoline

Voltage Rating

12 Volt

Free Flow Rate

120 Gallon Per Hour

Maximum Pressure (PSI)

6.5 Pounds Per Square Inch

Inlet Size

-6 AN (3/8 Inch)

Inlet Attachment

Female Threads

Outlet Size

-6 AN (3/8 Inch)

Outlet Attachment

Female Threads

Inlet Quantity

Outlet Quantity

With Sending Unit

With Mounting Hanger

Yes

Estimated Install Time (Hours)

Installation & Documents

Installation Guide
