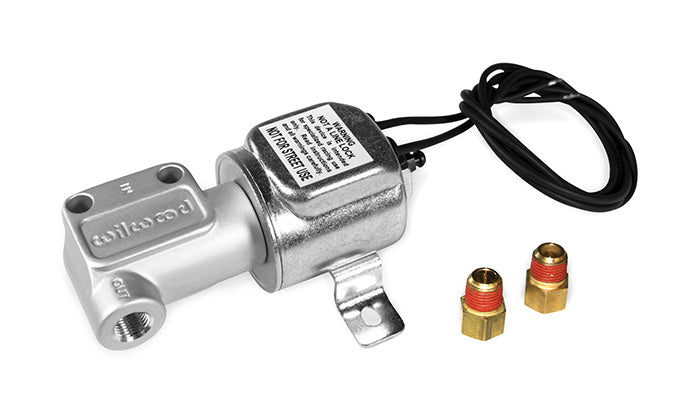

Wilwood Brakes Brake Shut Off Valve 260-9921 product image 1
Wilwood Brakes Brake Shut Off Valve 260-9921 product image 2

Wilwood Brakes Brake Shut Off Valve 260-9921

SKU: 260-9921

$197.57

Wilwood Brakes Brake Shut Off Valve 260-9921

No Supplier Warranty
Wilwood Brakes Brake Shut Off Valve 260-9921

Can Be Used As A Brake Shut-Off
Wilwood Brakes Brake Shut Off Valve 260-9921

When Energized, The Valve Will Block Pressure From Reaching Downstream
Wilwood Brakes Brake Shut Off Valve 260-9921

Eliminates The Possibility Of Trapping Pressure When Activating The Valve

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock 8

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Wilwood Brakes Brake Shut Off Valve 260-9921

$197.57

$197.57

1/8 Inch-27 NPT

Inlet Size

Female Threads

Inlet Attachment Type

1/8 Inch-27 NPT

Outlet Size

Product Description

This valve can be used as a brake shut-off. When energized, the valve will block pressure from reaching downstream. The valve does not prevent fluid from returning to the master cylinder. This eliminates the possibility of trapping pressure when activating the valve.

Specifications

Inlet Size
1/8 Inch-27 NPT
Inlet Attachment Type
Female Threads
Outlet Size
1/8 Inch-27 NPT
Outlet Attachment Type
Female Thread
Power Source
12 Volts, 5 Amperes
Finish
Anodized
Color
Silver
Material
Aluminum/ Steel
Includes Fitting
Yes

Installation & Documents



Installation Guide
