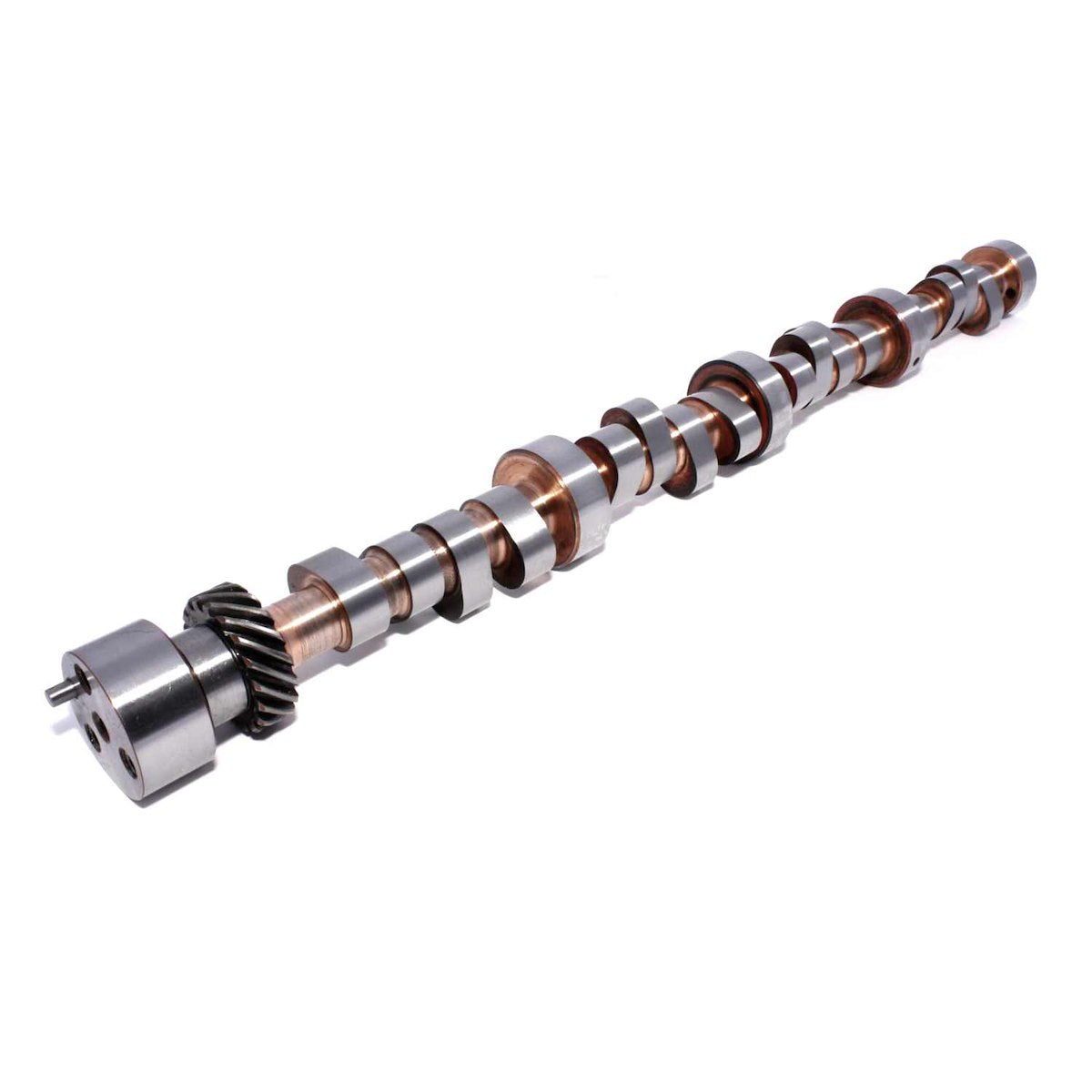

COMP Cams Engine Camshaft 23-709-9 product image 1

COMP Cams Engine Camshaft 23-709-9

SKU: 23-709-9

$687.95

COMP Cams Engine Camshaft 23-709-9

Reduced Friction
COMP Cams Engine Camshaft 23-709-9

Maximum Performance
COMP Cams Engine Camshaft 23-709-9

Limited 1 Year Warranty
COMP Cams Engine Camshaft 23-709-9

Most Aggressive Profiles

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Low in stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
COMP Cams Engine Camshaft 23-709-9

$687.95

$687.95

Mechanical Roller

Type

285 Degree

Intake Duration At 0.050 Inch Lift (DEG)

292 Degree

Exhaust Duration At 0.050 Inch Lift (DEG)

Product Description

The highest of all performance level camshafts; solid rollers are designed for both high performance street through all-out racing applications. They feature the most aggressive Camshaft lobe profiles and withstand the highest Valve Spring pressures. As with their solid flat tappet Camshaft cousins, they are noisier than hydraulic Camshaft systems, particularly when cold, yet they deliver more performance and throttle response, especially when adjusted to “Tight” lash settings of 0.010 Inch To 0.012 Inch. The solid roller Camshaft also uses roller lifters that do not include an adjustment for Valve train component expansion due to internal Engine heat and requires regular lash adjustment service to deliver top performance. Solid roller lifters can be re used, however they are more costly than flat tappet lifters.

Specifications

Engine Compatibility
Chrysler Big Block 383-400-413-426-440 Cubic Inch
Recommended Use
Serious Street Performance To All-Out Racing
Type
Mechanical Roller
Intake Duration At 0.050 Inch Lift (DEG)
285 Degree
Exhaust Duration At 0.050 Inch Lift (DEG)
292 Degree
Intake Centerline Angle (DEG)
110 Degree
Intake Valve Lift (IN)
0.705 Inch
Exhaust Valve Lift (IN)
0.705 Inch
Lobe Separation Angle (DEG)
110 Degree
RPM - Low
5500
RPM - High
7500
Advertised Intake Duration (DEG)
318 Degree
Advertised Exhaust Duration (DEG)
330 Degree
Grind Number
RX322R-10
Computer-Controlled Compatible
No

Fitment / Application

1900 Chrysler 361/383/400 B
1900 Chrysler 383/413/426W/440 RB
1900 Chrysler 426 Hemi
1959-1965 Chrysler 300 V8; 6.8L/413; GAS
1959-1964 Chrysler 300 V8; 6.7L/6769; GAS; 2x4BBL
1959 Chrysler Imperial V8; 6.7L/6769; GAS; 4BBL; MY1M ENG.
1959-1965 Chrysler Imperial V8; 6.8L/413; GAS
1959 Chrysler Imperial V8; 6.7L/6769; GAS; 4BBL; MY1H ENG.
1959 Chrysler Imperial V8; 6.7L/6769; GAS; 4BBL; MC3H ENG.
1959 Chrysler Imperial V8; 6.7L/6769; GAS; 4BBL; MY1L ENG.
1959-1965 Chrysler New Yorker V8; 6.7L/6769; GAS; 4BBL
1959-1965 Chrysler Newport V8; 6.7L/6769; GAS; 4BBL
1959-1960 Chrysler Saratoga V8; 6.3L/6286; GAS; 4BBL
1959 Chrysler Saratoga V8; 6.3L/6274; GAS; 2BBL
1959-1965 Chrysler Town & Country V8; 6.7L/6769; GAS; 4BBL
1959-1961, 1963-1971 Chrysler Town & Country V8; 6.3L/6286; GAS; 2BBL
1959-1961 Chrysler Windsor V8; 6.3L/6286; GAS; 2BBL
1959 Dodge Coronet V8; 6.3L/6286; GAS; 2x4BBL
1959, 1965-1966 Dodge Coronet V8; 6.3L/6286; GAS; 4BBL
1960-1965 Chrysler Imperial V8; 6.7L/6769; GAS; 4BBL
1962-1966 Chrysler 300 V8; 6.3L/383; GAS
1962-1965 Chrysler 300 V8; 6.7L/6769; GAS; 4BBL
1962-1965 Chrysler 300 V8; 6.3L/6286; GAS; 2BBL
1963 Chrysler 300 V8; 7.0L/6981; GAS; 4BBL
1963 Chrysler 300 V8; 7.0L/6981; GAS; 2x4BBL
1963 Chrysler 300 V8; 7.0L/426; GAS
1963 Chrysler New Yorker V8; 7.0L/6981; GAS; 2x4BBL
1963 Chrysler New Yorker V8; 7.0L/6981; GAS; 4BBL
1963 Chrysler Newport V8; 7.0L/6981; GAS; 4BBL
1963 Chrysler Newport V8; 7.0L/6981; GAS; 2x4BBL
1963 Chrysler Town & Country V8; 7.0L/6981; GAS; 2x4BBL
1963 Chrysler Town & Country V8; 7.0L/6981; GAS; 4BBL
1963-1964 Dodge 330 V8; 7.0L/6981; GAS; 4BBL
1963 Dodge 330 V8; 7.0L/6981; GAS; 2x4BBL
1963-1964 Dodge 330 V8; 6.3L/6286; GAS; 2BBL
1963 Dodge 330 V8; 6.3L/6286; GAS; 2x4BBL
1963-1964 Dodge 330 V8; 6.3L/6286; GAS; 4BBL
1963-1964 Dodge 440 V8; 6.3L/6286; GAS; 4BBL
1963-1964 Dodge 440 V8; 6.3L/6286; GAS; 2BBL
1963-1964 Dodge 440 V8; 7.0L/6981; GAS; 4BBL
1963 Dodge 440 V8; 7.0L/6981; GAS; 2x4BBL
1963 Dodge 440 V8; 6.3L/6286; GAS; 2x4BBL
1963 Dodge 880 V8; 6.8L/413; GAS
1963-1964 Dodge 880 V8; 6.3L/6286; GAS; 4BBL
1963 Dodge 880 V8; 6.7L/6769; GAS; 2x4BBL
1963 Dodge 880 V8; 6.3L/6286; GAS; 2x4BBL
1963 Dodge 880 V8; 6.7L/6769; GAS; 4BBL
1963-1964 Dodge 880 V8; 6.3L/6286; GAS; 2BBL
1964 Dodge 330 V8; 7.0L/6981; GAS; 2x4BBL; V42 ENG.
1964 Dodge 330 V8; 7.0L/6981; GAS; 2x4BBL; V426 ENG.
1964 Dodge 440 V8; 7.0L/6981; GAS; 2x4BBL; V42 ENG.
1964 Dodge 440 V8; 7.0L/6981; GAS; 2x4BBL; V426 ENG.
1964 Dodge 880 V8; 7.0L/6981; GAS; 4BBL
1964 Dodge 880 V8; 7.0L/6981; GAS; 2x4BBL; V426 ENG.
1964 Dodge 880 V8; 7.0L/6981; GAS; 2x4BBL; V42 ENG.
1965-1966 Chrysler 300 V8; 6.3L/6286; GAS; 4BBL
1965-1971 Chrysler Newport V8; 6.3L/6286; GAS; 4BBL
1965-1971 Chrysler Newport V8; 6.3L/6286; GAS; 2BBL
1965-1971 Chrysler Town & Country V8; 6.3L/6286; GAS; 4BBL
1965-1966 Dodge Coronet V8; 7.0L/6981; GAS; 2x4BBL
1965-1966 Dodge Coronet V8; 6.3L/6286; GAS; 2BBL
1965-1966 Dodge Coronet V8; 7.0L/6981; GAS; 4BBL
1966-1967, 1970-1971 Chrysler 300 V8; 7.2L/7211; GAS
1966 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; OHV
1966-1967 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; OHV; VIN K
1966-1967 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; OHV; VIN L
1966-1967 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL; OHV; VIN L
1966-1967 Chrysler Imperial V8; 7.2L/7211; GAS
1966 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL; OHV
1966-1967 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL; OHV; VIN K
1966, 1975-1978 Chrysler New Yorker V8; 7.2L/7211; GAS; 4BBL
1966-1969 Chrysler New Yorker V8; 7.2L/7211; GAS; 4BBL; VIN K
1966-1969 Chrysler New Yorker V8; 7.2L/7211; GAS; 4BBL; VIN L
1966, 1968-1969 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; VIN L
1966, 1976-1978 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL
1966, 1968-1969 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; VIN K
1966-1969 Chrysler Town & Country V8; 7.2L/7211; GAS; 4BBL; VIN K
1966-1969 Chrysler Town & Country V8; 7.2L/7211; GAS; 4BBL; VIN L
1966, 1975-1977 Chrysler Town & Country V8; 7.2L/7211; GAS; 4BBL
1966-1971 Dodge Charger V8; 6.3L/6286; GAS; 2BBL
1966-1971 Dodge Charger V8; 6.3L/6286; GAS; 4BBL
1966-1967, 1970-1971 Dodge Charger V8; 7.0L/6981; GAS; 2x4BBL
1966 Dodge Coronet V8; 7.2L/7211; GAS
1966 Dodge Coronet V8; 7.0L/426; GAS
1966 Dodge Coronet V8; 6.3L/383; GAS
1967 Chrysler Newport V8; 7.2L/7211; GAS
1967 Chrysler Newport V8; 6.3L/383; GAS
1967 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; OHV; VIN K
1967 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; OHV; VIN L
1967-1969 Dodge Charger V8; 7.2L/7211; GAS; 4BBL; VIN K
1967-1969 Dodge Charger V8; 7.2L/7211; GAS; 4BBL; VIN L
1968-1969 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; VIN K
1968-1969 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; VIN L
1968-1969 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL; VIN K
1968-1969 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL; VIN L
1968-1969 Dodge Charger V8; 7.0L/6981; GAS; 2x4BBL; VIN J
1968-1969 Dodge Charger V8; 7.0L/6981; GAS; 2x4BBL; VIN R
1969 Dodge Charger V8; 7.0L/426; GAS
1969 Dodge Charger V8; 6.3L/383; GAS; VIN H
1969 Dodge Charger V8; 7.2L/7211; GAS
1969 Dodge Charger V8; 6.3L/383; GAS; VIN G
1969, 1971 Dodge Charger V8; 7.2L/7211; GAS; 4BBL; Carter
1970-1971 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; Carter; VIN U
1970-1971 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; Carter; VIN T
1970-1971 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; VIN T
1970-1971 Chrysler 300 V8; 7.2L/7211; GAS; 4BBL; VIN U
1970-1974 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL; Carter
1970-1974 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL; VIN T
1970-1974 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL; VIN U
1970-1971, 1973-1974 Chrysler New Yorker V8; 7.2L/7211; GAS; 4BBL; Carter; VIN U
1970-1974 Chrysler New Yorker V8; 7.2L/7211; GAS; 4BBL; VIN U
1970-1974 Chrysler New Yorker V8; 7.2L/7211; GAS; 4BBL; VIN T
1970-1971, 1973-1974 Chrysler New Yorker V8; 7.2L/7211; GAS; 4BBL; Carter; VIN T
1970-1971, 1973-1974 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; Carter; VIN U
1970-1975 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; VIN T
1970-1971, 1973-1974 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; Carter; VIN T
1970-1975 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; VIN U
1970-1974 Chrysler Town & Country V8; 7.2L/7211; GAS; 4BBL; VIN U
1970-1974 Chrysler Town & Country V8; 7.2L/7211; GAS; 4BBL; Carter
1970-1974 Chrysler Town & Country V8; 7.2L/7211; GAS; 4BBL; VIN T
1970 Dodge Challenger V8; 7.2L/7211; GAS; 4BBL; Carter; VIN U
1970-1971 Dodge Challenger V8; 6.3L/6286; GAS; 2BBL
1970 Dodge Challenger V8; 7.0L/6981; GAS; 2x4BBL; VIN J
1970 Dodge Challenger V8; 7.2L/7211; GAS; 4BBL; VIN T
1970 Dodge Challenger V8; 7.0L/6981; GAS; 2x4BBL; VIN R
1970-1971 Dodge Challenger V8; 6.3L/6286; GAS; 4BBL
1970-1972 Dodge Challenger V8; 7.2L/7211; GAS; 3x2BBL
1970 Dodge Challenger V8; 7.2L/7211; GAS; 4BBL; Carter; VIN T
1970 Dodge Challenger V8; 7.2L/7211; GAS; 4BBL; VIN U
1970-1972 Dodge Charger V8; 7.2L/7211; GAS; 3x2BBL
1970, 1972-1974 Dodge Charger V8; 7.2L/7211; GAS; 4BBL; Carter; VIN T
1970, 1972-1974 Dodge Charger V8; 7.2L/7211; GAS; 4BBL; Carter; VIN U
1970-1974 Dodge Charger V8; 7.2L/7211; GAS; 4BBL; VIN U
1970-1974 Dodge Charger V8; 7.2L/7211; GAS; 4BBL; VIN T
1971 Chrysler Newport V8; 6.3L/383; GAS; VIN L
1971 Chrysler Newport V8; 6.3L/383; GAS; VIN N
1971-1974 Dodge B200 Van V8; 6.6L/6556; GAS; 2BBL
1971, 1974 Dodge B200 Van V8; 6.6L/6556; GAS; 2BBL; Holley
1971-1974 Dodge B300 Van V8; 6.6L/6556; GAS; 2BBL
1971 Dodge Challenger V8; 7.2L/7211; GAS; 4BBL; Hi-Perf.
1971 Dodge Challenger V8; 7.0L/6981; GAS; 2x4BBL
1971 Dodge Challenger V8; 7.2L/7211; GAS; 4BBL
1972 Chrysler New Yorker V8; 7.2L/7211; GAS; 4BBL; Carter
1972 Chrysler New Yorker V8; 6.6L/6556; GAS; 2BBL
1972 Chrysler Newport V8; 7.2L/7211; GAS; 4BBL; Carter
1972-1973 Chrysler Newport V8; 6.6L/6556; GAS; 2BBL
1972-1973 Chrysler Town & Country V8; 6.6L/6556; GAS; 2BBL
1972-1973 Dodge Challenger V8; 6.6L/6556; GAS; 2BBL; Holley
1972-1973 Dodge Challenger V8; 6.6L/6556; GAS; 4BBL
1972-1973 Dodge Charger V8; 6.6L/6556; GAS; 2BBL; Holley
1972-1973, 1977 Dodge Charger V8; 6.6L/6556; GAS; 4BBL
1972-1973 Dodge Charger V8; 6.6L/6556; GAS; 4BBL; Carter
1974, 1977-1978 Chrysler Newport V8; 6.6L/6556; GAS; 4BBL
1974, 1976 Chrysler Newport V8; 6.6L/6556; GAS; 2BBL; Holley
1974, 1976 Chrysler Newport V8; 6.6L/6556; GAS; 4BBL; Carter
1974, 1976 Chrysler Town & Country V8; 6.6L/6556; GAS; 2BBL; Holley
1974, 1977 Chrysler Town & Country V8; 6.6L/6556; GAS; 4BBL
1974 Dodge B100 Van V8; 7.2L/7211; GAS; 4BBL
1974 Dodge B100 Van V8; 7.2L/7211; GAS; 4BBL; Carter
1974 Dodge B200 Van V8; 7.2L/7211; GAS; 4BBL
1974 Dodge B200 Van V8; 7.2L/7211; GAS; 4BBL; Carter
1974 Dodge B300 Van V8; 7.2L/7211; GAS; 4BBL
1974 Dodge Challenger V8; 6.6L/6556; GAS; 4BBL; VIN N
1974 Dodge Challenger V8; 6.6L/6556; GAS; 4BBL; VIN P
1974 Dodge Challenger V8; 6.6L/6556; GAS; 2BBL
1974, 1978 Dodge Charger V8; 6.6L/6556; GAS; 4BBL; VIN P
1974, 1976 Dodge Charger V8; 6.6L/6556; GAS; 4BBL; Carter; VIN N
1974, 1976 Dodge Charger V8; 6.6L/6556; GAS; 2BBL
1974, 1976 Dodge Charger V8; 6.6L/6556; GAS; 4BBL; Carter; VIN P
1974, 1978 Dodge Charger V8; 6.6L/6556; GAS; 4BBL; VIN N
1975-1976 Chrysler Cordoba V8; 6.6L/6556; GAS; 4BBL; Carter; VIN P
1975-1976 Chrysler Cordoba V8; 6.6L/6556; GAS; 2BBL
1975-1976 Chrysler Cordoba V8; 6.6L/6556; GAS; 4BBL; Carter; VIN N
1975 Chrysler Imperial V8; 7.2L/7211; GAS; 4BBL
1975 Chrysler New Yorker V8; 6.6L/400; GAS; 4BBL; Carter
1975 Chrysler New Yorker V8; 6.6L/400; GAS; 2BBL; Holley
1975 Chrysler Newport V8; 6.6L/400; GAS; 2BBL; Holley
1975 Chrysler Newport V8; 6.6L/400; GAS; 4BBL; Carter
1975 Chrysler Town & Country V8; 6.6L/400; GAS; 4BBL; Carter
1975 Chrysler Town & Country V8; 6.6L/400; GAS; 2BBL; Holley
1975-1978 Dodge B200 V8; 7.2L/7211; GAS; 4BBL
1975-1978 Dodge B300 V8; 7.2L/7211; GAS; 4BBL
1975 Dodge Charger V8; 6.6L/400; GAS; 4BBL; Carter; VIN P
1975 Dodge Charger V8; 6.6L/400; GAS; 4BBL; Carter; VIN N
1975 Dodge Charger V8; 6.6L/400; GAS; 2BBL
1976 Chrysler New Yorker V8; 6.6L/6556; GAS; 2BBL; Holley
1976 Chrysler New Yorker V8; 6.6L/6556; GAS; 4BBL; Carter
1976 Chrysler Town & Country V8; 6.6L/6556; GAS; 4BBL; Carter
1976-1978 Dodge B200 V8; 6.6L/400; GAS; 2BBL
1976-1978 Dodge B300 V8; 6.6L/400; GAS; 2BBL
1976-1978 Dodge CB300 V8; 6.6L/6556; GAS; 2BBL
1977 Chrysler Cordoba V8; 6.6L/6556; GAS; 4BBL
1977-1978 Chrysler New Yorker V8; 6.6L/6556; GAS; 4BBL
1977-1979 Dodge CB300 V8; 7.2L/7211; GAS; 4BBL
1978 Chrysler Cordoba V8; 6.6L/6556; GAS; 4BBL; VIN P
1978 Chrysler Cordoba V8; 6.6L/6556; GAS; 4BBL; VIN N

Installation & Documents



106-16 Revised.pdf
