Wilwood Brakes Black Brake Systems 140-13206-D

SKU: 140-13206-D

$1,253.44

Wilwood Brakes Black Brake Systems 140-13206-D

No Supplier Warranty
Wilwood Brakes Black Brake Systems 140-13206-D

Provides A Complete Solution For Popular Muscle Car Rear Axles That Require A Parking Brake
Wilwood Brakes Black Brake Systems 140-13206-D

Provides Optimized And Balanced Braking For All Types Of Custom Performance Street/Strip And Show Machines
Wilwood Brakes Black Brake Systems 140-13206-D

Neatly Hidden Internal Shoe System Provides A Clean Installation With Superior Static Holding Power For Parking

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
Out of stock

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Wilwood Brakes Black Brake Systems 140-13206-D

$1,253.44

$1,253.44

Black

Disc Brake Caliper Color

BP-10 Metallic

Disc Brake Pad Material

Drilled And Slotted

Disc Brake Rotor Design

Product Description

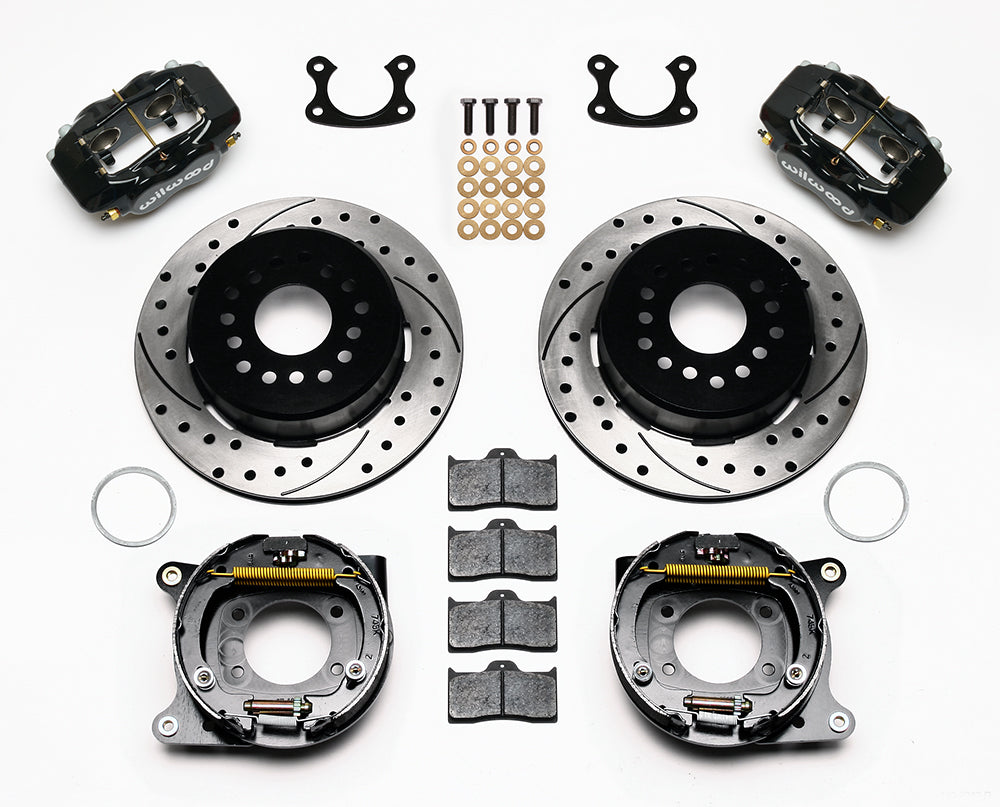

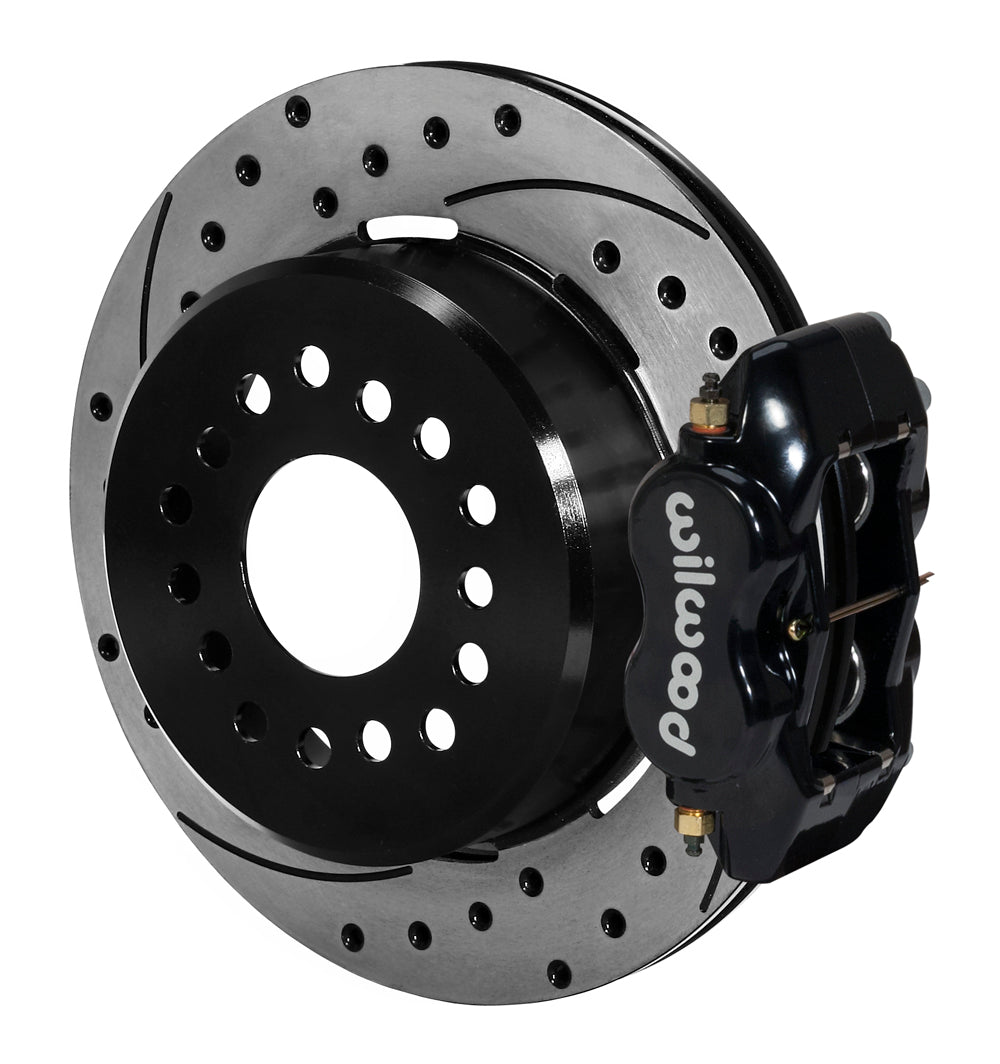

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19 Inch one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Specifications

Compatibility

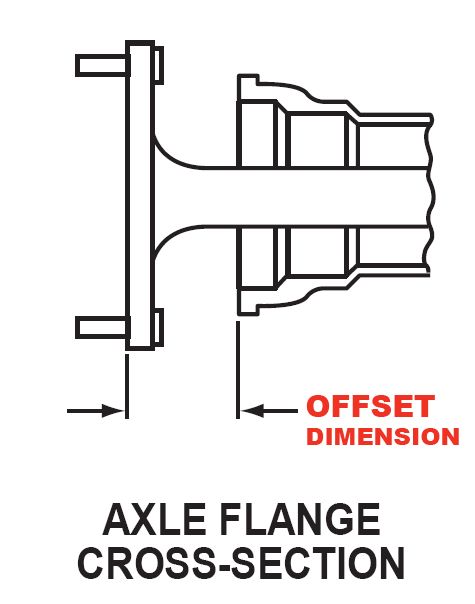

Small Ford 2.835 Inch Axle Tub Flange/ With 2.5 Axle Offset
Disc Brake Pad Material
BP-10 Metallic
Disc Brake Rotor Bolt Circle
5 X 4-1/2 Inch
Disc Brake Caliper Color
Black
Disc Brake Caliper Finish
Powder Coated
Disc Brake Rotor Design
Drilled And Slotted
Recommended Use
Racing/ Street
Disc Brake Caliper Material
Aluminum
Disc Brake Caliper Number of Pistons
4
Disc Type
2-Piece
Disc Brake Caliper Condition
New
Disc Brake Rotor Finish
Electro Coated
Disc Brake Rotor Material
Iron
Disc Brake Rotor Outer Diameter (MM)
309.63 Millimeter
Disc Brake Rotor Outer Diameter (IN)
12.19 Inch
Nominal Thickness (MM)
20.57 Millimeter
Nominal Thickness (IN)
0.81 Inch
Includes Bracket
Yes
Includes Hardware
Yes
Includes Shims
Yes
Includes Brake Lines
No
Minimum Wheel Diameter
15 Inch

Installation & Documents



Installation Guide
Installation Guide
