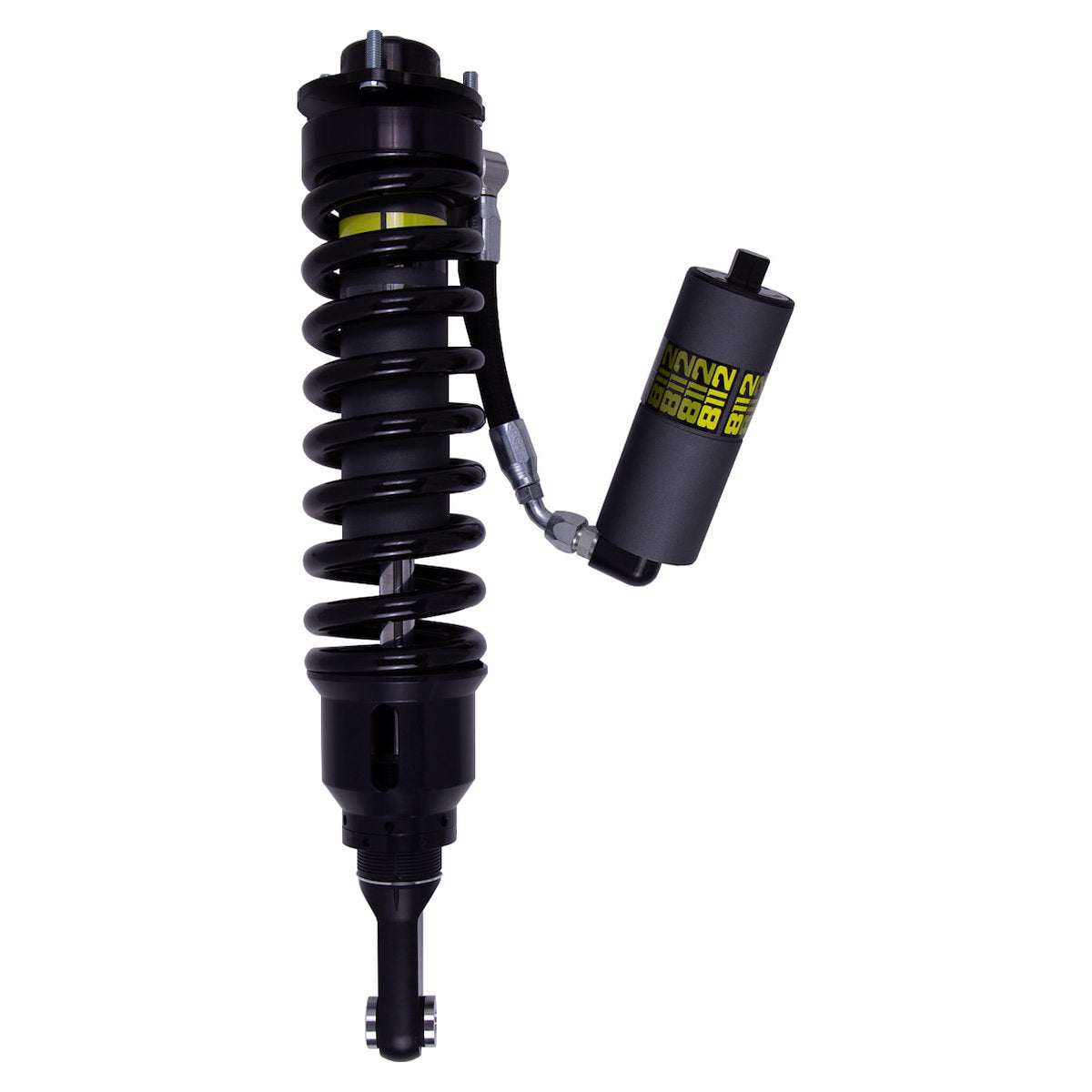

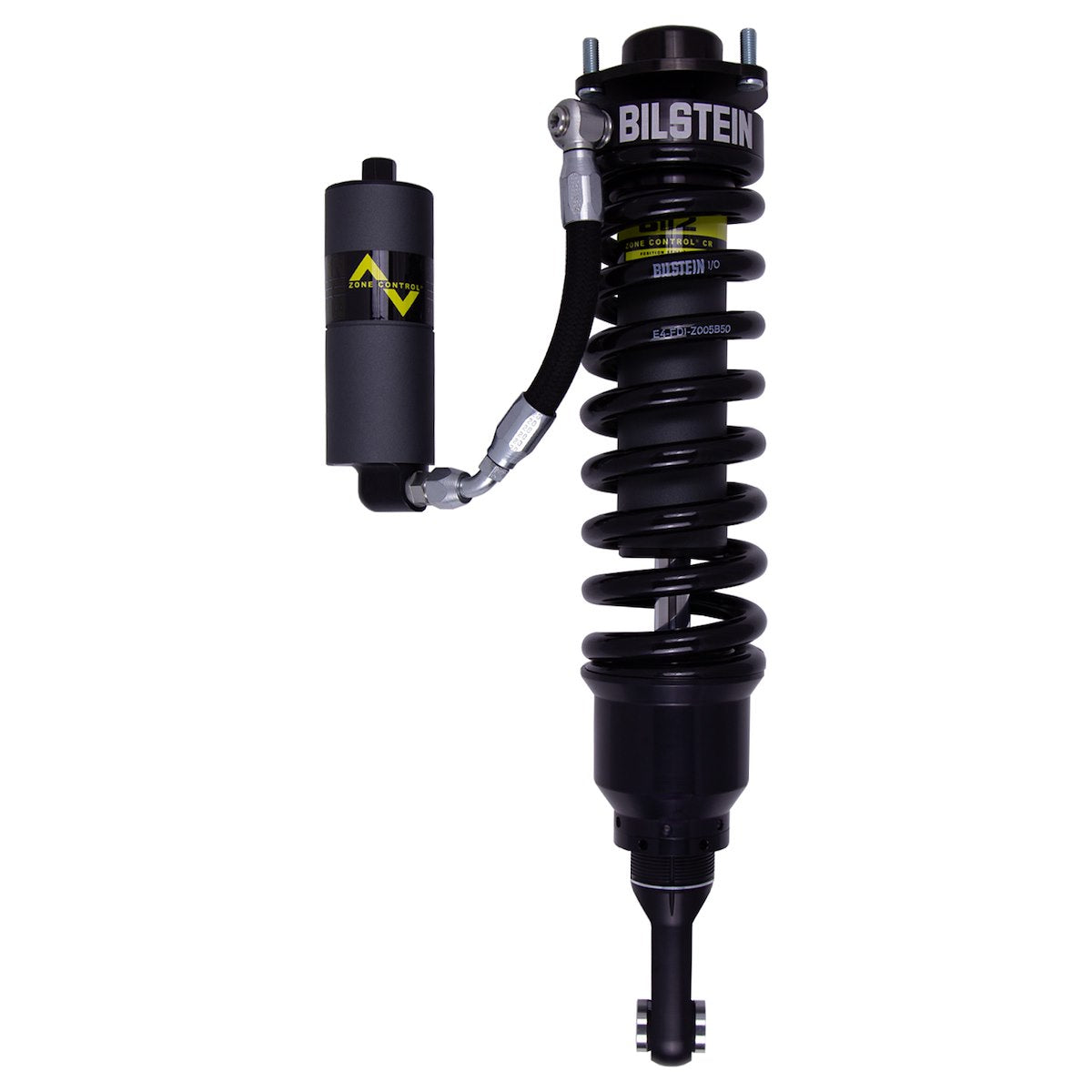

Bilstein Shock Absorber and Coil Spring Assembly 41-298343
SKU: 41-298343
$1,091.00
Out of stock
Prop 65 Warning
Emissions & Compliance
Bilstein Shock Absorber and Coil Spring Assembly 41-298343
$1,091.00
$1,091.00
Stud
Upper Mounting Type
Eyelet
Lower Mounting type
0 To 3.8 Inch
Front/Rear Drop
Product Description
Never before has so much capability been packed into one direct fit suspension kit. BILSTEIN B8 8112 (ZoneControl® CR) suspension kits incorporate a new, revolutionary technology, delivering position sensitive damping in both compression and rebound. ZoneControl® CR provides unparalleled comfort during everyday driving conditions, combined with maximum control under large suspension inputs. The Jounce Cut Off (JCO) system is comprised of two components: the JCO secondary compression valve piston and the 2-stage telescoping compression stop. The JCO system provides bottom out control when the JCO secondary compression valve piston engages the 2-stage telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop. ZoneControl® CR features a triple piston design for unparalleled comfort during every day driving conditions without sacrificing maximum control off-road. The 3 independent working pistons features: JCO (Jounce Cut Off) secondary compression valve piston, Main 60 Millimeter digressive piston, RCO (Rebound Cut Off) secondary rebound valve piston.
More Features
More Features
- Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs
- Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
- Adjustable Threaded Spring Seat Allows For Fine-Tuned Ride Height: Adjustable Range 6 To 2-1/2 Inch
- High Quality Chrome 5/8 Inch Heim Joint Mounting With Rubber Sealed Misalignment Spacers Offer The Most Durable, Load Bearing Mount Solution

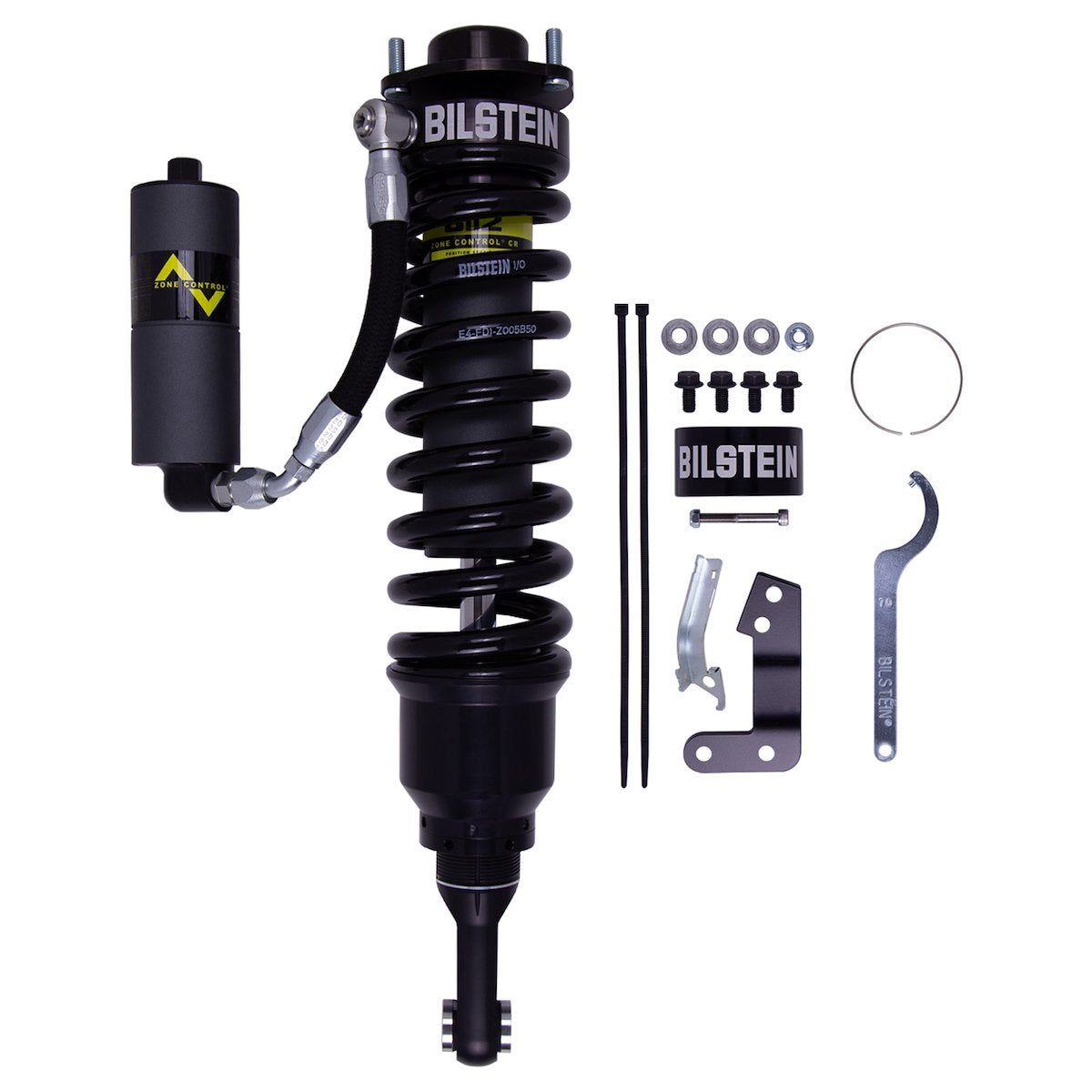

- Coilover Supplied As A Complete Module For Easy Installation: Spring Is Pre-Loaded To The Factory Recommended Ride Height
Specifications
Adjustable
No
Upper Mounting Type
Stud
Lower Mounting type
Eyelet
Front/Rear Drop (IN)
0 To 3.8 Inch
Extended Height (IN)
22.8 Inch
Compressed Height (IN)
17.99 Inch
Quantity
Single
Valving Type
3 Stage Compression Valving/ 2 Stages Rebound Valving
Shock Type
Monotube
Shock Body Color
Black
Shock Body Material
Zinc Plated Steel
Spring Color
Black

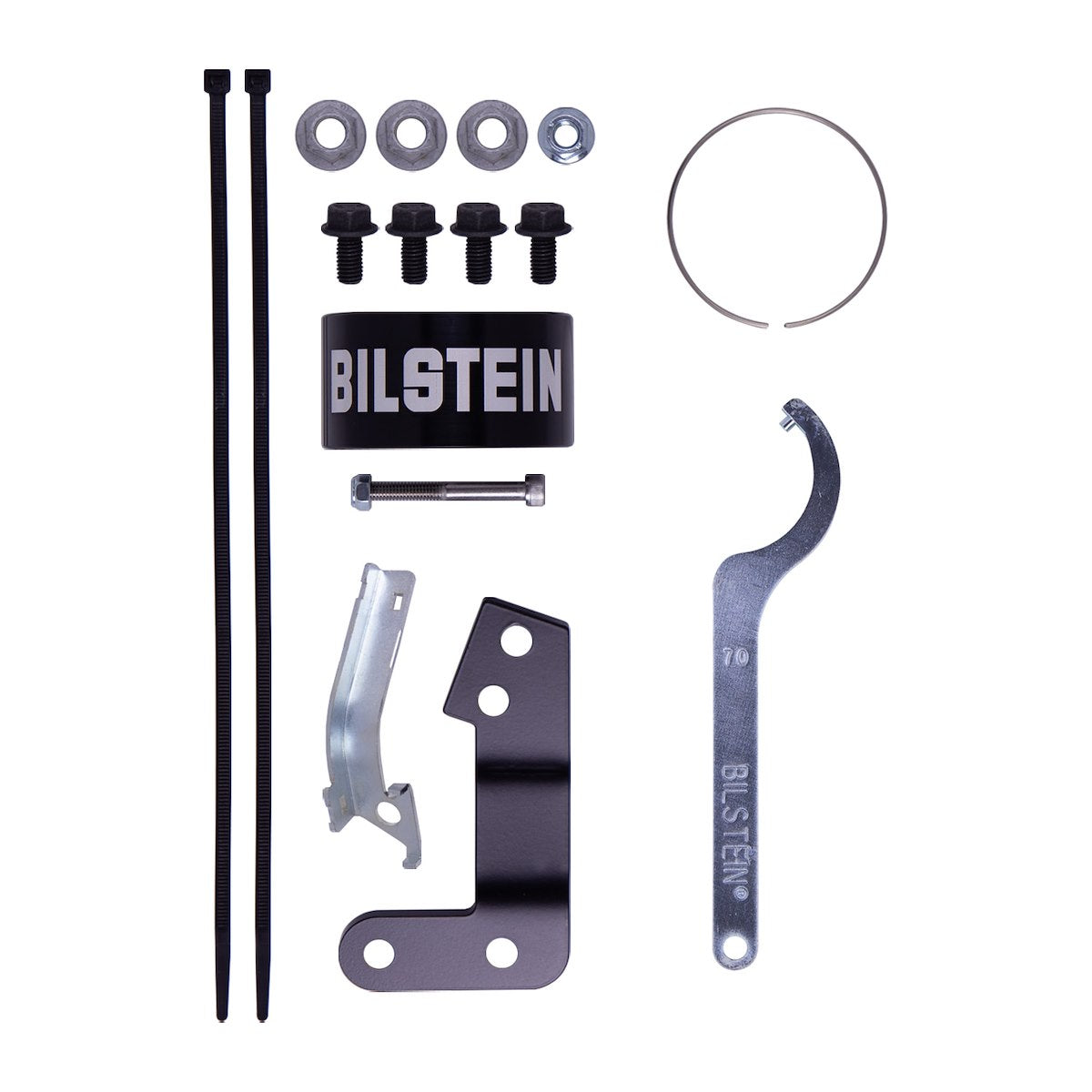

Includes Mounting Hardware
Yes
Fitment / Application
Installation & Documents
