Bilstein

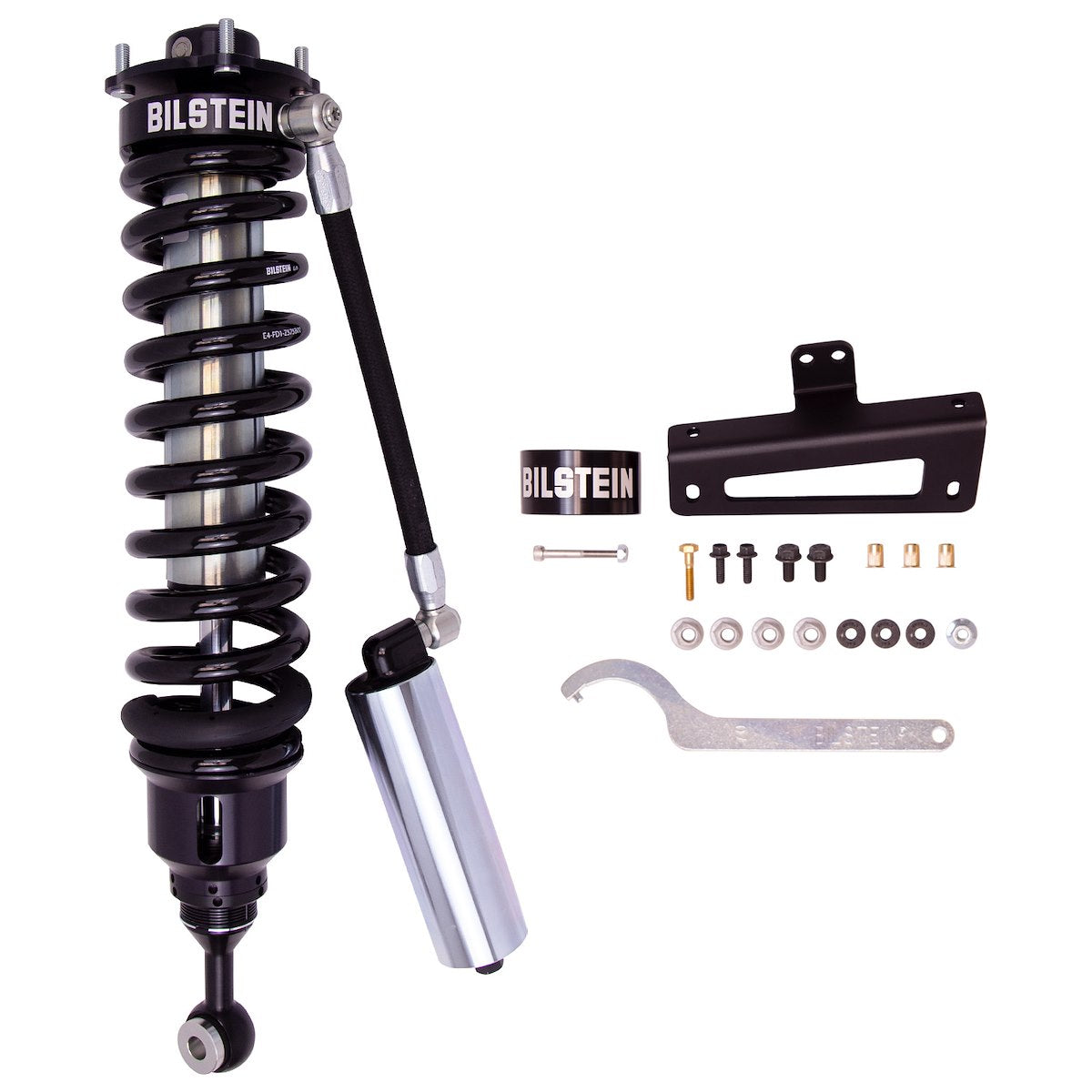

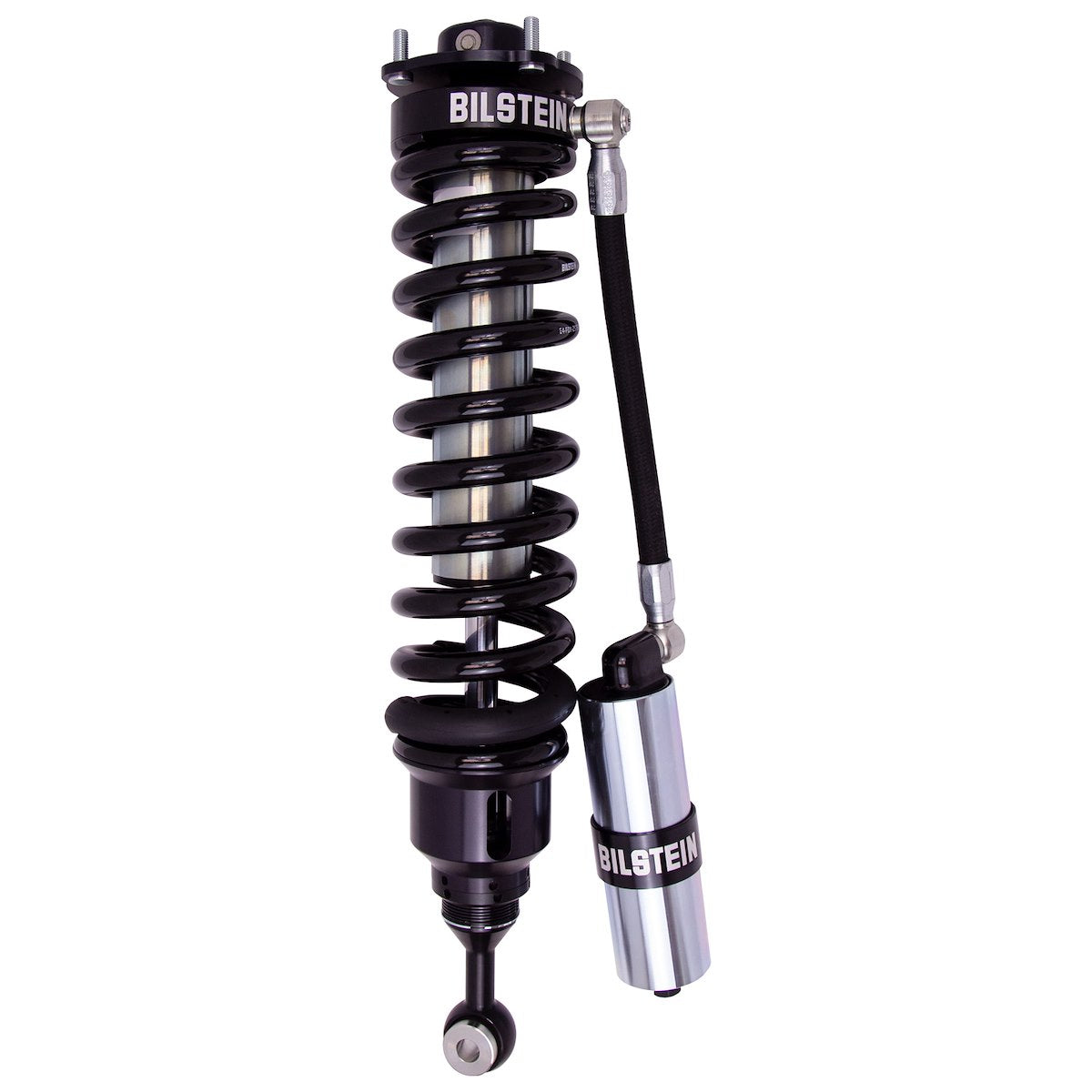

Bilstein Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra 41-284544

SKU: 41-284544

$1,091.00

Bilstein Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra 41-284544

Limited Lifetime Warranty
Bilstein Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra 41-284544

Adjustable Threaded Spring Seat Allows For Fine-Tuned Ride Height
Bilstein Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra 41-284544

Aluminum Components With Zinc Plated Shock Bodies Will Resist Harsh Off-Road Elements
Bilstein Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra 41-284544

Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs
Bilstein Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra 41-284544

ZoneControl ® CR: Position Sensitive Damping With 3 Compression Zones And 2 Rebound Zones, Controlled By 3 Independent Pistons
In stock 15

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Shock Absorber and Coil Spring Assembly for 2007-2021 Toyota Tundra 41-284544

$1,091.00

$1,091.00

Strut

Upper Mounting Type

Eyelet

Lower Mounting type

2-1/4 To 3-1/4 Inch

Front/Rear Drop

Product Description

Never before has so much capability been packed into one direct fit suspension kit. BILSTEIN B8 8112 (ZoneControl® CR) suspension kits incorporate a new, revolutionary technology, delivering position sensitive damping in both compression and rebound. ZoneControl® CR provides unparalleled comfort during everyday driving conditions, combined with maximum control under large suspension inputs. BILSTEIN B8 8112 (ZoneControl® CR) suspension kits will enhance your suspension performance to a level that will defy convention.

More Features
  • Compression ©: Provides Superior Bottom Out Control Through A 2-Stage, Telescoping Internal Compression Stop. This Feature Eliminates The Need For An External Hydraulic Bump Stop
  • Secondary Rebound Stop Dissipate Spring Energy And Stabilize The Suspension Directly Following A Large Compression Event. Internal Rebound Stop Eliminate Harsh Top-Out Events
  • 60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling, Coilover Supplied As A Complete Module For Easy Installation. Spring Is Pre-Loaded To The Factory Recommended Ride Height
  • Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience. Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
  • High Quality Chrome 5/8 Inch Heim Joint Mounting With Rubber Sealed Misalignment Spacers Offer The Most Durable, Load Bearing Mount Solution

Specifications

Adjustable
Yes
Upper Mounting Type
Strut
Lower Mounting type
Eyelet
Front/Rear Drop (IN)
2-1/4 To 3-1/4 Inch
Extended Height (IN)
25.79 Inch
Compressed Height (IN)
19.43 Inch
Quantity
Single
Valving Type
3 Stage Compression Valving
Shock Type
Gas Charged
Shock Body Color
Silver
Shock Body Material
Steel
Spring Color
Black
Includes Mounting Hardware
No

Fitment / Application

2007-2010, 2021 Toyota Tundra Rear Wheel Drive
2007-2010 Toyota Tundra Four Wheel Drive
2011-2020 Toyota Tundra
2021 Toyota Tundra Four Wheel Drive; Crew Max
2021 Toyota Tundra Four Wheel Drive; Double Cab
