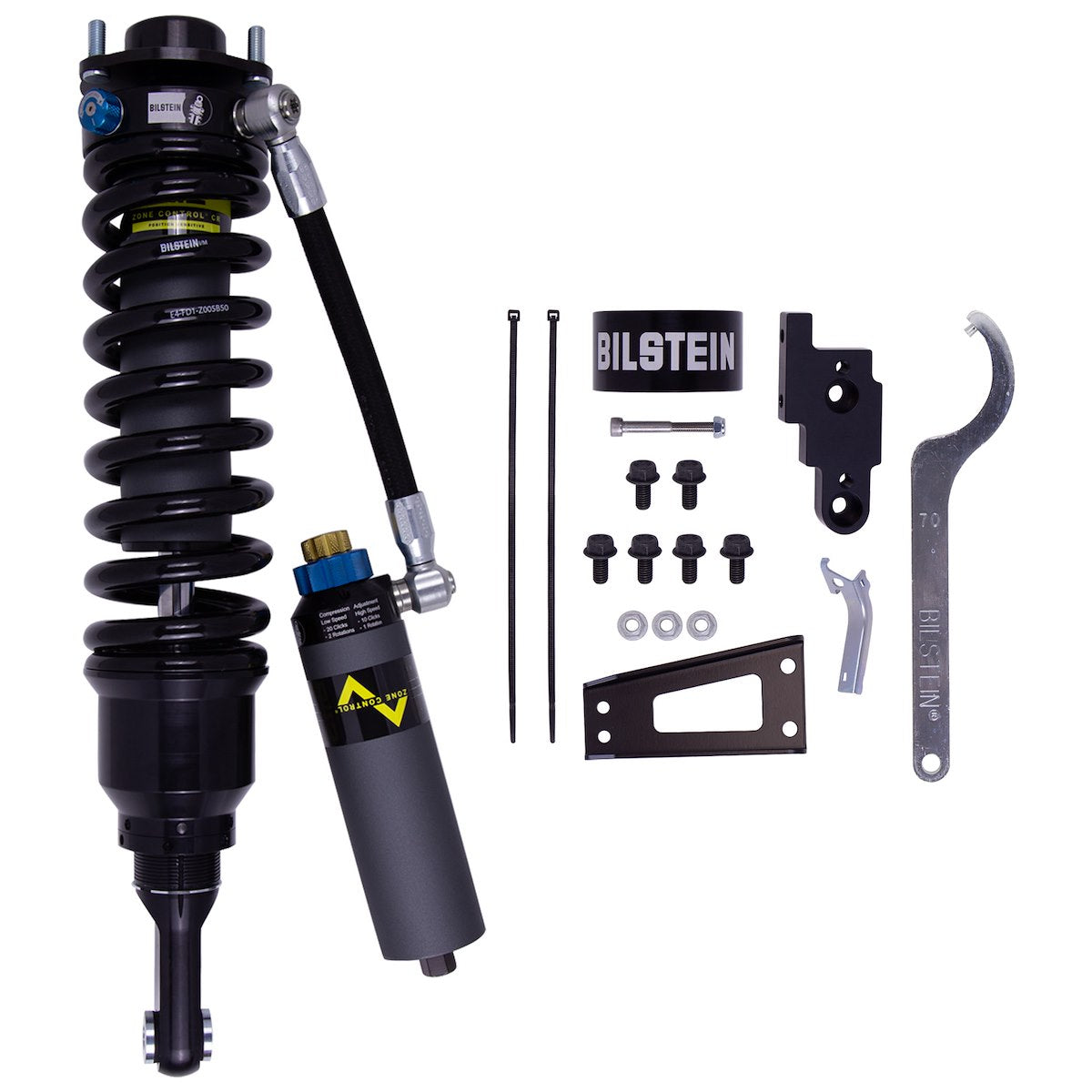

Bilstein Shock Absorber and Coil Spring Assembly 41-319581 product image 1

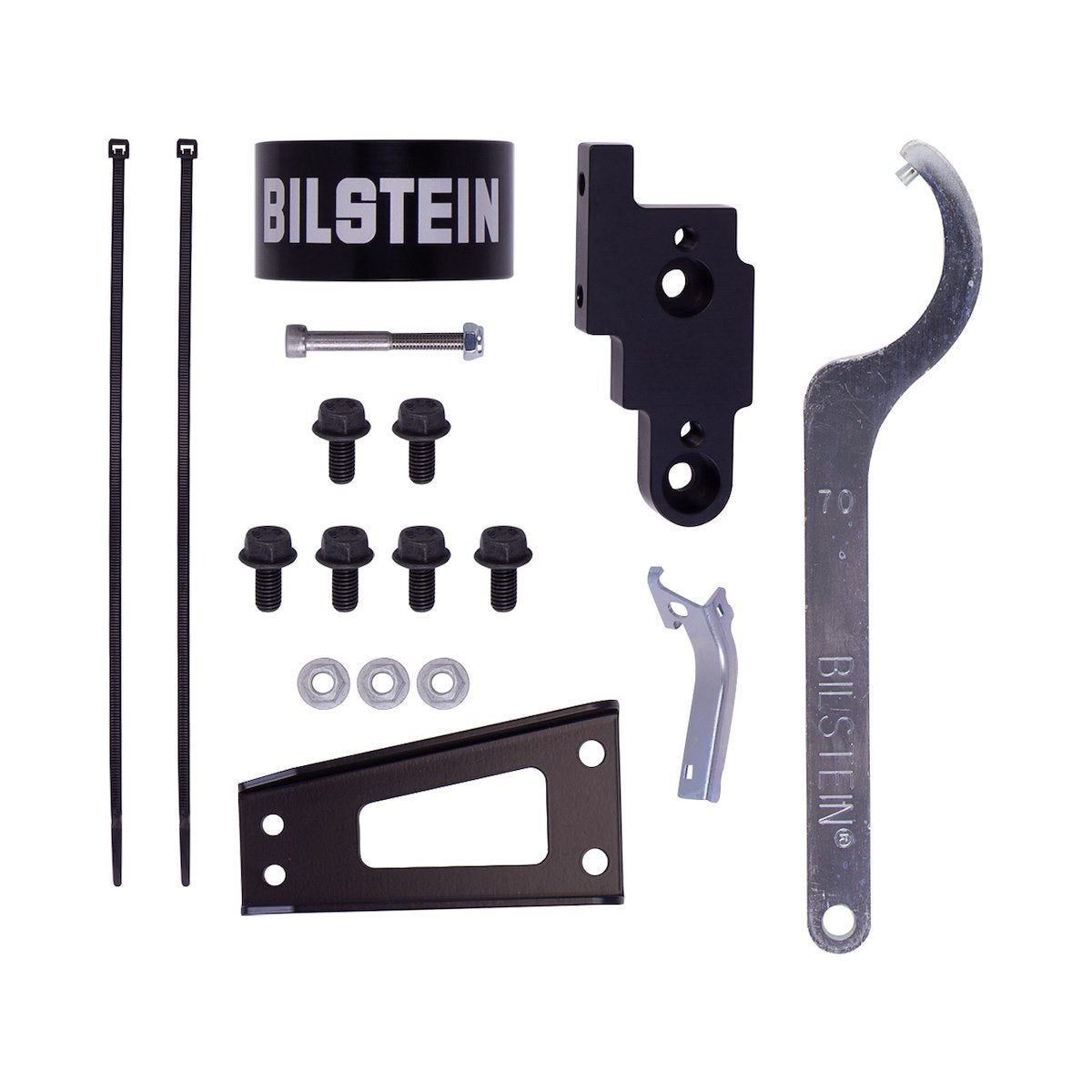

Bilstein Shock Absorber and Coil Spring Assembly 41-319581 product image 2

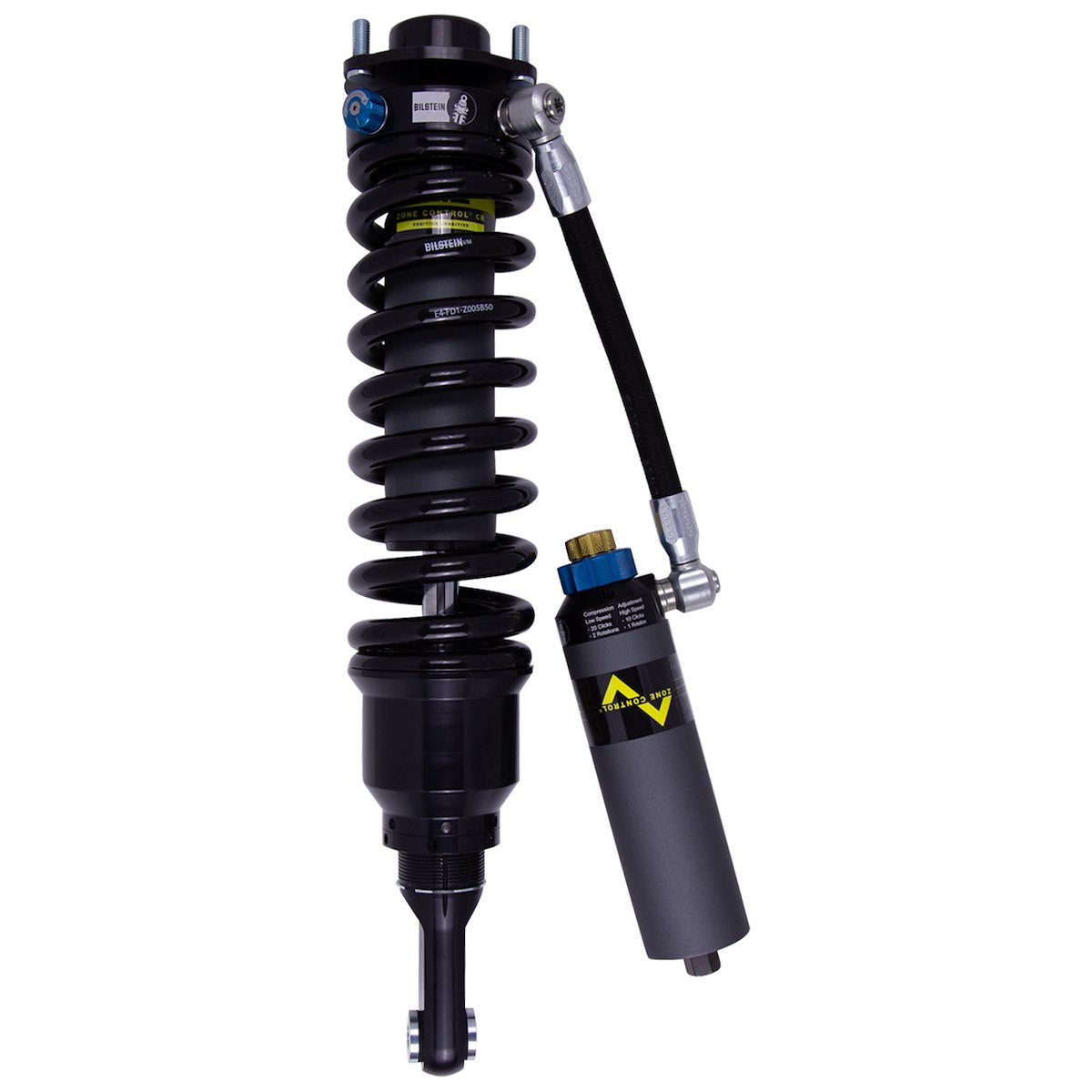

Bilstein Shock Absorber and Coil Spring Assembly 41-319581 product image 3

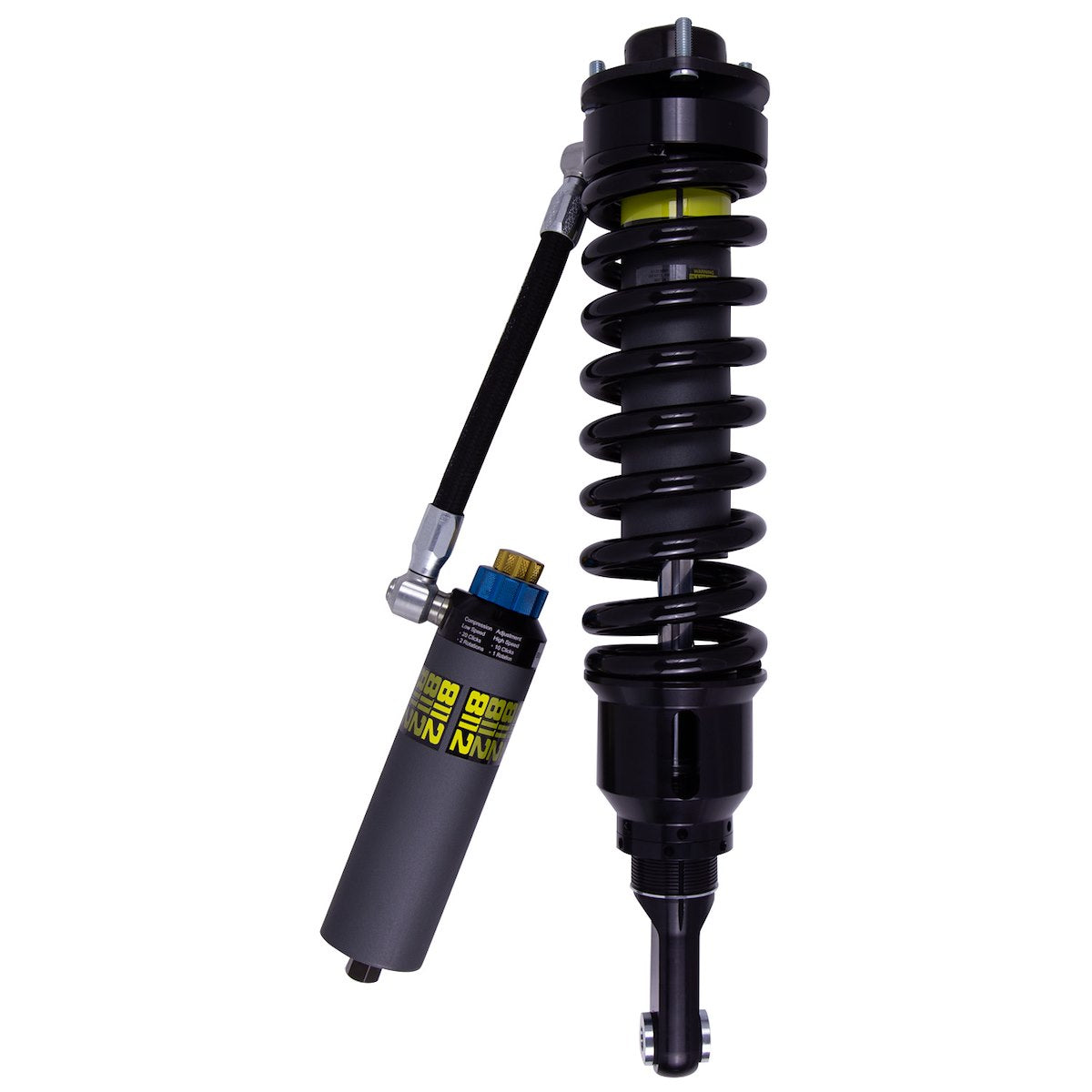

Bilstein Shock Absorber and Coil Spring Assembly 41-319581 product image 4

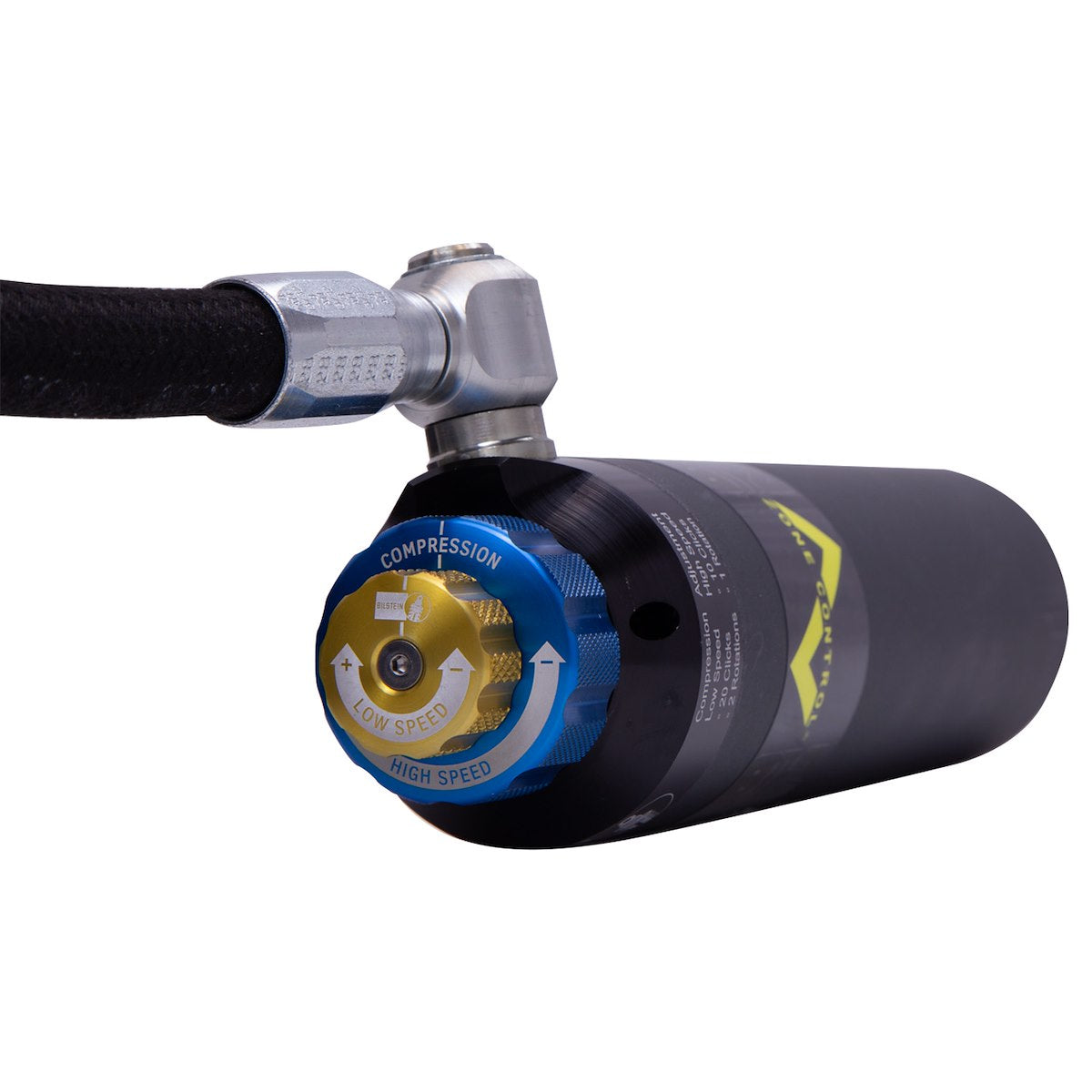

Bilstein Shock Absorber and Coil Spring Assembly 41-319581 product image 5

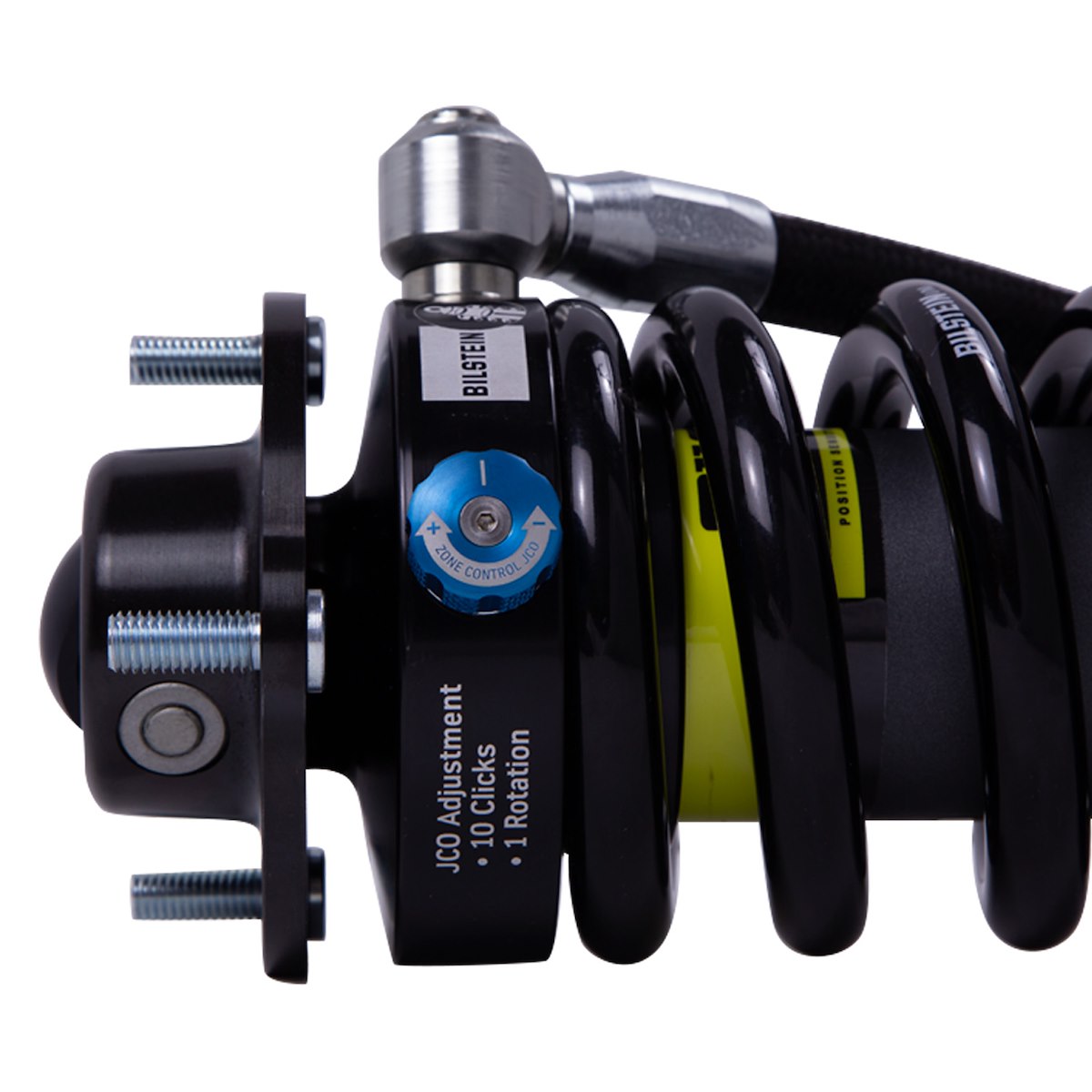

Bilstein Shock Absorber and Coil Spring Assembly 41-319581 product image 6

Bilstein

Bilstein Shock Absorber and Coil Spring Assembly for 2005-2023 Toyota Tacoma 41-319581

SKU: 41-319581

$1,460.00

Bilstein Shock Absorber and Coil Spring Assembly for 2005-2023 Toyota Tacoma 41-319581

Factory Rebuildable
Bilstein Shock Absorber and Coil Spring Assembly for 2005-2023 Toyota Tacoma 41-319581

Limited Lifetime Warranty
Bilstein Shock Absorber and Coil Spring Assembly for 2005-2023 Toyota Tacoma 41-319581

Coilover Supplied As A Complete Module For Easy Installation
Bilstein Shock Absorber and Coil Spring Assembly for 2005-2023 Toyota Tacoma 41-319581

60 Millimeter Remote Reservoir For Increased Oil Capacity And Cooling
Bilstein Shock Absorber and Coil Spring Assembly for 2005-2023 Toyota Tacoma 41-319581

Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience
Low in stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Shock Absorber and Coil Spring Assembly for 2005-2023 Toyota Tacoma 41-319581

$1,460.00

$1,460.00

Strut

Upper Mounting Type

Eyelet

Lower Mounting type

0 To 2.6 Inch

Front/Rear Drop

Product Description

Never before has so much capability been packed into one direct fit suspension kit. BILSTEIN B8 8112 (ZoneControl ® CR) suspension kits incorporate a new, revolutionary technology, delivering position sensitive damping in both compression and rebound. ZoneControl ® CR provides unparalleled comfort during everyday driving conditions, combined with maximum control under large suspension inputs. ZoneControl ® CR delivers position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons. Three key internal features produce ZoneControl ® CR: JCO System, Triple Piston Design, RCO System.

More Features
  • Triple Piston Design Delivers Comfort During Every Day Driving Conditions And Maximum Control Under Large Suspension Inputs
  • Aerospace Quality Components Are Vehicle Specific To Optimize Wheel Travel And Clearance
  • Aluminum Components With Zinc Plated Shock Bodies Will Resist Harsh Off-Road Elements
  • Adjustable Threaded Spring Seat Allows For Fine-Tuned Ride Height: Adjustable Range 6 To 2-1/2 Inch
  • Vehicle Specific Design And Tuning Provides The Ultimate Driving Experience

Specifications

Adjustable
Yes
Upper Mounting Type
Strut
Lower Mounting type
Eyelet
Front/Rear Drop (IN)
0 To 2.6 Inch
Extended Height (IN)
22.39 Inch
Compressed Height (IN)
17.42 Inch
Quantity
Single
Valving Type
3 Stages Of Compression And 2 Stages Of Rebound Valving
Shock Type
Gas Charged
Shock Body Color
Black
Shock Body Material
Steel
Spring Finish
Painted
Spring Color
Black
Includes Mounting Hardware
No

Fitment / Application

2005-2015 Toyota Tacoma Pre Runner
2005-2015 Toyota Tacoma Base; Rear Wheel Drive
2005-2015 Toyota Tacoma Base; Four Wheel Drive
2015 Toyota Tacoma TRD Pro
2016-2023 Toyota Tacoma

Installation & Documents



Installation Guide
Warranty Information
Installation Guide
