Bilstein

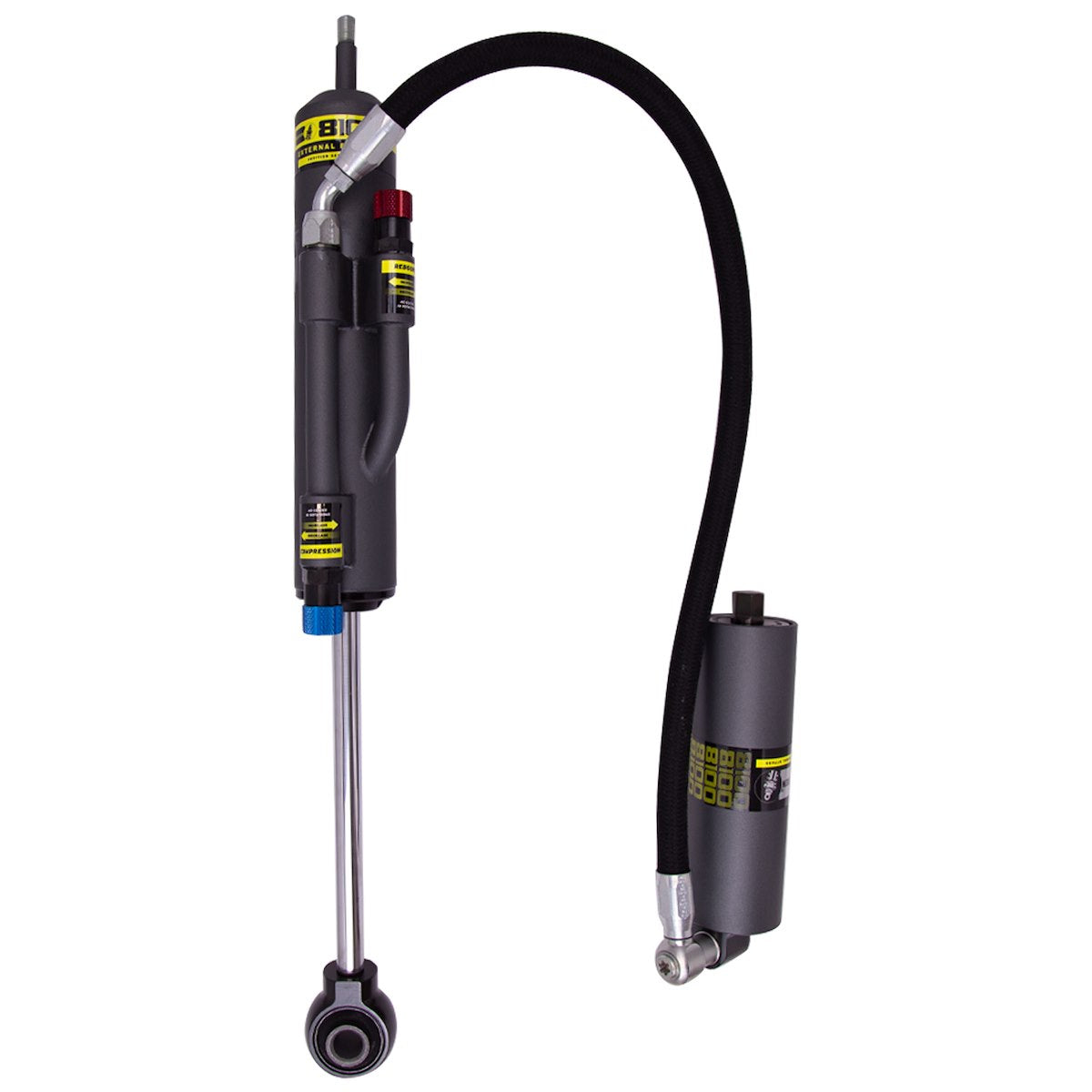

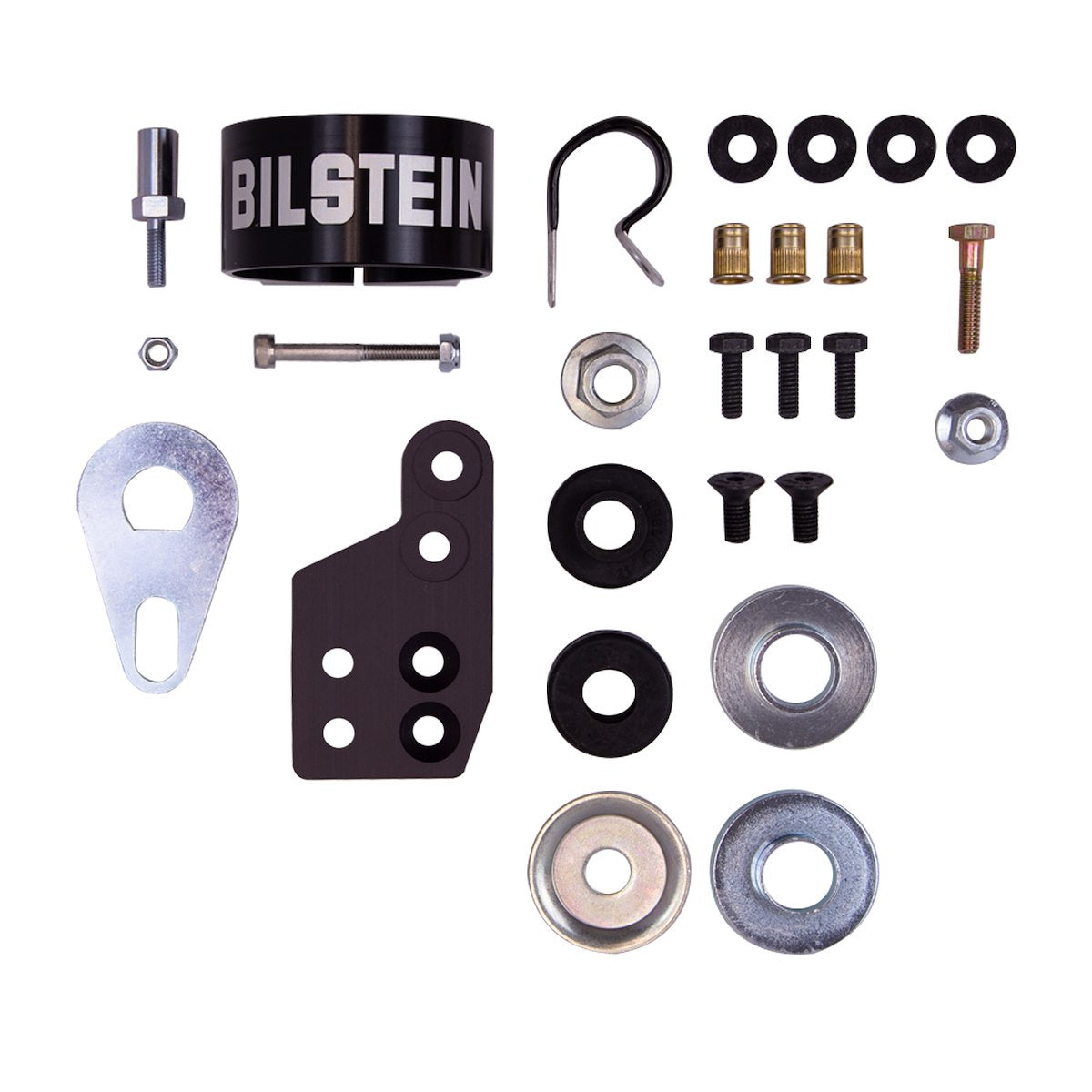

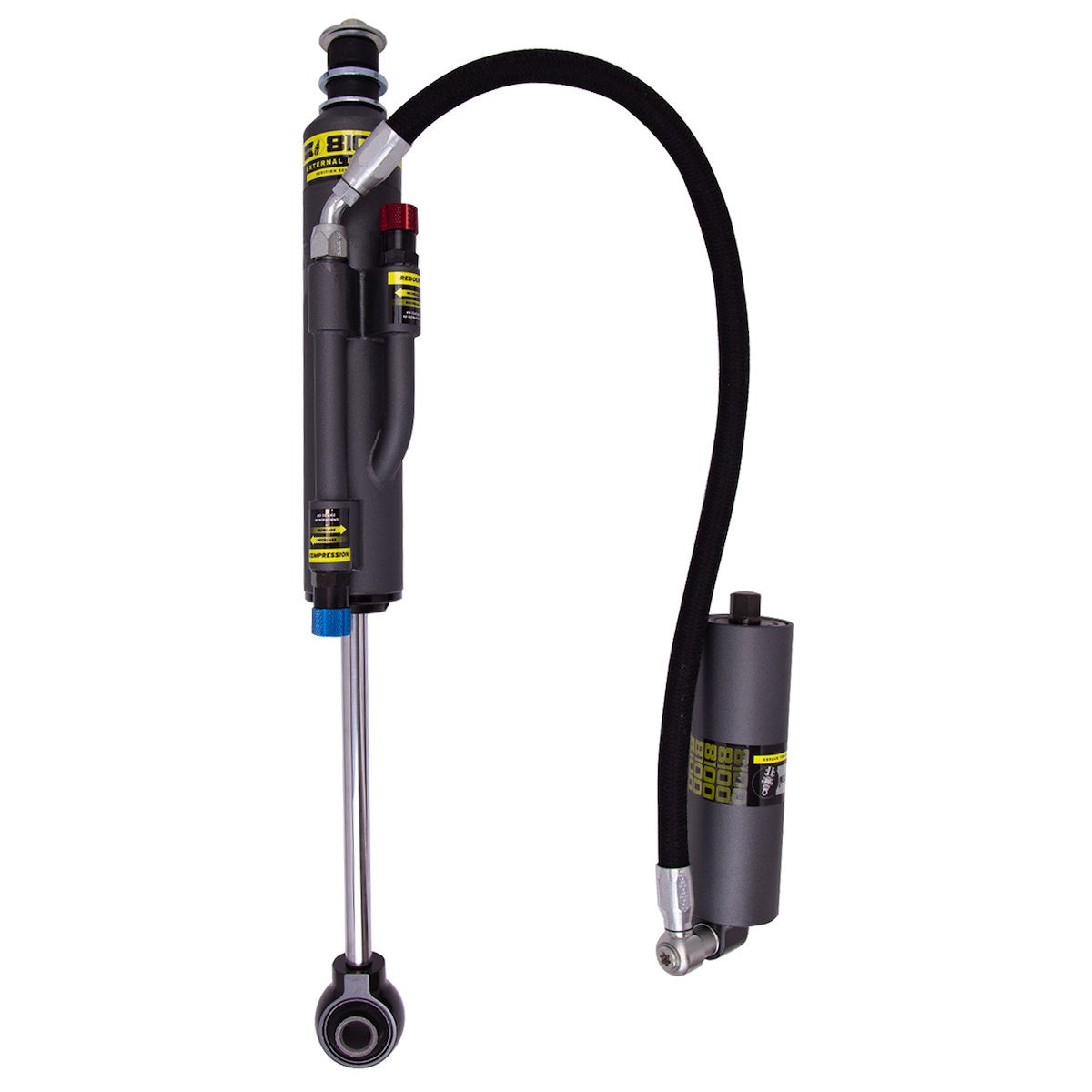

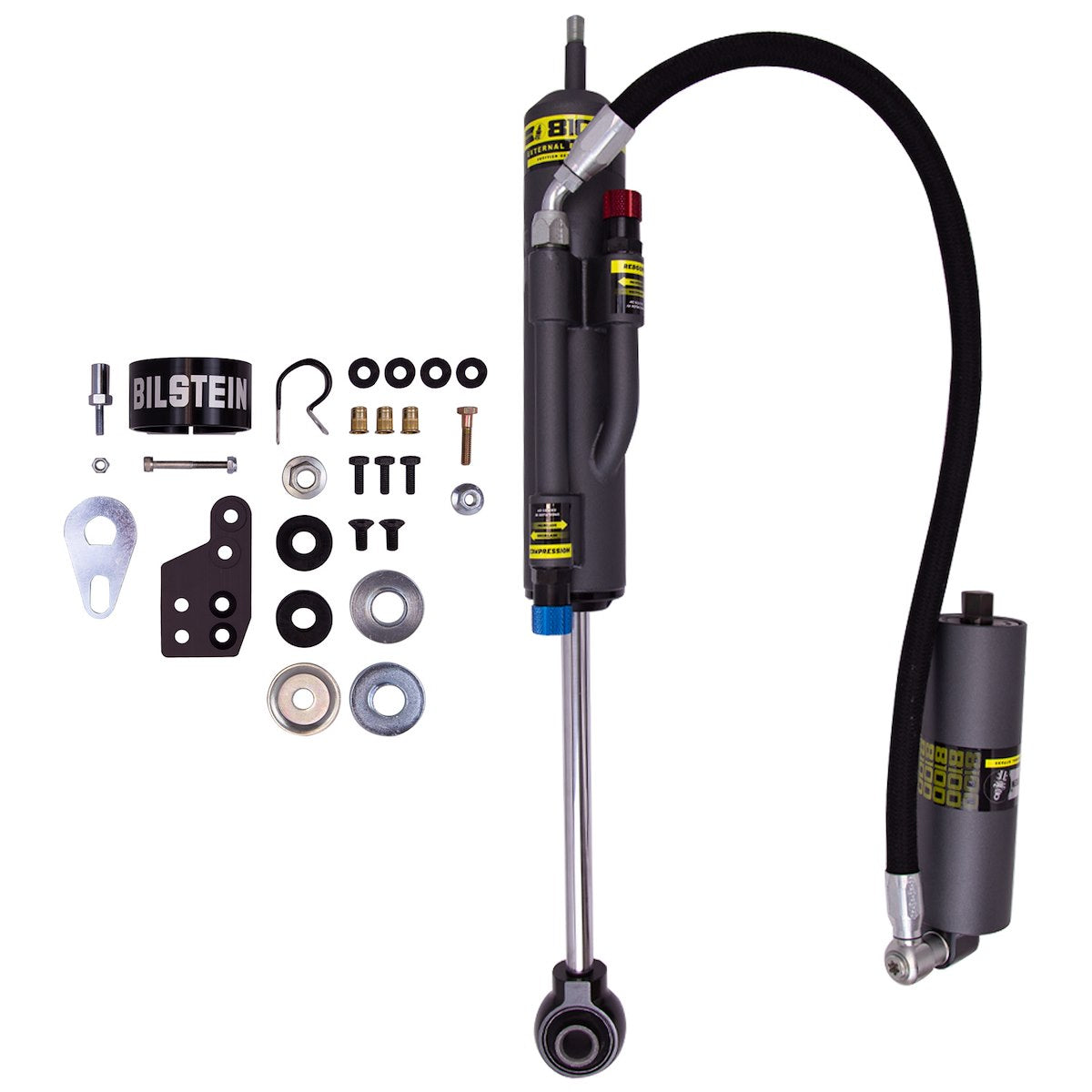

Bilstein Shock Absorber for 2007-2014 Toyota FJ Cruiser 25-288155

SKU: 25-288155

$1,282.00

Bilstein Shock Absorber for 2007-2014 Toyota FJ Cruiser 25-288155

Limited 2 Year Warranty
Bilstein Shock Absorber for 2007-2014 Toyota FJ Cruiser 25-288155

Direct Fit For Easy Installation
Bilstein Shock Absorber for 2007-2014 Toyota FJ Cruiser 25-288155

60 Millimeter Remote Reservoir With Machined Aluminum Chassis Mounts
Bilstein Shock Absorber for 2007-2014 Toyota FJ Cruiser 25-288155

Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
Bilstein Shock Absorber for 2007-2014 Toyota FJ Cruiser 25-288155

Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
In stock 6

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Shock Absorber for 2007-2014 Toyota FJ Cruiser 25-288155

$1,282.00

$1,282.00

Nitrogen Gas Charged

Type

24.09 Inch

Extended Length

14.72 Inch

Compressed Length

Product Description

BILSTEIN B8 8100 (Bypass) is a direct fit, position sensitive damper specifically designed for light trucks and SUVs. Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance.

More Features
  • Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
  • Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
  • 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride
  • Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
  • 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability

Specifications

Type
Nitrogen Gas Charged
With Coil Spring
No
Extended Length (IN)
24.09 Inch
Compressed Length (IN)
14.72 Inch
Upper Mounting Style
Stud
Lower Mounting Style
Eyelet
Adjustable Valving
Yes
Quantity
Single
Universality
Vehicle Specific
Internal Design
Monotube
Body Color
Gray
Includes Boot
No
Estimated Install Time (Hours)
0.5

Fitment / Application

2007-2014 Toyota FJ Cruiser Four Wheel Drive
2010-2014 Toyota FJ Cruiser Rear Wheel Drive

Installation & Documents



Installation Guide
Warranty Information
Installation Guide
