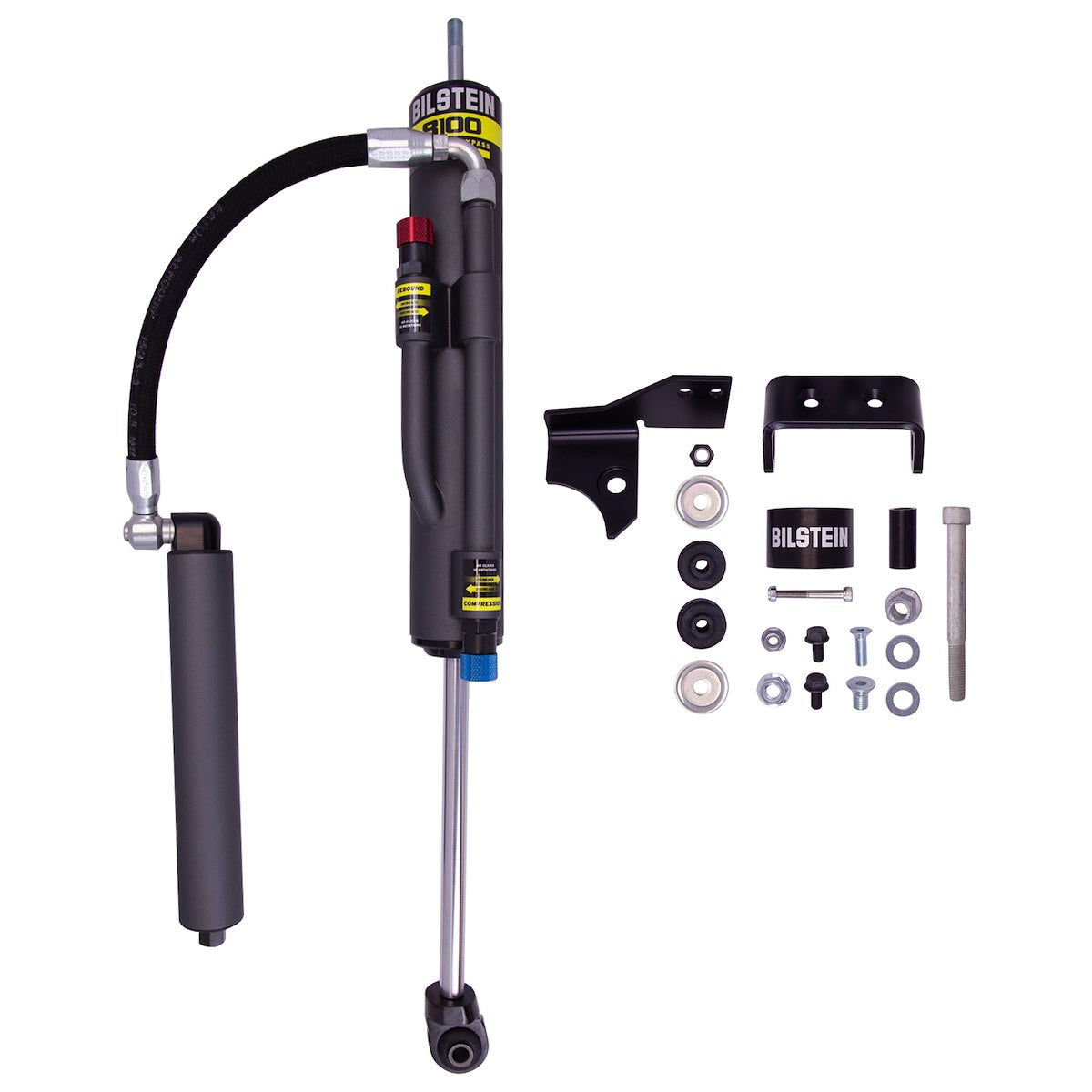

Bilstein Shock Absorber 25-291308 product image 1

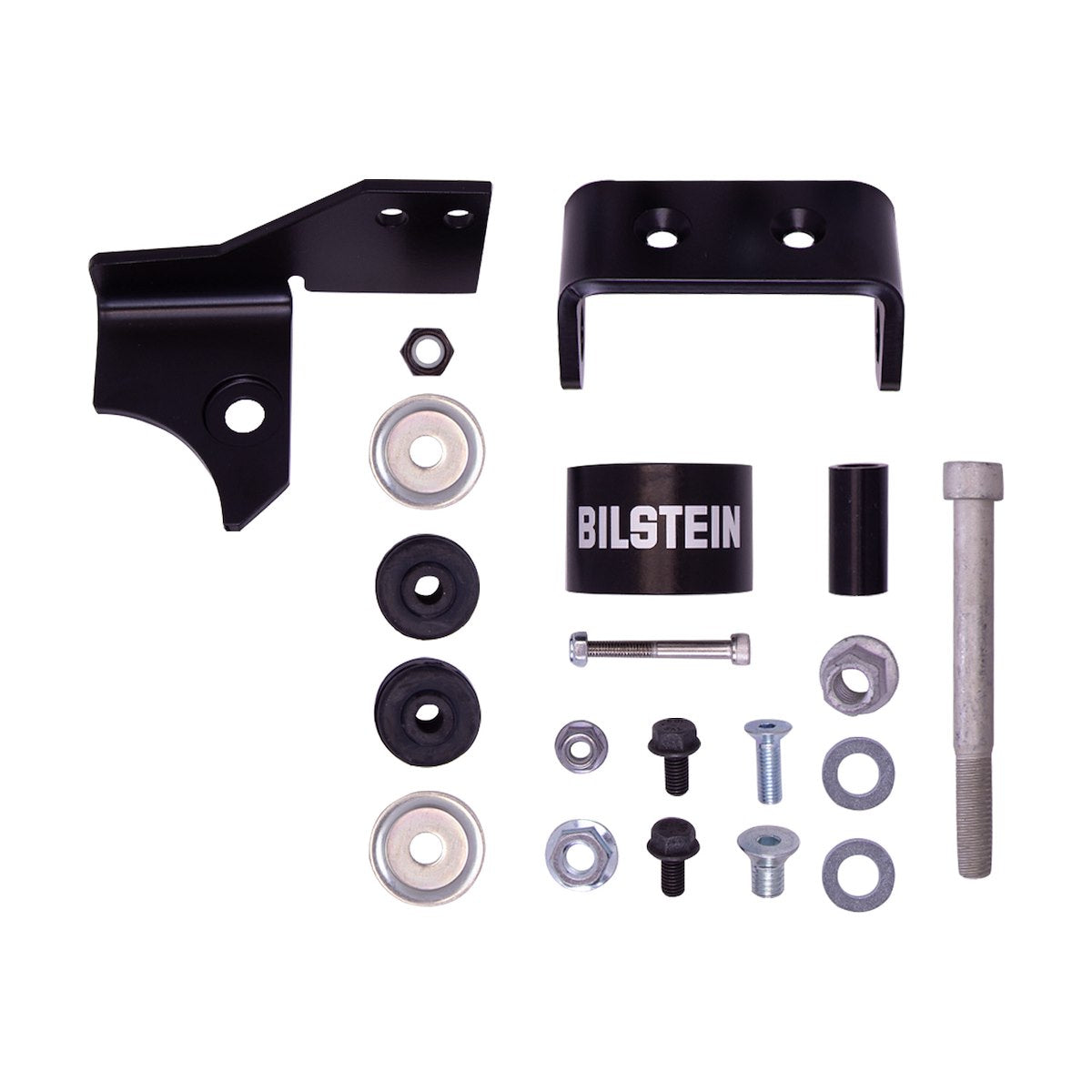

Bilstein Shock Absorber 25-291308 product image 2

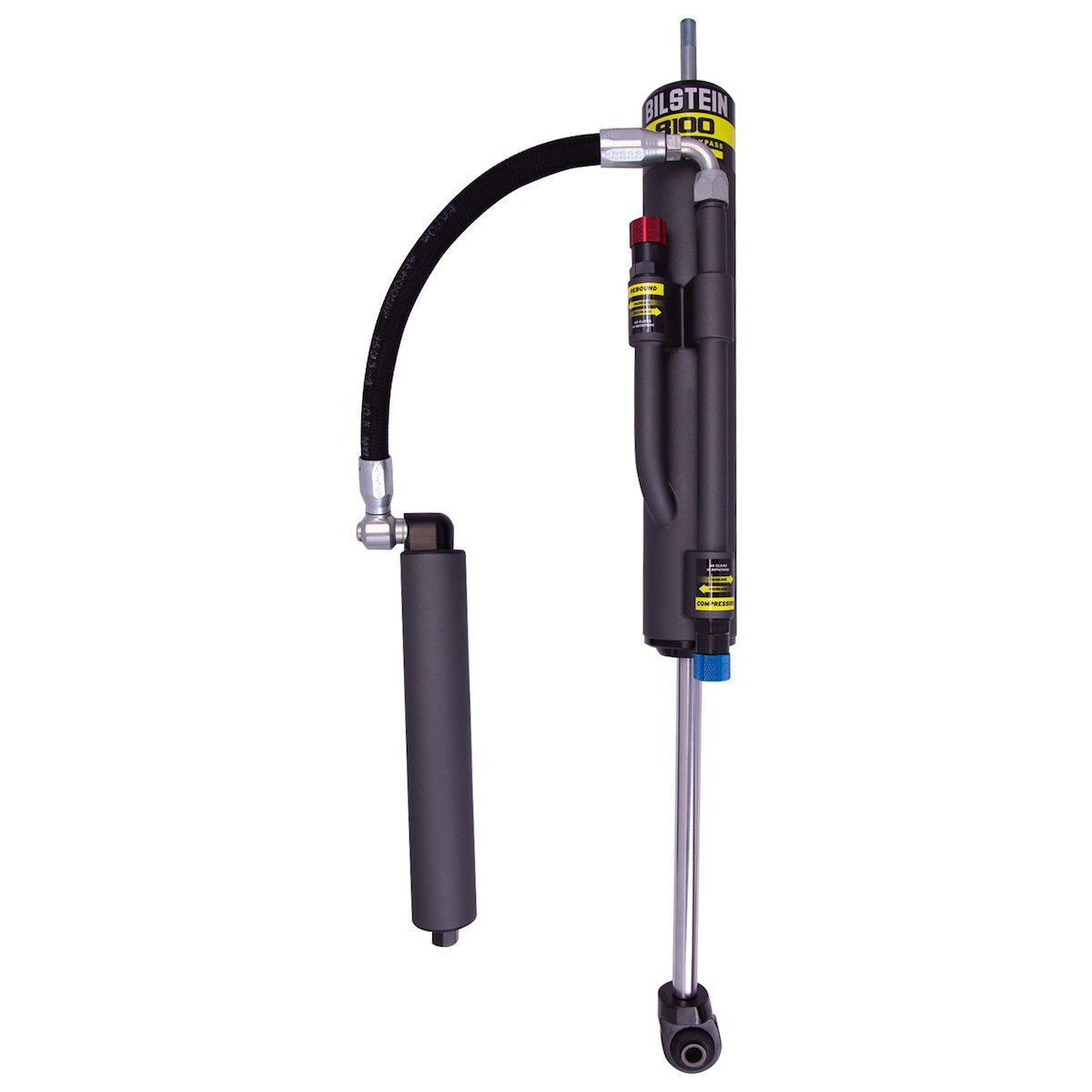

Bilstein Shock Absorber 25-291308 product image 3

Bilstein

Bilstein Shock Absorber for 2007-2018 Jeep Wrangler JK 25-291308

SKU: 25-291308

$1,169.00

Bilstein Shock Absorber for 2007-2018 Jeep Wrangler JK 25-291308

Limited Lifetime Warranty
Bilstein Shock Absorber for 2007-2018 Jeep Wrangler JK 25-291308

Direct Fit For Easy Installation
Bilstein Shock Absorber for 2007-2018 Jeep Wrangler JK 25-291308

Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
Bilstein Shock Absorber for 2007-2018 Jeep Wrangler JK 25-291308

Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
Bilstein Shock Absorber for 2007-2018 Jeep Wrangler JK 25-291308

Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
In stock 6

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Shock Absorber for 2007-2018 Jeep Wrangler JK 25-291308

$1,169.00

$1,169.00

Nitrogen Gas Charged

Type

27.03 Inch

Extended Length

17.02 Inch

Compressed Length

Product Description

Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance.

More Features
  • The Bump Zone, Located Above The Compression Bypass Tube, Increases Bottoming Control And Eliminates The Need For A Hydraulic Bump Stop
  • Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
  • Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
  • 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
  • 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride

Specifications

Type
Nitrogen Gas Charged
With Coil Spring
No
Extended Length (IN)
27.03 Inch
Compressed Length (IN)
17.02 Inch
Upper Mounting Style
Stud
Lower Mounting Style
Eyelet
Adjustable Valving
Yes
Quantity
Single
Universality
Vehicle Specific
Internal Design
Twin Tube
Body Color
Gray
Rod Diameter (IN)
0.7 Inch
Valving Type
Independent Compression And Adjustable Rebound Valving
Ride Height Adjustable
Yes
Rod Material
Aluminum
With Reservoir
Yes
Includes Dust Shield
No
Includes Hardware
No
Includes Boot
No
Estimated Install Time (Hours)
0.5

Fitment / Application

2007-2017 Jeep Wrangler JK Unlimited Rubicon
2007-2018 Jeep Wrangler JK Sahara
2007-2017 Jeep Wrangler JK Rubicon
2007-2010 Jeep Wrangler JK Unlimited X; Four Wheel Drive
2007-2010 Jeep Wrangler JK X
2007-2010 Jeep Wrangler JK Unlimited X; Rear Wheel Drive
2007-2010 Jeep Wrangler JK Unlimited Sahara; Rear Wheel Drive
2008-2009 Jeep Wrangler JK Unlimited Sahara; Four Wheel Drive
2010-2017 Jeep Wrangler JK Sport
2010 Jeep Wrangler JK Unlimited Sport; Four Wheel Drive
2010 Jeep Wrangler JK Unlimited Sport; Rear Wheel Drive
2011-2017 Jeep Wrangler JK Unlimited Sport
2011-2017 Jeep Wrangler JK Unlimited Sahara
2016 Jeep Wrangler JK Unlimited Sport S
2016 Jeep Wrangler JK Sport S
2018 Jeep Wrangler JK Sport (2 Door)
2018 Jeep Wrangler JK Rubicon (2 Door)
2018 Jeep Wrangler JK Unlimited Sport (4 Door)
2018 Jeep Wrangler JK Unlimited Sahara (4 Door)
2018 Jeep Wrangler JK Unlimited Rubicon (4 Door)

Installation & Documents



Installation Guide
Warranty Information
Installation Guide
