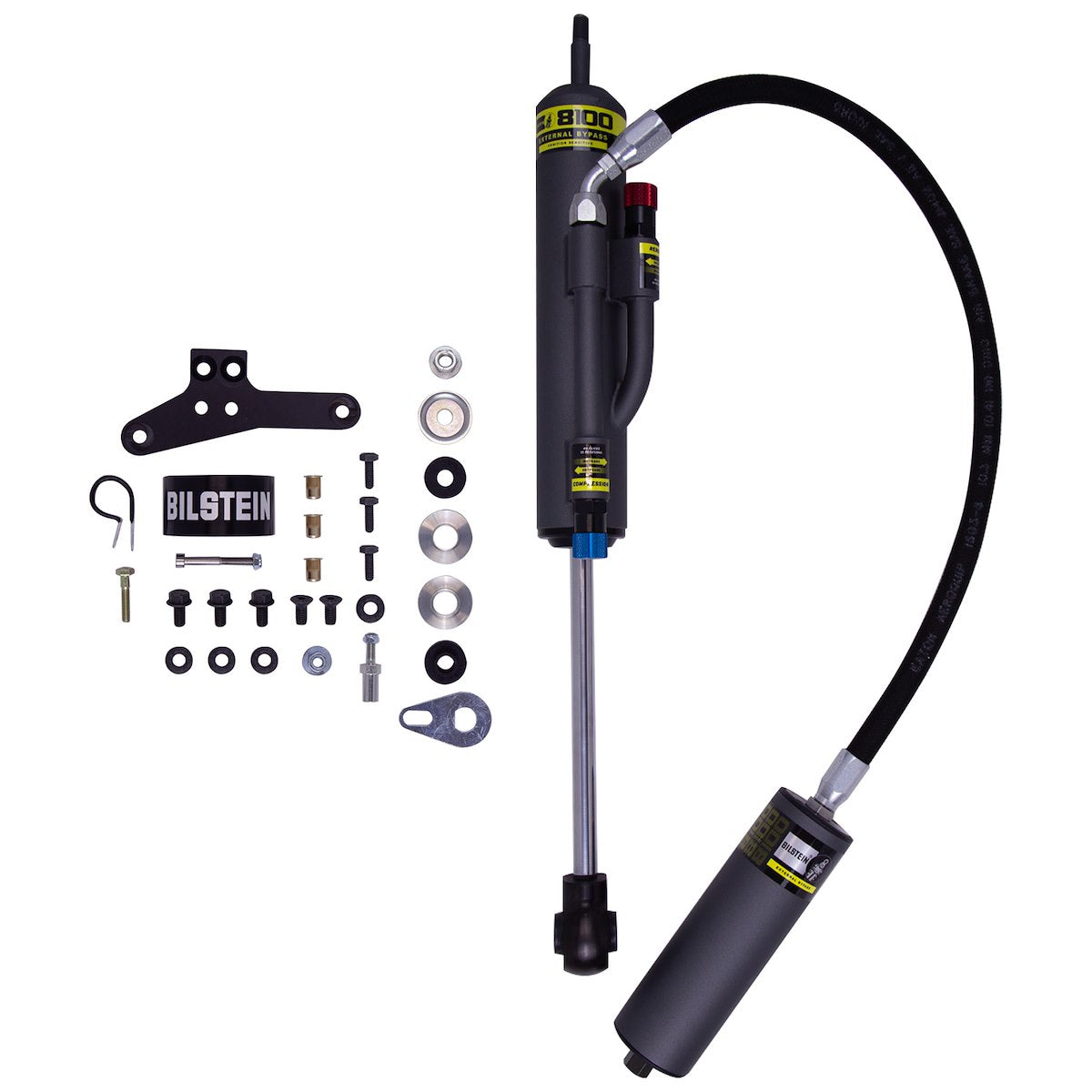

Bilstein Shock Absorber 25-326369 product image 1

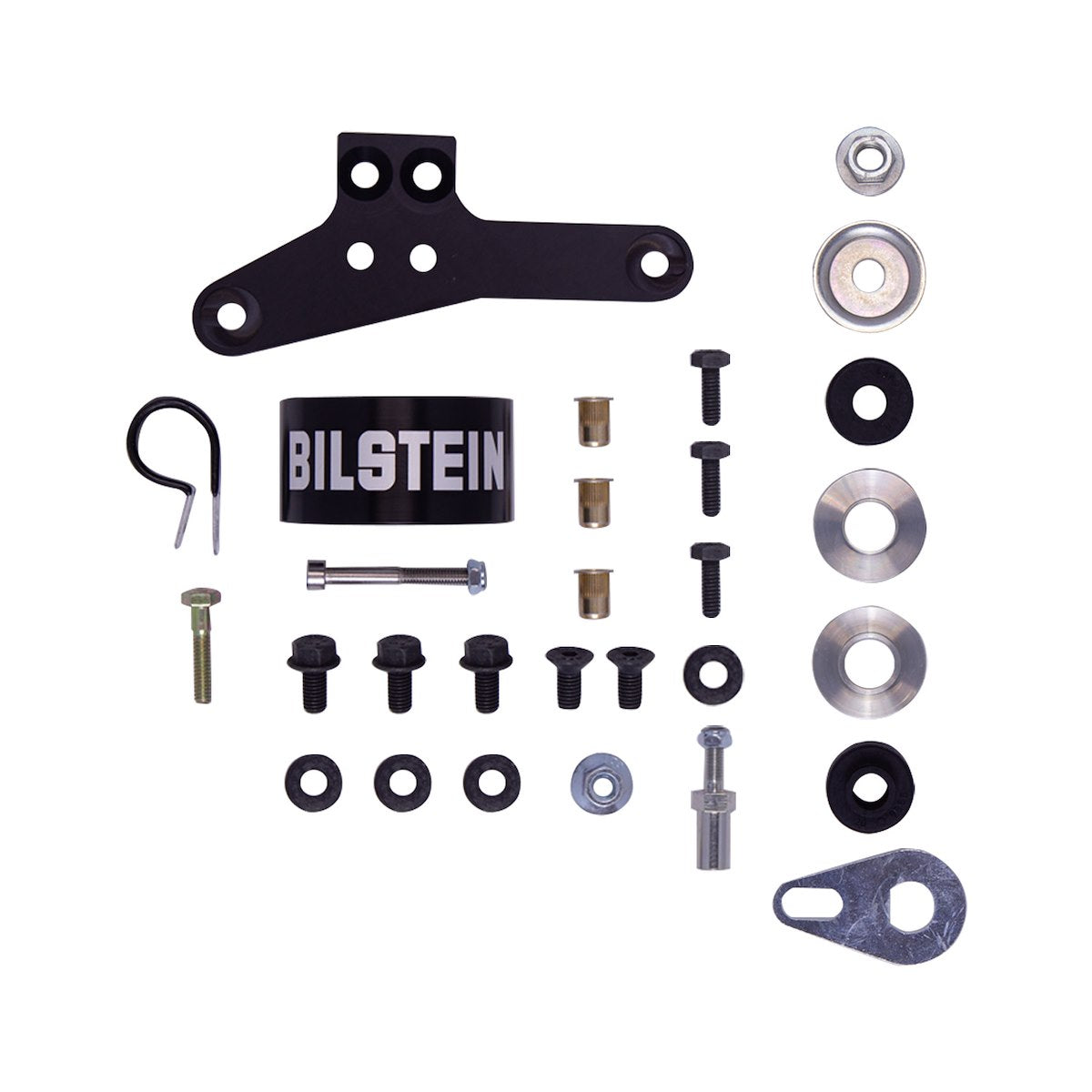

Bilstein Shock Absorber 25-326369 product image 2

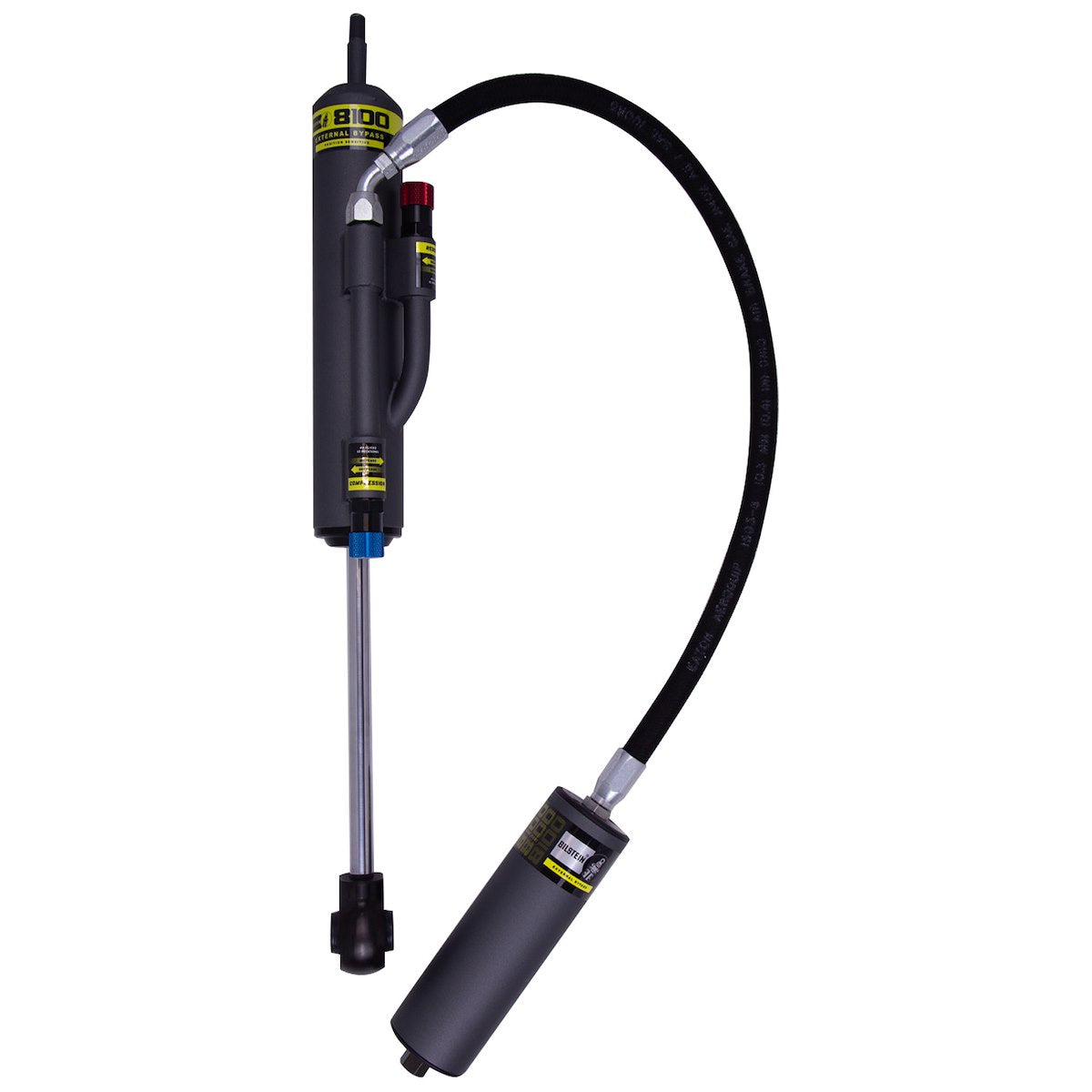

Bilstein Shock Absorber 25-326369 product image 3

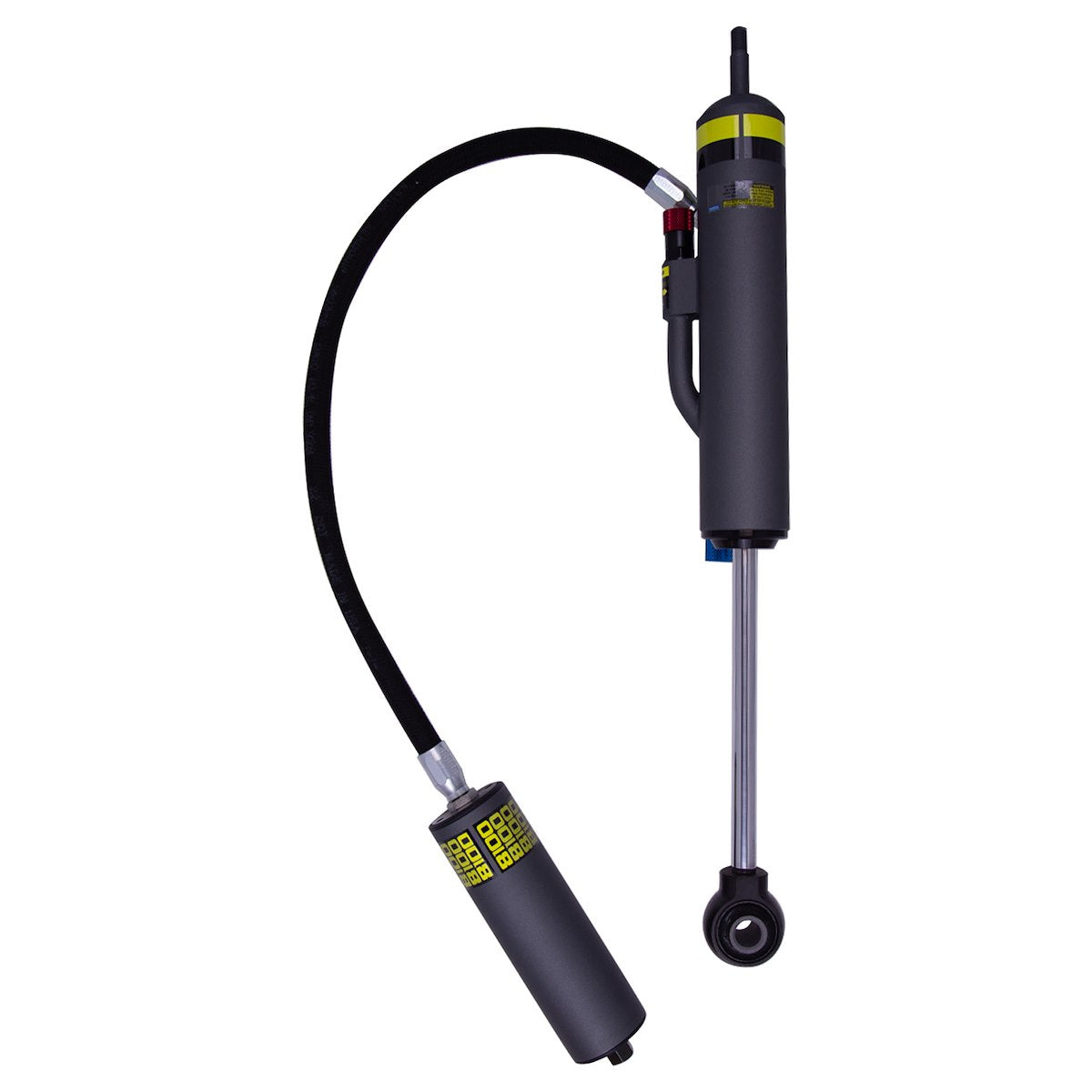

Bilstein Shock Absorber 25-326369 product image 4

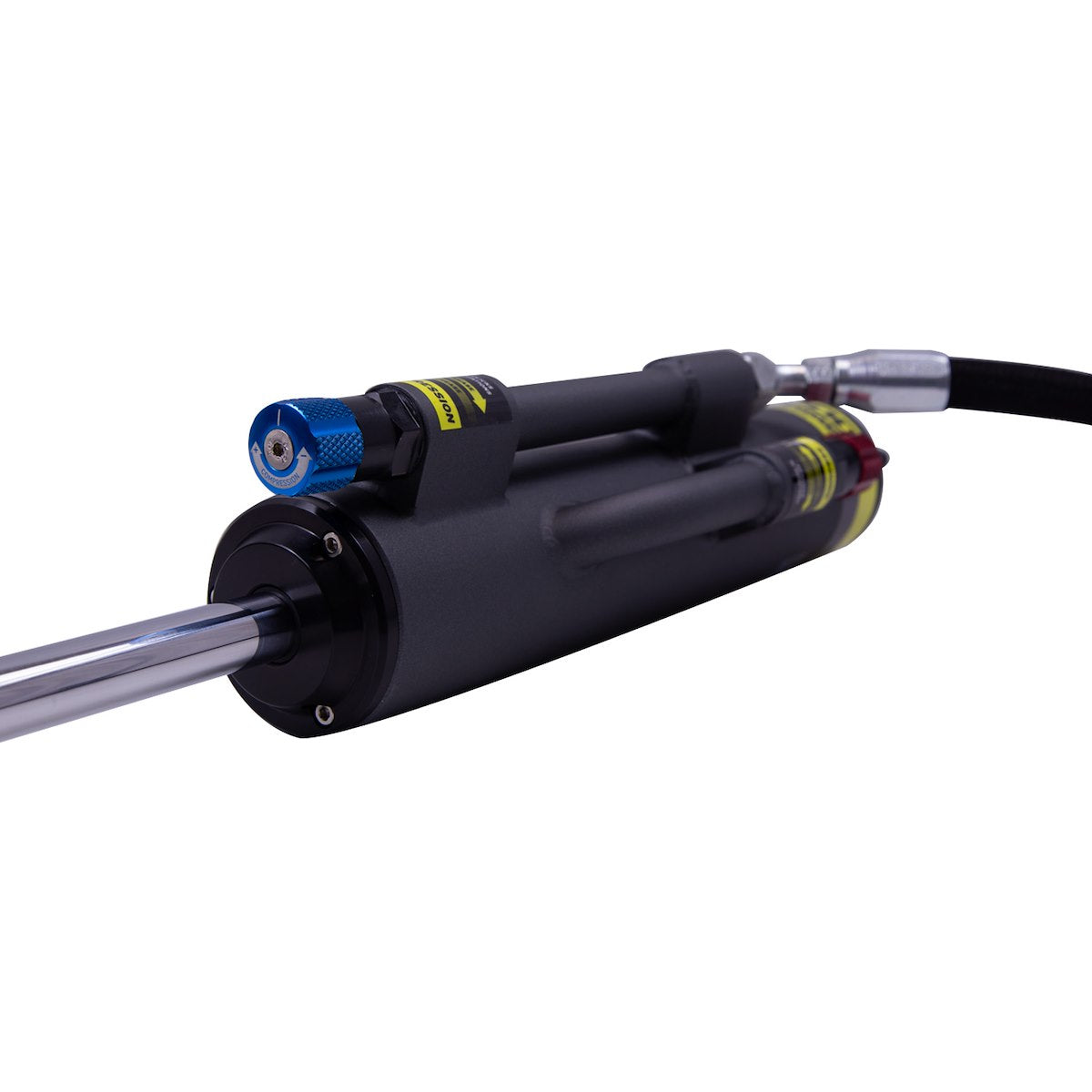

Bilstein Shock Absorber 25-326369 product image 5

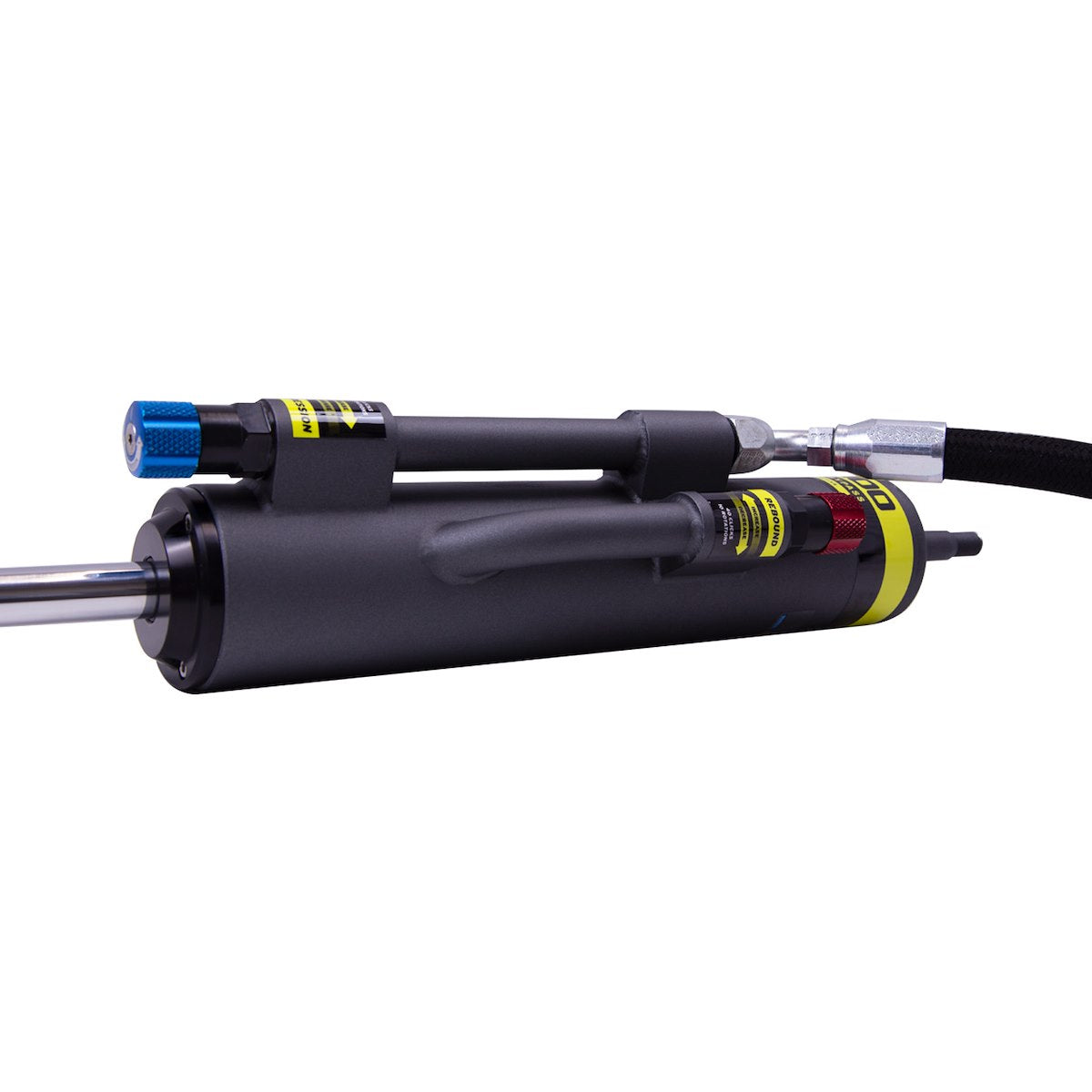

Bilstein Shock Absorber 25-326369 product image 6

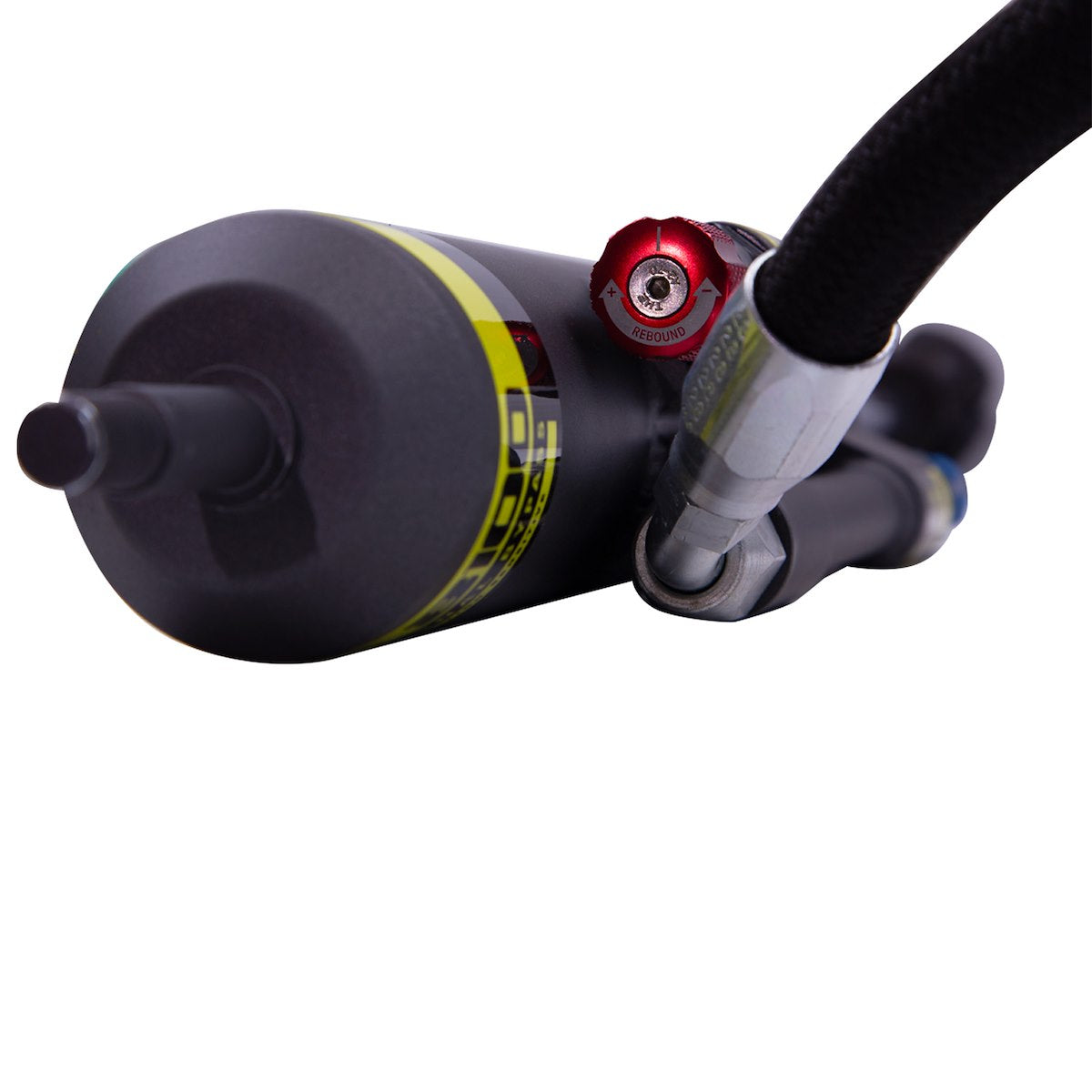

Bilstein Shock Absorber 25-326369 product image 7

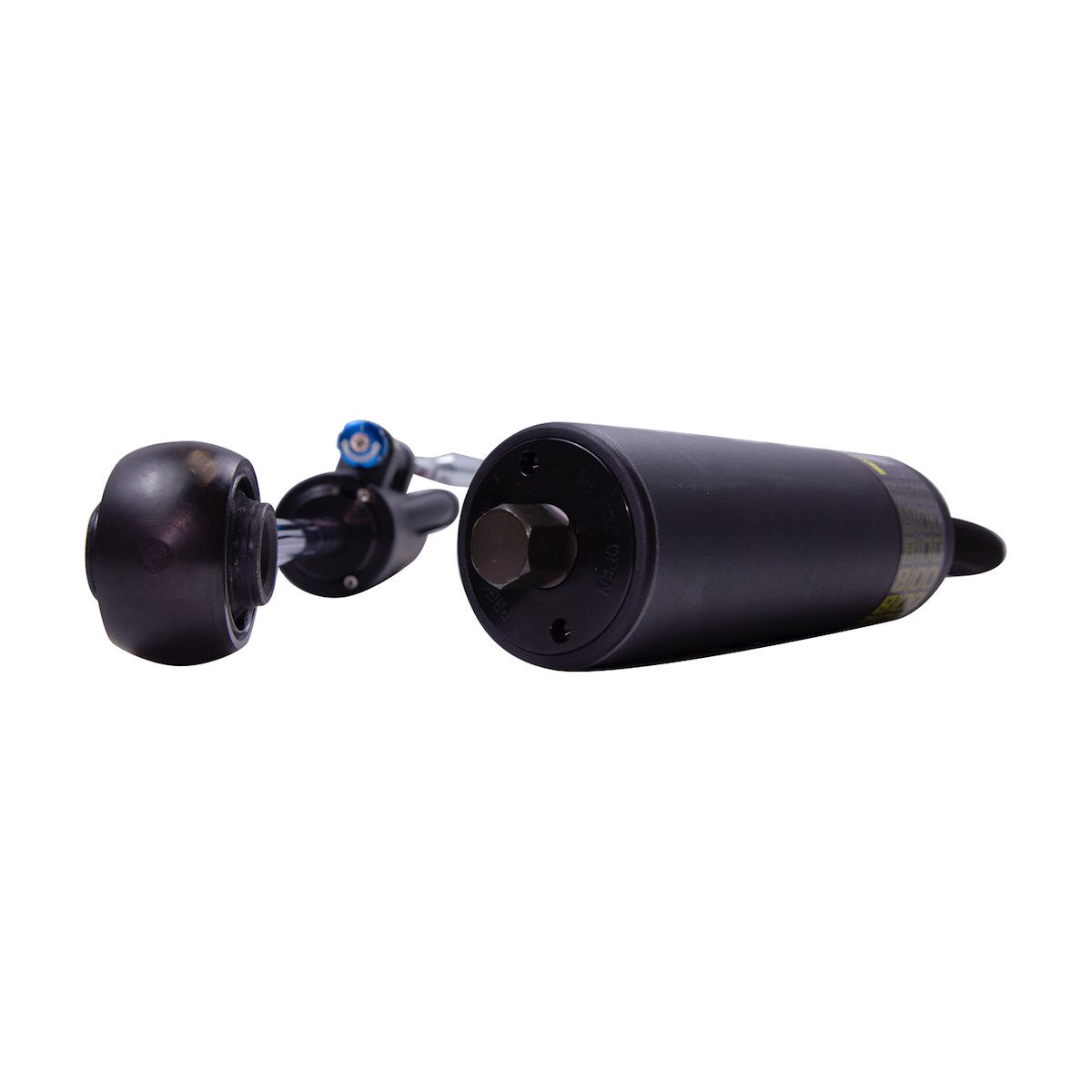

Bilstein Shock Absorber 25-326369 product image 8

Bilstein

Bilstein Nitrogen Gas Charged Shock Absorber 25-326369

SKU: 25-326369

$1,282.00

Bilstein Nitrogen Gas Charged Shock Absorber 25-326369

Limited 2 Year Warranty
Bilstein Nitrogen Gas Charged Shock Absorber 25-326369

Direct Fit For Easy Installation
Bilstein Nitrogen Gas Charged Shock Absorber 25-326369

60 Millimeter Remote Reservoir With Machined Aluminum Chassis Mounts
Bilstein Nitrogen Gas Charged Shock Absorber 25-326369

Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
Bilstein Nitrogen Gas Charged Shock Absorber 25-326369

Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
In stock 22

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Nitrogen Gas Charged Shock Absorber 25-326369

$1,282.00

$1,282.00

Nitrogen Gas Charged

Type

24.09 Inch

Extended Length

14.72 Inch

Compressed Length

Product Description

BILSTEIN B8 8100 (Bypass) is a direct fit, position sensitive damper specifically designed for light trucks and SUVs. Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance.

More Features
  • Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
  • Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
  • 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride
  • Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
  • 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability

Specifications

Type
Nitrogen Gas Charged
With Coil Spring
No
Extended Length (IN)
24.09 Inch
Compressed Length (IN)
14.72 Inch
Upper Mounting Style
Stud
Lower Mounting Style
Eyelet
Adjustable Valving
Yes
Quantity
Single
Universality
Vehicle Specific
Internal Design
Monotube
Body Color
Gray
Includes Boot
No
Estimated Install Time (Hours)
0.5

Fitment / Application

2003-2009 Lexus GX470
2003-2024 Toyota 4Runner SR5; Four Wheel Drive
2003-2009 Toyota 4Runner Limited; Rear Wheel Drive
2003-2009 Toyota 4Runner Limited; Four Wheel Drive
2003-2024 Toyota 4Runner SR5; Rear Wheel Drive
2010-2023 Lexus GX460 Premium
2010-2023 Lexus GX460 Base
2010-2016 Toyota 4Runner Trail
2014-2023 Lexus GX460 Luxury
2015-2024 Toyota 4Runner TRD Pro
2017-2024 Toyota 4Runner TRD Off-Road
2018-2024 Toyota 4Runner TRD Off-Road Premium
2018-2024 Toyota 4Runner SR5 Premium; Rear Wheel Drive
2018-2024 Toyota 4Runner SR5 Premium; Four Wheel Drive
2020-2021 Toyota 4Runner Venture
2021-2022 Toyota 4Runner Trail; Rear Wheel Drive
2021-2022 Toyota 4Runner Trail; Four Wheel Drive
2023 Lexus GX460 Black Line Edition
2023 Toyota 4Runner 40th Anniversary Edition; Rear Wheel Drive
2023 Toyota 4Runner 40th Anniversary Edition; Four Wheel Drive
