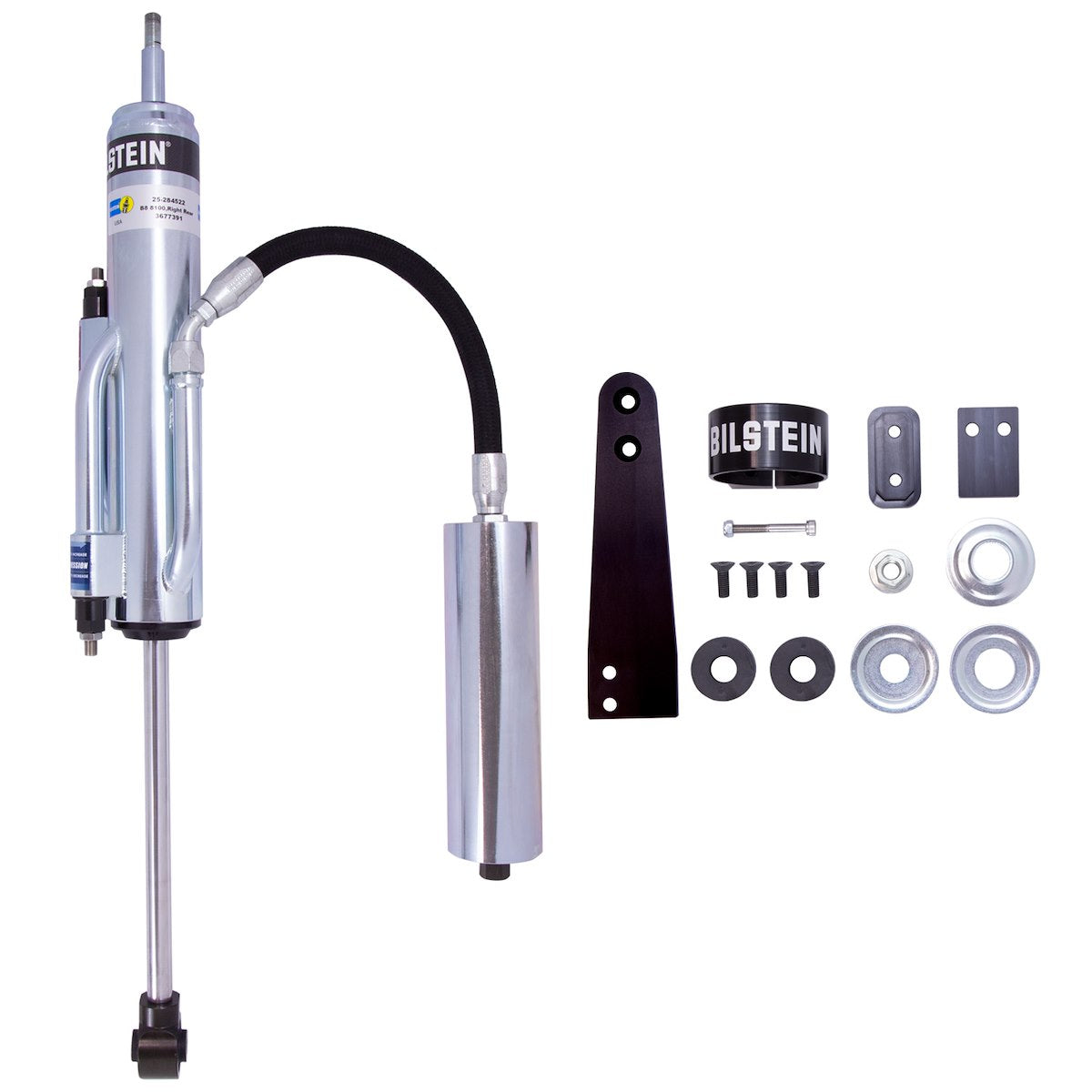

Bilstein Shock Absorber 25-284522 product image 1

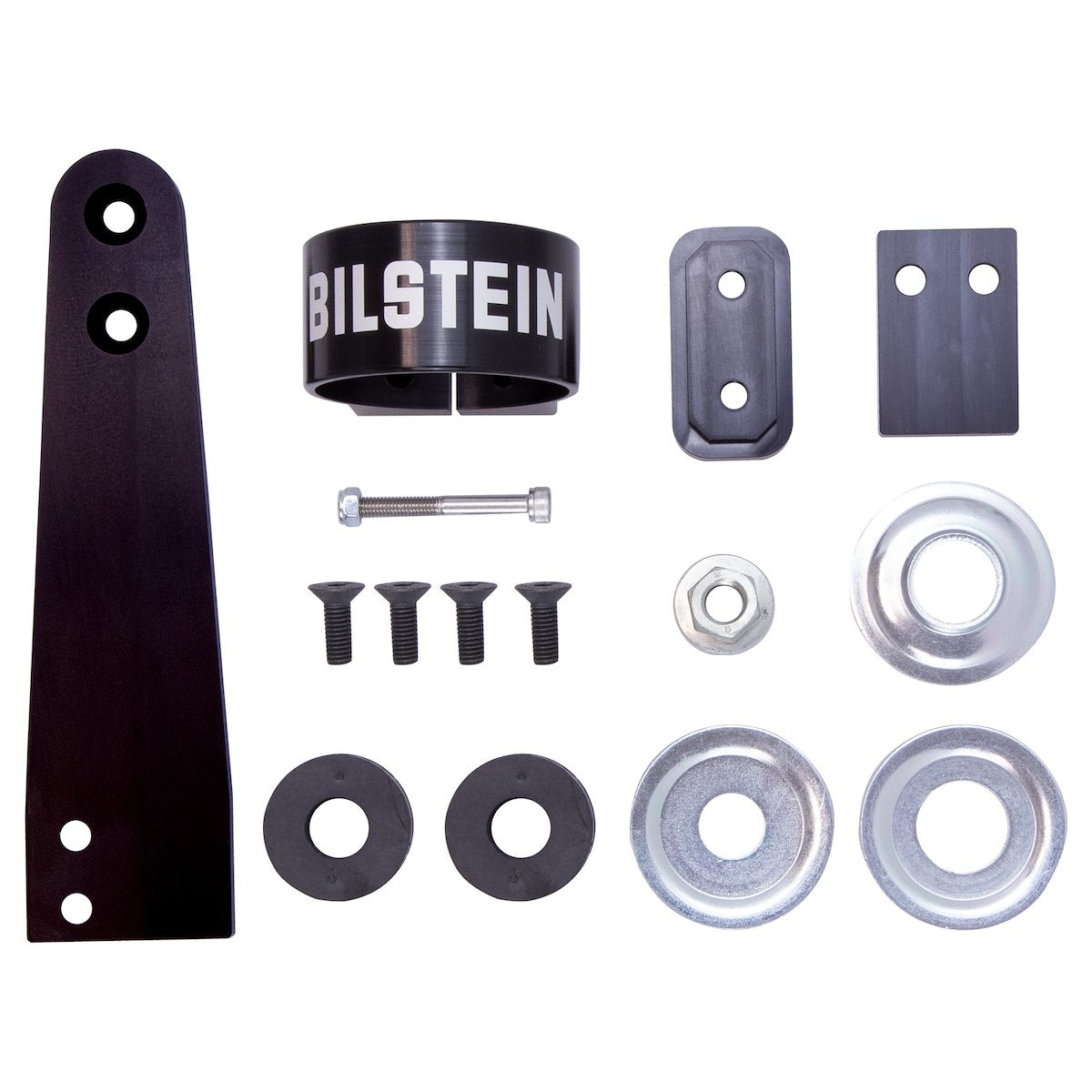

Bilstein Shock Absorber 25-284522 product image 2

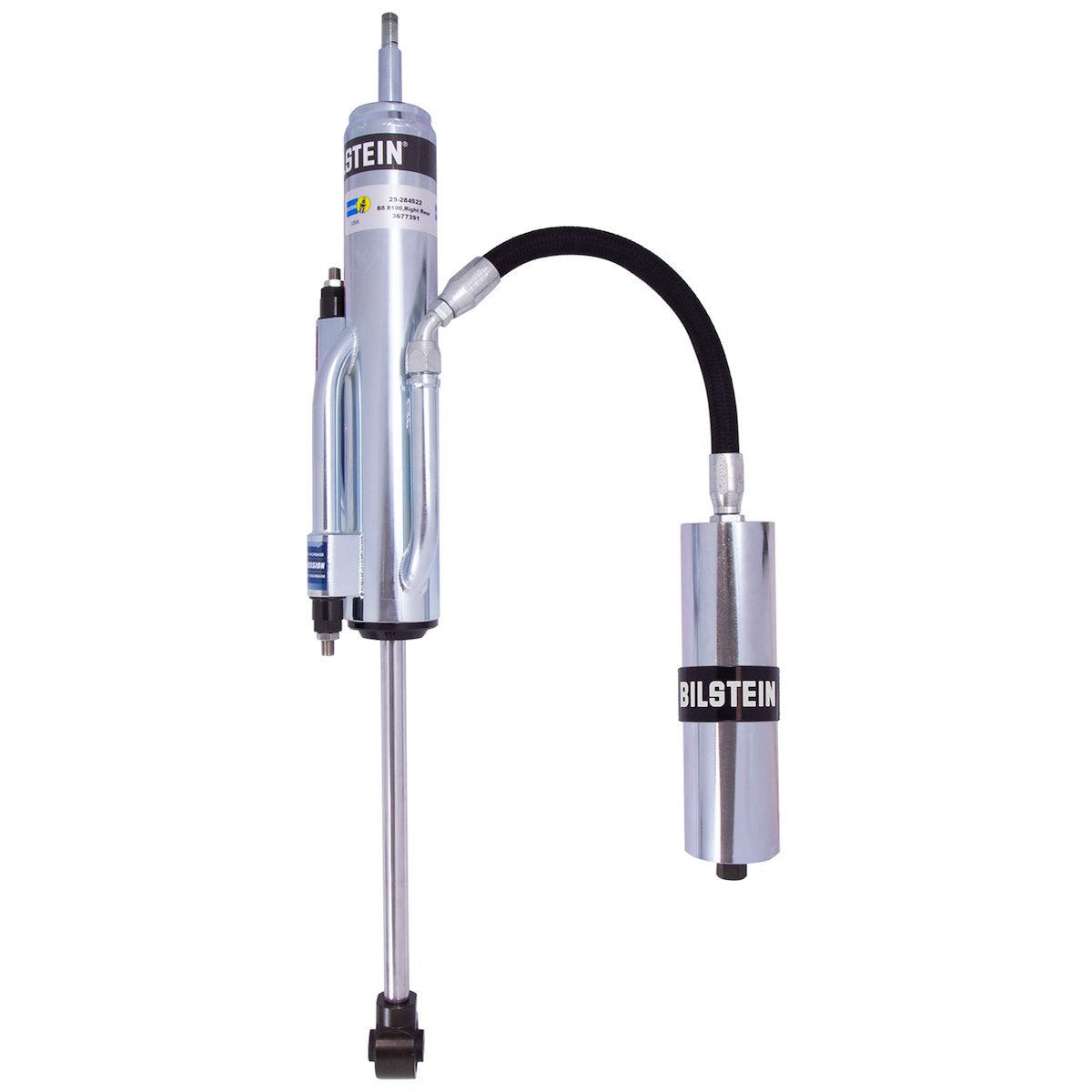

Bilstein Shock Absorber 25-284522 product image 3

Bilstein

Bilstein Shock Absorber for 2007-2021 Toyota Tundra 25-284522

SKU: 25-284522

$1,091.00

Bilstein Shock Absorber for 2007-2021 Toyota Tundra 25-284522

Limited Lifetime Warranty
Bilstein Shock Absorber for 2007-2021 Toyota Tundra 25-284522

Direct Fit For Easy Installation
Bilstein Shock Absorber for 2007-2021 Toyota Tundra 25-284522

Vehicle Specific Tuning With The Ability To Make A Wide Range Of Adjustments
Bilstein Shock Absorber for 2007-2021 Toyota Tundra 25-284522

Billet Rod End With Vulcanized Mounts For An Exact OE Fit And Long-Term Durability
Bilstein Shock Absorber for 2007-2021 Toyota Tundra 25-284522

Bottom Port Reservoir Hose Provides Increased Bottom Out Control During The Compression Cycle
Low in stock

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Shock Absorber for 2007-2021 Toyota Tundra 25-284522

$1,091.00

$1,091.00

Nitrogen Gas Charged

Type

25.88 Inch

Extended Length

15-3/4 Inch

Compressed Length

Product Description

Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance.

More Features
  • The Bump Zone, Located Above The Compression Bypass Tube, Increases Bottoming Control And Eliminates The Need For A Hydraulic Bump Stop
  • Dual Tube External Bypass Offers Position Sensitive Damping With Independent Adjustment For Rebound And Compression
  • Incremental Flow Adjuster Offers Finite And Incremental Changes In Damping Force For Precise Adjustments
  • 60 Millimeter Large Bore Hard Anodized Aluminum Piston Offers A Greater Range Of Damping Control And Delivers Exceptional Long-Term Durability
  • 18 Millimeter Piston Rod Provides Brute Tensile Strength And Reduces Internal Gas Force Ramp-Up Providing A Smoother Ride

Specifications

Type
Nitrogen Gas Charged
With Coil Spring
No
Extended Length (IN)
25.88 Inch
Compressed Length (IN)
15-3/4 Inch
Upper Mounting Style
Stud
Lower Mounting Style
Eyelet
Adjustable Valving
Yes
Quantity
Single
Universality
Vehicle Specific
Internal Design
Twin Tube
Body Color
Silver
With Reservoir
Yes
Includes Dust Shield
No
Includes Hardware
No
Includes Boot
No
Estimated Install Time (Hours)
0.5

Fitment / Application

2007-2015 Toyota Tundra Four Wheel Drive; Standard Cab
2007-2015, 2018, 2020 Toyota Tundra Four Wheel Drive; Crew Max
2007-2015, 2018, 2020 Toyota Tundra Four Wheel Drive; Double Cab
2007-2015, 2018, 2020 Toyota Tundra Rear Wheel Drive
2016-2017 Toyota Tundra Platinum
2016-2017, 2019, 2021 Toyota Tundra Limited; Four Wheel Drive; Crew Max
2016-2017 Toyota Tundra 1794 Edition
2016-2017, 2019, 2021 Toyota Tundra TRD Pro; Double Cab
2016-2017, 2019, 2021 Toyota Tundra SR; Four Wheel Drive
2016-2017, 2019, 2021 Toyota Tundra Limited; Four Wheel Drive; Double Cab
2016-2017, 2019, 2021 Toyota Tundra TRD Pro; Crew Max
2016-2017, 2019, 2021 Toyota Tundra SR5; Four Wheel Drive; Double Cab
2016-2017, 2019, 2021 Toyota Tundra SR; Rear Wheel Drive
2017, 2019, 2021 Toyota Tundra SR5; Four Wheel Drive; Crew Max
2019, 2021 Toyota Tundra 1794 Edition; Rear Wheel Drive
2019, 2021 Toyota Tundra 1794 Edition; Four Wheel Drive
2019, 2021 Toyota Tundra SR5; Rear Wheel Drive
2019, 2021 Toyota Tundra Platinum; Rear Wheel Drive
2019, 2021 Toyota Tundra Platinum; Four Wheel Drive
2019, 2021 Toyota Tundra Limited; Rear Wheel Drive
2021 Toyota Tundra Trail; Four Wheel Drive
2021 Toyota Tundra Nightshade; Rear Wheel Drive
2021 Toyota Tundra Nightshade; Four Wheel Drive; Double Cab
2021 Toyota Tundra Nightshade; Four Wheel Drive; Crew Max
2021 Toyota Tundra Trail; Rear Wheel Drive
