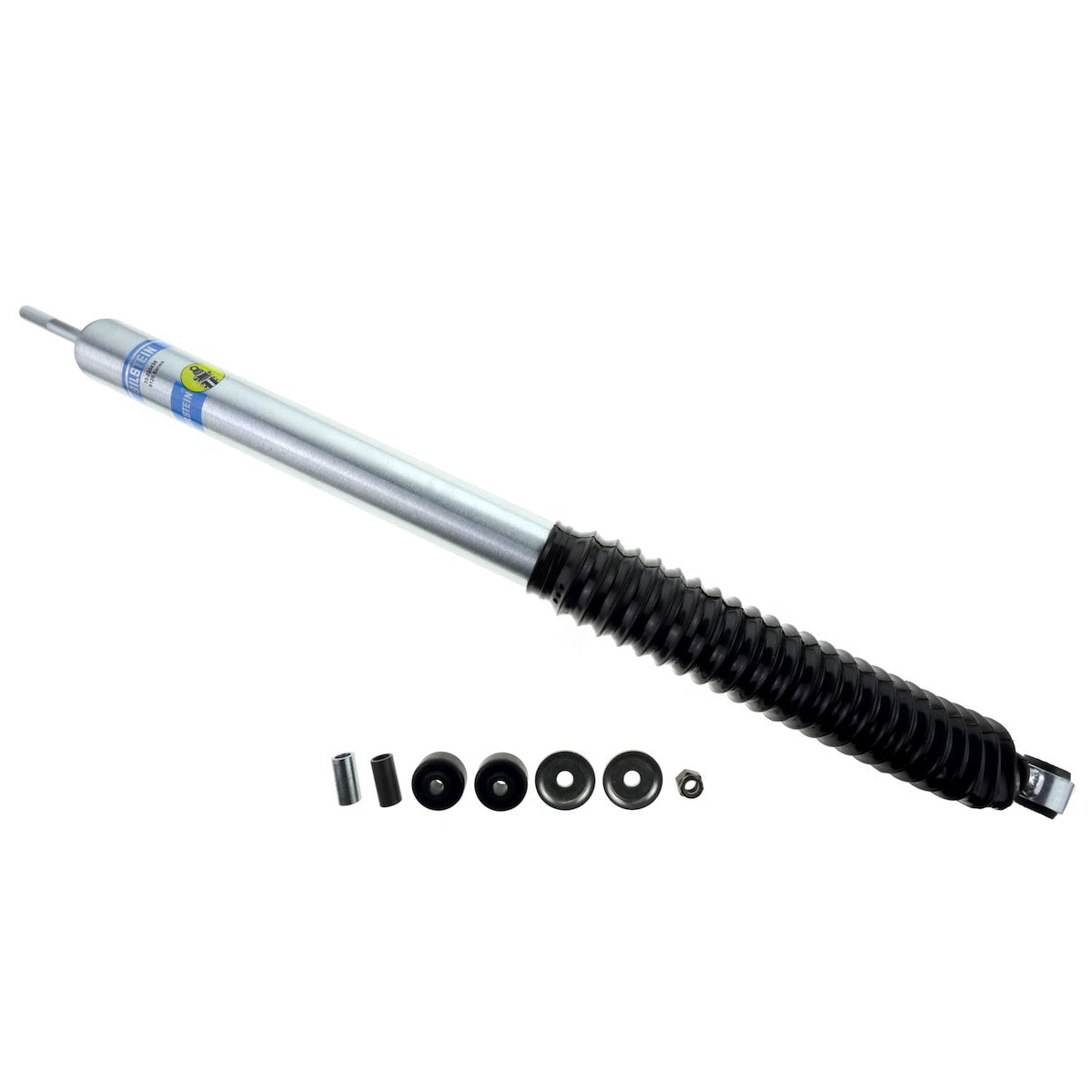

Bilstein Shock Absorber 33-230436 product image 1

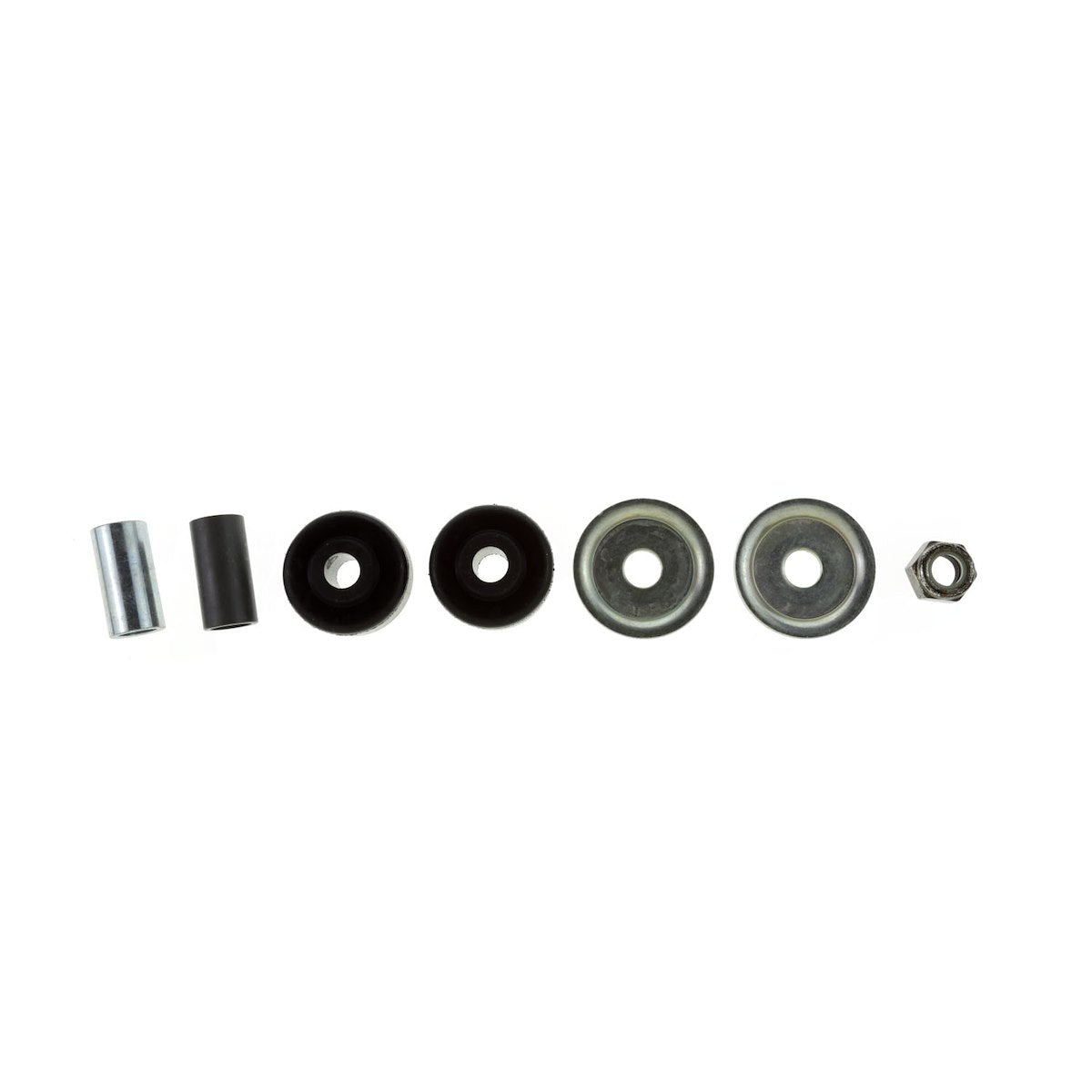

Bilstein Shock Absorber 33-230436 product image 2
Bilstein Shock Absorber 33-230436 product image 3

Bilstein

Bilstein Nitrogen Gas Charged Shock Absorber 33-230436

SKU: 33-230436

$120.00

Bilstein Nitrogen Gas Charged Shock Absorber 33-230436

Limited 90 Day Supplier Warranty
Bilstein Nitrogen Gas Charged Shock Absorber 33-230436

Monotube Gas Pressure Construction
Bilstein Nitrogen Gas Charged Shock Absorber 33-230436

High-Flow Piston Reduces Harshness
Bilstein Nitrogen Gas Charged Shock Absorber 33-230436

Self-Adjusting Deflecting Disc Valving
Bilstein Nitrogen Gas Charged Shock Absorber 33-230436

Superior Control For Large Diameter Tires
In stock 76

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Nitrogen Gas Charged Shock Absorber 33-230436

$120.00

$120.00

Nitrogen Gas Charged

Type

30.88 Inch

Extended Length

18.74 Inch

Compressed Length

Product Description

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

More Features
  • Independent Rebound And Compression Tuning
  • Larger Working Piston Area For Exact Damping

Specifications

Type
Nitrogen Gas Charged
With Coil Spring
No
Extended Length (IN)
30.88 Inch
Compressed Length (IN)
18.74 Inch
Upper Mounting Style
Stud
Lower Mounting Style
Eyelet
Adjustable Valving
No
Quantity
Single
Universality
Semi-Universal
Internal Design
Monotube
Body Color
Silver
Rod Diameter (IN)
1/2 Inch
Valving Type
Self-Adjusting Deflective Disc Valving
Rod Material
Steel
Body Material
Steel
With Reservoir
Yes
Includes Dust Shield
No
Includes Hardware
Yes
Includes Boot
Yes
Estimated Install Time (Hours)
0.5
