Bilstein

Bilstein Shock Absorber for 2014-2026 Ram 2500 24-285698

SKU: 24-285698

$123.00

Bilstein Shock Absorber for 2014-2026 Ram 2500 24-285698

Limited Lifetime Warranty
Bilstein Shock Absorber for 2014-2026 Ram 2500 24-285698

Durable Vulcanized Neoprene Rubber Bushings
Bilstein Shock Absorber for 2014-2026 Ram 2500 24-285698

Zinc Plated For Resistance Against Harsh Elements
Bilstein Shock Absorber for 2014-2026 Ram 2500 24-285698

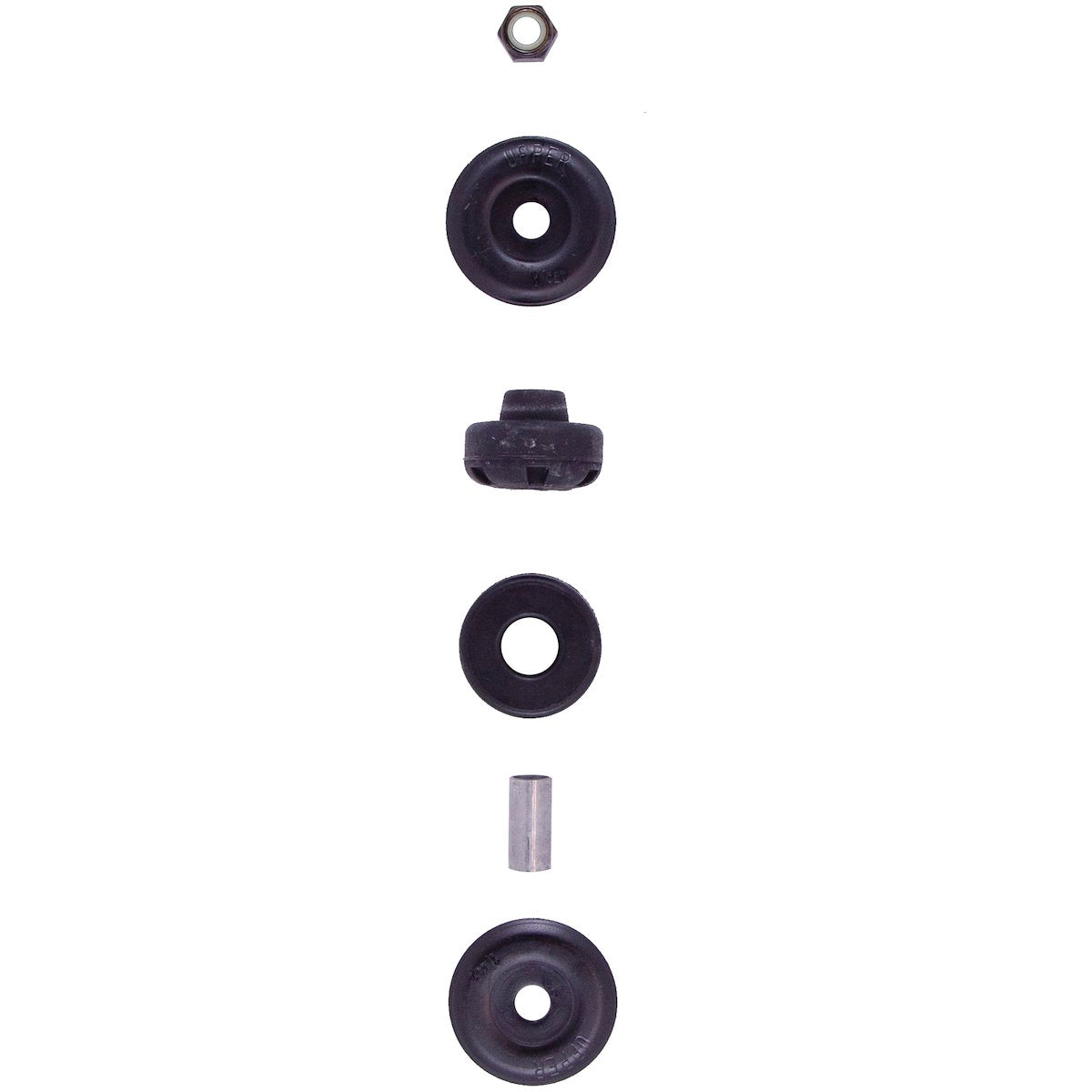

OEM Certified Mounting Hardware Allows For Easy Installation
Bilstein Shock Absorber for 2014-2026 Ram 2500 24-285698

Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
In stock 101

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Shock Absorber for 2014-2026 Ram 2500 24-285698

$123.00

$123.00

Nitrogen Gas Charged

Type

28.24 Inch

Extended Length

18.66 Inch

Compressed Length

Product Description

The Bilstein B8 5100 series is perfect for lifted trucks and SUVs. monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, the Bilstein B8 5100 shock absorber instantly reacts to changing road inputs to maintain a stable, controlled, and comfortable ride.

More Features
  • Patented Digressive Valving Instantly Reacts To Changing Surface Conditions

Specifications

Type
Nitrogen Gas Charged
With Coil Spring
No
Extended Length (IN)
28.24 Inch
Compressed Length (IN)
18.66 Inch
Upper Mounting Style
Stud
Lower Mounting Style
Eyelet
Adjustable Valving
Yes
Quantity
Single
Universality
Vehicle Specific
Internal Design
Monotube
Body Color
Silver
With Reservoir
No
Includes Dust Shield
No
Includes Hardware
Yes
Includes Boot
Yes
Estimated Install Time (Hours)
0.5

Fitment / Application

2014-2021 Ram 2500 Tradesman; Rear Wheel Drive
2014-2021 Ram 2500 Tradesman; Four Wheel Drive
2014-2018 Ram 2500 SLT; Rear Wheel Drive
2014-2018 Ram 2500 SLT; Four Wheel Drive
2014-2021 Ram 2500 Power Wagon
2014-2016 Ram 2500 Outdoorsman
2014-2015, 2019-2021 Ram 2500 Lone Star; Rear Wheel Drive
2014-2015, 2019-2021 Ram 2500 Lone Star; Four Wheel Drive
2014-2021 Ram 2500 Laramie; Rear Wheel Drive
2014-2021 Ram 2500 Laramie; Four Wheel Drive
2014-2021 Ram 2500 Laramie Longhorn; Rear Wheel Drive
2014-2021 Ram 2500 Laramie Longhorn; Four Wheel Drive
2014-2015 Ram 2500 Laramie Limited; Rear Wheel Drive
2014-2015 Ram 2500 Laramie Limited; Four Wheel Drive
2014-2021 Ram 2500 Big Horn; Rear Wheel Drive
2014-2021 Ram 2500 Big Horn; Four Wheel Drive
2016-2021 Ram 2500 Limited; Rear Wheel Drive
2016-2021 Ram 2500 Limited; Four Wheel Drive
2022-2026 Ram 2500 V8; 6.4L/6424; GAS; MFI; Laramie; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 L6; 6.7L/408; DIESEL; Turbocharged; MFI; Big Horn; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 V8; 6.4L/6424; GAS; MFI; Big Horn; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 L6; 6.7L/408; DIESEL; Turbocharged; MFI; Tradesman; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 V8; 6.4L/6424; GAS; MFI; Tradesman; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 L6; 6.7L/408; DIESEL; Turbocharged; MFI; Lone Star; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 V8; 6.4L/6424; GAS; MFI; Lone Star; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 L6; 6.7L/408; DIESEL; Turbocharged; MFI; Limited; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 V8; 6.4L/6424; GAS; MFI; Limited; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 L6; 6.7L/408; DIESEL; Turbocharged; MFI; Limited Longhorn; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 V8; 6.4L/6424; GAS; MFI; Limited Longhorn; Four Wheel Drive; Rear Coil
2022-2026 Ram 2500 L6; 6.7L/408; DIESEL; Turbocharged; MFI; Laramie; Four Wheel Drive; Rear Coil
