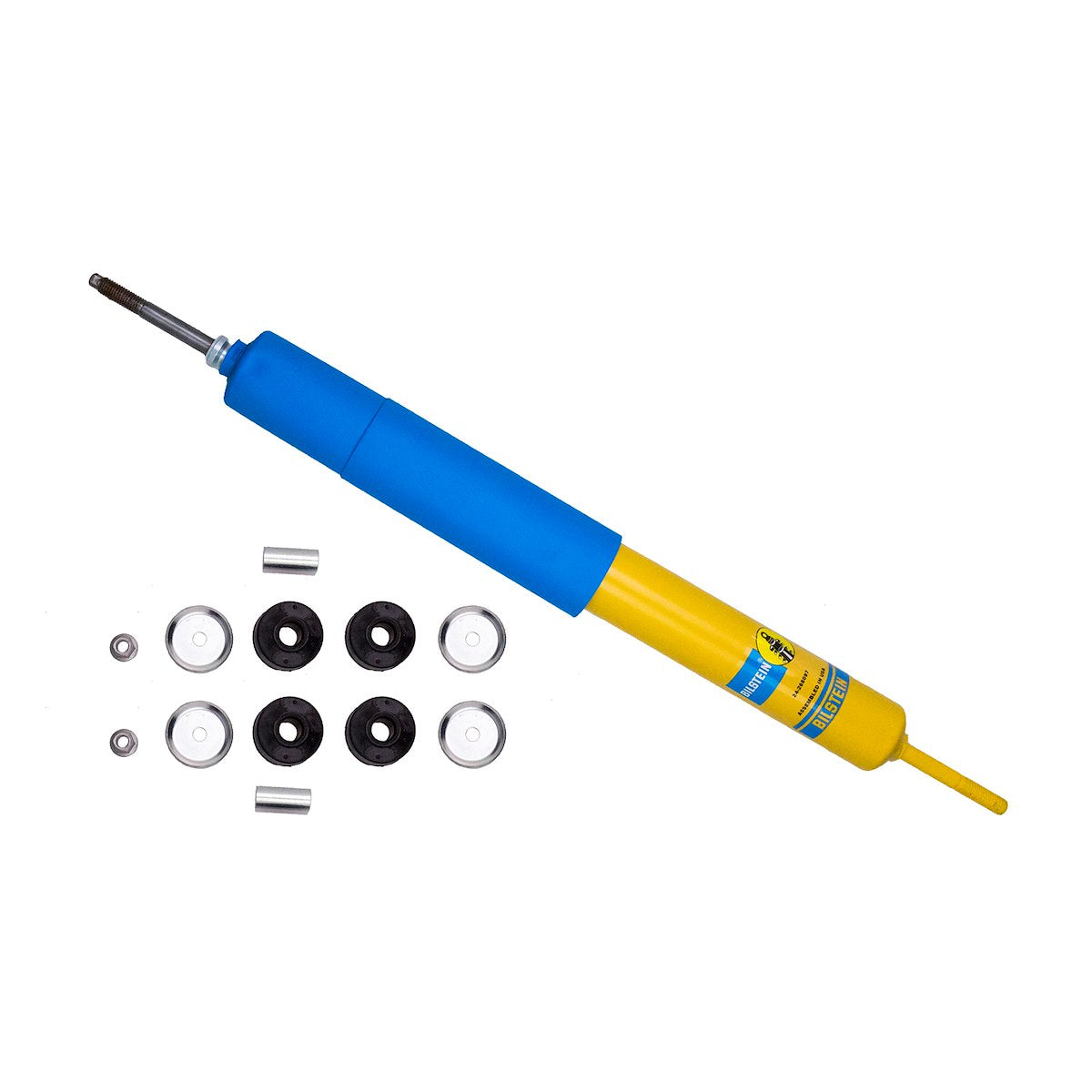

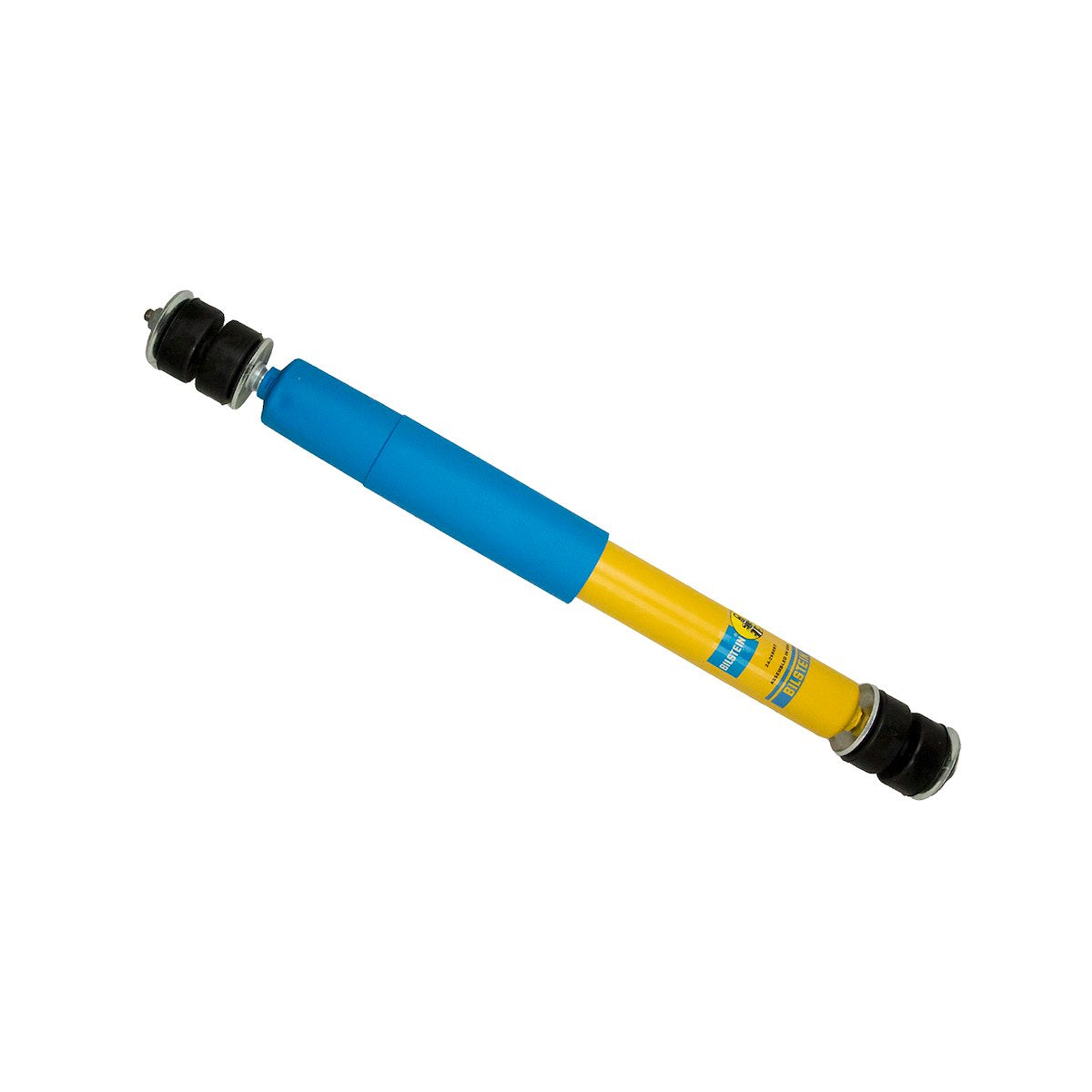

Bilstein Nitrogen Gas Charged Shock Absorber 24-268097
SKU: 24-268097
$144.00
In stock 20
Prop 65 Warning
Emissions & Compliance
Bilstein Nitrogen Gas Charged Shock Absorber 24-268097
$144.00
$144.00
Nitrogen Gas Charged
Type
20.37 Inch
Extended Length
12.26 Inch
Compressed Length
Product Description
BILSTEIN’s monotube gas pressure shock absorbers virtually eliminate excessive sway and bounce which can be associated with conventional twin-tube shock absorbers. Each BILSTEIN shock absorber is tested and tuned for your specific motorhome, resulting in a safe and enjoyable ride. This is why top RV manufacturers trust BILSTEIN as their original equipment supplier. Our patented COMFITRACTM piston technology is designed to react to sudden changes in road conditions, reducing harshness and allowing drivers to maneuver through unexpected obstacles with ease.
More Features
More Features
- One Piece Aluminum Rod Guide And Seal Keeps Dirt Out And Maintains A Nearly Friction-Free Surface For Longer Life
- High Pressure Nitrogen Gas And “Floating” Dividing Piston Eliminates The Possibility Of Oil Foaming And Performance Loss
- Reduces Road Harshness Using High Frequency Bypass Technology; Eliminates Excessive Sway And Bouncing
- Maintains A Safe, Smooth And Comfortable Ride; Ensures Overall Vehicle Stability
- Provides Greater Damping Power Than Traditional Twin-Tubes For Improved Handling And Consistent Performance
Specifications
Type
Nitrogen Gas Charged
With Coil Spring
No
Extended Length (IN)
20.37 Inch
Compressed Length (IN)
12.26 Inch
Upper Mounting Style
Stud
Lower Mounting Style
Cross Pin
Adjustable Valving
No
Quantity
Single
Universality
Vehicle Specific
Internal Design
Monotube
Body Color
Silver
Rod Diameter (IN)
1/2 Inch
Valving Type
Self-Adjusting Deflective Disc Valving
Rod Material
Steel
Body Material
Steel
With Reservoir
No
Includes Dust Shield
No

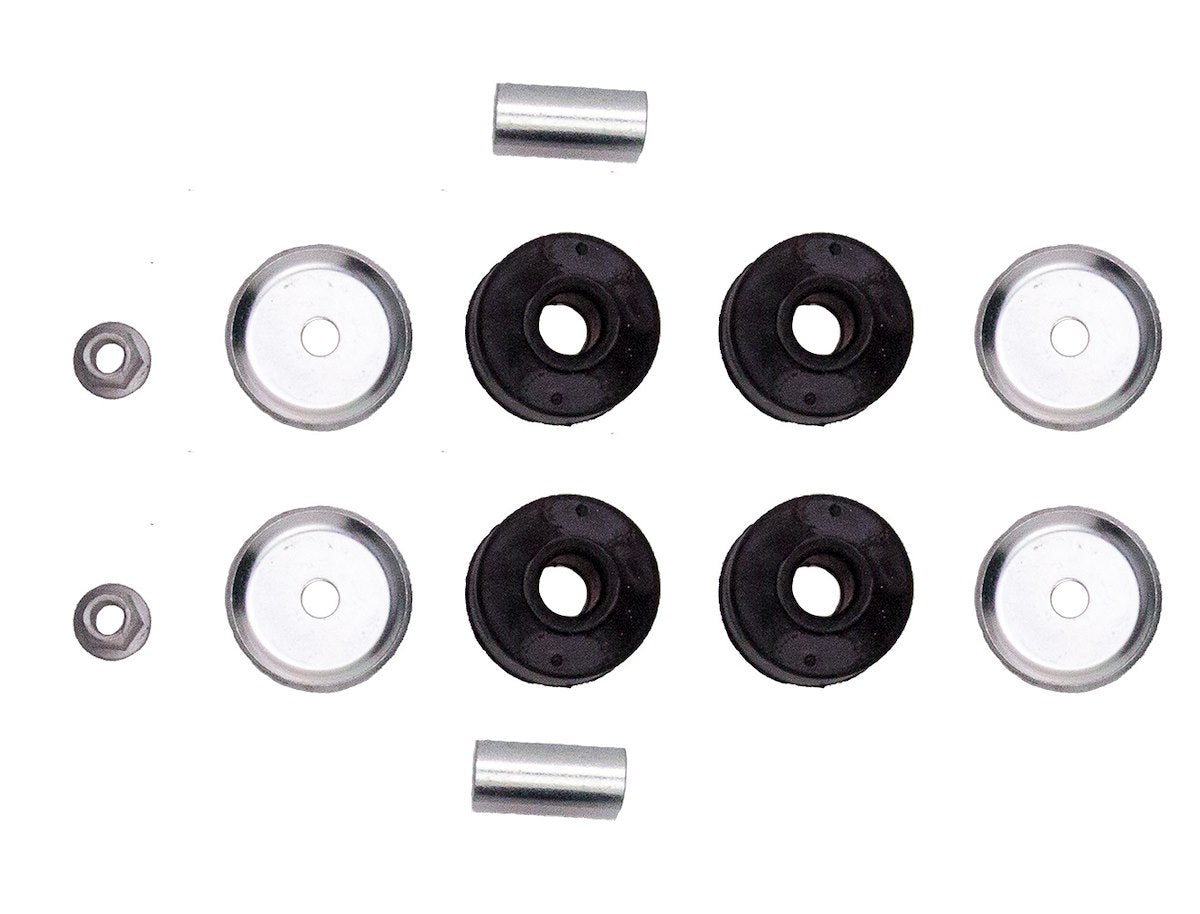

Includes Hardware
Yes
Includes Boot
Yes
Estimated Install Time (Hours)
0.5
