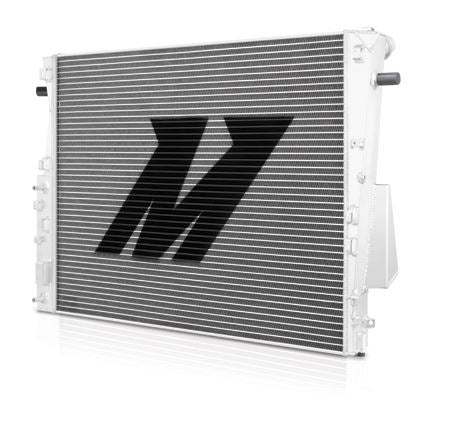

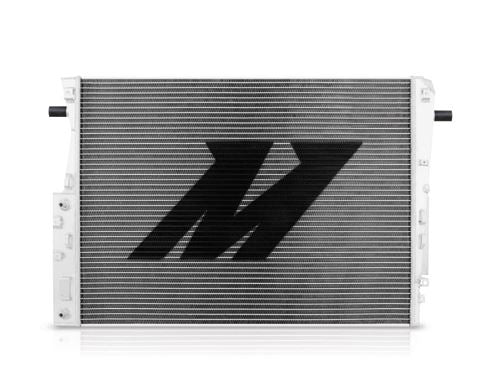

Mishimoto Radiator MMRAD-F2D-08V2
SKU: MMRAD-F2D-08V2
$1,095.95
Low in stock
Prop 65 Warning
Emissions & Compliance
Mishimoto Radiator MMRAD-F2D-08V2
$1,095.95
$1,095.95
Cross Flow
Flow Direction
28.7 Inch
Overall Length
45.7 Inch
Overall Height
Product Description

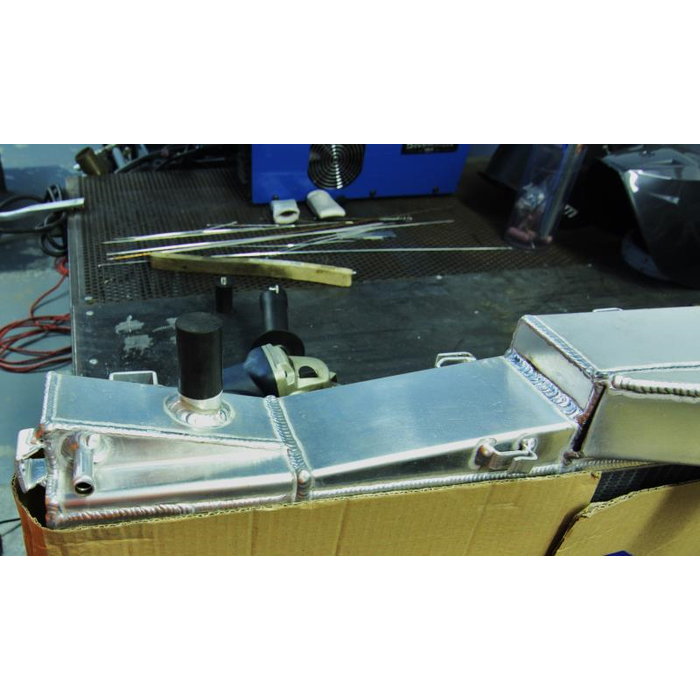

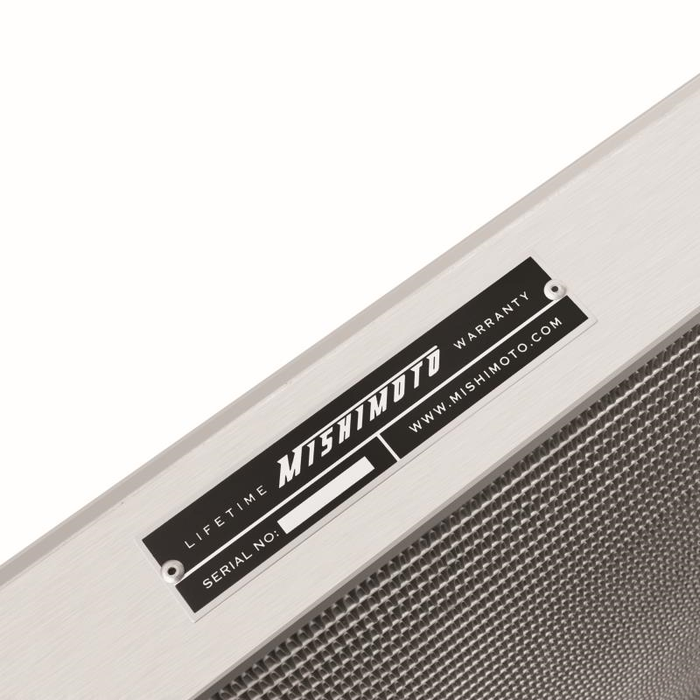

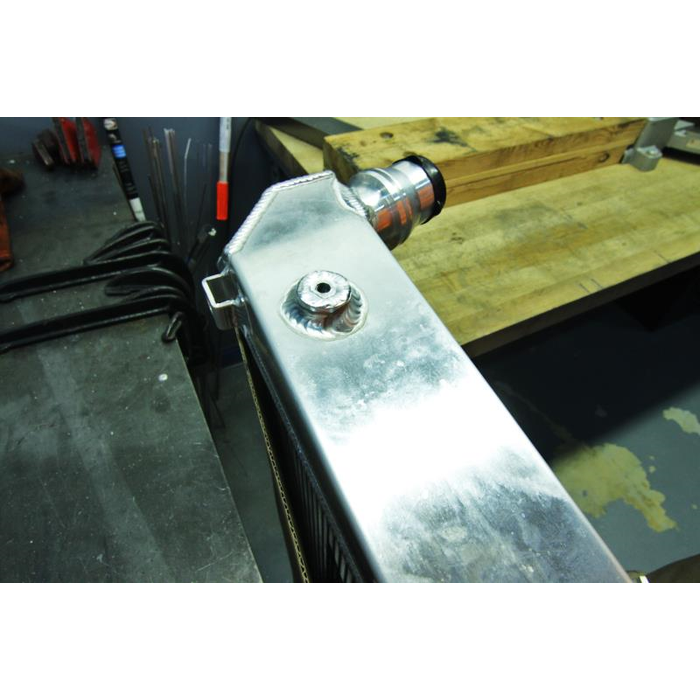

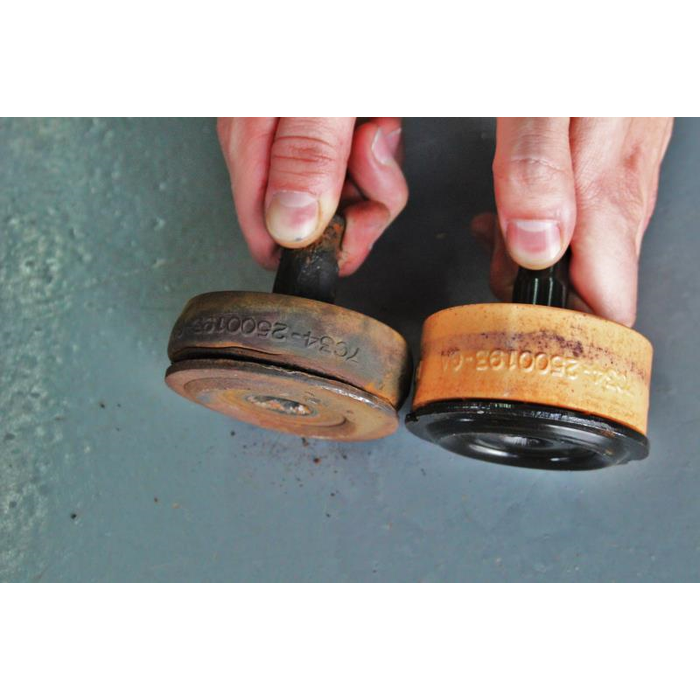

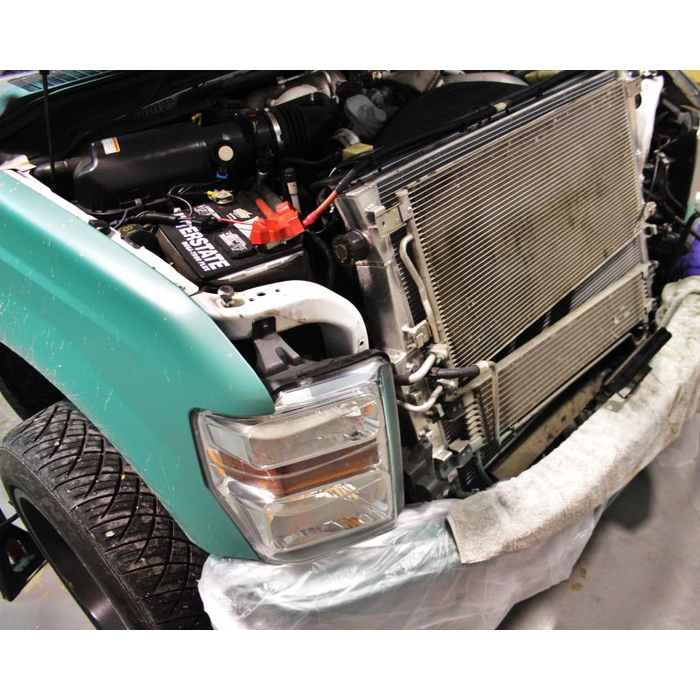

Tired of constantly filling your 6.4 Powerstroke radiator with coolant because you have a leaking radiator? The engineers are Mishimoto have been hard at work designing an all-aluminum 6.4 radiator to put an end to puddles of coolant under your truck. The Mishimoto 6.4 Powerstroke radiator is constructed from high-quality aircraft-grade aluminum with a 100 Percent brazed aluminum core, TIG-welded to aluminum end tanks for superior durability and longevity. 6.4 Powerstroke radiator have much different mounting designs than their predecessors, with two side mounting pegs which attach the radiator to the upper support. On the factory Ford 6.4 radiator, solid side mounting pegs transfer force from the truck directly to the radiator, causing failures. The engineers at Mishimoto designed rubber mounting pegs, specifically for this truck, to reduce the flex force aimed at the 6.4 radiator end tanks. Pair this 6.4 Liter radiator with the Mishimoto 6.4 Powerstroke Silicone Coolant Hose Kit for the most durable cooling solution around. As with all our Powerstroke performance parts, this Ford 6.4 radiator is protected by the Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
More Features
More Features

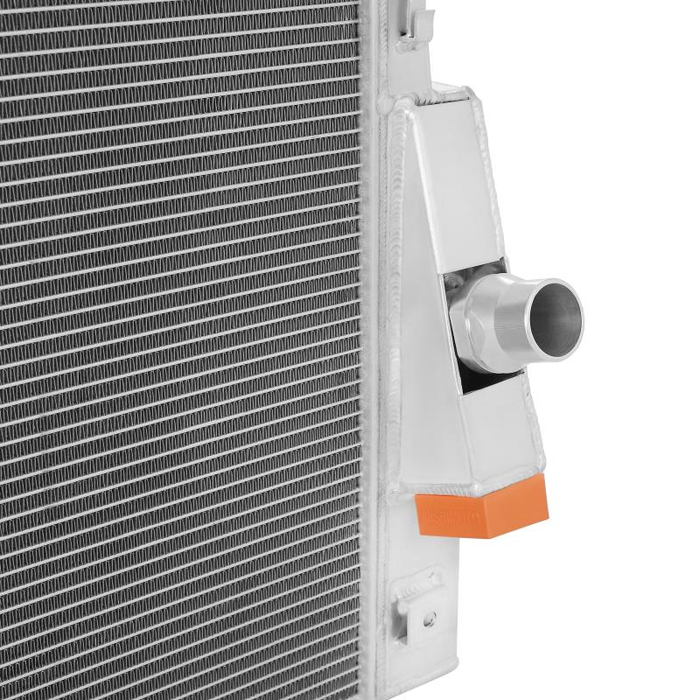

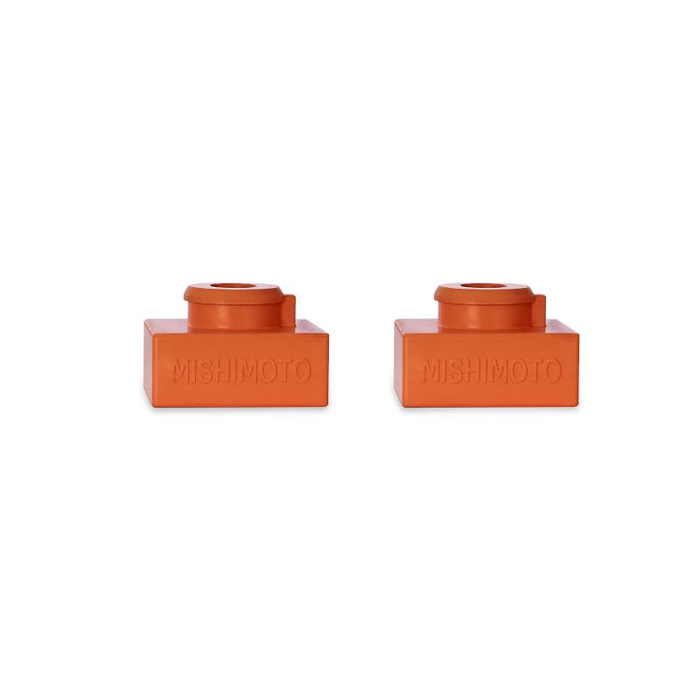

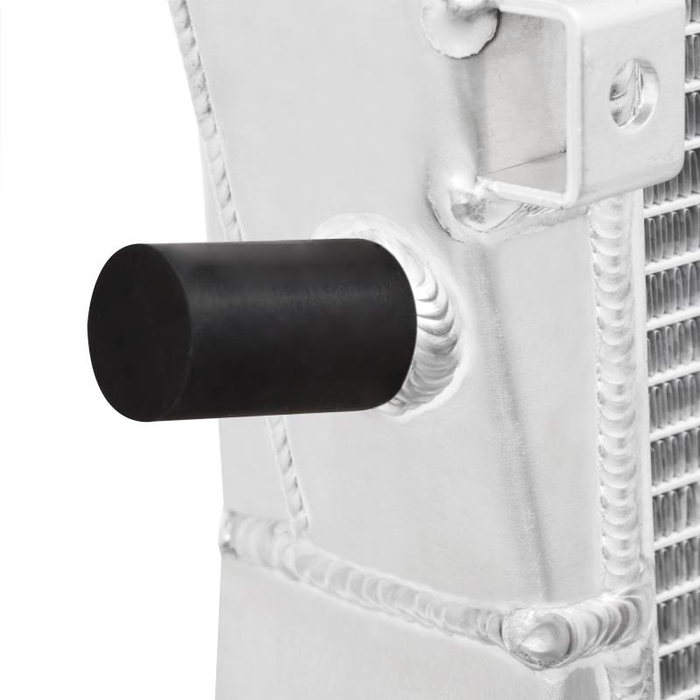

- Incorporates Co-molded Aluminum/rubber Mounting Pegs To Reduce The Truck’s Torque Transfer To The Radiator

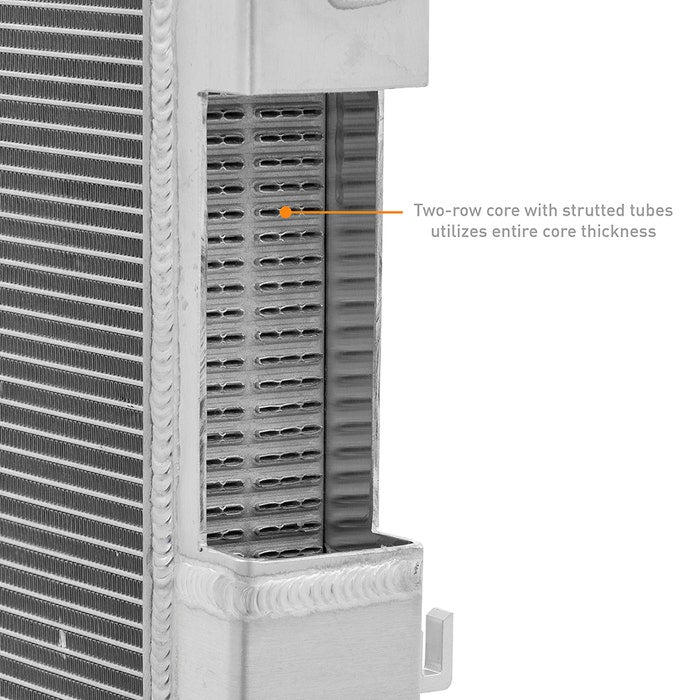

- Incorporates Internally Strutted Tubes In The Top And Bottom 8 Rows For Increased Strength Against High Pressure And Temperature

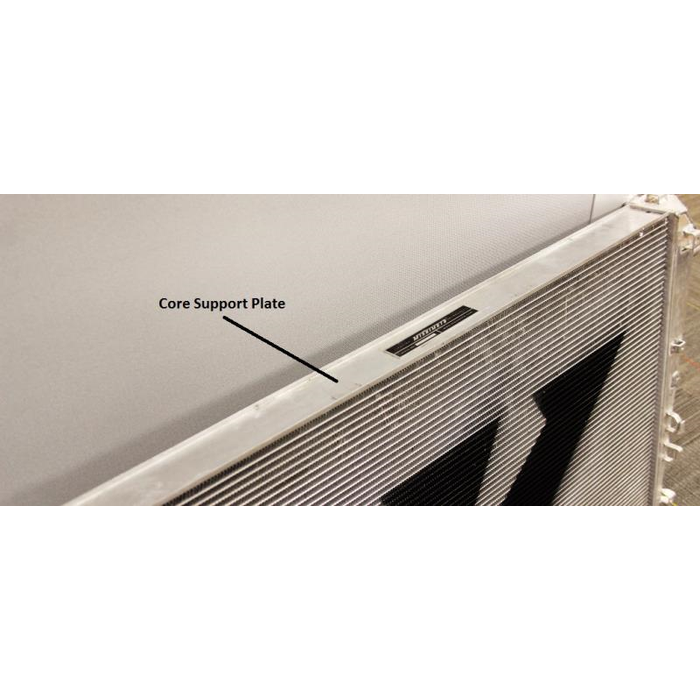

- Strengthened Top And Bottom Core Support Plates Prevent Core Torquing And Bending
Specifications
Flow Direction
Cross Flow
Overall Length (IN)
28.7 Inch
Overall Height (IN)
45.7 Inch
Overall Depth (IN)
8.9 Inch
Core Rows
Dual
Core Material
Aluminum
Inlet Hose Location
Upper Driver Side
Outlet Hose Location
Lower Passenger Side
Finish
Natural
Color
Silver
Core Length (IN)
27.48 Inch
Core Height (IN)
37.01 Inch
Core Depth (IN)
2.76 Inch
Tank Material
Aluminum
With Radiator Cap
No
With Transmission Cooler
No
With Engine Oil Cooler
No
Includes Fittings
Yes
Includes Mounting Hardware
Yes
