Wilwood Brakes Master Cylinders 260-9439-BK

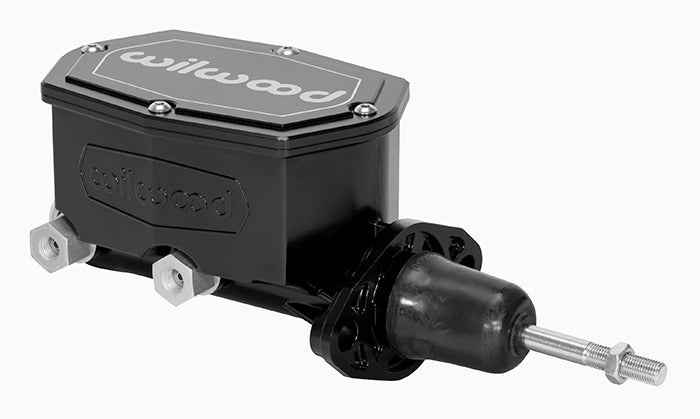

Wilwood’s Compact Tandem Master Cylinders with Pushrod available 4 bore sizes from 7/8 Inch to 1-1/8th and in 2 finishes; ball burnished and black e-coat. These master cylinders are designed primarily for manual applications and features a pushrod. They’re designed for mount flanges from 3.22 Inch to 3.40 Inch, common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10 Inch with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3 Pound, a 75 Percent weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which features brackets and stainless lines specifically for use with this master cylinder, see retrofit kits for L/H outlets, or R/H outlets. Wilwood's new Tandem Compact Master Cylinder has a 7/8 Inch bore and a Black e-coat finish. This version comes with 3/8-24 diameter pushrod for manual brake use.

More Features

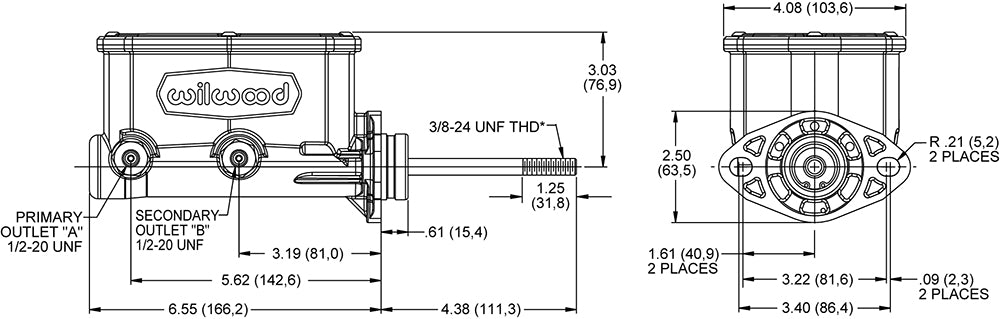

• Compact Design With 6.55 Inch Overall Length From The Mounting Flange, And 3.03 Inch Height From Bore Center
• Universal Style Slotted Hole Mounting Flange Mounts To Pedals Or Boosters With Bolt Centers From 3.22 Inch To 3.40 Inch
