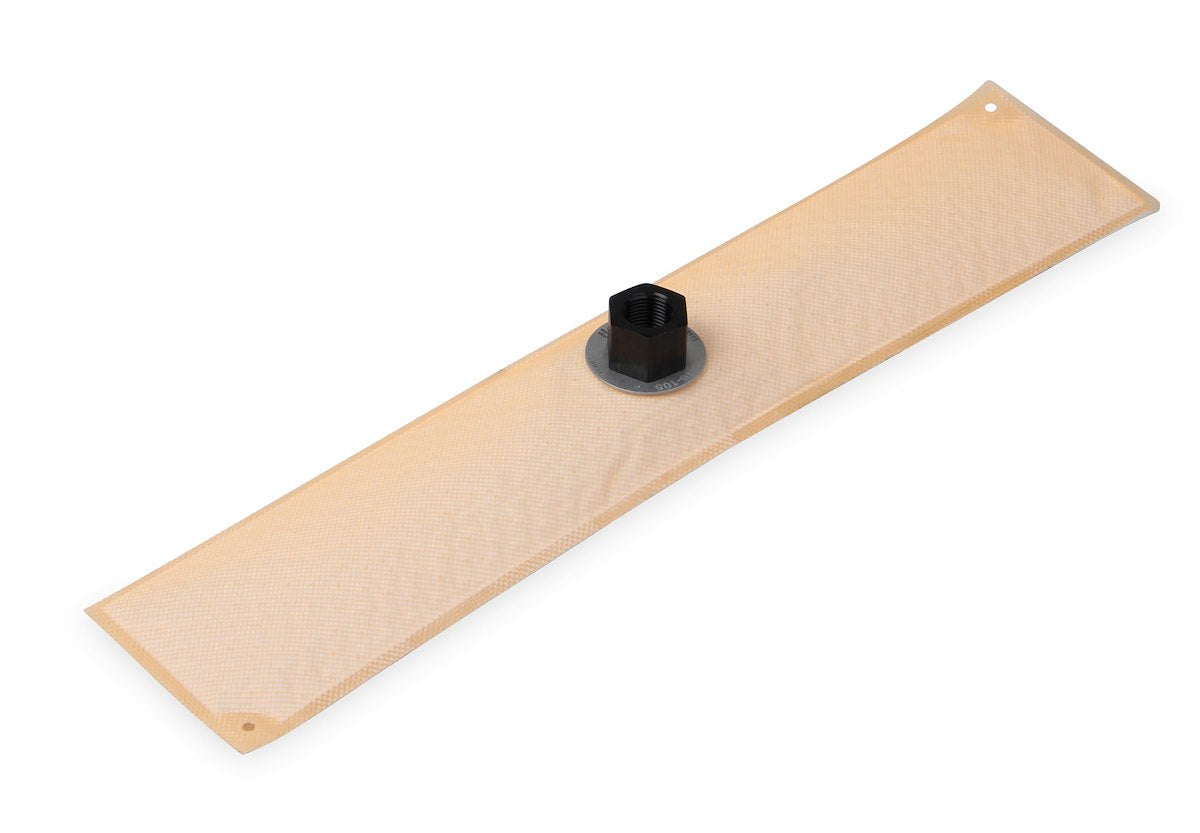

Holley Fuel Tank Pickup 16-105 product image 1

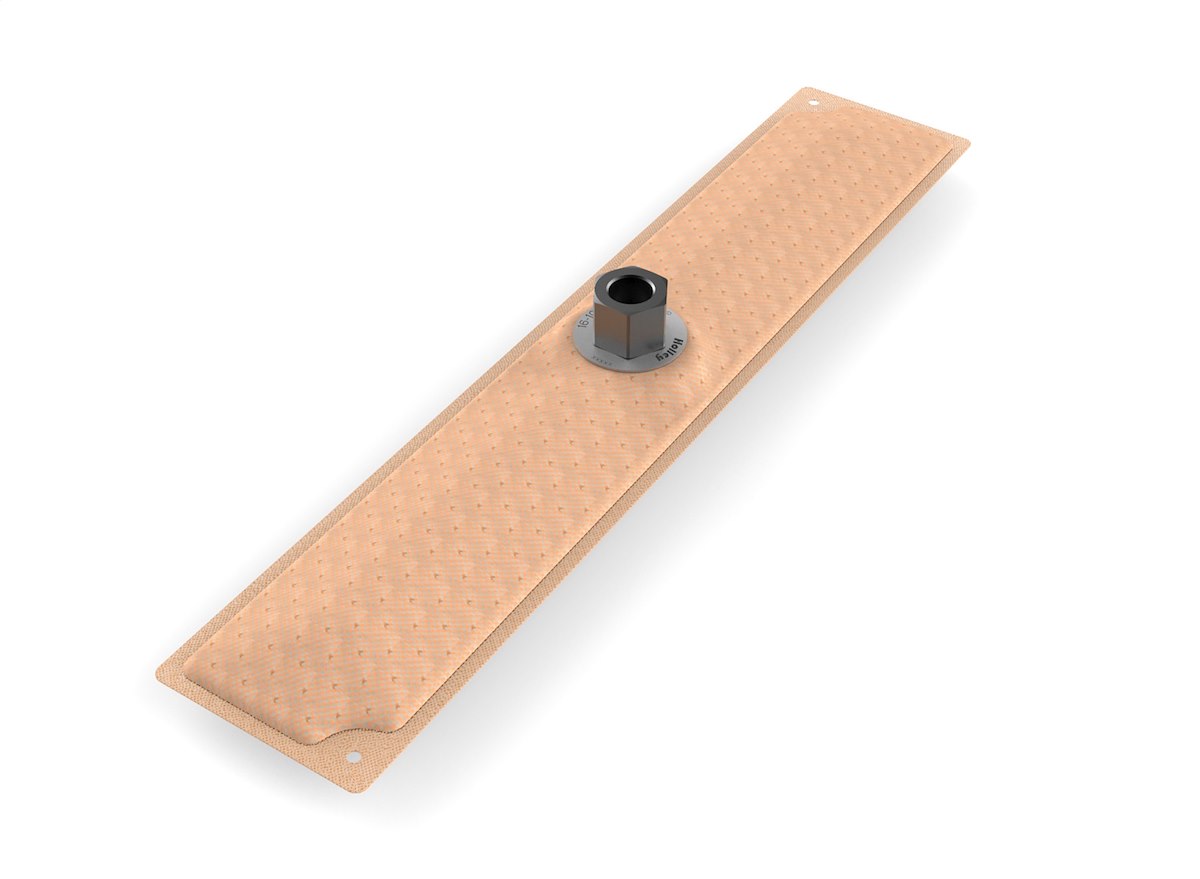

Holley Fuel Tank Pickup 16-105 product image 2

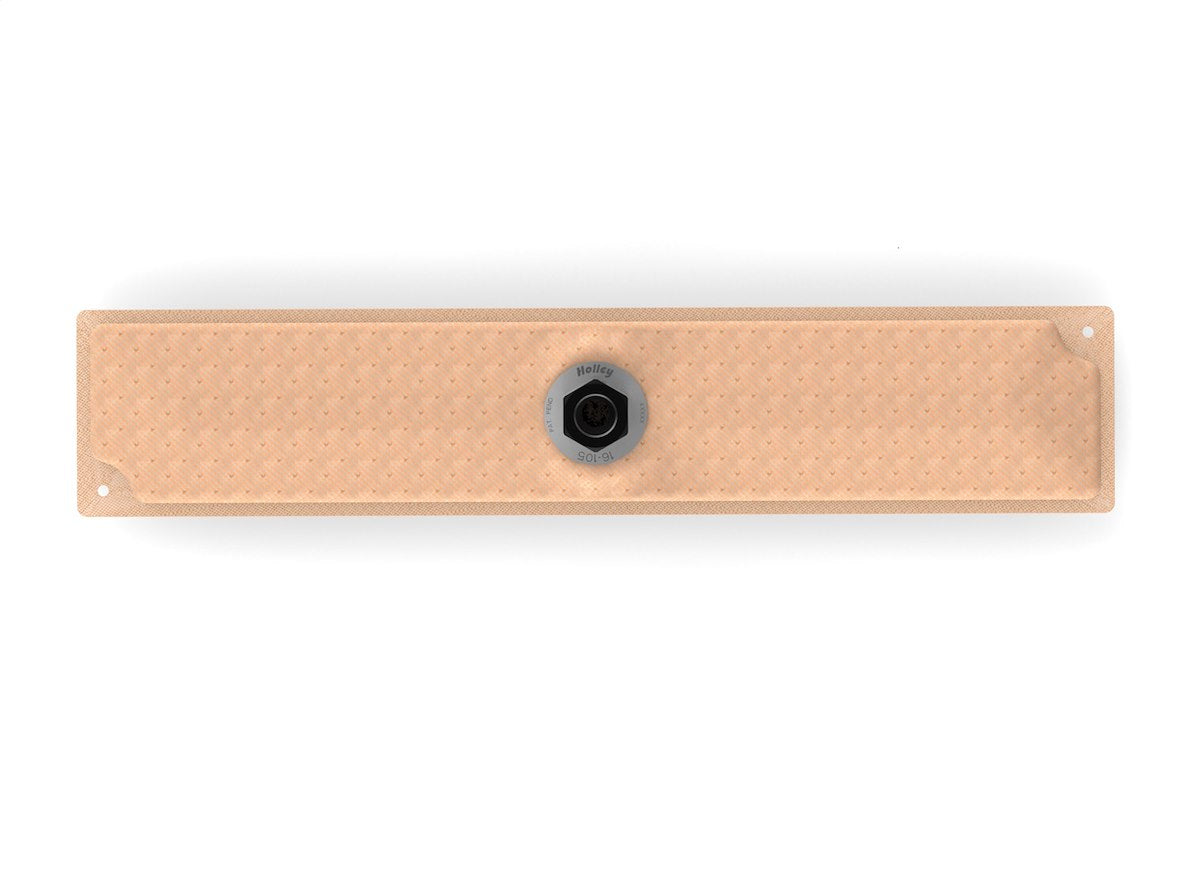

Holley Fuel Tank Pickup 16-105 product image 3

Holley Fuel Tank Pickup 16-105

SKU: 16-105

$249.95

Holley Fuel Tank Pickup 16-105

Limited 90 Day Supplier Warranty
Holley Fuel Tank Pickup 16-105

Can Be Folded And Compressed For Easy Installation Through A Variety Of Fuel Cell Openings
Holley Fuel Tank Pickup 16-105

Also Acts As A 15 Micron Pre-Filter Eliminating The Need For A Separate Filter Before The Fuel Pump
Holley Fuel Tank Pickup 16-105

Eliminates The Need For Specialty Reservoirs, Sumps And Pick Up Pumps Saving Cost And Greatly Reducing Complexity
Holley Fuel Tank Pickup 16-105

Unique Internal Reservoir Assists In Keeping Fuel Available At The Pickup Even Under Extreme Fuel Slosh Conditions

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock 5

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Holley Fuel Tank Pickup 16-105

$249.95

$249.95

Element

Type

Fuel Tank

Location

Alcohol/ Ethanol/ Methanol/ E85

Fuel Type

Product Description

Holley’s patent pending design solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. Surface tension and fluid wicking are the secrets of the HydraMat™’s amazing ability to draw fuel from nearly any area that has contact with fuel and store in the internal reservoir. As an area of the HydraMat™ is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat™ allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats™ are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.

More Features
  • Patent Pending Design That Solves The Problems Associated With Traditional Fuel Pick-Ups In Stock Fuel Tanks As Well As Racing Fuel Cells
  • Greatly Reduces The Potential For Air To Enter Into The Fuel System Which Can Result In Poor Engine Performance And/Or Engine Stalling
  • Perfect For Vehicles Experiencing Fuel Starvation During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
  • Surface Tension And Fluid Wicking Allow The HydraMat™ To Continue To Draw Fuel From The Tank Or Cell Even When Part Of The Mat Uncovered

Specifications

Type
Element
Location
Fuel Tank
Fuel Type
Alcohol/ Ethanol/ Methanol/ E85
Inlet Connection Size
Not Applicable
Inlet Connection Type
Not Applicable
Outlet Connection Size
Not Applicable
Outlet Connection Type
Not Applicable
Diameter (IN)
Not Applicable
Length (IN)
15 Inch
Width (IN)
3 Inch
Height (IN)
Not Applicable
Micron Rating
15 Micron
Element Material
Hydramat
Color
Tan
With Gasket
No
With Hose
No
With Mounting Hardware
No
