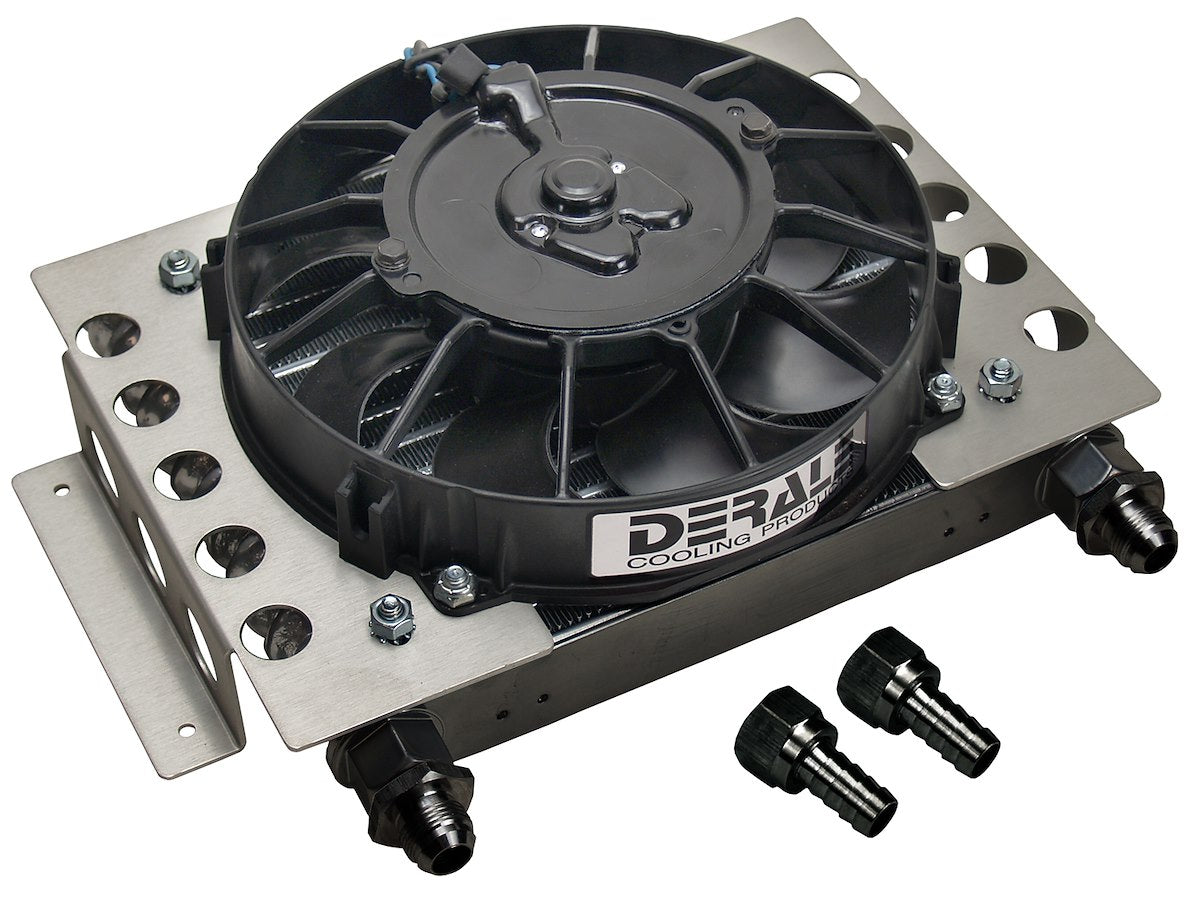

Derale Engine Oil and Automatic Transmission Oil Cooler 15850 product image 1

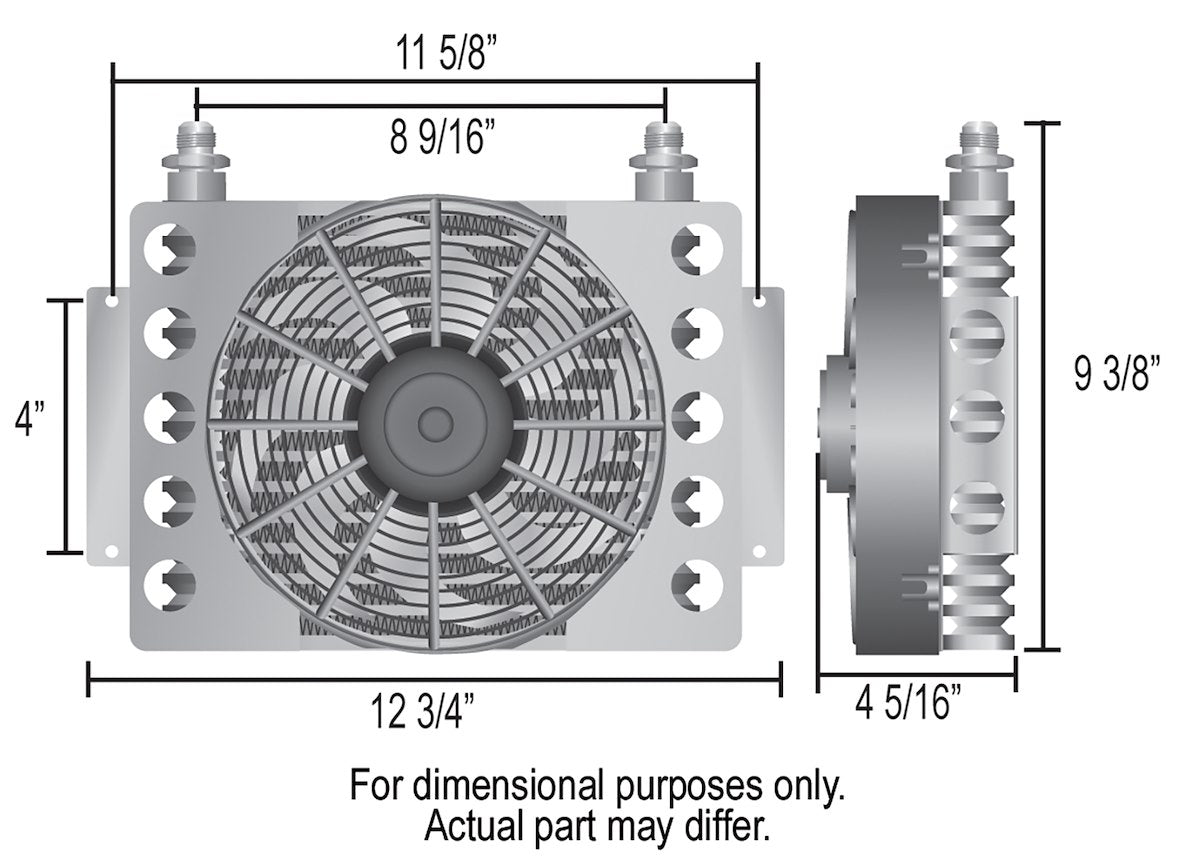

Derale Engine Oil and Automatic Transmission Oil Cooler 15850 product image 2

Derale Engine Oil and Automatic Transmission Oil Cooler 15850

SKU: 15850

$325.65

Derale Engine Oil and Automatic Transmission Oil Cooler 15850

Limited 1 Year Warranty
Derale Engine Oil and Automatic Transmission Oil Cooler 15850

Mounts Anywhere Space Permits
Derale Engine Oil and Automatic Transmission Oil Cooler 15850

Clear Anodized Aluminum Shroud
Derale Engine Oil and Automatic Transmission Oil Cooler 15850

Electric Fan Supplies Optimum Airflow
Derale Engine Oil and Automatic Transmission Oil Cooler 15850

500 CFM Reversible Tornado Electric Fan

Verified U.S. Supplier

Fitment Data Included

30-Day Returns
In stock 137

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov

Emissions & Compliance

Emissions Compliance Exempt
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Derale Engine Oil and Automatic Transmission Oil Cooler 15850

$325.65

$325.65

Plate And Fin

Construction

9-3/8 Inch

Overall Height

12-3/4 Inch

Overall Width

Product Description

A step up from tube and fin type coolers, this popular remote cooler can literally be mounted almost anywhere, making it a popular addition for performance cars, hot rods, muscle cars and trucks. A heavy duty plate and fin cooler coupled with a Tornado fan and aluminum brackets, it comes with two -8AN male aluminum fittings and two -8AN X 1/2 Inch barb adapters. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for heavy duty transmission or fuel cooling. The Atomic Cool is a tried and true workhorse that can keep vital engine and transmission fluid temperatures under control under severe duty environments

More Features
  • Dramatically Extends Engine And Transmission Life
  • High Efficiency OEM Style Plate And Fin Cooler

Specifications

Condition
New
Recommended Use
Engine Oil/ Transmission Fluid/ Power Steering Fluid/ Fuel
Construction
Plate And Fin
Overall Height (IN)
9-3/8 Inch
Overall Width (IN)
12-3/4 Inch
Overall Depth (IN)
4-5/16 Inch
Number Of Cooling Rows
15
Inlet Attachment
Male Threads
Inlet Size
1/2 Inch (-8 AN)
Outlet Attachment
Male Threads
Outlet Size
1/2 Inch (-8 AN)
Color
Black/ Silver
Material
Aluminum
With Fan
Yes
Fan Control
Electric
Core Height (IN)
10 Inch
Core Width (IN)
8-9/16 Inch
Core Depth (IN)
1.250 Inch
Finish
Painted
Fan CFM Rating
500 Cubic Feet Per Minute
Fan Diameter
8 Inch
Fan Amp Draw
4.8 Amp
With Mounting Hardware
No

Installation & Documents



Installation Guide
