Factor 55 Winch Shackle 00070-05

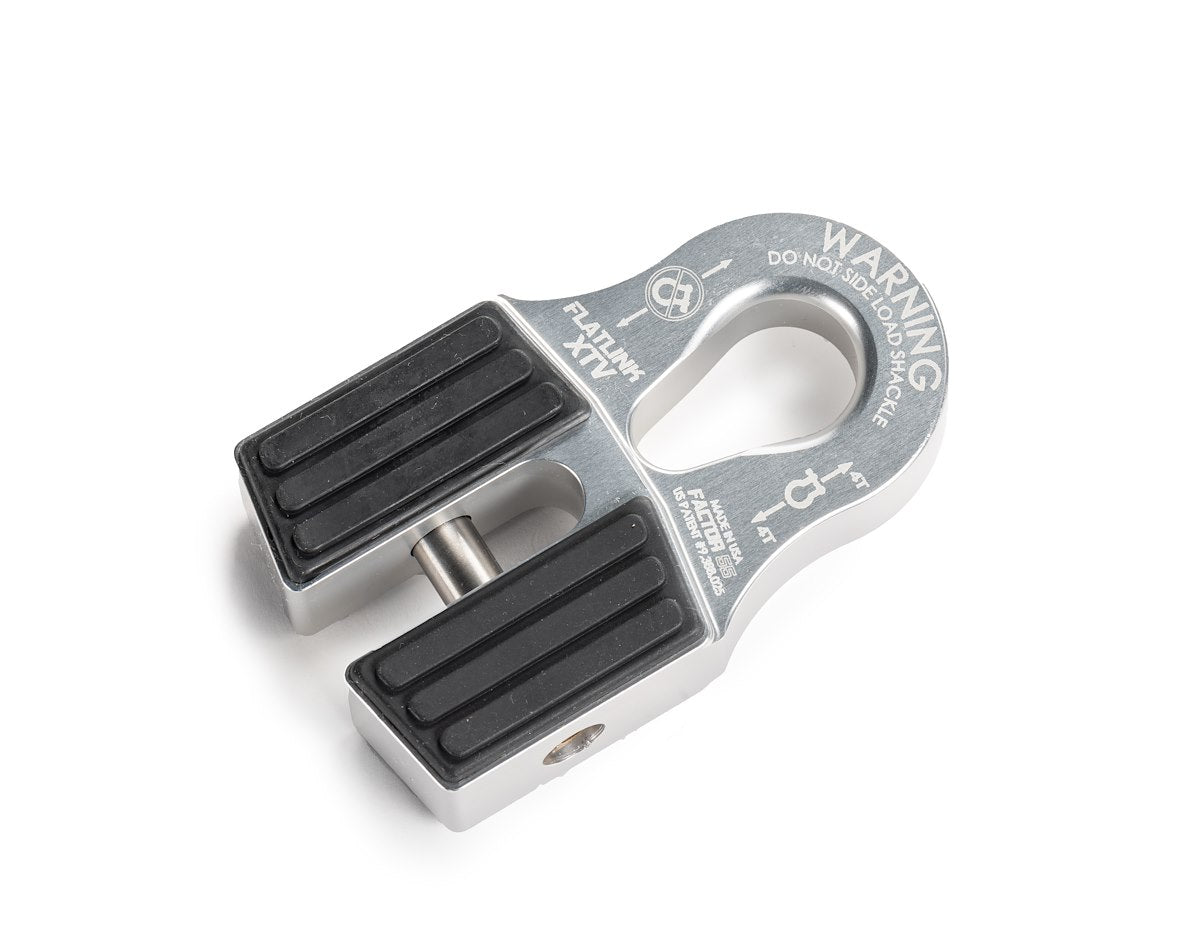

Factor 55 FlatLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle and D-Ring. winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose and tight cycles of a winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 Inch. The cable eye is retained in the FlatLink XTV by a 7/16 Inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guards protects alloy fairleads and is securely attached to the FlatLink XTV with 4 barbed tips. The FlatLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard 1/2 to 5/8 Inch shackles. The FlatLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized and powder coated in 5 different colors. The FlatLink XTV has a max load rating of 8000 Pound and an ultimate failure of 28,000+ Pound.

More Features

• Oval Hole Opening Connects To The Pin Or Bow End Of 1/2 Or 5/8 Inch Screw Pin Shackles And D-Rings
• Oval Hole Opening Connects To The Pin Ends Of 3/4 Inch Screw Pin Shackles And D-Rings
