Factor 55 Winch Fairlead 00019

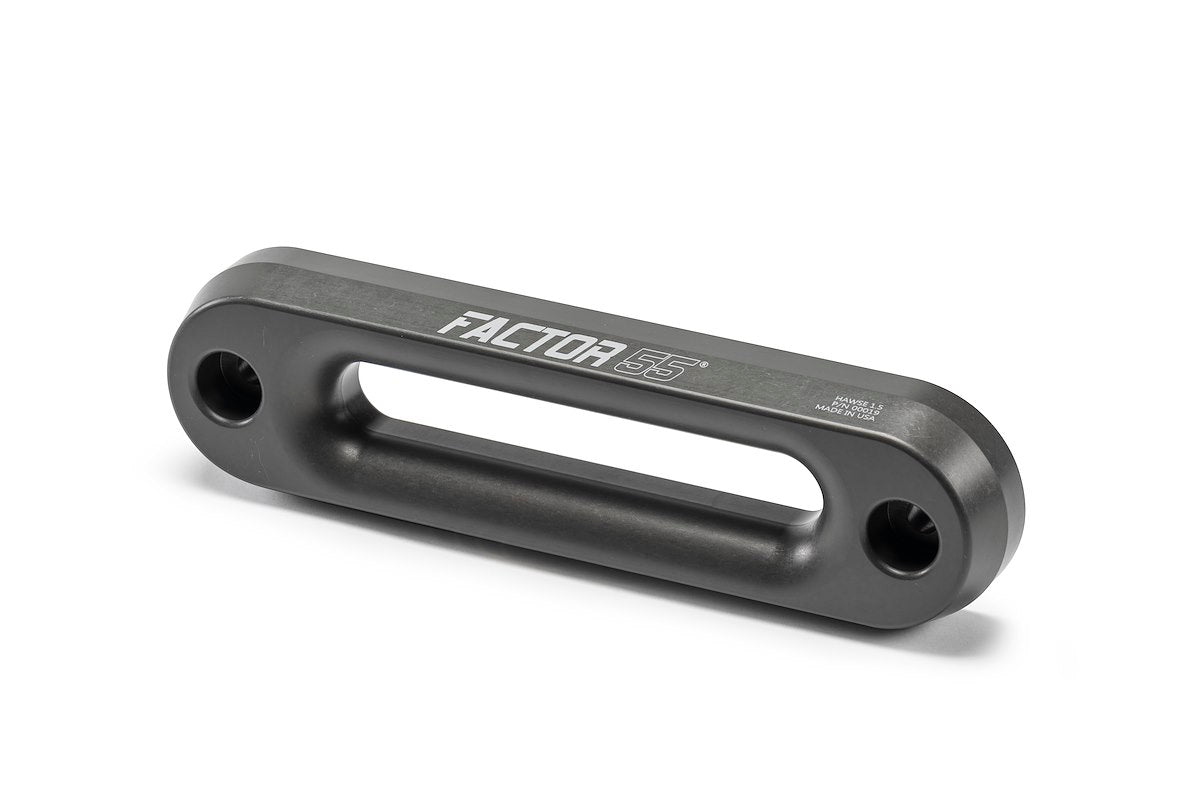

Factor 55 introduces a new line of Aluminum Hawse Fairleads. Fairleads are CNC machined from 1 and 1.5 Inch thick 6000 series aluminum bar. The industry standard fairlead thickness is 0.75 Inch thick. The thicker aluminum bar results in a larger outer fillet radius for the synthetic rope to slide against. This results in less stress on the rope fibers during high angular pulls, increasing the life of your synthetic rope. The 1.0 and 1.5 fairleads are the industry’s first Hawse fairleads compatible with larger 1/2 Inch diameter rope tube thimbles. The rope slot height opening is taller to allow the larger 1/2 Inch tube thimbles to pass through. There is also a machined outer corner chamfer to reduce rope stress for those than plan on using the winch as a front suspension “suck down” device. These fairleads come in a durable MIL-A-8625F TYPE III gun metal gray hard anodized finish with a laser engraved logo.

More Features

• All Factor 55 Products Are Designed In House Using The Latest 3D CAD Software And Optimized Using Cosmos FEA (Finite Element Analysis)
• Also Perform A Destructive Test On Each Design With The Assistance Of A Test Facility Equipped With Test Measurement And Data Recording Equipment
