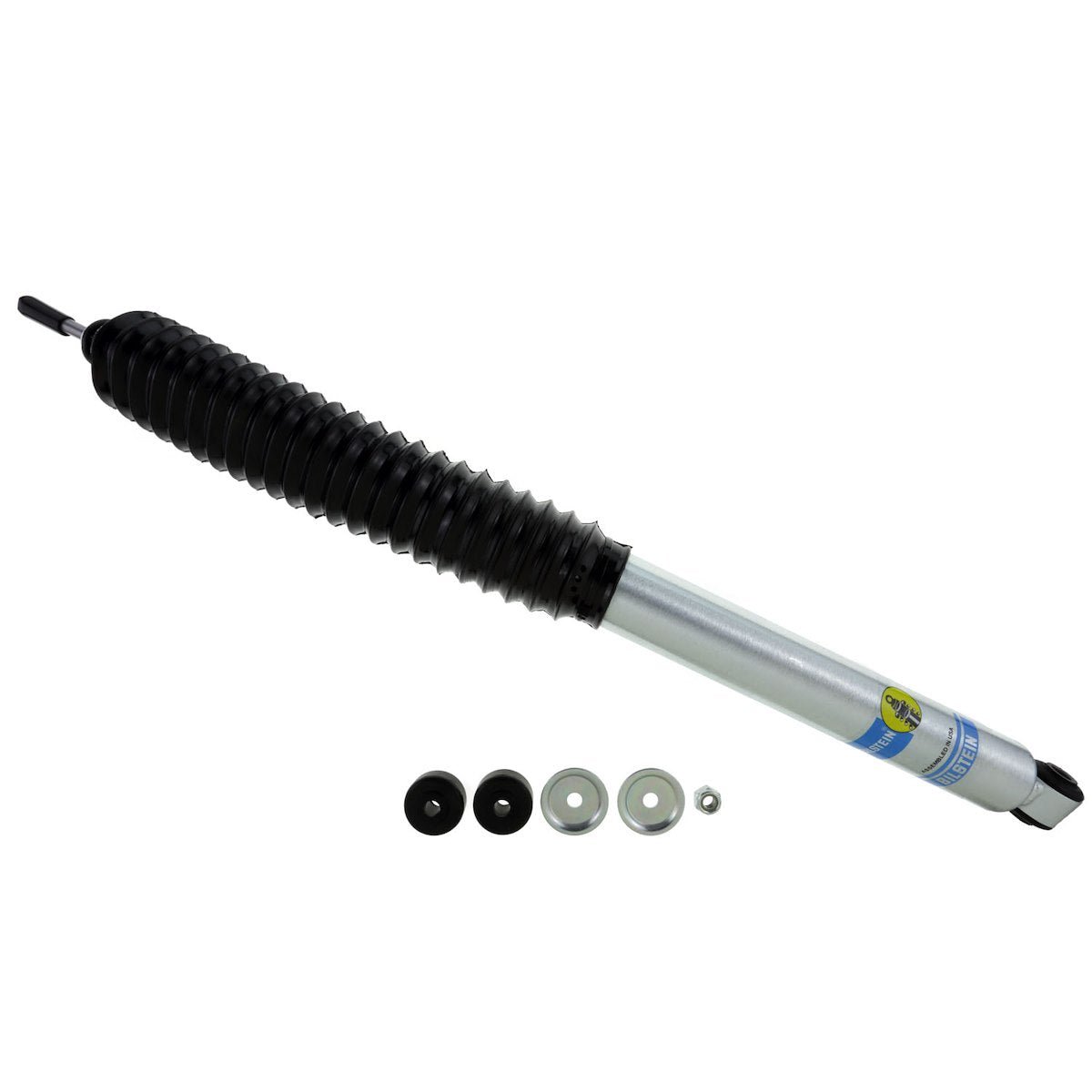

Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872
Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872
Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872

Bilstein

Authorized Dealer

Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872

SKU: 24-186872

$123.00

Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872

Zinc plated for resistance against harsh elements.
Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872

Durable vulcanized neoprene rubber bushings.
Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872

Monotube design ensures consistent, fade-free performance in all conditions.
Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872

16.41 in collapsed length / 27.56 in extended length.
Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872

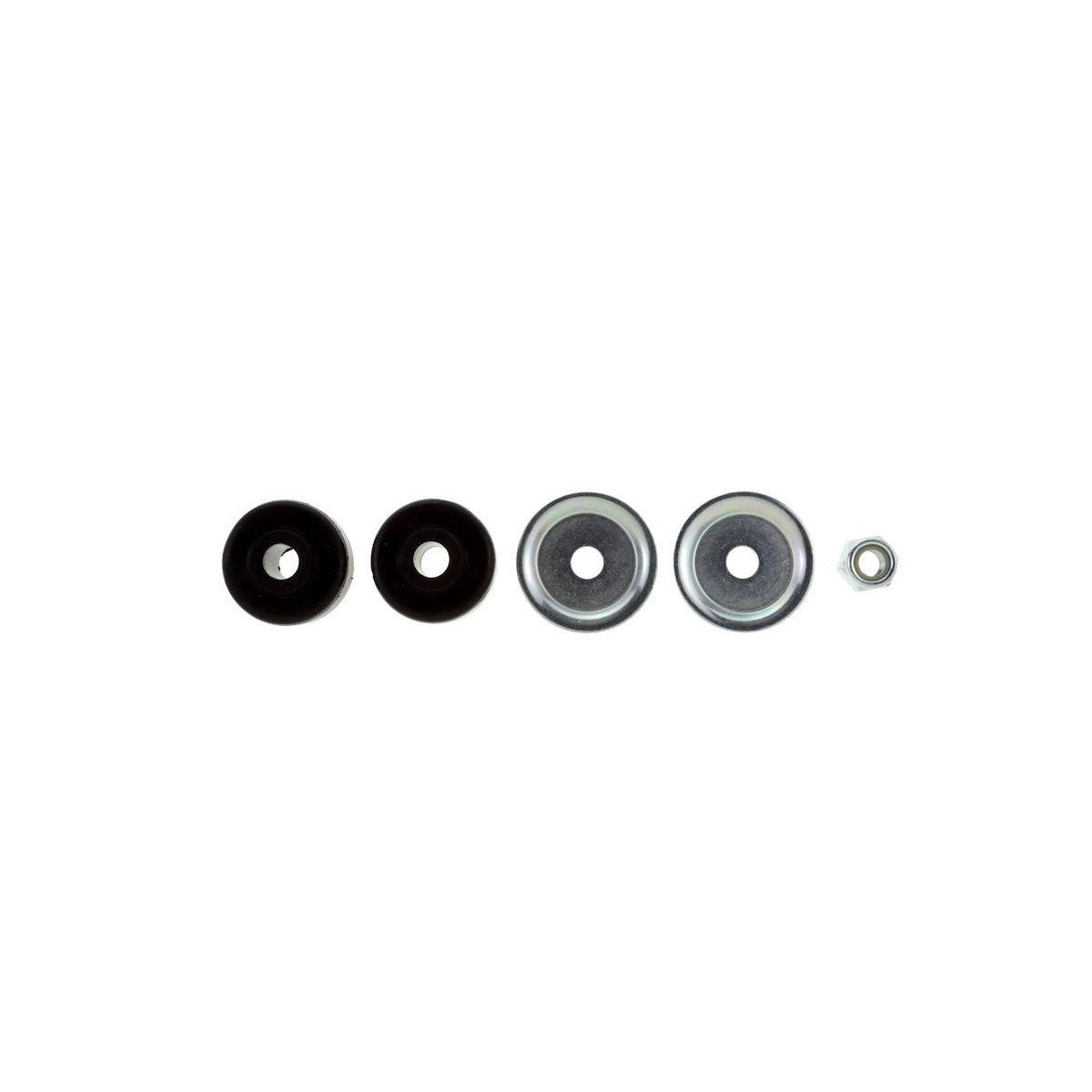

Includes shock boots.
5 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.

Prop 65 Warning

WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Bilstein Shock Absorber, B8 5100 Series, 16.41 in Collapsed Length/27.56 in Extended Length - 24-186872

$123.00

$123.00

Stud

Upper Mount

Eyelet

Lower Mount

Steel

Rod Material

Product Description

The B8 5100's monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, the Bilstein B8 5100 shock absorber instantly reacts to changing road inputs to maintain a stable, controlled, and comfortable ride.


Additional Details

  • Patented digressive valving instantly reacts to changing surface conditions.
  • OEM certified mounting hardware allows for easy installation.
  • Limited lifetime warranty.
  • B8 5100 series.
  • Nitrogen gas charged.
  • Not adjustable valving.
  • Stem upper mount/ eye lower mount.
  • With shock boots.

Specifications

Type
Nitrogen Gas Charged
With Coil Spring
No
Extended Length (IN)
27.56 Inch
Compressed Length (IN)
16.41 Inch
Upper Mounting Style
Stud
Lower Mounting Style
Eyelet
Adjustable Valving
No
Quantity
Single
Universality
Vehicle Specific
Internal Design
Monotube
Body Color
Silver
Rod Diameter (IN)
1.81 Inch
Valving Type
Self-Adjusting Deflective Disc Valving
Rod Material
Steel
Body Material
Steel
With Reservoir
No
Includes Dust Shield
No
Includes Hardware
Yes
Includes Boot
Yes
Estimated Install Time (Hours)
0.5

Fitment / Application

2007-2010 Jeep Wrangler JK Unlimited X; Rear Wheel Drive
2007-2010 Jeep Wrangler JK Unlimited Sahara; Four Wheel Drive
2007-2010 Jeep Wrangler JK Unlimited Sahara; Rear Wheel Drive
2007-2017 Jeep Wrangler JK Unlimited Rubicon
2007-2010 Jeep Wrangler JK X
2007-2018 Jeep Wrangler JK Sahara
2007-2017 Jeep Wrangler JK Rubicon
2007-2010 Jeep Wrangler JK Unlimited X; Four Wheel Drive
2010 Jeep Wrangler JK Unlimited Sport; Four Wheel Drive
2010-2017 Jeep Wrangler JK Sport
2011-2017 Jeep Wrangler JK Unlimited Sport
2011-2017 Jeep Wrangler JK Unlimited Sahara
2016 Jeep Wrangler JK Unlimited Sport S
2016 Jeep Wrangler JK Unlimited 75th Anniversary
2016 Jeep Wrangler JK Sport S
2016 Jeep Wrangler JK 75th Anniversary
2018 Jeep Wrangler JK Sport (2 Door)
2018 Jeep Wrangler JK Rubicon (2 Door)
2018 Jeep Wrangler JK Unlimited Sport (4 Door)
2018 Jeep Wrangler JK Unlimited Sahara (4 Door)
2018 Jeep Wrangler JK Unlimited Rubicon (4 Door)

Installation & Documents


E4-WM5-Y217A00.pdf
warranty_all_v4.2.pdf
