Xantrex Freedom X 1200W True Sine Wave Inverter with 30A Transfer Switch - 806-1212

SKU: 806-1212

$563.99

Xantrex Freedom X 1200W True Sine Wave Inverter with 30A Transfer Switch - 806-1212

2X continuous power surge rating provides additional capacity for demanding electrical loads.
Xantrex Freedom X 1200W True Sine Wave Inverter with 30A Transfer Switch - 806-1212

Low battery voltage alarm and shutdown help protect connected batteries from excessive drain.
Xantrex Freedom X 1200W True Sine Wave Inverter with 30A Transfer Switch - 806-1212

Overload and over-temperature alarms and shutdown help protect the inverter and connected equipment.
Xantrex Freedom X 1200W True Sine Wave Inverter with 30A Transfer Switch - 806-1212

Built-in transfer switch provides backup power capability with fast transfer time.
Xantrex Freedom X 1200W True Sine Wave Inverter with 30A Transfer Switch - 806-1212

Quick-connect AC input and output terminals with pre-wired pigtail cables simplify installation.
13 In Stock - Ships in 1-3 days

Estimated delivery between November 03 and November 05.

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.

Prop 65 Warning

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Xantrex Freedom X 1200W True Sine Wave Inverter with 30A Transfer Switch - 806-1212

$563.99

$563.99

1,000 W

Wattage

110–125 Vac

Output Voltage Range

Product Description

The Xantrex 806-1212 is the Freedom X 1200W True Sine Wave Inverter with 30A Transfer Switch.


Applications and Use

Compatible with the FREEDOM X ComBox for RV-C or NMEA2000 connectivity and third-party monitoring.


Protection and Durability

1200W true sine wave inverter designed for heavy-duty trucks, RVs, and work trucks. Conformal-coated circuit boards and heavy-duty metal casing support durable mobile operation.
Free Shipping $150+ Free Shipping $150+
Fast Delivery Fast
Delivery
30-Day Returns 30-Day
Returns
Secure Payment Secure
Payment

Specifications

Power Inverter & Supply Power Type
Pure Sine Wave
Power Inverter & Supply Type
Inverter
Power Inverter & Supply Wattage
1,000 W
Output Power (Continuous)
1200W
Surge Rating
2400W
Output Voltage Range
110-125 Vac
Output Frequency Regulation (User Configurable)
50/60 Hz
Output Wave Form
True Sine Wave
Efficiency (Full load)
> 86%
No-Load Input Power (Producing Output Voltage)
< 10 W
Off Mode Current Draw (Display Off)
< 4 mA
AC Input Operating Voltage Range
95–130 Vac
DC Input Operating Voltage Range
10.5 to 16.5 VDC
Battery Voltage (Nominal)
12 Vdc
Operating Temperature Range
-4°F to 122°F (-20°C to 50°C)
Storage Temperature Range
-40°F to 158°F (-40°C to 70°C)
Operating Humidity Range
5–95%, non-condensing

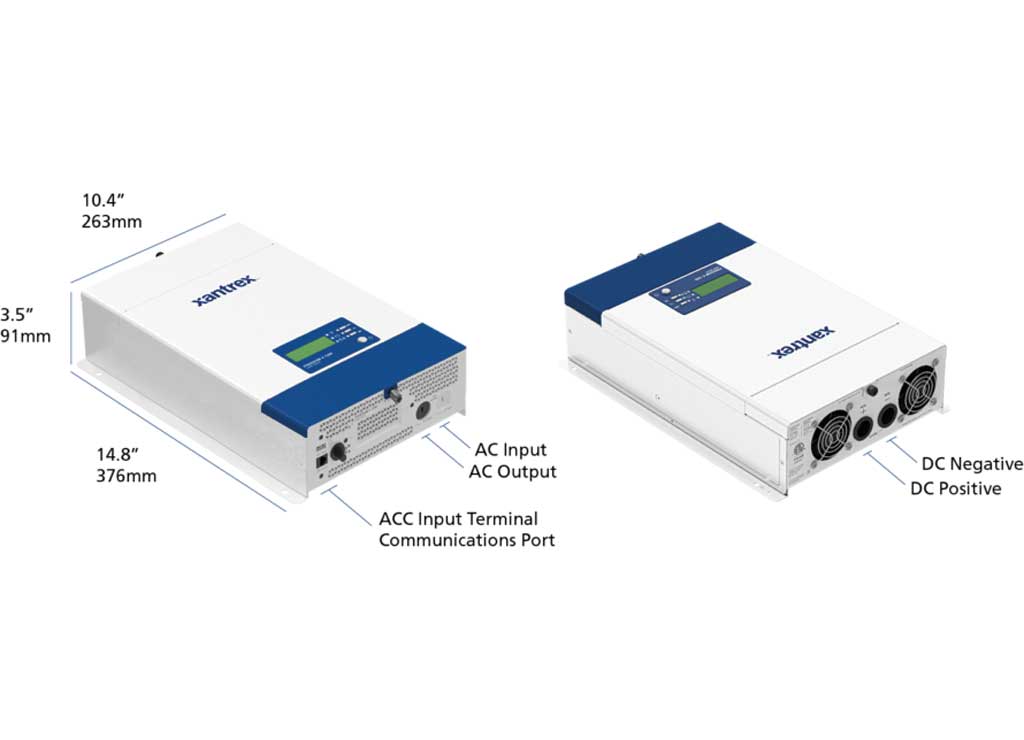

Dimensions (L x W x H)
14.8 in x 10.4 in x 3.5 in (376 mm x 263 mm x 91 mm)
Net Weight
10.4 lb. (4.7 kg)
AC Transfer Relay
30A
Transfer Time
10 to 20 ms
Low Battery Cut-Out
Adjustable from 10.5 to 12.1 VDC
AC Receptacles
15A breaker supplied
Package Dimensions
14.8 x 10.4 x 3.5 in
Package Weight
10.4 lb
