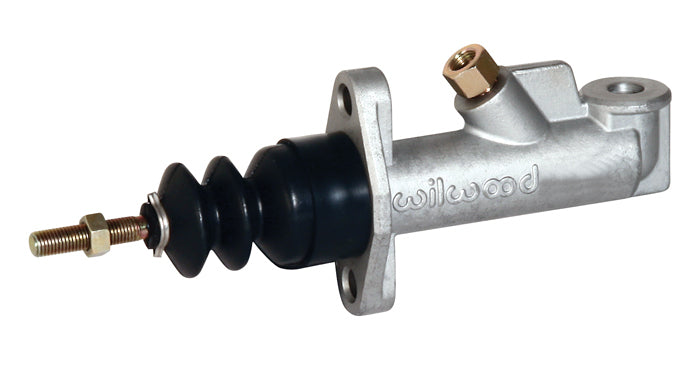

Wilwood Master Cylinder, Compact, 0.75 in Bore, 1.400 in Stroke, Kit — 260-6089

SKU: 260-6089

$82.56

Wilwood Master Cylinder, Compact, 0.75 in Bore, 1.400 in Stroke, Kit — 260-6089

Includes pushrod and fittings.
Wilwood Master Cylinder, Compact, 0.75 in Bore, 1.400 in Stroke, Kit — 260-6089

The bore diameter measures 0.75 in.
Wilwood Master Cylinder, Compact, 0.75 in Bore, 1.400 in Stroke, Kit — 260-6089

Uses a 3/8-24 in outlet port 1.
Wilwood Master Cylinder, Compact, 0.75 in Bore, 1.400 in Stroke, Kit — 260-6089

Uses a 5/16-24 in pushrod thread.
Wilwood Master Cylinder, Compact, 0.75 in Bore, 1.400 in Stroke, Kit — 260-6089

Uses a 7/16-20 in inlet port 1.
94 In Stock - Ships in 1-3 days

Shipping & Returns

Shipping

Most in-stock products ship within 1-3 business days. Your available shipping method and final shipping cost will be shown at checkout. Qualifying standard-shipping orders of $150 or more ship free, while larger items may require oversized or freight delivery.

For more information, view our Shipping Policy.

Returns

Changed your mind? Most products can be returned within 30 days of delivery as long as they are unused, uninstalled, and in their original condition.

Contact us to start a return, and we’ll guide you through the next steps.

For complete details, view our Returns & Refunds Policy.

Warranty

Available warranty coverage is provided by the manufacturer and varies by brand and product. Modridge assists customers with eligible warranty claims and helps coordinate the review process with the manufacturer.

Contact us before returning, repairing, modifying, or discarding a product that may be defective. Order information, photographs, installation details, and diagnostic information may be required.

For coverage details and claim instructions, review our Warranty Policy.
  • Visa
  • Mastercard
  • Diners Club
  • PayPal
  • American Express
Wilwood Master Cylinder, Compact, 0.75 in Bore, 1.400 in Stroke, Kit — 260-6089

$82.56

$82.56

1.4 in

Stroke Length

Female

Outlet Port 1 Style

Female

Inlet Port 1 Style

Product Description

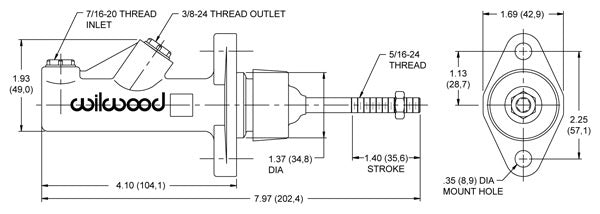

The Wilwood 260-6089 master cylinder has a bore diameter of 0.75 in. The stroke length is 1.4 in. The chamber quantity is single.


Additional Details

The mounting flange style is 2 bolt. The mounting flange center to center is 2.25 in. The pushrod thread size is 5/16-24 in.

The outlet port 1 size is 3/8-24 in. Construction uses aluminum with a natural finish.

Reservoir style is Remote. Fitting 1 side A thread is 3/8-24 in. Fitting 1 side A style is Male.

Fitting 1 side B thread is 3/8-24 in Inverted Flare. Fitting 1 side B style is Female. INLET THREAD IS 7/16-20(4an) OUTLET THREAD IS 3/8-24(3an) Outlet port comes w/adapter fitting to 3/16 inverted flare.


What’s Included

  • Master Cylinder
  • Pushrod
  • Fittings

Specifications

Bore Diameter
0.75 in
Stroke Length
1.4 in
Cap Included
No
Chamber Quantity
Single
Mounting Flange Style
2 Bolt
Mounting Flange Center to Center
2.25 in
Pushrod Included
Yes
Pushrod Thread Size
5/16-24 in
Outlet Port 1 Size
3/8-24 in
Outlet Port 1 Style
Female
Crush Washer
No
Reservoir Style
Remote
Inlet Port 1 Size
7/16-20 in
Inlet Port 1 Style
Female
Reservoir Included
No
Fittings Included
Yes
Fitting 1 Quantity
1
Fitting 1 Side A Thread
3/8-24 in
Fitting 1 Side A Style
Male
Fitting 1 Side B Thread
3/8-24 in Inverted Flare
Fitting 1 Side B Style
Female
Material
Aluminum
Color
Natural
Finish
Natural
Quantity
Kit
