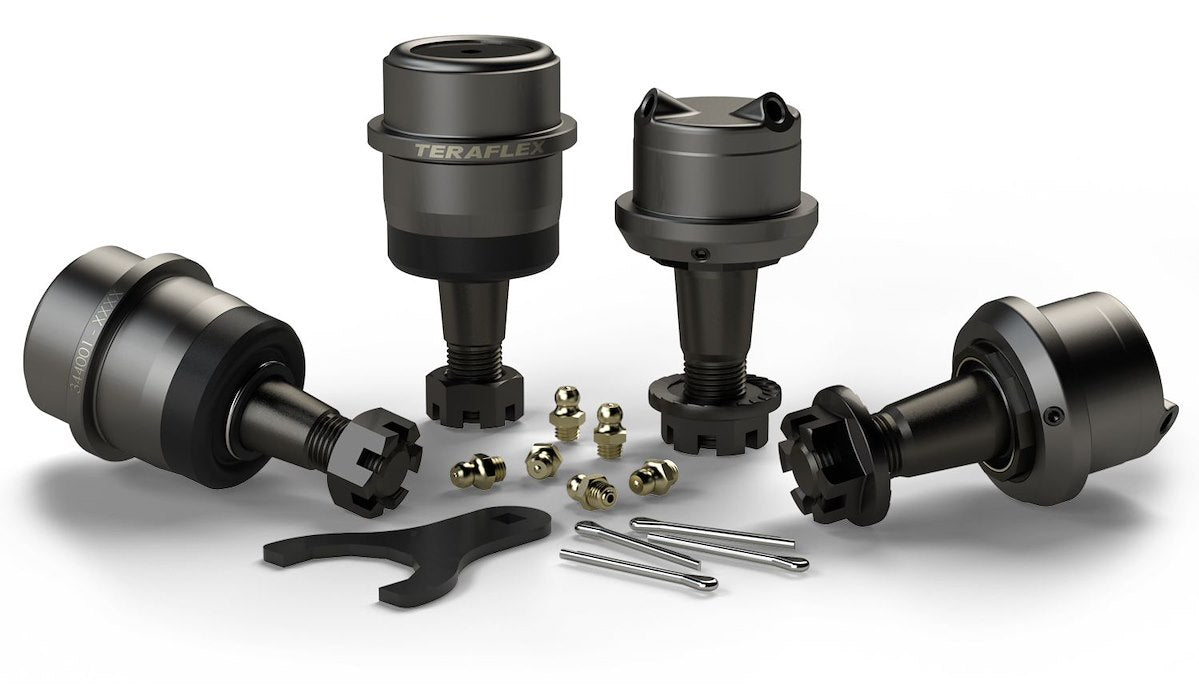

Teraflex Ball Joint, For Use With DANA 30/DANA 44 Axles, Set of 4 - 3442002

TeraFlex JK HD Ball Joints replace the weak factory ball joints that are unable to handle the demands of repeated off road use or larger tires. The ball joint studs are made from 4140 chrome moly steel for high hardenability and are heat treated to provide excellent fatigue and abrasion resistance. The weak factory plastic cups have been eliminated.

The upper ball joint has two sintered metal bearings to handle the rotational load and the lower ball stud rides in a metal cup that is threaded to provide for a precise pre-load. In-between the lower ball joint threaded cup and ball stud is a special plate spring made from high carbon tool steel for excellent wear resistance as the lower joint must bear the vehicle weight.

The lower ball joint also features an oversized flanged nut for a good bearing surface against the outer knuckle. Both ball joints have grease zerks that are easy to service. The lower ball joint has a special flush needle zerk that is offset for u-joint clearance and ease of maintenance.

Additional Details

• Magnesium Phosphate coating to inhibit corrosion throughout.
• Upper Ball Joint: Extremely hard sintered wear bushings to handle extreme side load demands without failure. Factory-style serrated flange nut and grease fitting.
• Lower Ball Joint: Hard alloy tool steel slotted wear plate for ball/ stud to socket wear protection.
• Wear plate features dual helical grease channels for increased flow through entire joint ensuring longevity and predictable operation.
• Factory-style serrated flanged castle nut.
• 30 Millimeter (1.18 Inch) adjustable ball stud for accurate initial and future preload adjustments using simple hand tools.
• Limited 1 year warranty.
• Press in style.
• With grease fittings.
• For use with DANA 30/ DANA 44 axles.
• With two upper and two lower ball joint.
